Powerful active loudspeaker in compact format

The Piega ACE 30 Rx Wireless is an active 2-way bookshelf loudspeaker that offers a complete hi-fi experience despite its compact dimensions. The integrated amplifier provides up to 100 watts of power per loudspeaker.

Typical Piega sound with AMT tweeter

The characteristic Piega sound is provided by the in-house chassis technology: a Piega AMT tweeter handles the finely resolved highs, while a 120/125 mm mid-woofer is responsible for powerful and controlled bass. This creates a lively, detailed sound image with clear vocal reproduction, fine nuances and sovereign dynamics.

Hi-Res audio and flexible input

The ACE 30 Rx Wireless supports audio resolutions up to 24 bit / 192 kHz, making it ideally equipped for high-resolution music sources. Classic hi-fi sources such as CD players or preamplifiers can be integrated via the analog RCA input. In addition, depending on the setup with the appropriate Ace Wireless hub, digital connections such as coaxial, optical, HDMI eARC or network are available to conveniently integrate TV, streaming and other players.

Flexible combination of Ace 30 articles

The Piega Ace 30 RX can be flexibly combined with other components of the Ace Wireless series to form a completely wireless, high-resolution multiroom or home cinema system. In conjunction with a Piega Ace 30 TX (Transmitter) or the Ace Center Wireless, the RX loudspeakers are connected to all players via WiSA radio – whether TV, streaming client, CD player or network source. The TX acts as a central control unit: It receives audio sources via HDMI eARC, optical, coaxial, analog or network and transmits the signal wirelessly to the RX loudspeakers in the highest quality. This means that the Ace 30 RX can be used not only as an independent stereo pair, but also as surround, rear or additional zone loudspeakers in larger systems – completely without loudspeaker cables. This modular architecture makes the Ace Wireless concept extremely versatile: from a slim 2.0 stereo setup to 2.1 and 5.1 to complex 7.1 home cinema configurations, everything can be freely combined.

Customizable sound for every room

Three sound filters allow the reproduction to be adapted to the installation location – for example, free in the room, close to the wall or on a shelf. This ensures you always get the best out of the loudspeaker, regardless of the room acoustics and positioning.

High-quality design "Made in Switzerland"

The slim aluminum housing is available in three modern colors: black, silver or white. The combination of noble material feel, compact dimensions and Swiss manufacturing quality makes the ACE 30 Rx Wireless a high-quality solution for demanding, design-oriented music lovers, both visually and acoustically.

Technical Data

• Principle: Active 2-way bookshelf speaker
• Amplifier power: 100 watts per channel (total)
• Frequency range: 35 – 25,000 Hz
• Resolution: up to 24 Bit / 192 kHz
• Driver complement:
  • 1 × Piega AMT tweeter
  • 1 × 125 mm mid-woofer

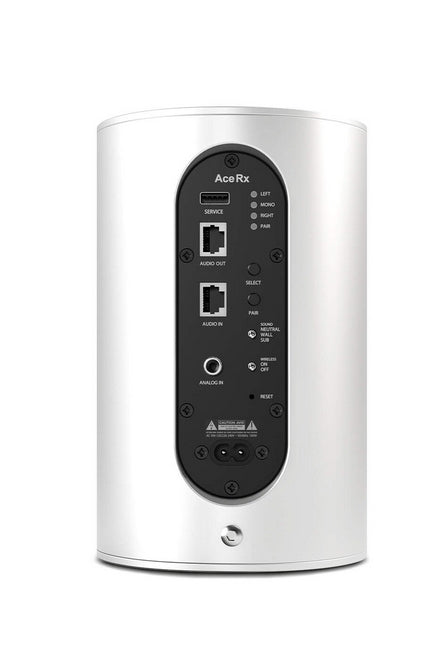

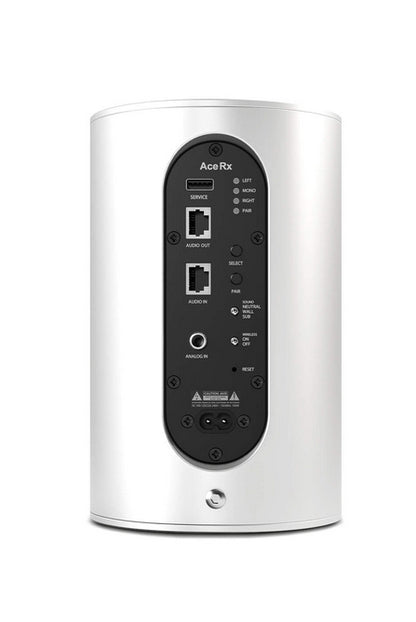

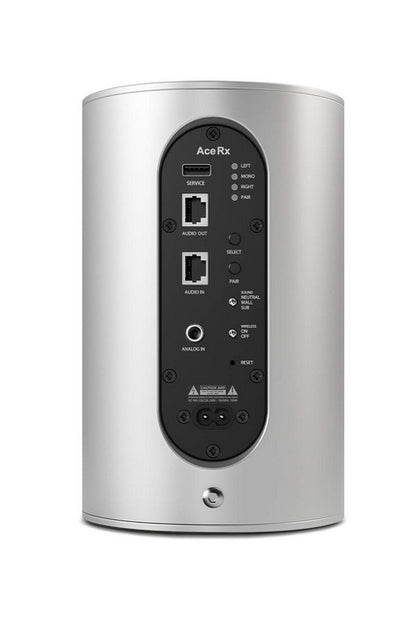

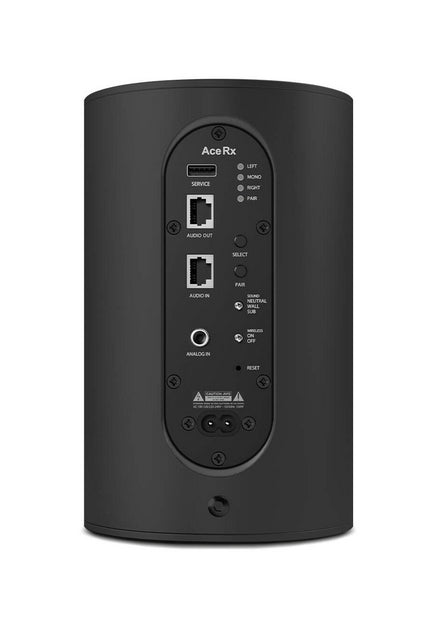

• Connections:
  • 1 × RCA (analog)
  • 1 × USB-A (service only)
  • (System-side Ace Wireless: incl. HDMI eARC, coaxial, optical, network, AUX 3.5 mm, remote, WiFi connection)
• Placement: Table, shelf
• Series: Piega Ace Wireless
• Mains voltage: 100 – 240 V, 50/60 Hz
• Dimensions (L × W × H): 14.00 × 16.00 × 22.00 cm
• Item weight: 3.40 kg
• Finishes / Colors: Black, Silver, White

Special Features

• Active 2-way bookshelf speaker with integrated 100-watt amplifier
• Hi-Res audio playback up to 24 Bit / 192 kHz
• Piega's own driver technology for the typical, finely resolved Piega sound
• AMT tweeter for detailed highs and clear transparency
• 120/125 mm mid-woofer for powerful, precise bass reproduction
• Three sound presets for adaptation to the placement location
• Wireless connection to WiSA-compatible TVs – Stereo or up to 7.1 home cinema
• Elegant aluminum housing in three color variants
• Swiss development and manufacturing – Made in Switzerland

Scope of delivery

• Piega ACE 30 Rx Wireless Speaker
• Power cable
• Documents (operating instructions / documentation)
