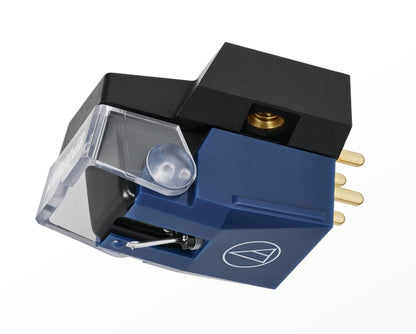

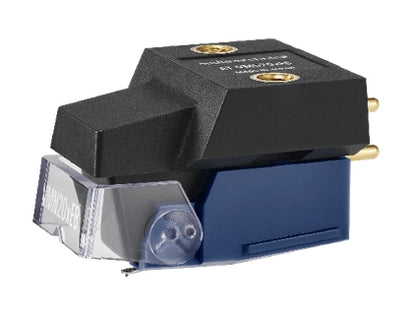

The AT-VMx series represents a new generation of moving magnet cartridges, inspired by the precision of professional cutting heads used in the production of vinyl master records. This concept – the so-called Dual Moving Magnet technology with vertical arrangement – precisely mirrors the 90° V-structure of the cutting head. Two magnets image the left and right channels of the record groove, creating a particularly realistic stereo image with outstanding channel separation and clear spatiality.

The AT-VM520xEB is equipped with an elliptical, bonded diamond stylus (0.3 × 0.7 mil) that precisely traces the groove walls, thereby extracting more detail from the music than a conical stylus. The result is an authentic, finely resolved sound with excellent high-frequency reproduction and a stable mid-range – ideal for discerning listeners who prefer a clear, balanced vinyl sound.

The heart of the system is the para-toroidal generator, in which two PCUHD® (Pure Copper Ultra High Drawability) copper coils are connected in series for each channel. This design ensures higher efficiency and particularly clean signal processing. A central shielding plate between the channels reduces crosstalk and improves channel balance, while the reduced coil winding optimizes impulse response – for a fast, dynamic, and spatial sound.

The low-resonance polymer housing and the hollow aluminum cantilever ensure mechanical stability and low vibration. With integrated threaded inserts, the cartridge can be mounted conveniently and securely – without nuts. The V-shaped cutout in the protective cap also provides an unobstructed view of the stylus tip, making it easier to precisely lower it onto the record.

The AT-VM520xEB thus represents the perfect balance between technical precision and musical expression – crafted with the highest Japanese engineering artistry.

Specifications

• System Principle: Dual Moving Magnet (MM)
• Stylus Profile: Elliptical, bonded (0.3 × 0.7 mil)
• Replaceable Stylus: Yes
• Output Voltage in mV: 5.0 mV (1 kHz, 5 cm/s)
• Tracking Force in mN: 18 – 22 mN (Standard: 20 mN)
• Cartridge Weight (grams): 7.2 g
• Compliance in µm/mN (Stylus Compliance): Static: 23 µm/mN • Dynamic: 7 µm/mN (100 Hz)
• Mounting: Half-inch (Half-Inch Standard, M2.6 threaded hole)

Special Features

• Dual magnet system based on the cutter head principle for precise channel separation
• Elliptical, bonded diamond stylus for precise groove tracing
• Para-toroidal coil construction with PCUHD® copper wire for maximum signal purity
• Optimized coil winding for improved impulse response
• Central shielding plate for minimal crosstalk
• Low-resonance polymer housing
• Easy installation due to integrated threaded inserts
• V-shaped protective cap with clear view of the stylus tip
• Compatible with all half-inch headshells and AT-VMx replacement styli*

* Except mono models

Scope of Delivery

• Audio-Technica AT-VM520xEB Cartridge
• Mounting screws M2.6 (5 mm × 2, 8 mm × 2, 10 mm × 2)
• 2 washers
• Protective cap with V-cutout
