Description

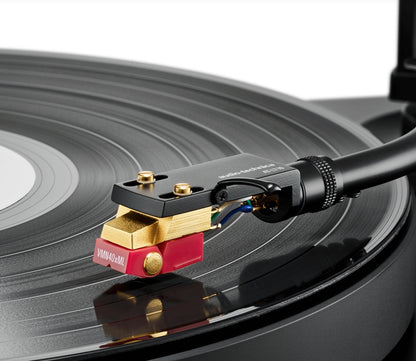

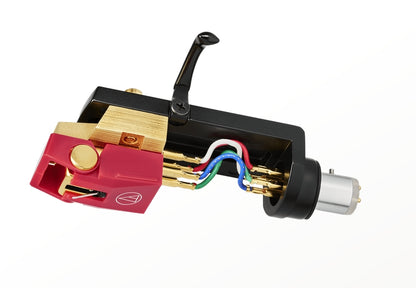

With the AT-VM740xML/H, Audio-Technica introduces a high-quality combo set, consisting of the AT-VM740xML dual moving magnet cartridge and the pre-mounted AT-LT10 universal headshell. This combination was developed to ensure the highest precision, excellent channel separation, and detailed music reproduction – ideal for discerning listeners and audiophile applications.
The AT-VM740xML cartridge is based on the proven dual moving magnet principle, which mimics the design of a cutting head for vinyl master records. Two precisely positioned magnets reproduce the geometry of the groove walls, allowing for precise tracking with excellent channel separation and extended frequency response.
The Microlinear stylus traces the record groove with the highest accuracy and reduces distortion even in the inner grooves. The tapered, hollow aluminum cantilever ensures minimal mass at the stylus tip and precise signal transmission.
Thanks to the para-toroidal coil construction with dual PCUHD® copper coils (Pure Copper Ultra High Drawability), the cartridge excels with excellent transient response and the finest detail resolution.
The low-resonance die-cast aluminum housing minimizes unwanted vibrations and ensures maximum stability.
Integrated threaded inserts facilitate mounting, while the V-shaped cutout of the protective cap allows for a precise view of the stylus – ideal for exact handling and safe operation.
The pre-mounted AT-LT10 die-cast aluminum headshell provides a solid base, is lightweight, torsion-resistant, and equipped with oxygen-free OFC cables to ensure lossless signal transmission.
Properties
Technical Data
- System Principle: MM (Dual Moving Magnet)
- Stylus Cut: Microlinear, nude
- Stylus Replacement Possible: Yes (AT-VMN40xML)
- Output Voltage in mV: 3.2
- Tracking Force in mN: 18 – 22 (Standard: 20)
- Cartridge Weight (Gram): 20.3
- Compliance in µm/mN (Stylus Compliance): 20 (static) / 7 (at 100 Hz)
- Mounting: Half-inch
Special Features
- Microlinear stylus for highest precision and minimal distortion
- Para-toroidal coil construction with high efficiency
- PCUHD® copper wire for fine, natural audio reproduction
- Die-cast aluminum housing for resonance reduction
- Conical, hollow aluminum cantilever for exact signal transmission
- V-shaped stylus guard cutout for precise stylus lowering
- Pre-mounted on universal headshell AT-LT10
- Ultra-light system carrier made of die-cast aluminum
- Headshell cables made of oxygen-free copper (OFC)
- Elongated slots for precise overhang adjustment
- Compatible with all headshells for half-inch cartridges
- Compatible with all AT-VMx replacement styli (except
mono models)
Scope of Delivery
- Audio-Technica AT-VM740xML cartridge (pre-mounted on headshell AT-LT10)
- Mounting screws M2.6 (10.0 mm)
- Washers
- Non-magnetic screwdriver
- Brush
Manufacturer information
AT-VM740xML/H (microlinear) on LT10 Headshell
The Audio-Technica AT-VM740xML/H combines the high-precision AT-VM740xML Dual Moving Magnet cartridge with the pre-mounted AT-LT10 universal headshell. As part of the VMx series, this set offers audiophile performance, fine detail resolution, and exceptional clarity. With its Microlinear stylus, die-cast aluminum housing, and precise assembly, it is the perfect solution for vinyl lovers seeking the highest precision and dynamic musicality.
