With the new 800 Series for its 60th anniversary, Bowers & Wilkins underscores its commitment to uncompromising perfection. The interplay of diamond tweeters, Space Frame Bracing, and proven developments from the Signature Series redefines audiophile peak performance.

Center channel for a powerful home theater experience

The Bowers & Wilkins HTM81 D5 is the powerful center speaker of the 800 Series Diamond 5 and is particularly well suited for combination with the 801 D5 or 802 D5. In home theater, the center channel plays a central role and ensures that movies appear with more depth, clarity, and life.

Technologies from the 800 Series Diamond 5

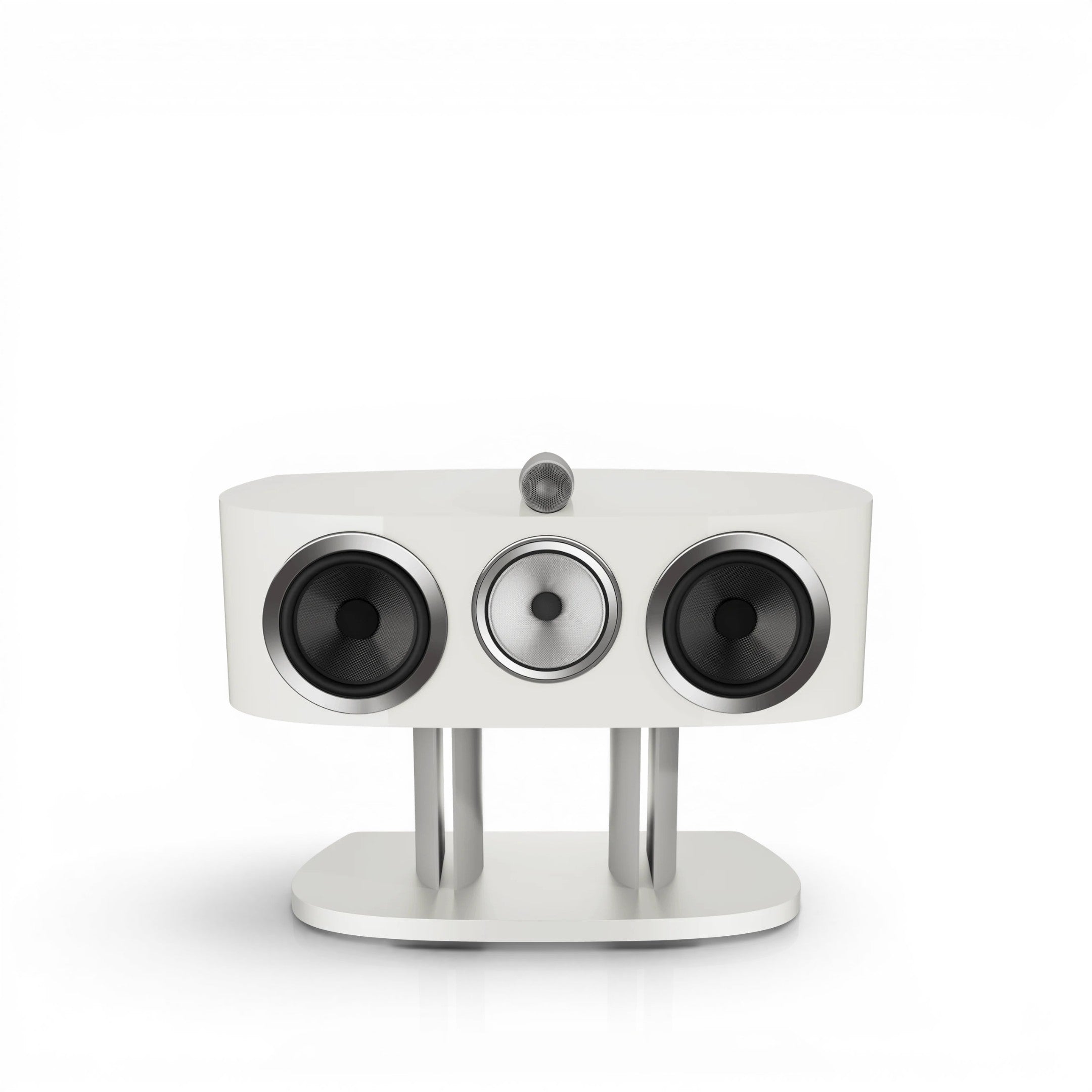

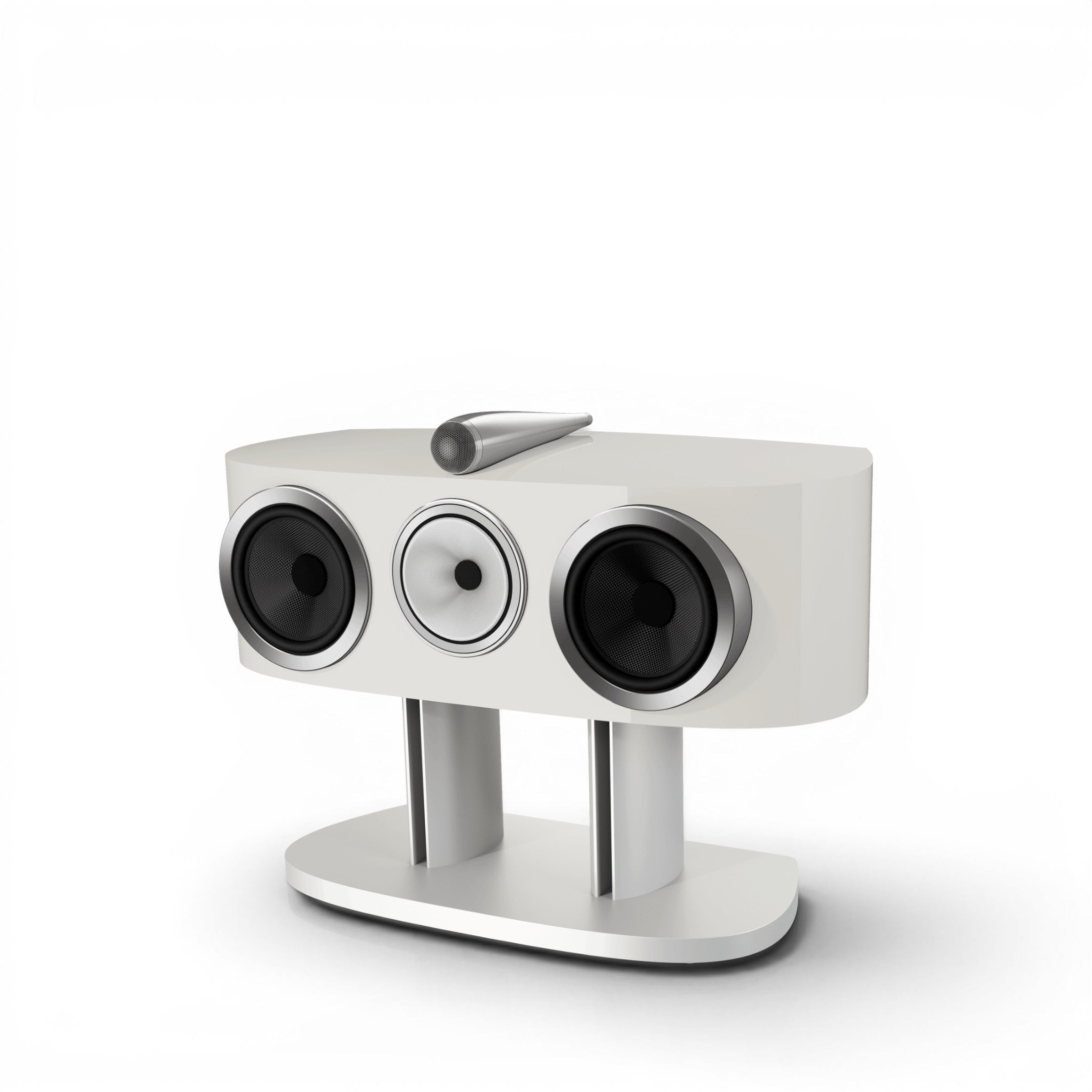

The HTM81 D5 utilizes core technologies from Bowers & Wilkins' flagship products. These include the Diamond dome tweeter, the Tweeter-on-Top design with a solid housing, a decoupled Continuum diaphragm FST midrange driver, and two Aerofoil bass diaphragms.

3-way setup with passive operation

The HTM81 D5 is designed as a 3-way bass-reflex system. Treble, mid-range, and bass are thus distributed to specialized drivers. The speaker operates passively and therefore requires a suitable amplifier. We recommend a minimum amplifier power of 50 W at 8 ohms to avoid distortion (clipping).

Recommended room size

The center is designed for medium to large rooms. We recommend a room size of at least 25 to a maximum of 60 square meters. This ensures that the center does not boom and provides the intended depth staging.

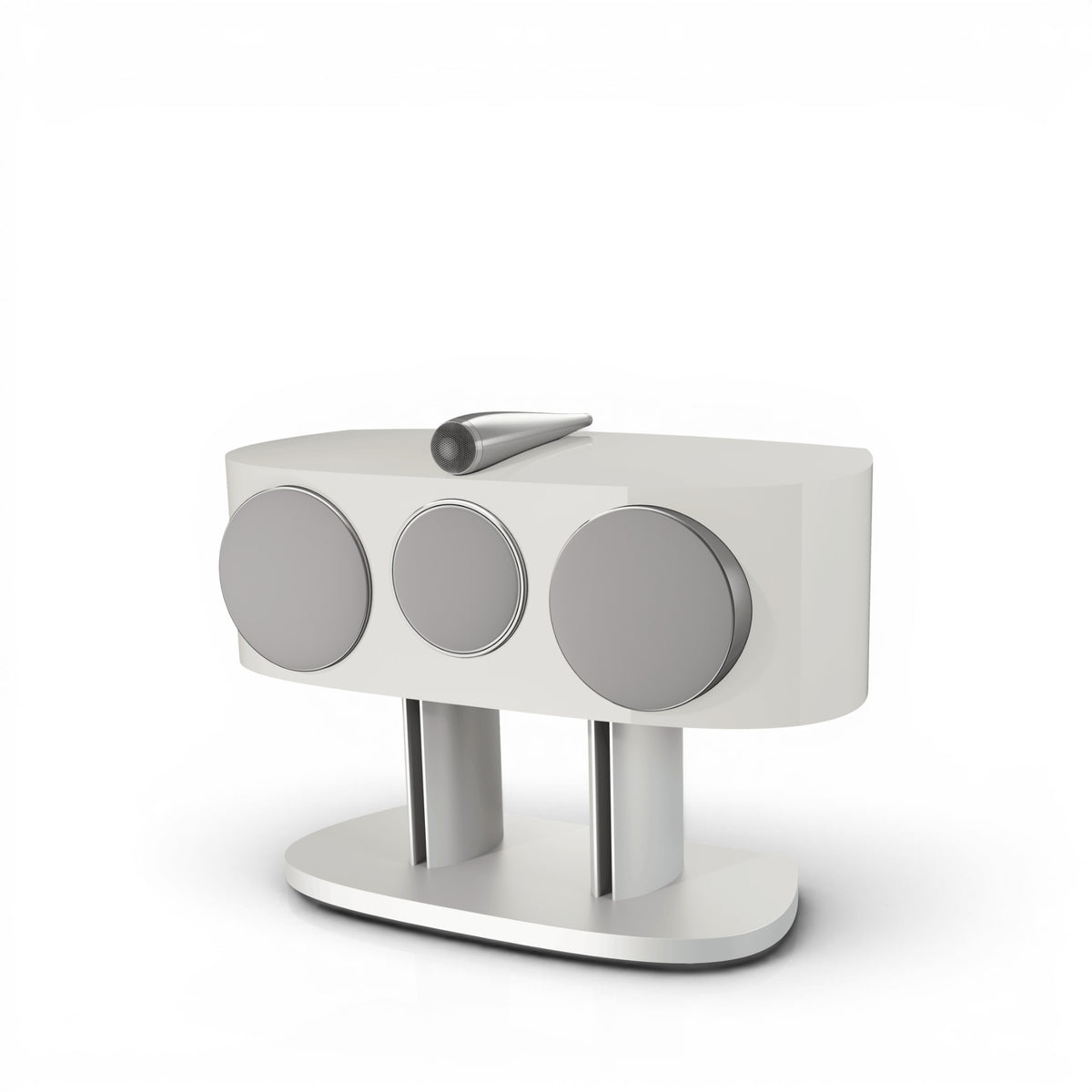

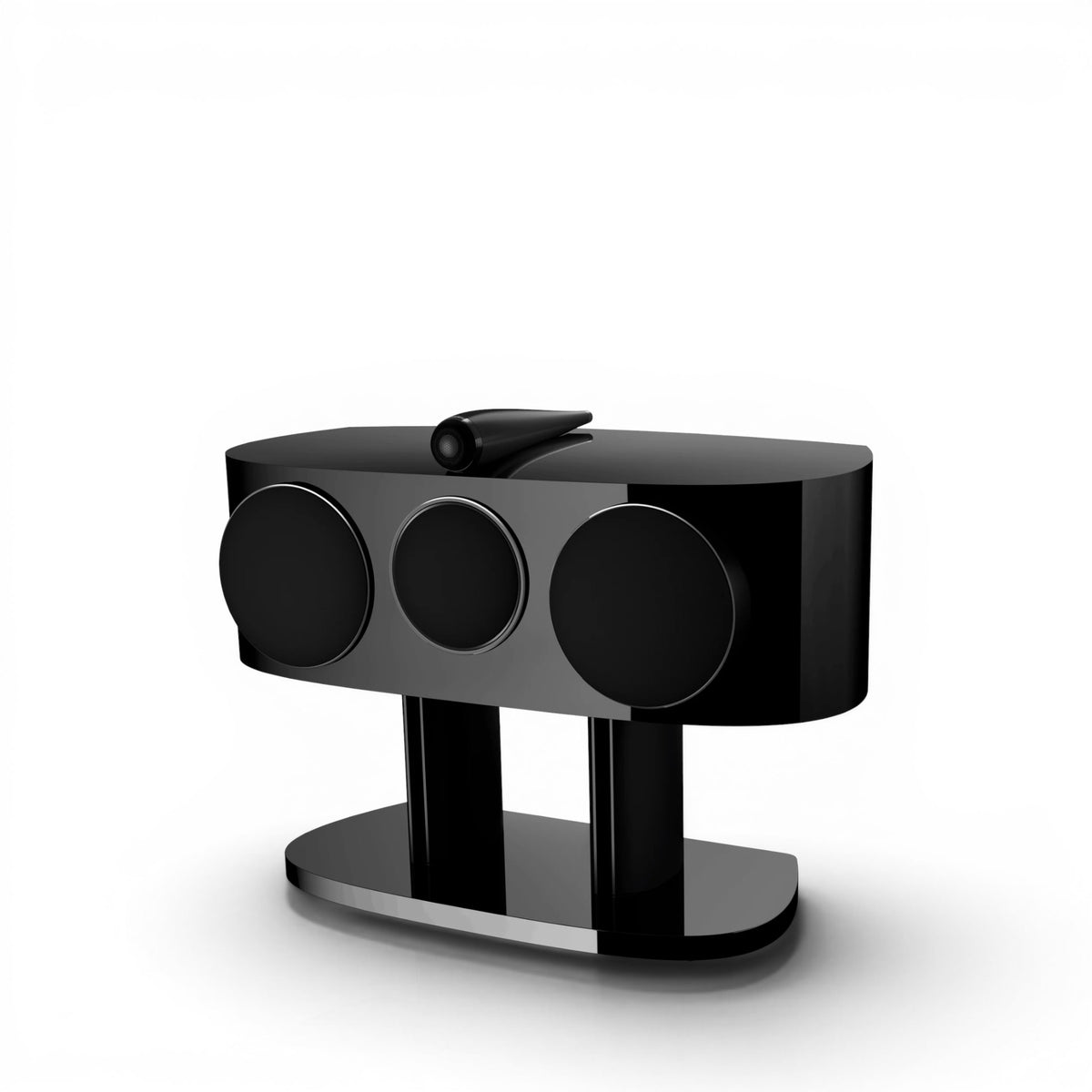

Placement and finishes

For seamless installation, a suitable stand is optionally available. Alternatively, the center can also be placed freely on a lowboard or in a shelf. Rubber feet are included for this placement to prevent abrasion on the housing. Stealth Black and Warm White finishes are available.

Pros and Cons at a Glance

Reasons to choose the HTM81 D5:

• Diamond dome tweeter and Tweeter-on-Top design
• Continuum diaphragm FST midrange driver
• Two Aerofoil bass diaphragms
• 3-way bass-reflex system
• Optional matching stand available

What buyers should know about the HTM81 D5:

• Passive speaker, therefore an amplifier is required
• Minimum amplifier power: 50 W at 8 ohms

Specifications

General

• Product Type: Passive Center Speaker
• Design: 3-Way Bass Reflex System
• Dimensions W × H × D: 84.6 × 33.4 × 36.3 cm
• Note on Dimensions: Height including tweeter, Width is cabinet only, Depth including grille and terminals
• Weight: 33.35 kg
• Frequency Range: 20 Hz – 35 kHz (-6 dB)

Technical Features

• Diamond Dome Tweeter
• Tweeter-on-Top Design with Solid Body
• Continuum™ Cone FST Midrange
• Anti-Resonance Plug
• Biomimetic Suspension
• Matrix™
• Aerofoil™ Cone Bass Drivers
• Flowport™

Audio

• Frequency Response: 28 Hz – 28 kHz ± 3 dB
• Sensitivity: 90 dB
• Harmonic Distortion: 2nd and 3rd harmonic, 90 dB, 1 m
• Harmonic Distortion: < 1% at 90 Hz – 20 kHz
• Harmonic Distortion: < 0.3% at 100 Hz – 8 kHz
• Impedance: 8 O nominal, Minimum 3.0 O
• Recommended Amplifier Power: 50 W – 500 W into 8 O, unclipped
• Maximum Recommended Cable Impedance: 0.1 O

Connections

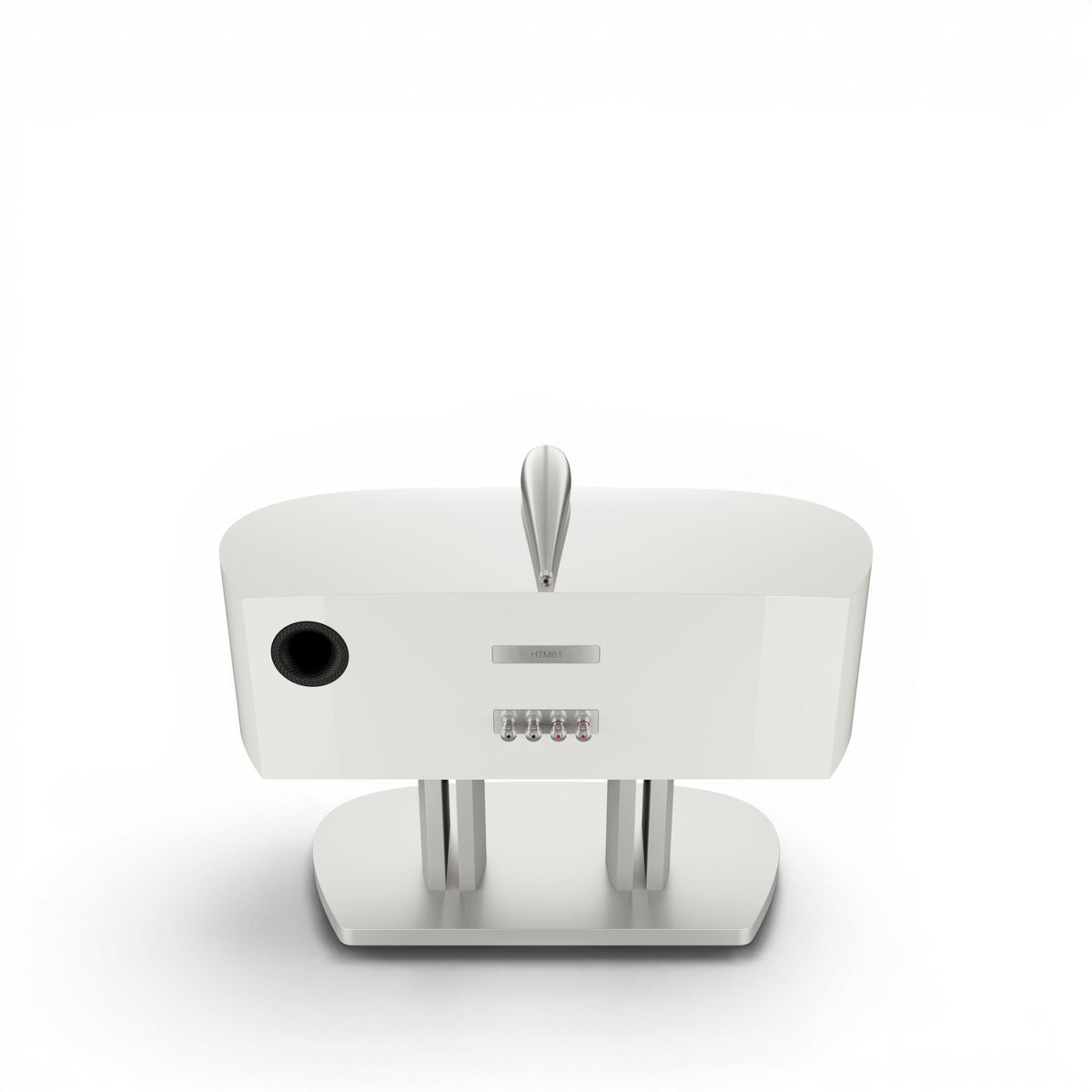

• Connection Terminals: Present
• Specific Connection Type: Not supplied

Finishes and Accessories

• Cabinet Finishes: Stealth Black, Warm White
• Grille Finishes: Black for Stealth Black, Grey for Warm White
• Accessories: FS-HTM
• Stand Finish: Black / Titanium

Scope of Delivery

• B&W HTM81 D5
• Grilles
• Jumper Cables
• Rubber Feet
• Foam Plugs
• Documentation

• Datenblatt
• Datenblatt
