3D home cinema sound for your home

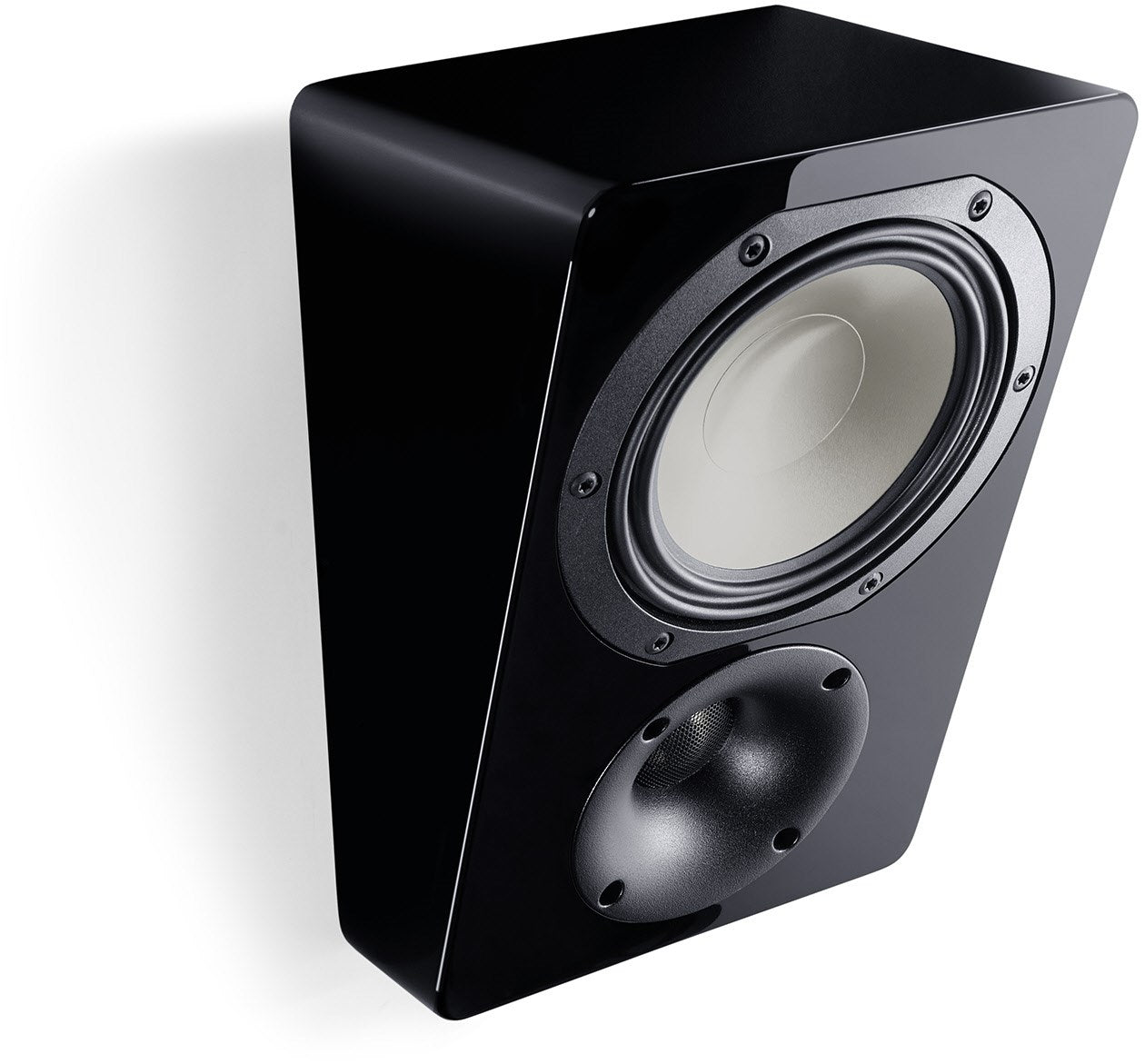

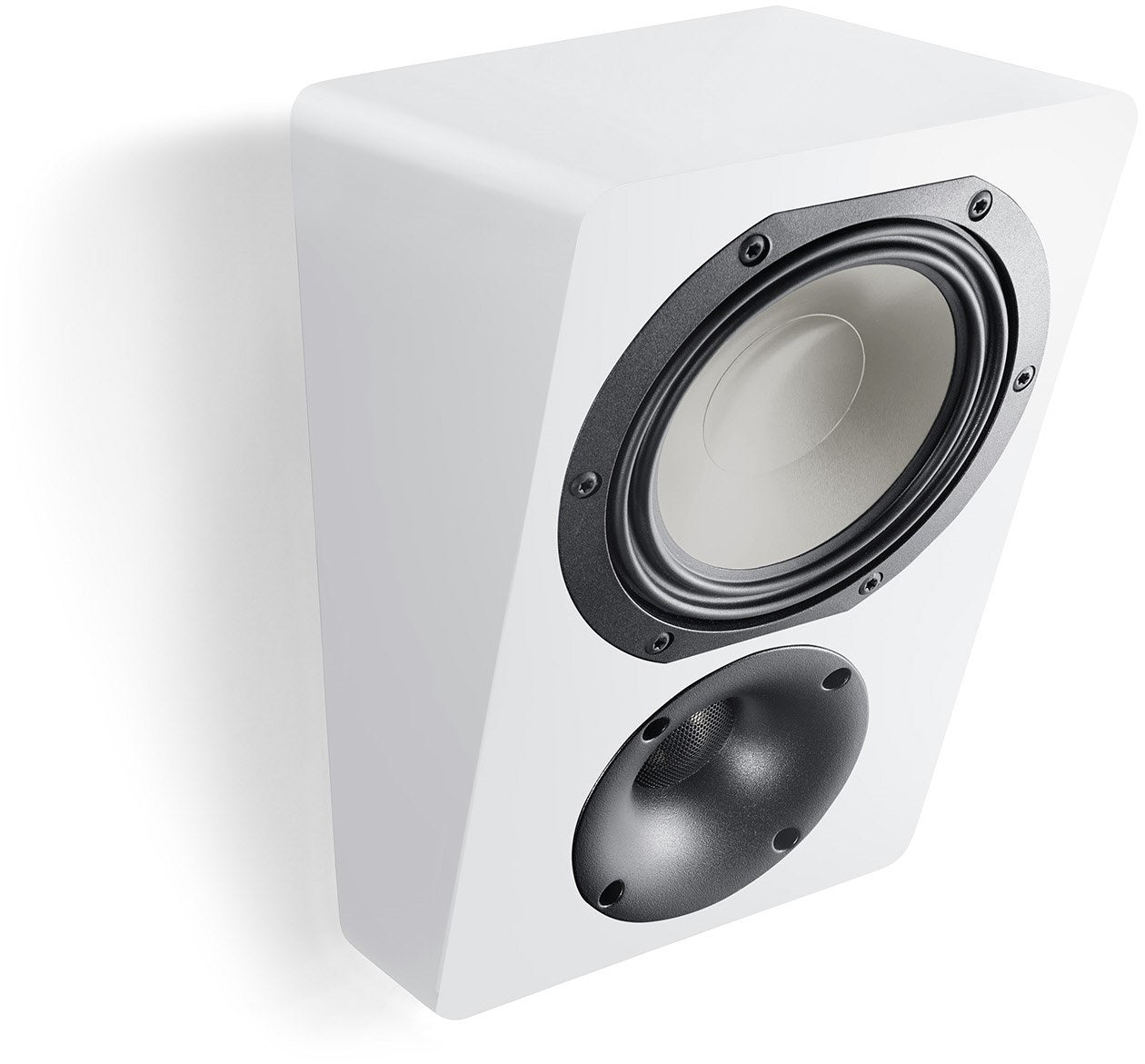

With this Dolby Atmos loudspeaker, which is perfectly matched both visually and technically to the Townus series, you can expand your home cinema with cinema sound from the third dimension. The Townus AR-5 Dolby Atmos Enabled Speakers are optimally equipped with high-quality titanium and aluminium-manganese membranes, the latest generation of Wave surrounds and selected crossover components. The result: unique and unadulterated Canton sound with high load capacity and compact dimensions. They can be used universally as an add-on speaker for your home cinema system or as a stereo or effect speaker with wall mounting. Rounded cabinet edges, the screwless integration of the drivers into the baffles, and the elegant fabric covers give the Townus AR-5 a highly attractive appearance – a welcome enrichment for your home cinema system.

Best Technology

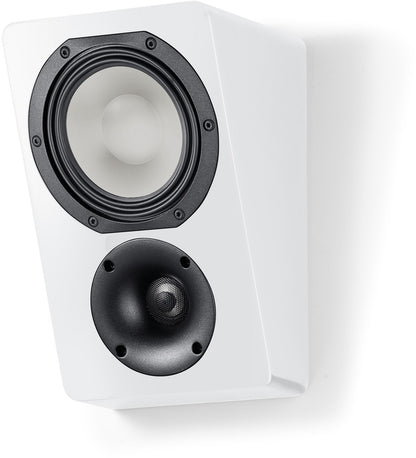

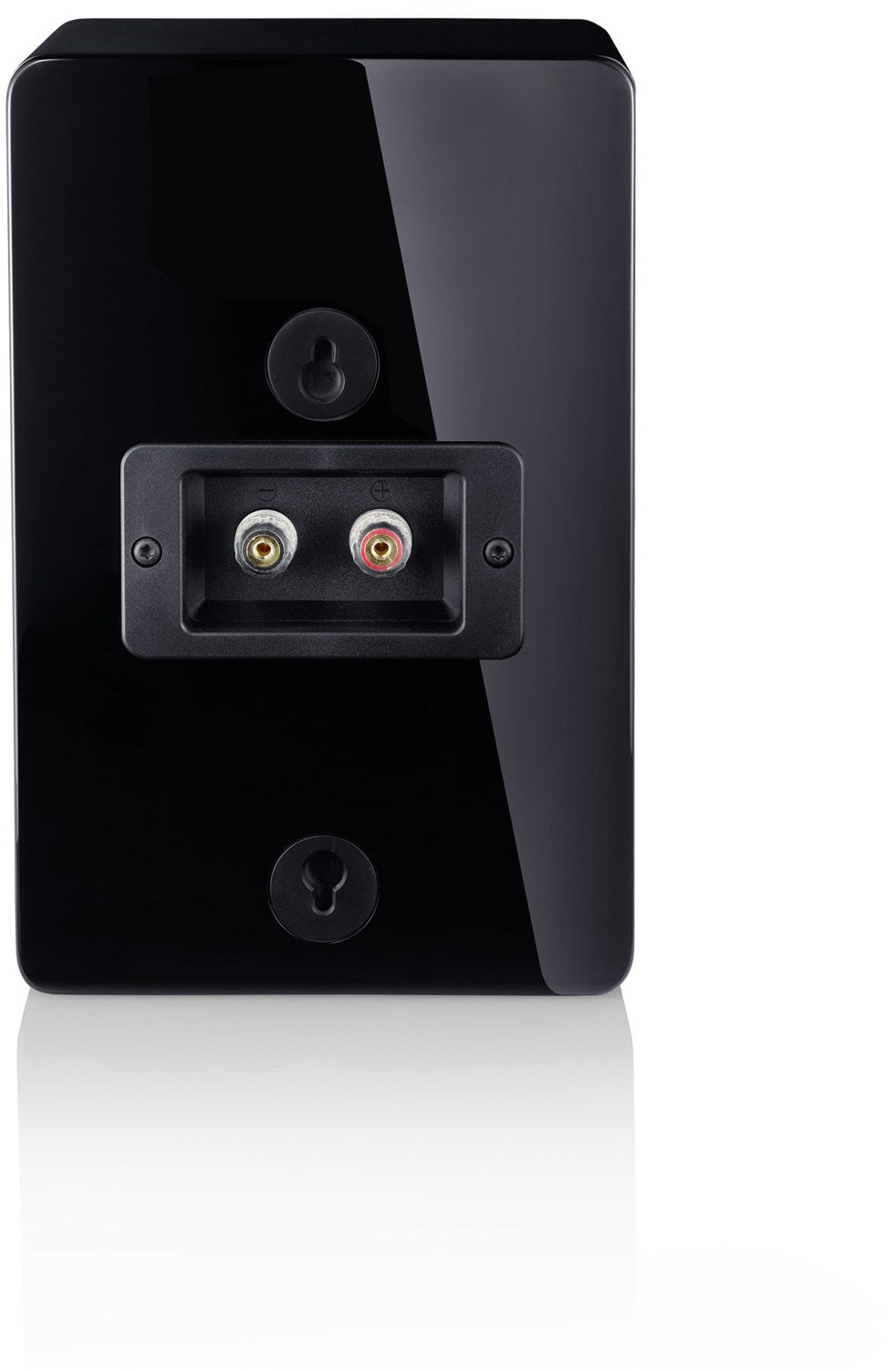

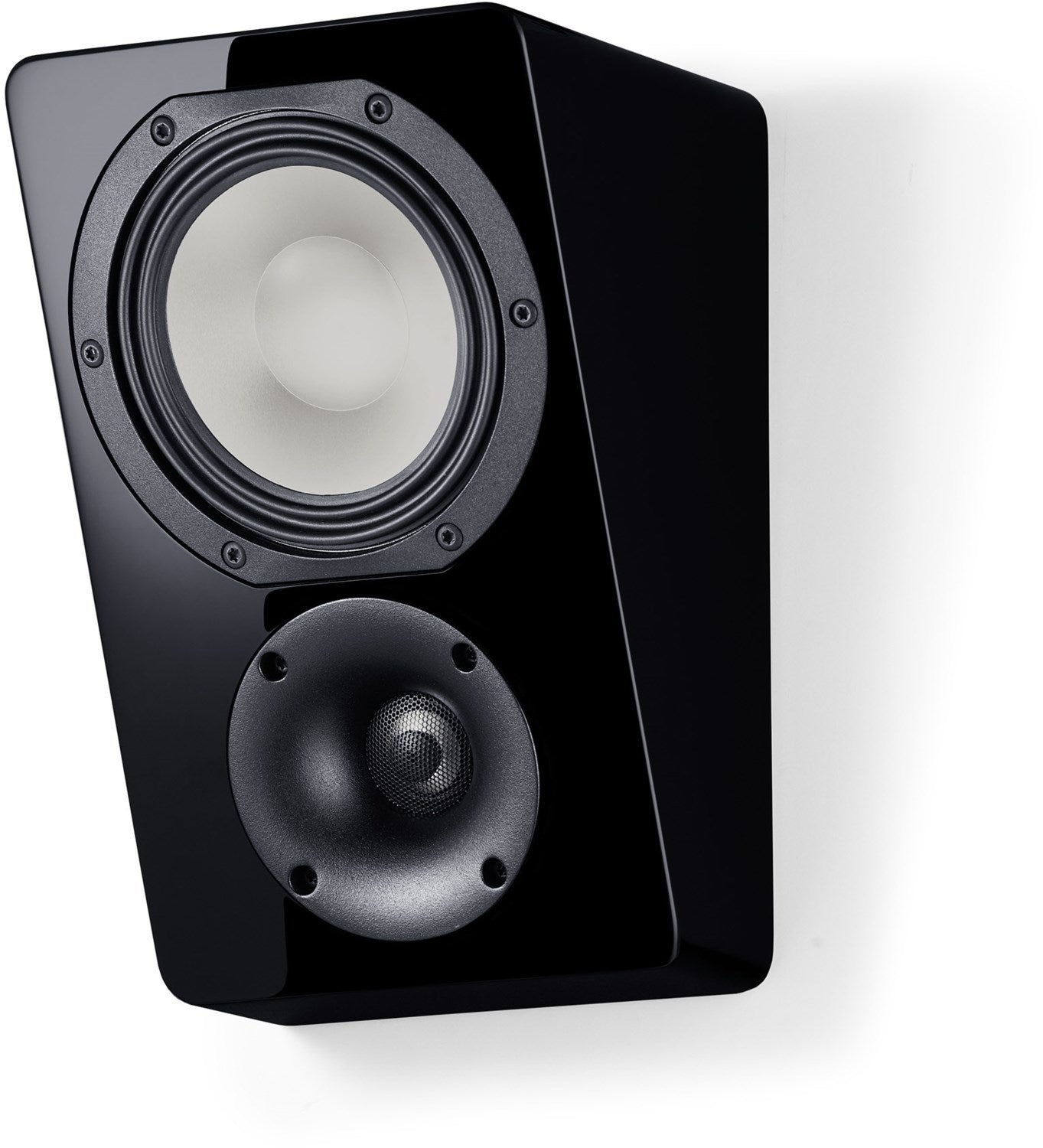

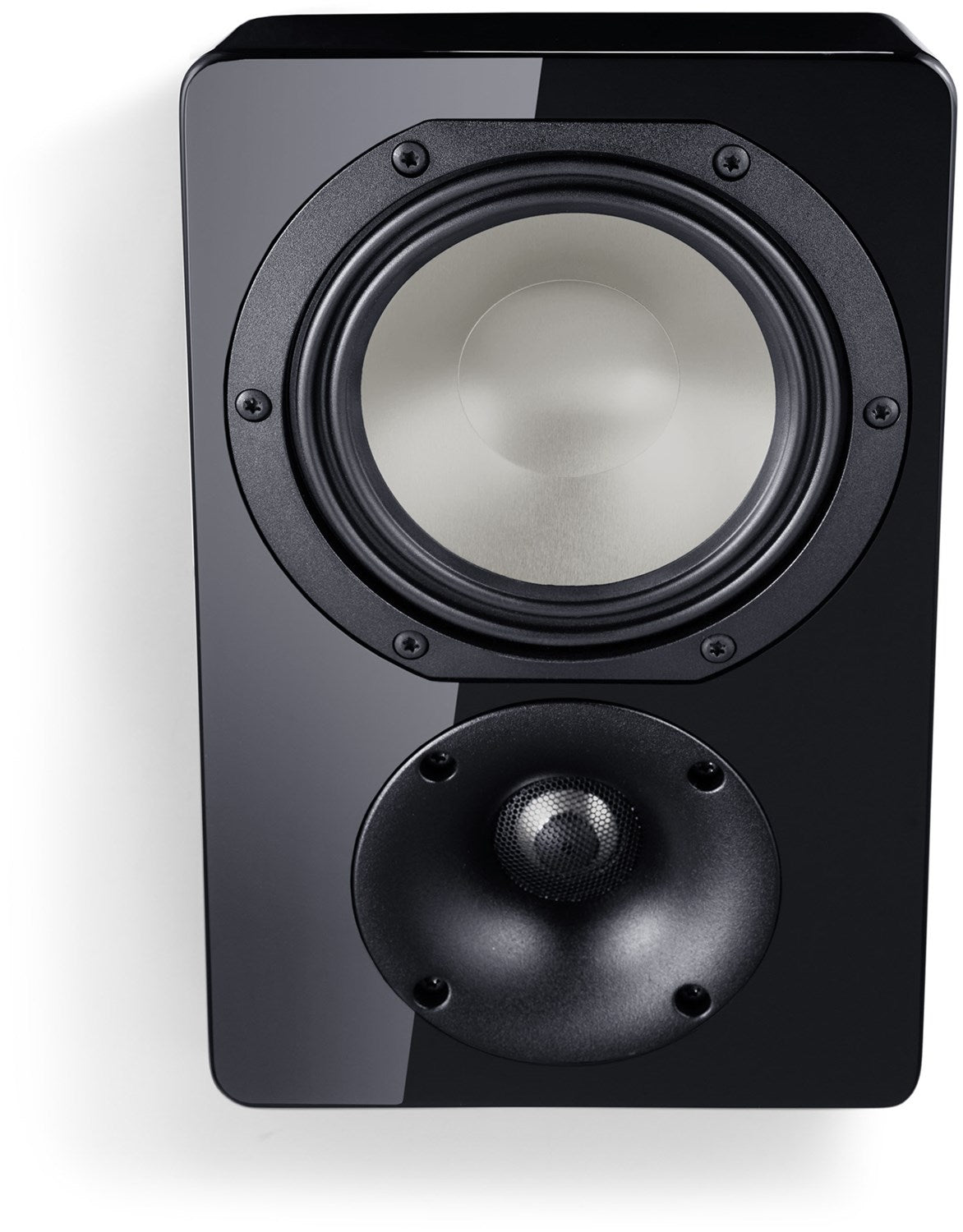

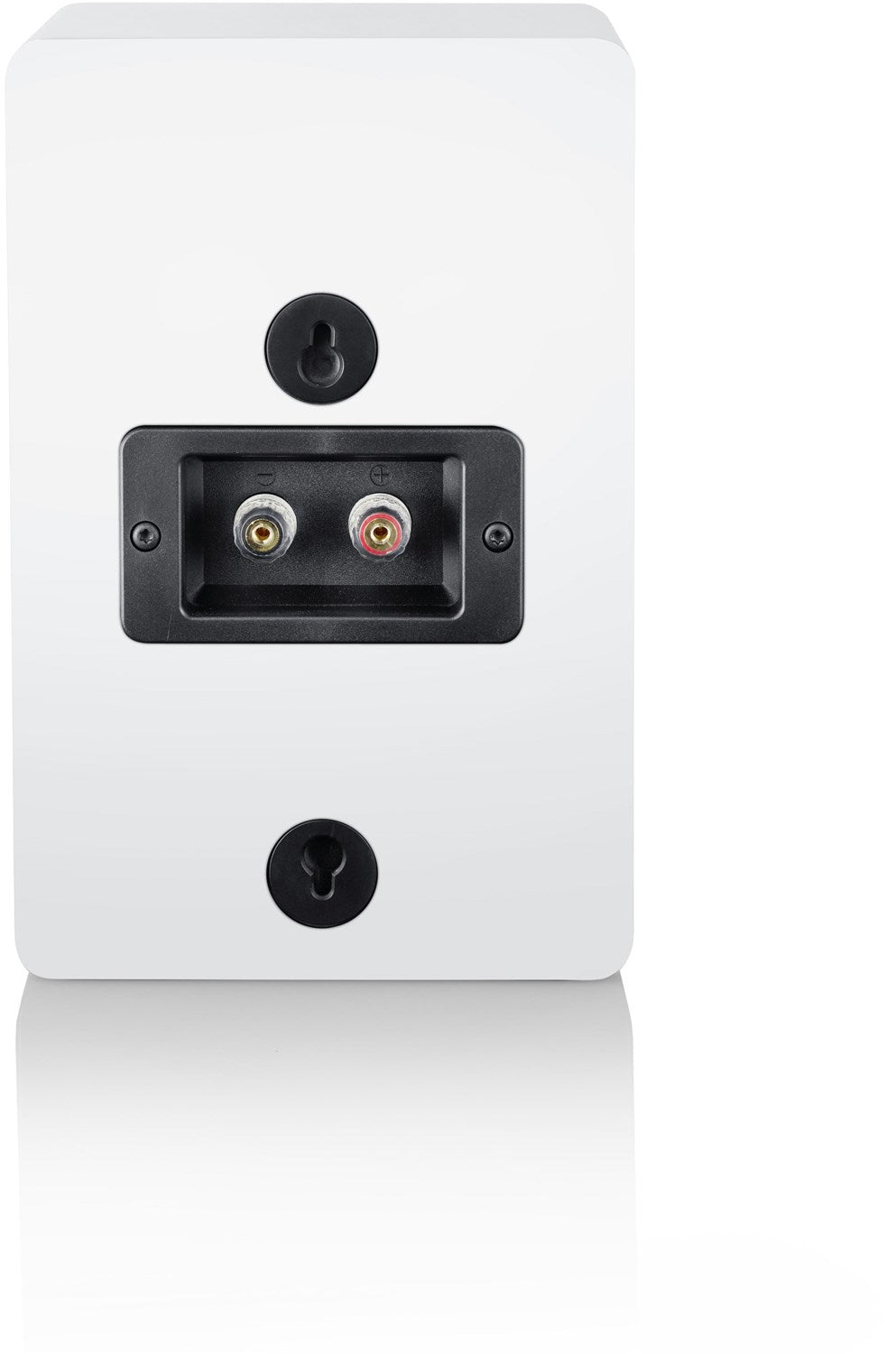

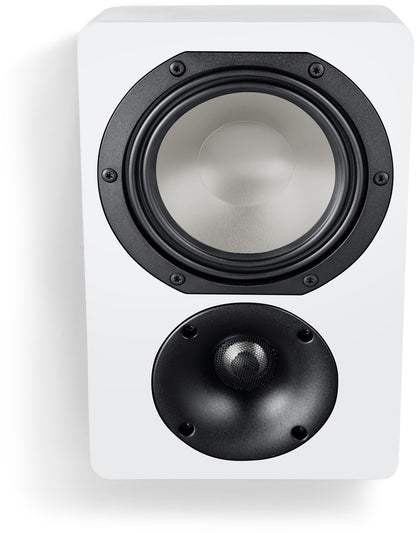

The Townus AR-5 are versatile 2-way compact loudspeakers: as "Dolby Atmos Enabled Speakers", they are placed on the front and/or rear speakers of your Townus home cinema system. Alternatively, the compact models can be used universally as stereo or effect speakers, either individually or in an existing home cinema system, mounted on the wall. The integrated wall bracket allows for easy wall mounting. In the closed Townus AR-5, we use excellent technical components: 154 mm titanium woofers and 25 mm tweeters with aluminium-manganese membranes and a Transmission Front Plate ensure excellent sound and optimal dispersion. The 24-carat gold-plated screw terminals with a capacity for cable cross-sections of up to 10 mm² guarantee maximum conductivity and long-term stable contact.

Elegant Cabinets

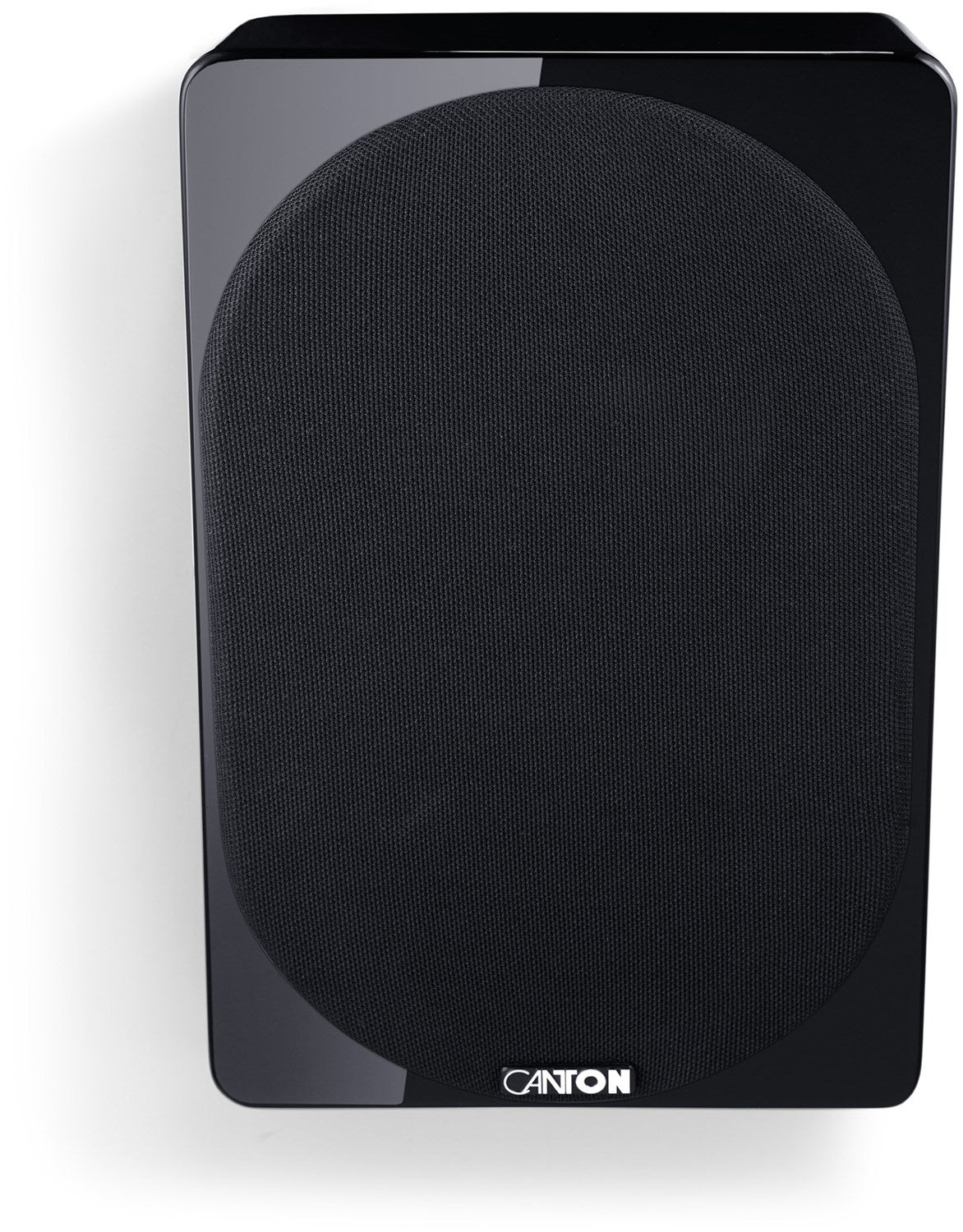

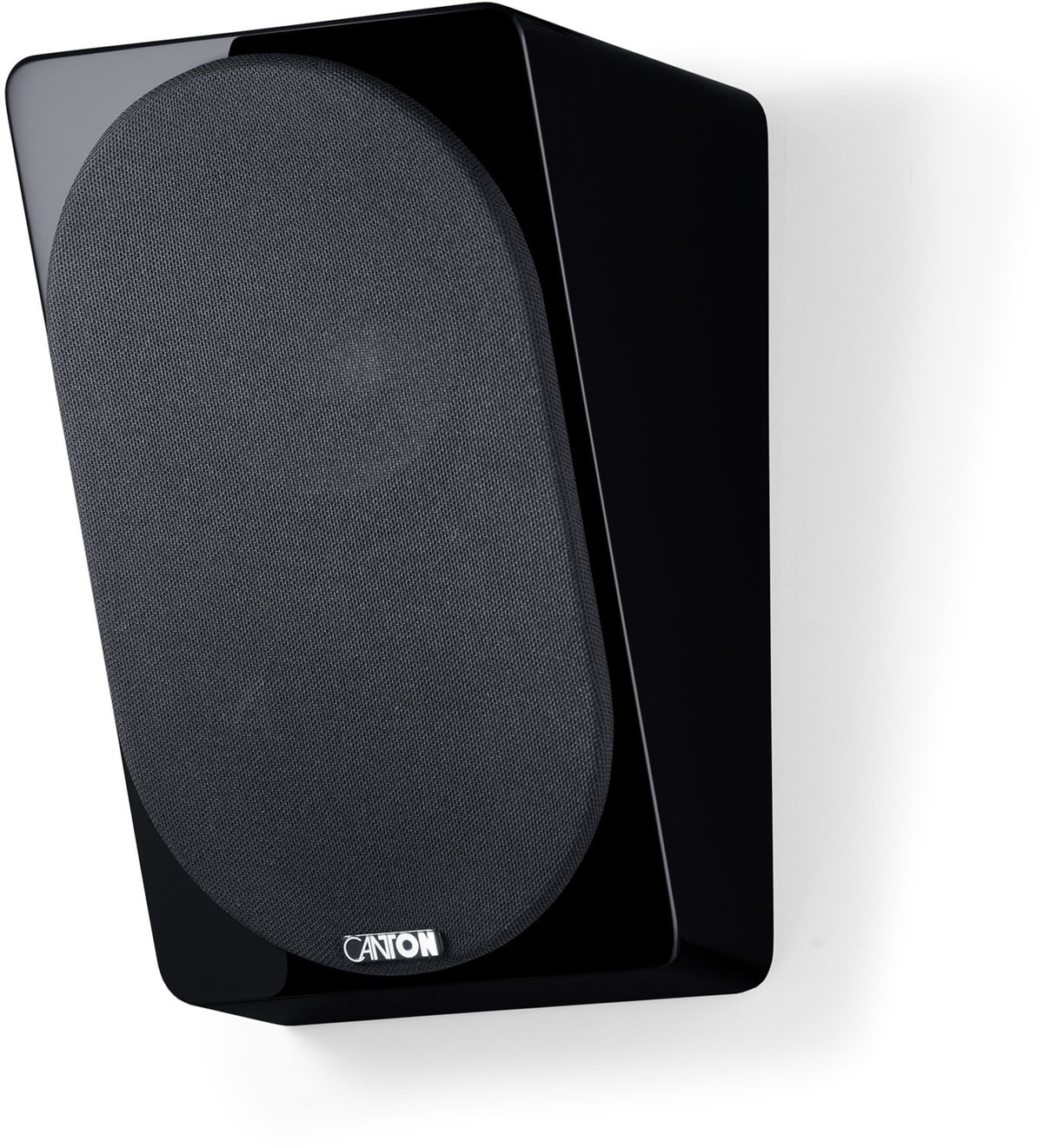

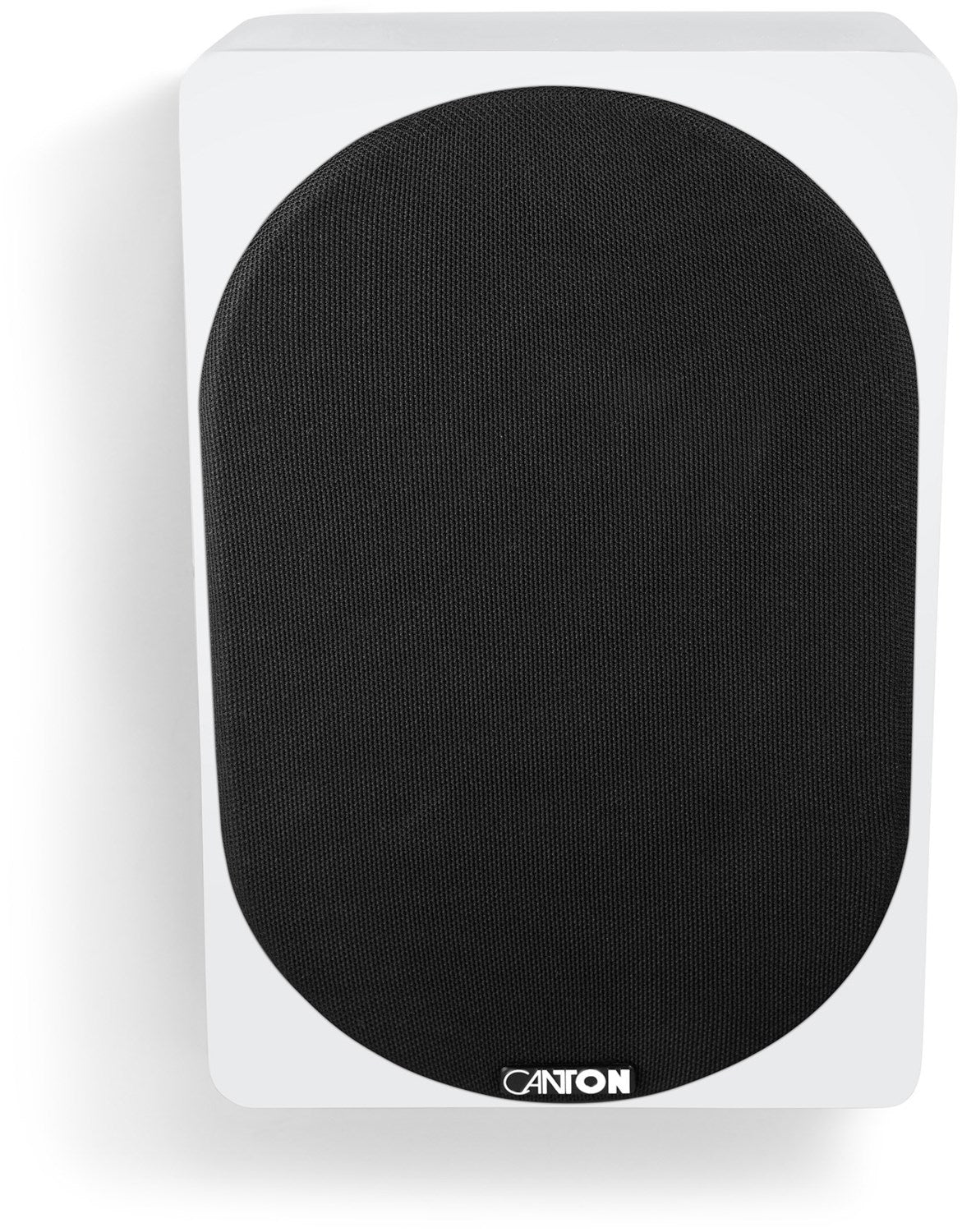

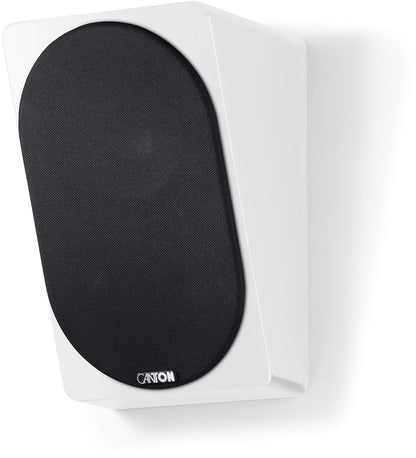

The compact Townus AR-5 are visually simple yet elegantly designed. They are, both visually and technically perfectly matched, an ideal complement to our Townus model series and also offer themselves as universal add-on speakers for a wide variety of bookshelf and floor-standing speakers. The sealed enclosures of the attractive Dolby Atmos speakers are extremely solid. The flawless surfaces in silk matte or high-gloss lacquers, as well as the elegant walnut real wood veneer with a perfect finish, underline the premium claim of the new Townus speaker series. Rounded, magnetically adhering fabric covers in black complete the simple, elegant and modern appearance of our Townus AR-5.

Usage
Dolby Atmos® Speakers

Nominal / Music Power Handling
60 / 100 Watts

Frequency Response
50…30,000 Hz

Crossover Frequency
3,200 Hz

Woofer
1 x 154 mm, Titanium (Wave surround)

Tweeter
1 x 25 mm, Ceramic

Impedance
4…8 Ohms

Dimensions (WxHxD)
17 x 14.5 x 26 cm (lying)

Weight
3.6 kg

Dolby Atmos® licensed
integrated wall mount

Box Contents
Canton AR 5 (Pair)
Device Feet
Oval Fabric Cover
Instruction Manual

Packaging
25 x 50.5 x 38.5 cm

Weight including packaging
7.8 kg
