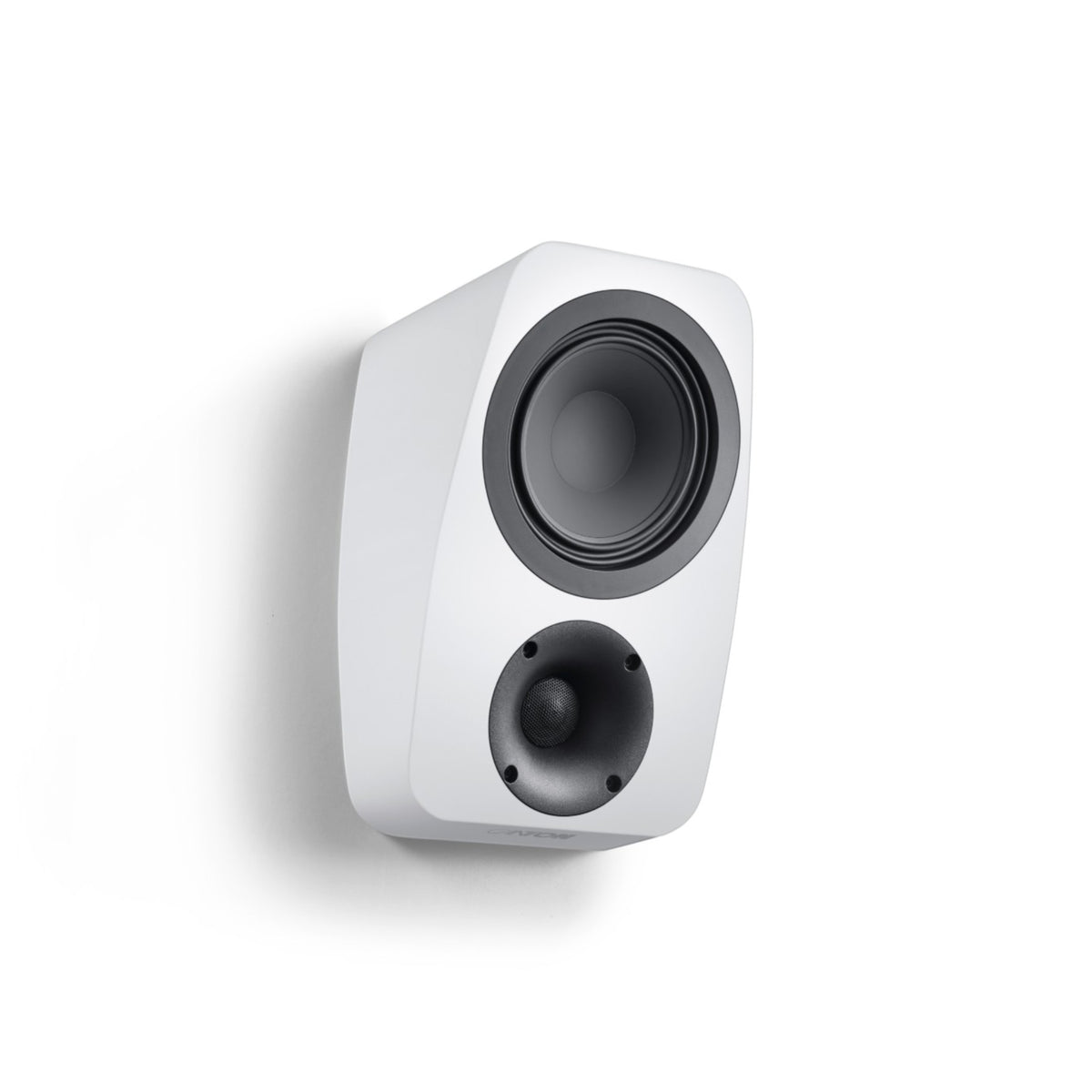

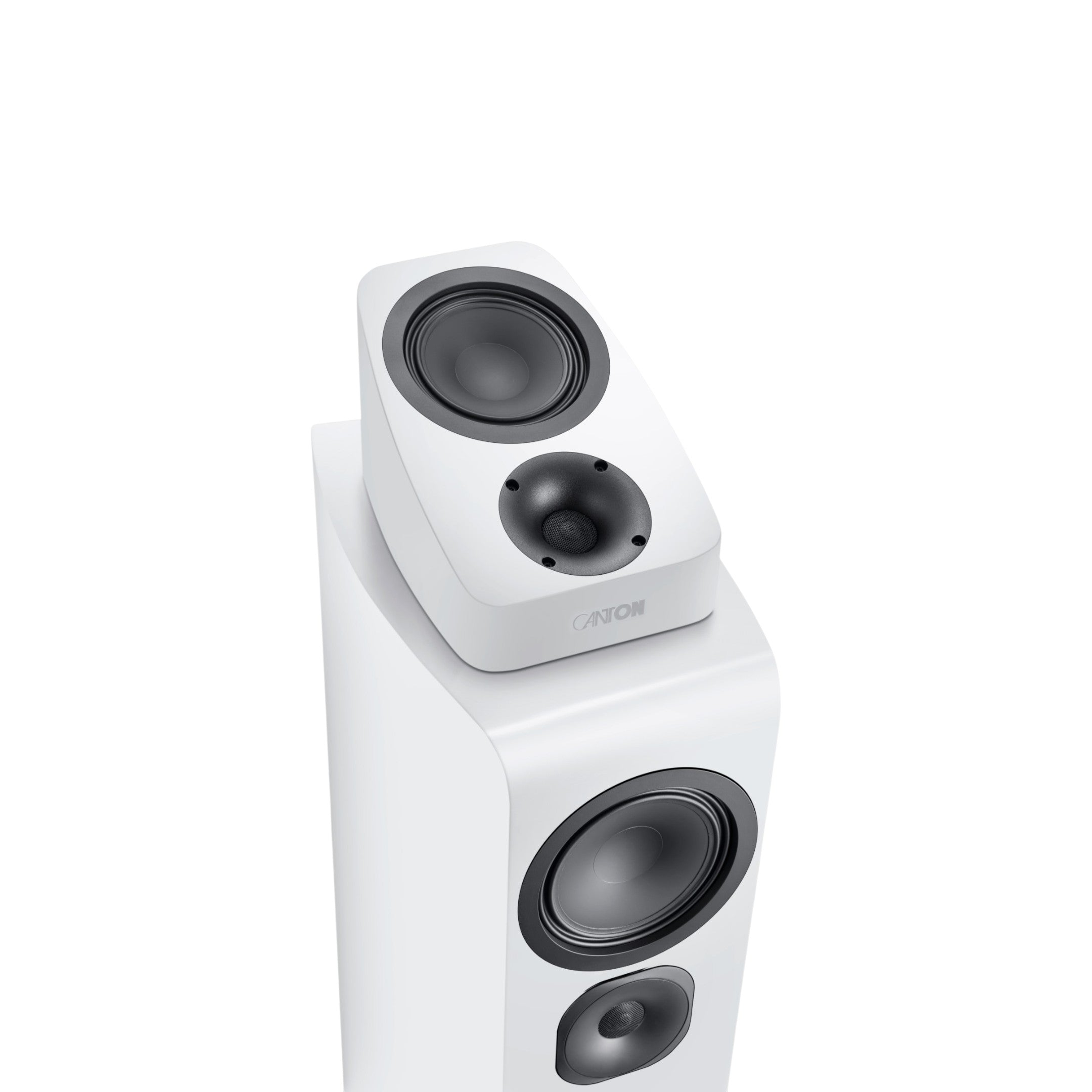

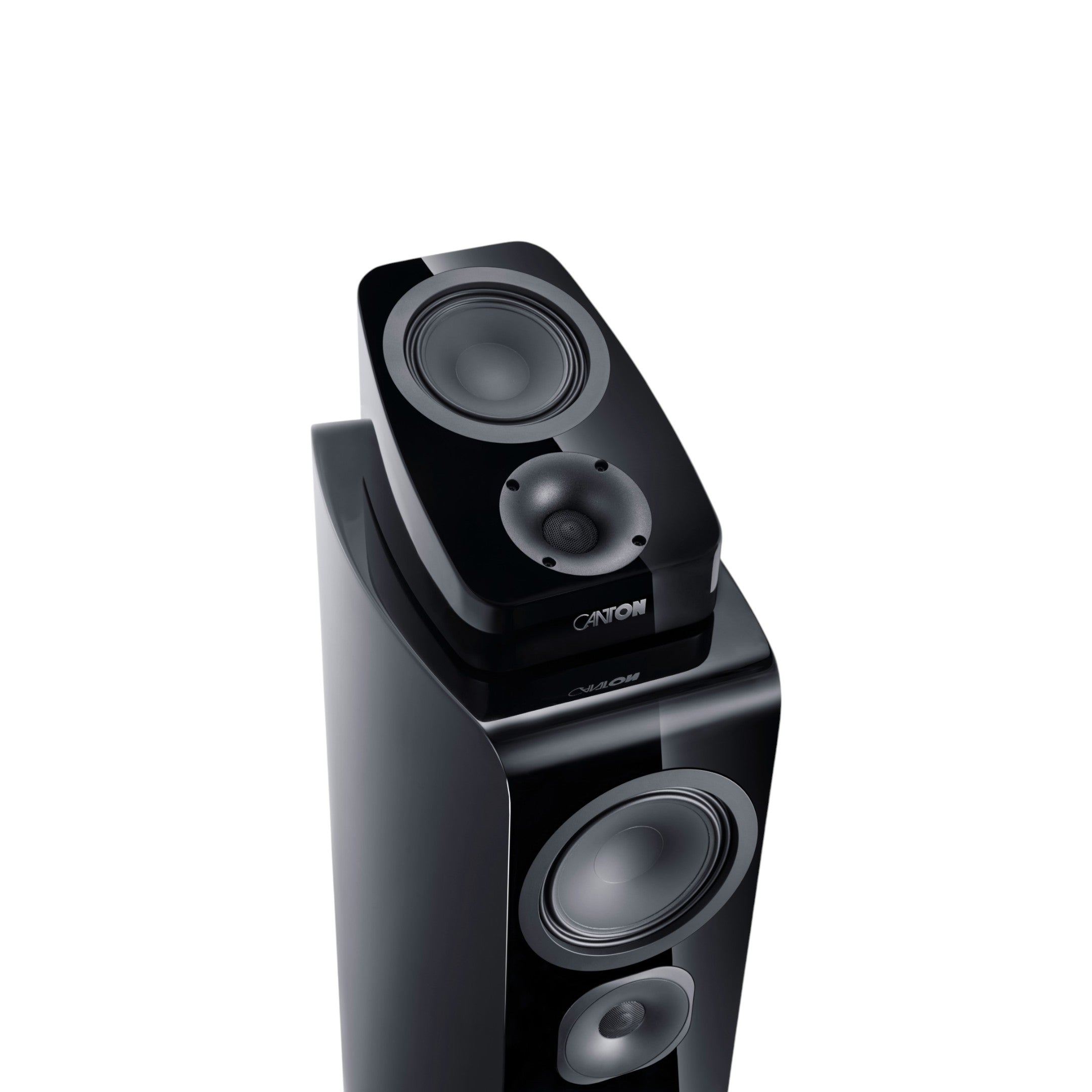

Canton Vento AR-1 Dolby Atmos Enabled Speaker for Home Cinema

The Canton Vento AR-1 is a Dolby Atmos enabled speaker for home cinema setups and operates on a 2-way sealed principle. It is designed for height channels in a surround system, combining compact dimensions with clearly defined speaker technology.

Compact Design for Flexible Integration

With dimensions of 19 × 27 × 16 cm, the Vento AR-1 can be integrated into a home cinema in a space-saving manner. The sealed enclosure supports controlled playback without additional resonator specifications.

Clear Playback through BCT and ATB

The speaker uses a 25mm tweeter with BCT material and a W160 woofer/midrange driver with ATB material. This configuration covers highs as well as mid- and low-frequency components in a compact 2-way system.

Designed for Atmos Effects and Spatial Sound

The Vento AR-1 is intended for home cinema users who want to expand an existing speaker setup with Dolby Atmos height information. The transmission range of 50-30,000 Hz and the crossover frequency of 3,000 Hz describe the acoustic tuning of the speaker.

Solid Performance Data for Home Cinema Use

With a nominal power handling of 60 watts, music power handling of 100 watts, and an impedance of 4–8 ohms, the Canton Vento AR-1 is designed for use with suitable home cinema amplifiers. The banana plug compatible terminal facilitates connection with compatible speaker cables.

Technical Data

General

• Product type: Dolby Atmos enabled Speaker
• Acoustic principle: 2-way closed
• Dimensions (W × H × D): 19 × 27 × 16 cm
• Frequency response: 50-30,000 Hz

Speaker configuration

• Tweeter quantity: 1
• Tweeter size: 25 mm
• Tweeter material: BCT
• Woofer/Midrange quantity: 1
• Woofer/Midrange size: W160
• Woofer/Midrange material: ATB

Power and electrical values

• Nominal power handling: 60 Watt
• Music power handling: 100 Watt
• Efficiency: 84.5 dB
• Impedance: 4–8 Ohm
• Crossover frequency: 3,000 Hz

Construction and Features

• Woofer Wave Surround: Yes
• Midrange Wave Surround: Yes
• Transmission Front Plate: Yes

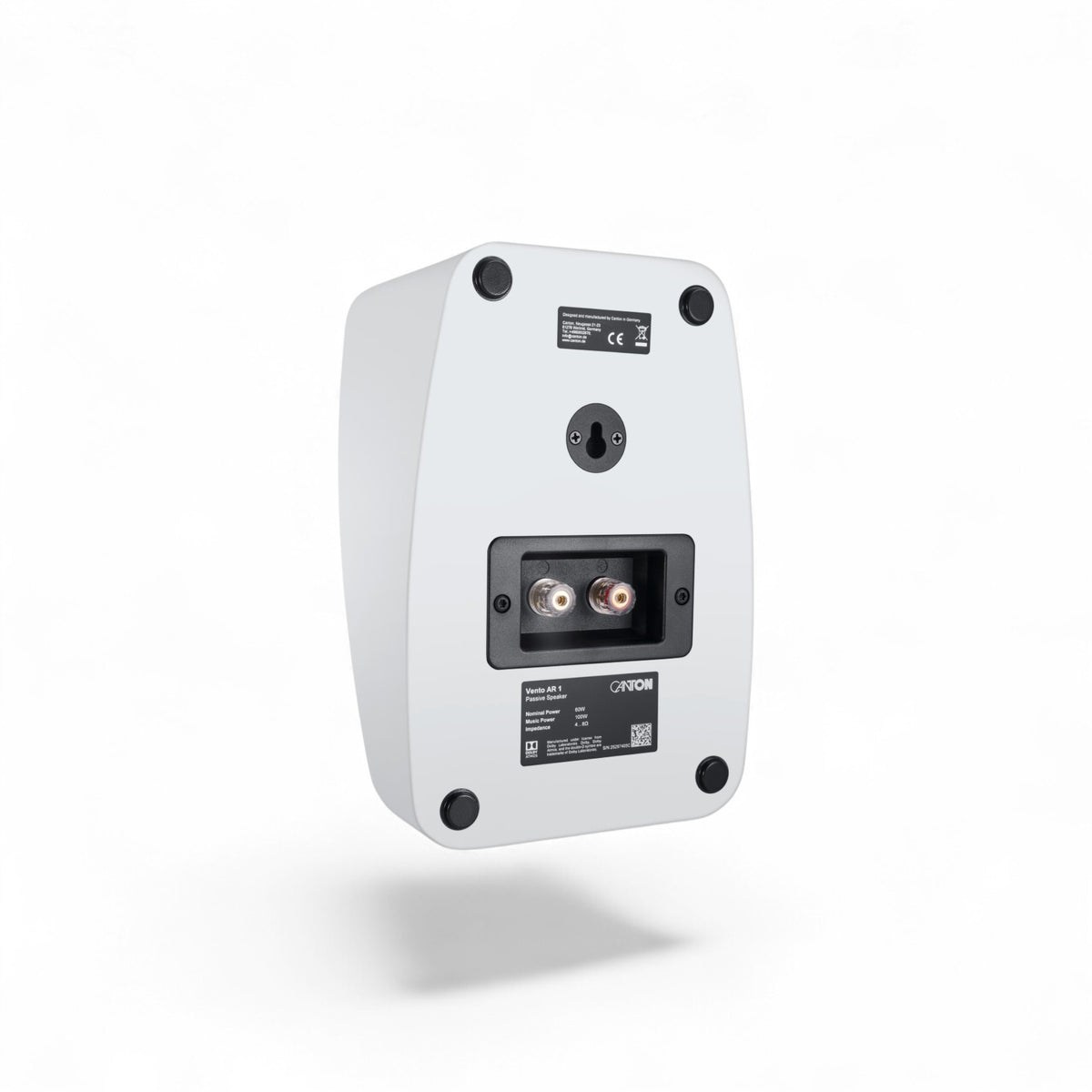

• Terminal suitable for banana plugs: Yes
• Level adjustment: No
• Room adjustment: No
• Bi-Wiring / Amping Terminal: No
• Easy Link Terminals: No
• Device base included: No
• Absorber preparation: No
• Double Cone: No
• DC Crossover Technology: No
• Triple Curved Cone: No

Scope of delivery

• Canton Vento AR 1 Dolby Atmos Speaker

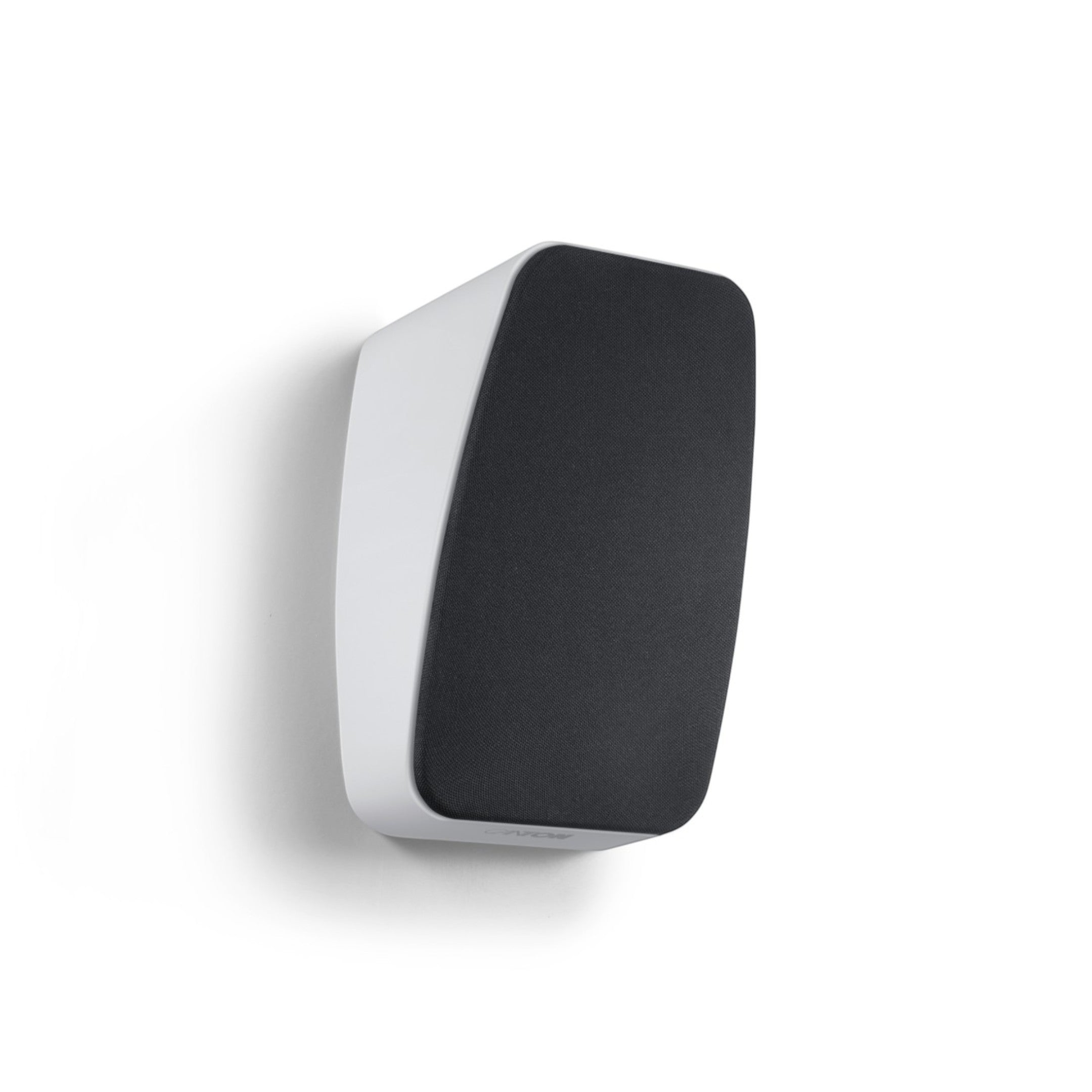

• Fabric cover
• Device foot
• Documents
