AMP-F2

The EverSolo AMP-F2 was developed in collaboration with the Starke Sound team and is a Class D amplifier based on the integration of Starke Sound's innovative NS600 module. This allows it to offer a high power reserve, great dynamics, and very precise sound. The innovative SAPS switched-mode power supply provides the audio circuit with a clean electrical signal and ensures very low noise and distortion values. The AMP-F2 is a versatile model that can be used in both stereo and mono.

Generous Power Reserves

Based on a Class D amplifier module NS600 from Starke Sound, the EverSolo AMP-F2 is capable of delivering impressive power, up to 2x250W RMS at 4 ohms (1% THD). When the amplifier is bridged (BTL), i.e., in mono, its power increases to 450W RMS at 2 ohms (1% THD). This ability to support very low load impedances ensures sufficient power even in configurations with particularly demanding speakers.

Incredibly Precise Sound Reproduction

The NS600 module of the EverSolo AMP-F2 uses PurePath™ Ultra-HD technology and an advanced feedback design that includes an error correction function. With this technology, extremely low distortion is achieved across the entire frequency range, ensuring flawless sound accuracy.

Generously Sized Power Supply

The EverSolo AMP-F2 features a 600W power supply with high efficiency, low ripple, and EMI, and is capable of delivering stable and powerful output and improving the overall dynamics of the system.

Low Power Consumption

The EverSolo AMP-F2 is characterized by very low power consumption in standby mode, which is less than 0.5W. When switched on but without a signal, this consumption rises to just 14W. This means the amplifier meets the European Union's ErP standards.

Aluminum Casing and Shielding

The EverSolo AMP-F2 amplifier features a modern, robust aluminum casing. It is not only aesthetically pleasing but also serves as shielding to limit the effects of interference on the AMP-F2's circuits.

Trigger Input and Output

The EverSolo AMP-F2 is equipped with a 5-12V trigger input and output in 3.5mm jack format, allowing you to create an automatic on/off chain between your various trigger-equipped devices. This ensures a seamless user experience, as your entire audio system can be switched on and off with a single press.

A Perfectly Designed Ecosystem

The EverSolo AMP-F2 amplifier is perfectly matched and optimized for the brand's other products. It is the ideal partner for the EverSolo DMP-A6, EverSolo DMP-A6 Master Edition, EverSolo DMP-A6 Master Edition, and EverSolo DMP-A8 streamers.

Technical Details:

Output Power
- 280W RMS at 4Ω (1%THD, per channel) 130W RMS at 8Ω (1%THD, per channel)

Output Power in Bridge Mode
- 450W RMS at 2Ω (bridged operation)

Number of Channels
- 2 Channels

Amplifier Type
- Class D

Frequency Response
- 10Hz-20kHz -1.2dB

Maximum Output Current
- 16.5A (per channel) / 33A (bridge)

Signal-to-Noise Ratio (SNR)
- >110dB, "A" weighted 4Ω 260W

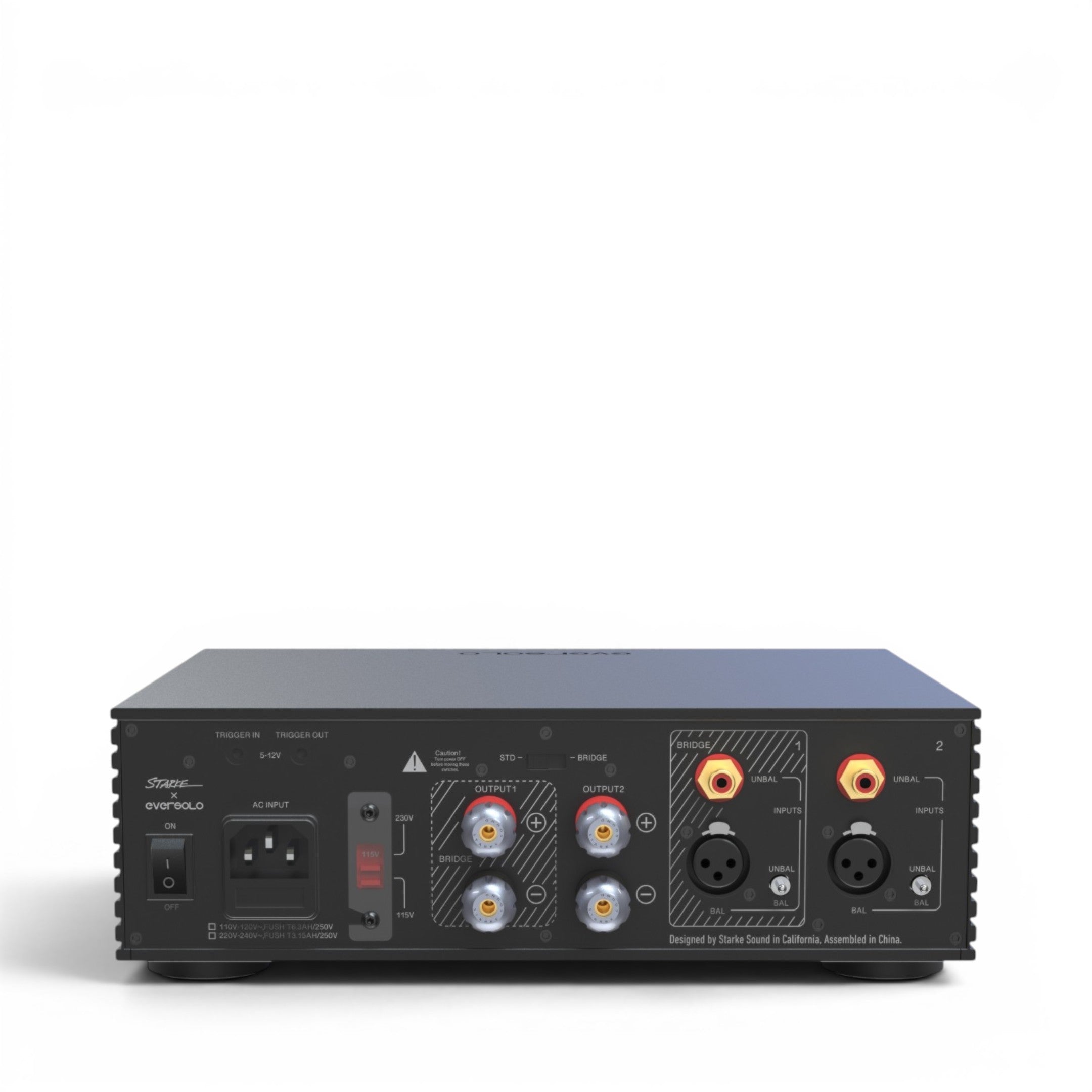

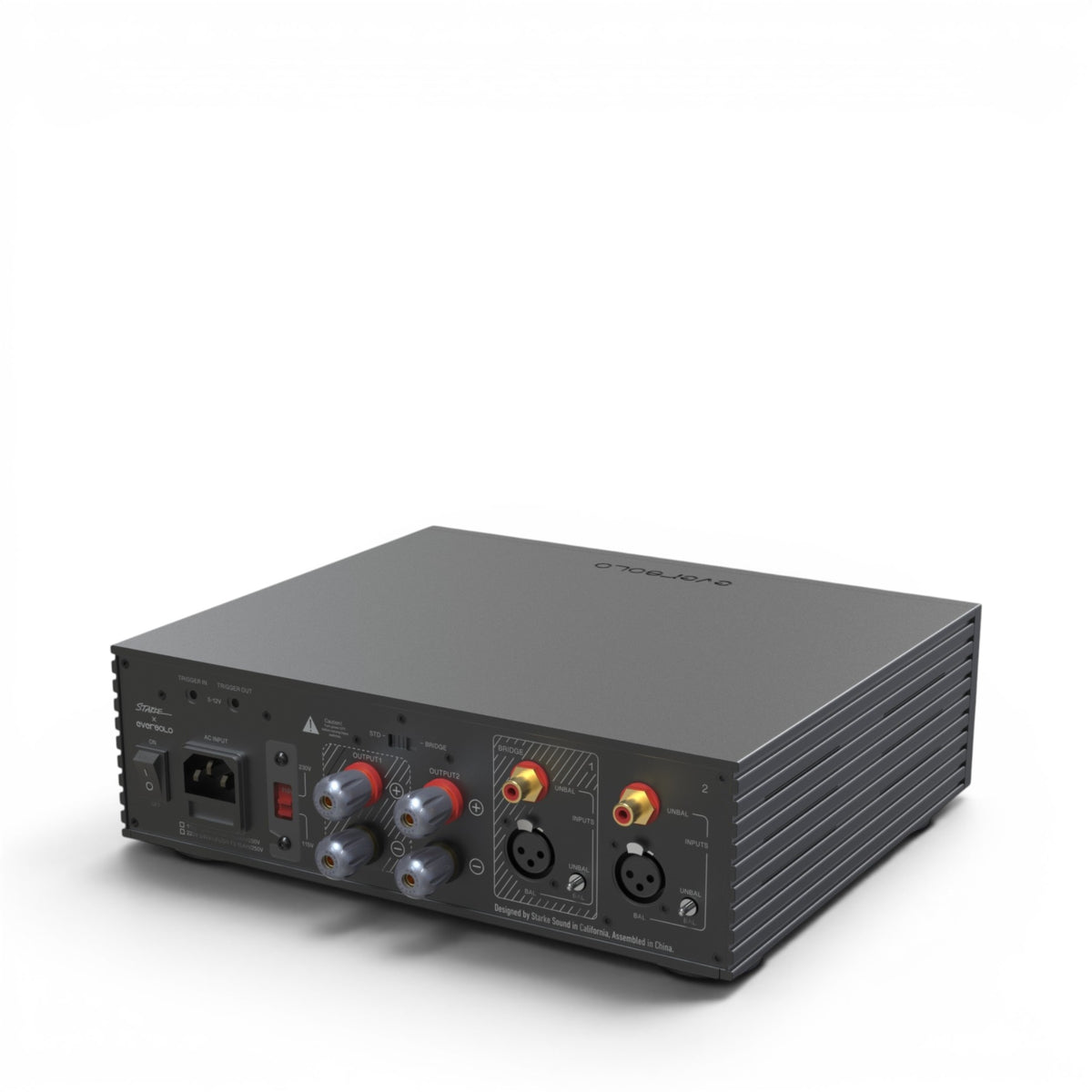

Input Connectors
- 2-Channel RCA Input ; 2-Channel XLR Input

Input Impedance
- RCA 10.5 kOhms
- XLR 21.7 kOhms

Output Terminals
- 2 pairs of Beryllium copper terminals, custom-made by Starke Sound

Output Impedance
- 0.09 Ohm 1kHz

Damping Factor
- 100

Dimensions
- W 270 mm x D 228 mm x H 90 mm (with foot)

Weight
- 3.65Kg

Scope of Delivery

• Eversolo AMP-F2
• Power Cable
• Trigger Cable
• Documents
