Next-Level Amplifier Technology

At the heart of the M23 V2 works NAD's HybridDigital™ circuit in combination with Purifi Eigentakt™ technology – a collaboration that is globally considered a milestone in the amplifier world. The result is music that sounds audibly cleaner, more natural, and uncolored.

Power Without Compromise

With 2 x 380 watts of continuous power into 4 ohms and a peak power of up to 520 watts, the M23 V2 shows no weaknesses even with demanding loudspeakers. Those who need even more power can switch the power amplifier into bridge mode – unleashing over a kilowatt of peak power into 8 ohms. This makes the M23 V2 suitable for both high-quality stereo setups and demanding home cinema configurations.

Perfectly Controlled Playback

The Purifi Eigentakt™ stages operate absolutely independent of load and respond confidently even to difficult loudspeaker impedances. The high damping factor ensures precise, tight, and controlled bass reproduction – exactly what one expects from a true high-end power amplifier.

Efficient Digital Technology – Audiophile Implemented

The M23 V2 relies on modern Class D technology, high-quality switched-mode power supplies, and above-average broad linearity across the entire operating range. This combines maximum efficiency with audiophile sound fidelity – detailed, dynamic, controlled, and with exceptional transparency.

Flexible for Any System

The M23 V2 works perfectly with high-quality preamplifiers, music streamers, or CD players. Owners of a NAD M33 can expand their system particularly elegantly: bridged, the M23 V2 provides one channel, the M33 the other.

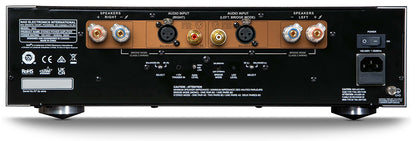

Professional Connectivity

Balanced XLR inputs enable interference-free signal transmission as in a recording studio. Alternatively, high-quality, gold-plated RCA jacks are available. Additionally, the power amplifier offers a three-stage input sensitivity setting, a 12V trigger, adjustable LED brightness, and a ground terminal to reduce hum loops.

Solid Casing in Masters Design

The NAD M23 V2 is housed in an elaborately crafted aluminum casing with a solid chassis, magnetic Iso-Point feet, and multi-layered internal construction. The two-tone black-silver look is typical of NAD's Masters Series – simple, elegant, and absolutely high-quality.

Specifications

Continuous output power

• 2 x 380 W into 4 Ω
• 2 x 200 W into 8 Ω
• 700 W / 8 Ω in bridge mode

Pulse power

• 2 x 260 W into 8 Ω
• 2 x 520 W into 4 Ω
• 1,017 W in bridge mode

Distortion / Noise

• THD: <0.00069 % (XLR), <0.0013 % (RCA)
• Signal-to-noise ratio: >127 dB

Further values

• Damping factor: >800
• Frequency response: 20 Hz – 20 kHz, ±0.06 dB
• Input impedance: 56 kΩ + 200 pF
• Input sensitivity (for 200 W / 8 Ω): 1.4–4.5 V (3-stage selectable)
• Maximum output current: >25 A
• Standby consumption: <0.5 W

Dimensions & Weight

• 435 x 133 x 396 mm
• 9.7 kg
• Carton weight: 17.5 kg

Special Features

• HybridDigital™ Purifi Eigentakt™ Amplifier Technology
• Virtually unmeasurable noise and distortion
• Perfect control with all speaker loads
• Balanced XLR and gold-plated RCA inputs
• 3-stage input sensitivity (low / mid / high)
• 12V trigger input and automatic signal sensing
• Adjustable LED front illumination
• Solid, low-resonance aluminum housing
• Magnetic Iso-Point feet for optimal decoupling

Scope of delivery

• NAD Masters M23 V2 Stereo Power Amplifier
• Detachable power cord
• Magnetic device feet
• USB stick
• Cleaning cloth
• Quick Start Guide
