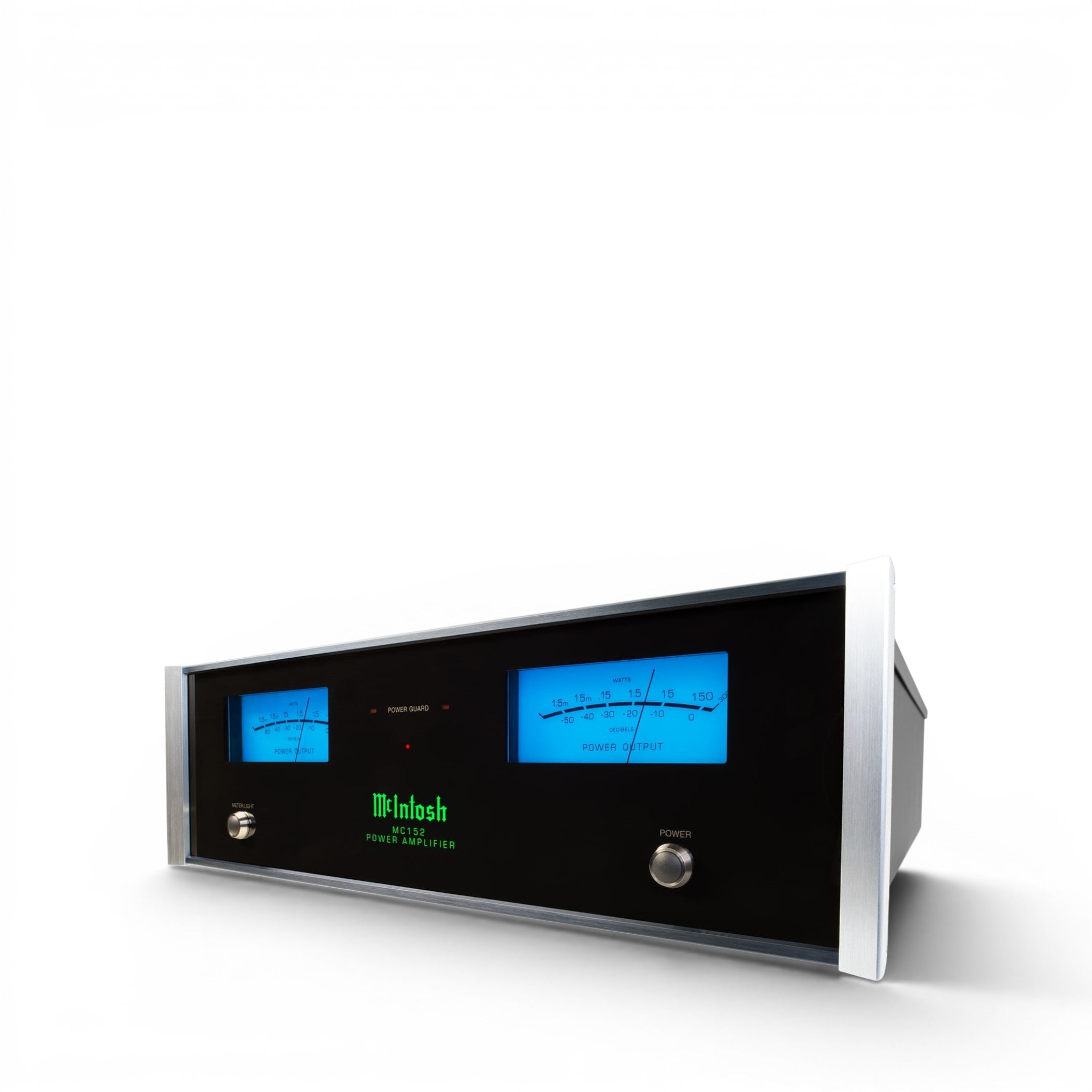

McIntosh MC152 – Compact Stereo Power Amplifier for HiFi and Home Cinema

Designed for Small to Medium-Sized Systems

The MC152 is particularly suitable for systems where a high-quality two-channel amplifier is desired, without the need for larger power models. In a classic HiFi system, it can be used as a stereo power amplifier; in home cinema, it lends itself to surround channels.

Easy Connectivity with Balanced and Unbalanced Inputs

Balanced and unbalanced inputs are available for connection to a preamplifier or an A/V control center. This allows the McIntosh MC152 to be flexibly integrated into various system concepts. Speakers are connected via McIntosh speaker terminals, designed for a secure connection with speaker cables.

Technologies in the McIntosh MC152

The McIntosh MC152 utilizes core McIntosh technologies such as Autoformer™, Power Guard®, Sentry Monitor™, and ThermalTrak™ output transistors. The Autoformer™ technology ensures proper impedance matching with speakers, Power Guard® monitors the signal and prevents clipping, while Sentry Monitor™ protects the output stage. The concept is complemented by a push-pull complementary circuit, solid-state design, LED fiber optic lighting, illuminated watt meters, and the classic McIntosh glass front. Thus, the stereo power amplifier combines important keywords such as McIntosh MC152, HiFi power amplifier, stereo power amplifier, 2-channel amplifier, Autoformer, Power Guard, and Sentry Monitor in one compact amplifier concept.

Classic McIntosh Design with Practical Display

The two large watt meters on the front display the output power of the channels and are among McIntosh's most recognizable design elements. The meter illumination can be switched. The glass front with LED fiber optic lighting emphasizes the high-quality character of the device without being intrusive.

Protection Functions for Amplifier and Speakers

Power Guard® monitors input and output signals and automatically reduces the input level if clipping is imminent. Sentry Monitor™ protects the output stage, while additional thermal protection circuits guard against overheating. This is particularly relevant if a power amplifier is to operate reliably and continuously in a demanding system.

Reasons to Choose the McIntosh MC152

• More compact housing compared to larger McIntosh power amplifiers
• Autoformer™, Power Guard®, and Sentry Monitor™ integrated
• Balanced and unbalanced inputs available
• McIntosh glass front with blue watt meters

What You Should Know About the McIntosh MC152

• Suitable for systems where a compact, high-quality 2-channel power amplifier makes more sense than a larger power model
• No mono-bridge and no mono-parallel operation
• Adequate ventilation is important for setup

Specifications

General

• Product type: 2-channel power amplifier / stereo power amplifier
• Design: Transistor amplifier
• Number of channels: 2
• Dimensions W × H × D: 44.45 × 15.24 × 50.8 cm
• Weight: 34 kg
• Shipping weight: 38.6 kg

Audio

• Power per channel: 150 W at 2, 4 or 8 ohms
• FTC rated power: 150 W
• Total harmonic distortion: 0.005 %
• Signal-to-noise ratio at rated power: 118 dB balanced, 115 dB unbalanced
• Dynamic headroom: 2.0 dB
• Damping factor: > 40 broadband
• Rated power band: 20 Hz to 20 kHz
• Frequency response: +0, -0.25 dB from 20 Hz to 20 kHz
• Frequency response: +0, -3.0 dB from 10 Hz to 100 kHz

Circuitry and Amplifier Technology

• Circuit configuration: complementary push-pull circuit
• Circuit design: Transistor technology
• Output type: Autoformer™
• Mono bridge operation: No
• Mono parallel operation: No
• Power Guard®: Yes
• Sentry Monitor™: Yes
• Thermal protection: Yes
• ThermalTrak™ output transistors: Yes

Connections

• Balanced input: 1 Stereo
• Unbalanced input: present
• Input selector: balanced / unbalanced
• Speaker terminals: for 2, 4 and 8 ohms
• Speaker terminals: new McIntosh design
• Multi-channel DB25 cable: No

Control and Operation

• Remote power on: Yes
• Power control input: Yes
• Power control output: Yes
• Automatic power-saving shutdown function: Yes
• Wattmeter: Yes
• Wattmeter illumination switch: Yes

Chassis and Front

• Front panel: Glass
• Illumination: LED/fiber optic illumination
• Chassis finish: enclosed steel chassis

Scope of delivery

• McIntosh MC152
• Power cable
• Documentation

• Sicherheitshinweise
• Anleitung
• Broschüre
