McIntosh MC611: Mono Power Amplifier for Demanding Hi-Fi Needs

The McIntosh MC611 is a 1-channel power amplifier for high-quality 2-channel audio systems and home theater setups. In a stereo system, a pair of MC611s is used, and in a home theater, additional power amplifiers can be added for extra channels. This makes the MC611 particularly suitable for systems where each speaker channel should have its own robust amplification.

Quad Balanced Design and Autoformer Technology

The MC611 operates with a Quad Balanced Design and McIntosh Autoformer Technology. This combination is designed to reduce interference and distortion in the signal path and to drive speakers with controlled power through the appropriate outputs.

Protection Circuits for Reliable Operation

With Power Guard®, Sentry Monitor™, and thermal protection, the MC611 incorporates several McIntosh technologies that ensure safe operation. Power Guard® monitors the input signal and helps prevent harsh clipping. Sentry Monitor™ protects the output stage from critical operating conditions and automatically resets once safe conditions are restored.

Connections for Classic and Extended Systems

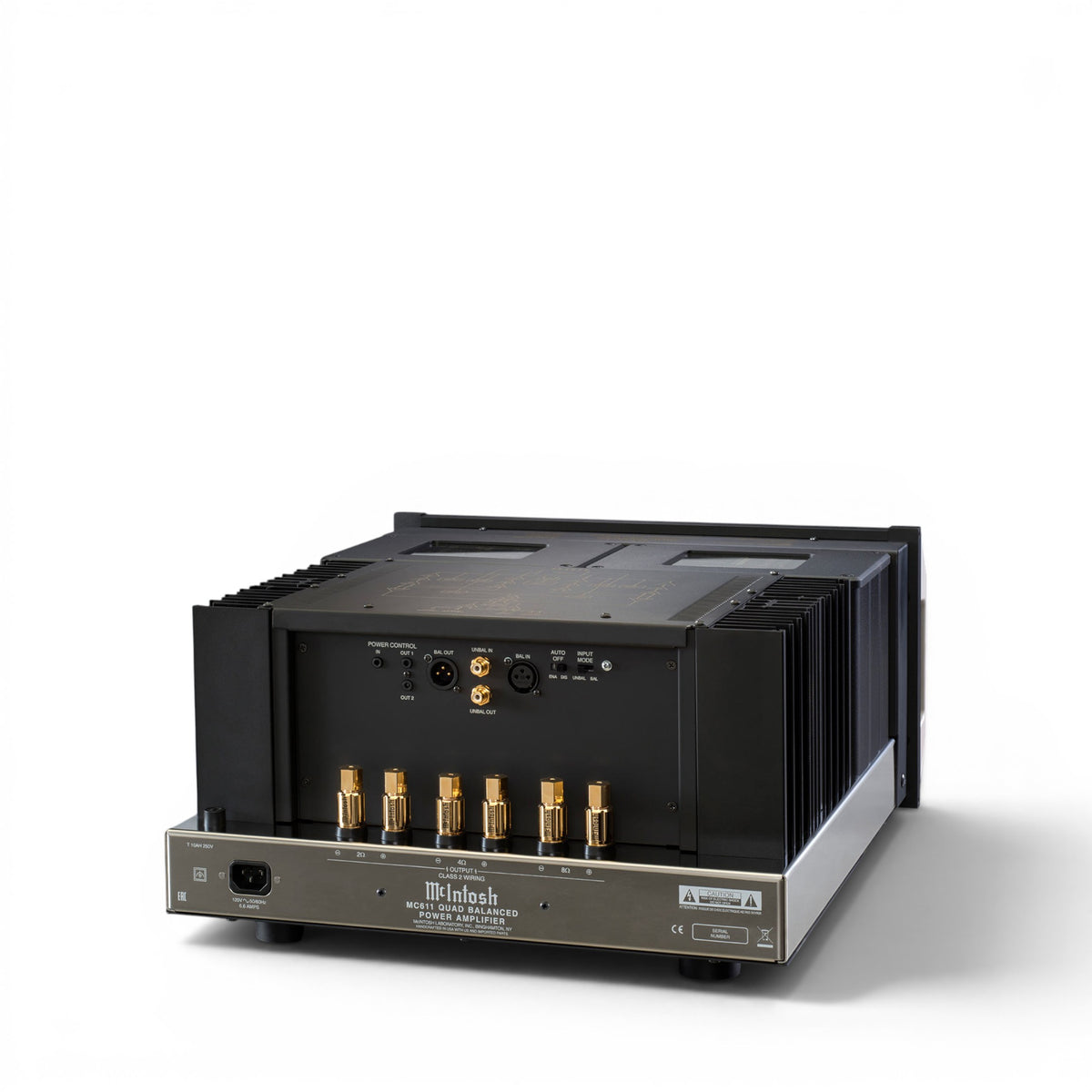

The MC611 offers one balanced and one unbalanced input, as well as one balanced and one unbalanced output. The outputs can be used for bi-amping or tri-amping. For speakers, Solid Cinch™ speaker terminals are available, which are spaced further apart to facilitate cable management.

Operation and System Integration

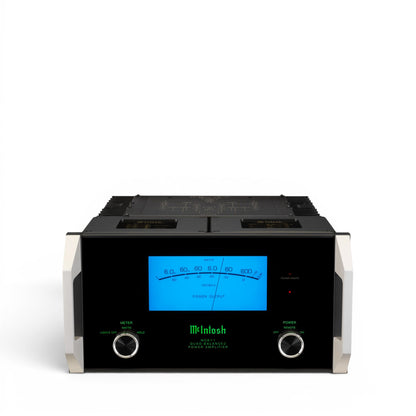

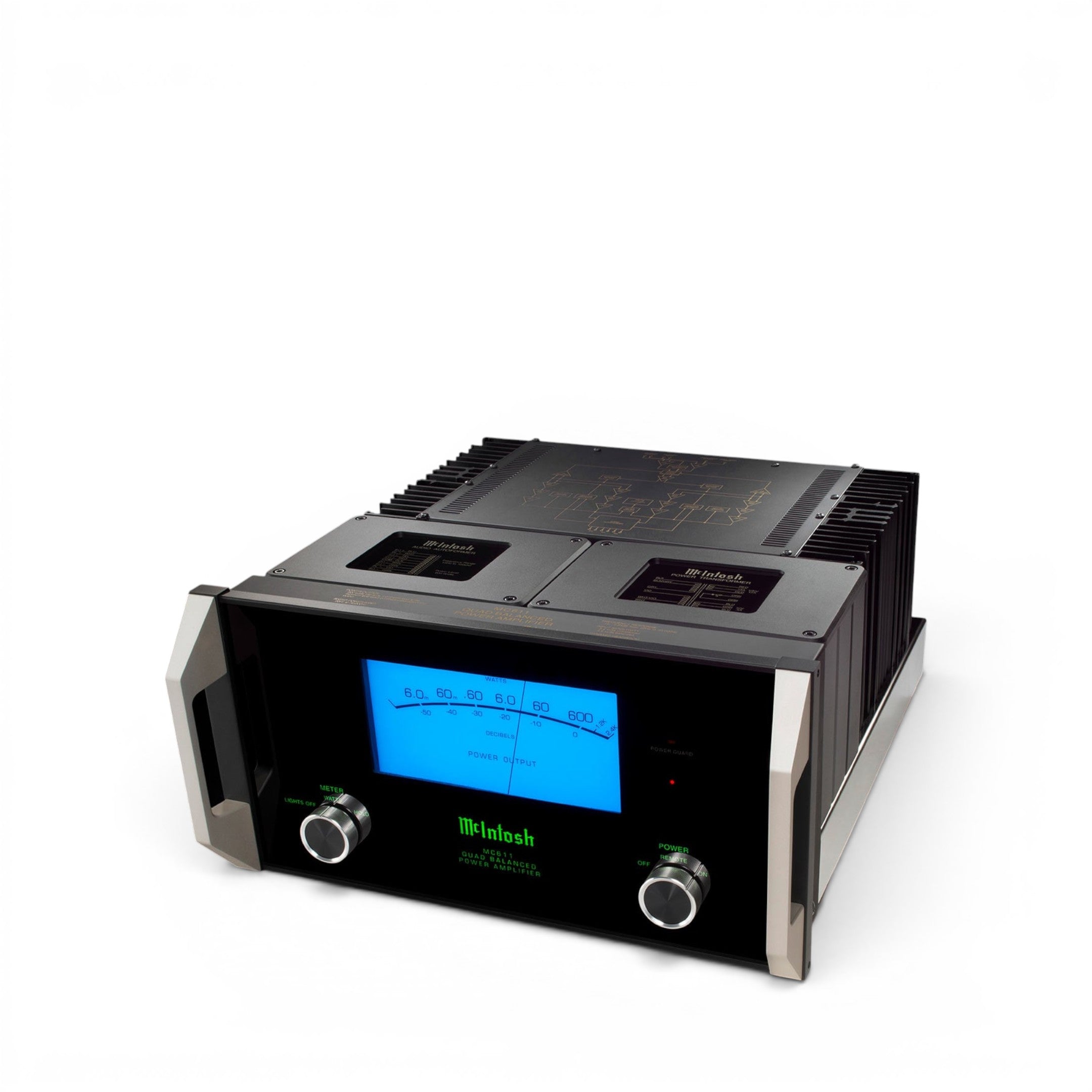

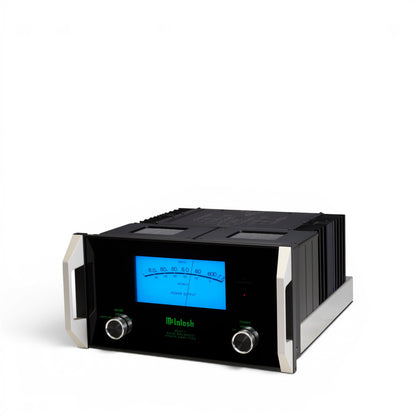

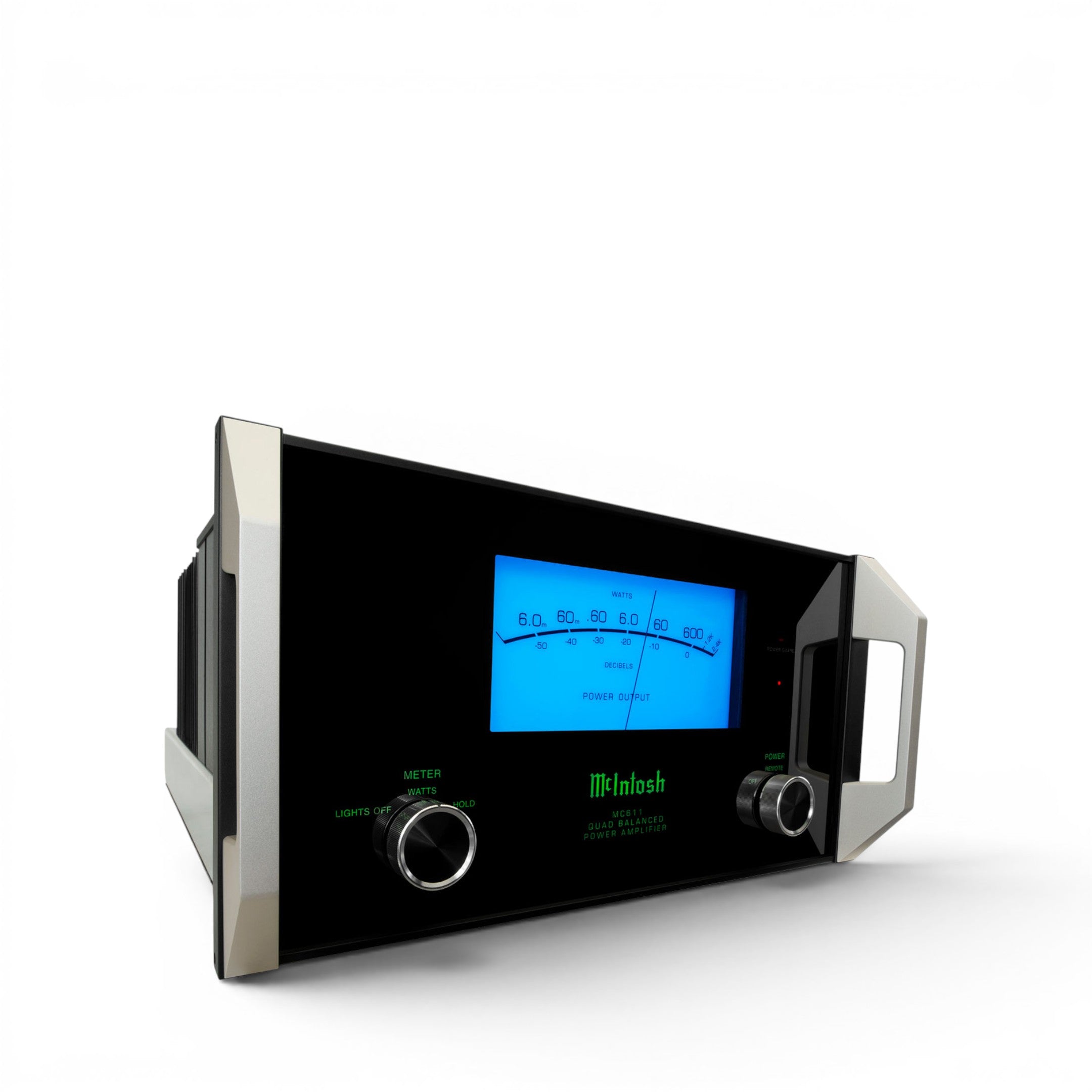

The front panel combines a black glass front with direct LED backlighting, an illuminated logo, controls, aluminum handles, and a large blue watt meter. The meter illumination can be switched, and the watt meter can display the power value or hold it briefly. Via Power Control, the MC611 can be turned on and off together with other McIntosh components; in addition, an automatic shutdown is available if no input signal is detected.

Placement and Planning

The MC611 can be placed freely on furniture or a shelf designed for its weight, or integrated into furniture or a cabinet. Careful ventilation is important, especially for enclosed installations.

Pros and Cons at a Glance

Reasons to choose the McIntosh MC611:

• Quad Balanced Design and Autoformer™ Technology
• Power Guard®, Sentry Monitor™, and thermal protection
• Balanced and unbalanced inputs and outputs
• Solid Cinch™ speaker terminals with improved cable management
• Classic McIntosh aesthetic with glass front, LED lighting, and blue watt meter

What to know about the McIntosh MC611 before purchasing:

• A pair of MC611s is needed for stereo.
• Additional power amplifiers are required for multichannel home theater systems.
• Placement requires sufficient space, load-bearing capacity, and ventilation.

Specifications

General

• Product Type: 1-channel power amplifier / mono power amplifier
• Model: McIntosh MC611 Quad Balanced Power Amplifier
• Type: Solid State
• Dimensions W × H × D: 44.45 × 23.97 × 55.88 cm
• Weight: 44.32 kg
• Shipping Weight: 59.32 kg
• Frequency Response: +0, -0.25 dB from 20 Hz to 20 kHz; +0, -3.0 dB from 10 Hz to 100 kHz

Audio

• Power: 600 W into 2, 4, or 8 Ohms
• FTC Power Output Rating: 600 W
• Number of Channels: 1
• Total Harmonic Distortion: 0.005 %
• Signal-to-Noise Ratio: 124 dB balanced, 120 dB unbalanced
• Dynamic Headroom: 2.8 dB
• Damping Factor: >40 Wideband
• Rated Power Band: 20 Hz to 20 kHz

Circuit and Output

• Circuit Configuration: Quad Balanced
• Circuit Design: Solid State
• Output Type: Autoformer™
• Mono Bridge: N/A
• Mono Parallel: N/A

Connections

• Balanced Input: 1
• Unbalanced Input: 1
• Balanced Output: 1
• Unbalanced Output: 1
• Speaker Binding Posts: Solid Cinch™ Speaker Binding Posts
• Speaker Binding Posts for: 2 Ohm, 4 Ohm, and 8 Ohm
• Power Control Input: Yes
• Power Control Outputs: 2

Features

• Power Guard®: Yes
• Sentry Monitor™: Yes
• McIntosh Monogrammed Heatsinks™: Yes
• Power Control: Yes
• Auto Off: Yes
• Wattmeter: Yes
• Meter Light Switch: Yes
• Front Panel: Glass with handles
• Illumination: Direct LED
• Chassis Finish: Polished stainless steel and black painted steel

Scope of Delivery

• McIntosh MC611
• Power cable
• Documents

• Broschüre
• Anschlüsse
• Anleitung
