Powerful Mono Power Amplifier for Hi-Fi and Home Cinema

The MC830 is a 1-channel transistor power amplifier in an open chassis design. It delivers 300 watts into 8 ohms or 480 watts into 4 ohms, making it designed to power a single loudspeaker channel. For a stereo setup, two MC830 power amplifiers are used - one for the left and right channels respectively.

For Well-Considered System Concepts

The MC830 can be connected to a preamplifier or AV processor via a balanced XLR input or an unbalanced RCA input. This makes it suitable for both classic 2-channel Hi-Fi systems and high-end home cinema configurations. Our recommendation: Especially with a stereo setup using two mono power amplifiers, careful coordination with the preamplifier, loudspeakers, and cabling is worthwhile. We would be happy to assist you with this.

Protection Technology for Loudspeakers and Amplifiers

Power Guard® monitors the output signal and makes real-time adjustments if necessary to prevent clipping. Sentry Monitor™ protects the output stage from excessive currents and automatically resets once safe operating conditions are restored. Additionally, thermal protection circuits are integrated.

Operation Directly on the Device

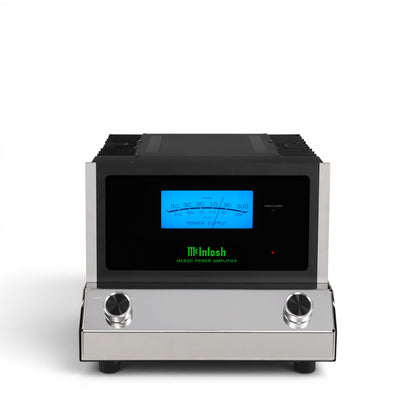

On the front, there are two control knobs: The left knob controls the display of the watt meter with positions LIGHTS OFF, WATTS, and HOLD. The right knob controls the operating mode with OFF, REMOTE, and ON. The INPUT MODE switch on the rear allows you to select between balanced and unbalanced input. The Auto-Off function switches off the MC830 after 30 minutes without an input signal if it is activated.

Wattmeter and McIntosh Design

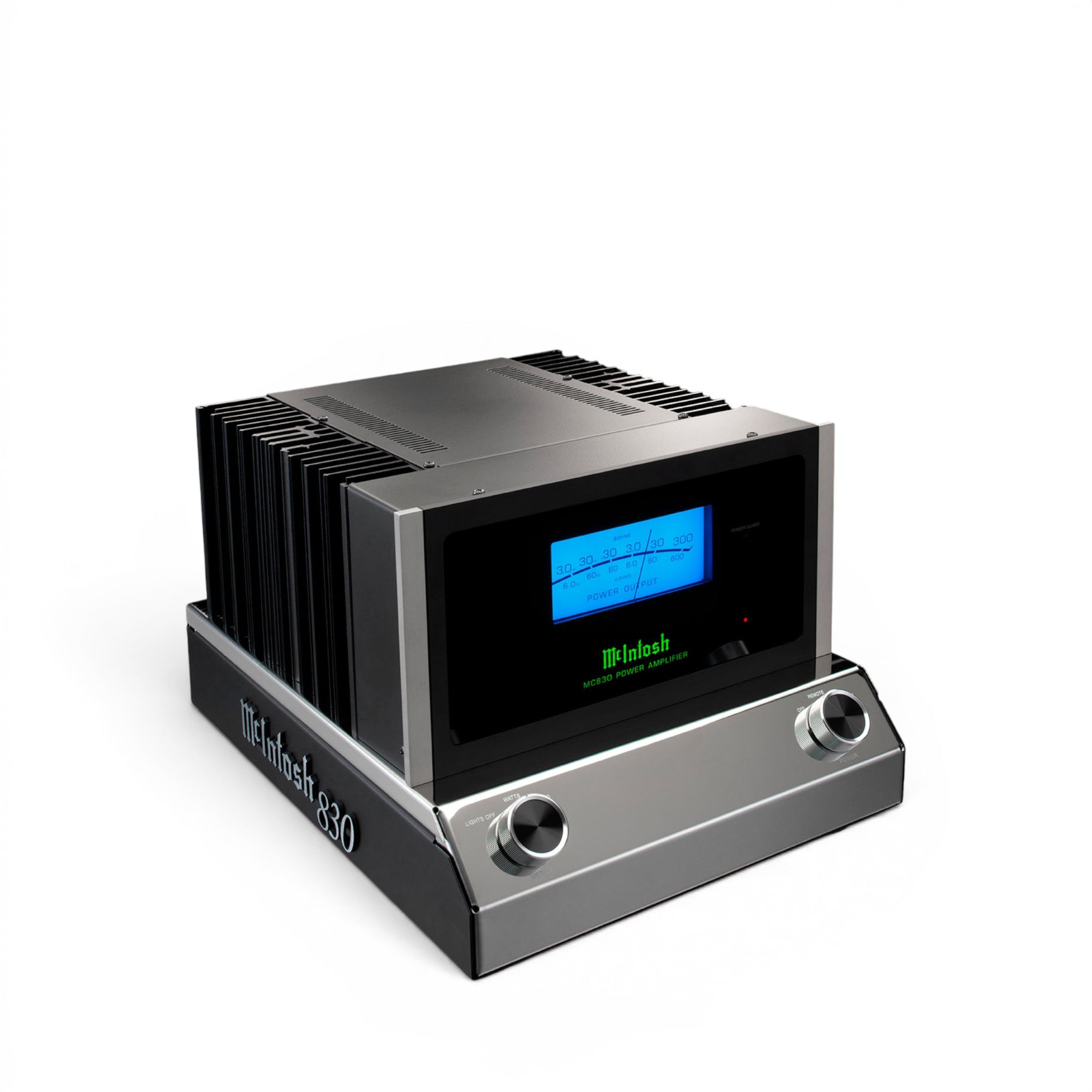

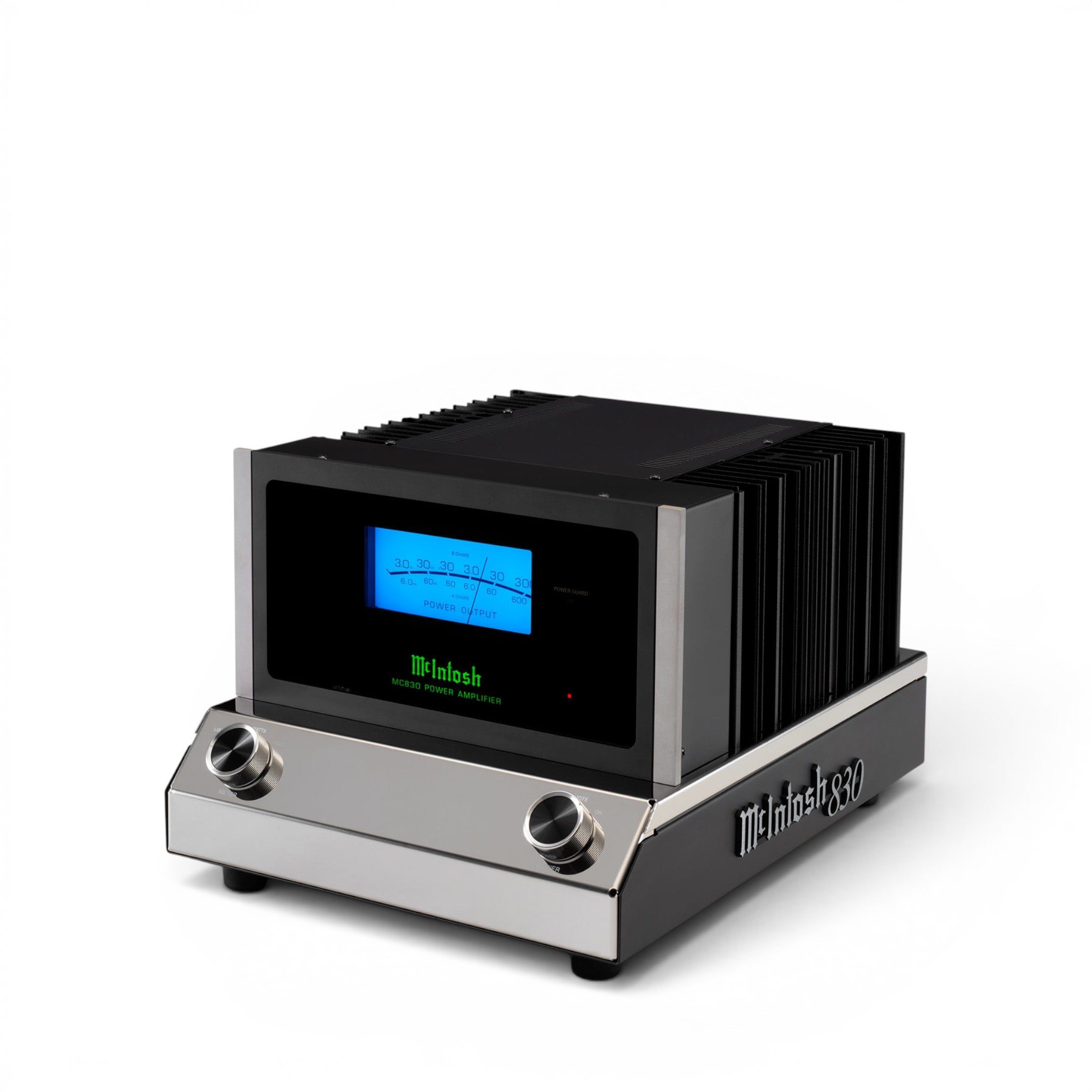

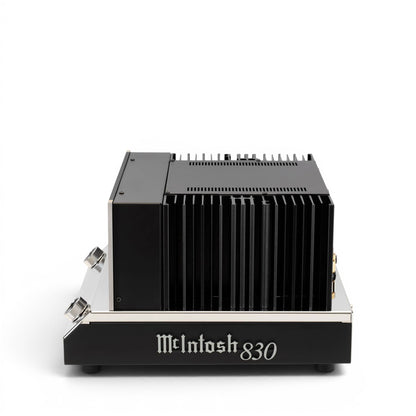

The fast-responding Dual-Scale Wattmeter shows the output power for 4-ohm and 8-ohm loudspeakers. The glass front, silver trim, direct LED backlighting, the illuminated logo, and the polished stainless steel chassis finish characterize the typical McIntosh appearance. The Monogrammed Heatsinks™ support cooling while also adding a striking visual accent.

Secure Loudspeaker Connection

The patented Solid Cinch™ loudspeaker terminals hold loudspeaker cables firmly and are designed to prevent accidental loosening. The terminals are gold-plated to prevent corrosion and transmit the audio signal cleanly to the connected loudspeaker. The MC830 is designed for loudspeakers with 4 or 8 ohms.

Pros and Cons at a Glance

Reasons to choose the MC830:

• 300 watts into 8 ohms and 480 watts into 4 ohms
• 1-channel design for consistently separate amplification per loudspeaker channel
• Balanced XLR input and unbalanced RCA input
• Power Guard® and Sentry Monitor™ as integrated protection technologies
• Dual-Scale Wattmeter for 4 and 8 ohm loudspeakers
• Power Control connections for system control with compatible McIntosh components

Things to know about the MC830 before buying:

• Two MC830 power amplifiers are required for stereo
• The MC830 is designed for 4 or 8 ohm loudspeakers

Specifications

General

• Product Type: 1-Channel Transistor Power Amplifier
• Number of Channels: 1
• Circuit Configuration: Push-Pull Complementary
• Circuit Design: Solid State
• Output Type: Direct Coupled
• Dimensions W × H × D: 31.2 × 24.1 × 40.6 cm
• Weight: 21.8 kg
• Shipping Weight: 24.9 kg
• Shipping Carton Dimensions W × H × D: 51.8 × 33.7 × 41.3 cm

Audio

• Power Output: 300 Watts into 8 Ohms
• Power Output: 480 Watts into 4 Ohms
• Output Load Impedance: 4 or 8 Ohms
• Rated Power Band: 20 Hz to 20,000 Hz
• Frequency Response: +0, -0.25 dB from 20 Hz to 20,000 Hz
• Frequency Response: +0, -3.0 dB from 10 Hz to 100,000 Hz
• Total Harmonic Distortion: 0.005% maximum from 20 Hz to 20,000 Hz
• Intermodulation Distortion: 0.005% maximum if instantaneous peak power does not exceed twice the rated power
• Signal-to-Noise Ratio: Balanced 120 dB, Unbalanced 118 dB
• Dynamic Headroom: 2 dB
• Damping Factor: greater than 100 Wideband
• Input Sensitivity for 300 Watts into 8 Ohms: Balanced 3.4 V, Unbalanced 1.7 V
• Voltage Gain: 29 dB
• Input Impedance: Balanced 22,000 Ohms, Unbalanced 22,000 Ohms

Connectivity

• Balanced Input: 1 × XLR
• Unbalanced Input: 1 × RCA
• Speaker Terminals: 2 × McIntosh Solid Cinch™ Gold-Plated Speaker Binding Posts
• Power Control Input: 1 × 1/8-inch mini jack
• Power Control Output: 1 × 1/8-inch mini jack
• Power Connection: AC Power Connector

Operation and Features

• Wattmeter: present
• Meter Light Switch: present
• Front Panel: Glass
• Illumination: Direct LED
• Chassis: Polished Stainless Steel
• Auto Off: selectable, shuts down after 30 minutes without an input signal when activated
• Input Mode Switch: Select between Balanced and Unbalanced
• Remote Power Control: present
• Multi-Channel DB25 Cable: not present
• Mono Bridge: not present
• Mono Parallel: not present

Protection Technology

• Power Guard®: present
• Power Guard® Specification: less than 2% THD at up to 14 dB overdrive signal
• Sentry Monitor™: present
• Thermal Protection Circuits: present

Power Supply

• Power Consumption per Mains Voltage: 100 V ~ 50/60 Hz at 7.2 A; 110 V ~ 50/60 Hz at 6.0 A; 120 V ~ 50/60 Hz at 6.0 A; 127 V ~ 50/60 Hz at 3.7 A; 220 V ~ 50/60 Hz at 3.3 A; 230 V ~ 50/60 Hz at 3.3 A; 240 V ~ 50/60 Hz at 3.3 A
• Standby Consumption: less than 0.5 Watts
• Power Control Output: 12 VDC, 25 mA, delayed by 0.2 seconds after power-on
• Power Control Input: +5 to +12 V

Installation

• Minimum Clearance above for Cabinet Installation: 15.3 cm
• Minimum Clearance below: 1.6 cm
• Minimum Clearance per Side: 5.1 cm
• Depth behind Front Panel: 45.7 cm
• Clearance in front of Mounting Plate for Control Knobs: 3.7 cm

Scope of Delivery

• McIntosh MC830
• Power Cable
• Power Control Cable
• McIntosh Key for Solid Cinch™ Speaker Terminals
• Documentation

• Broschüre
• Anleitung
