SVS 3000 In-Wall Subwoofer as a Single System

The SVS 3000 In-Wall Single Subwoofer System consists of one subwoofer and an external Sledge amplifier.

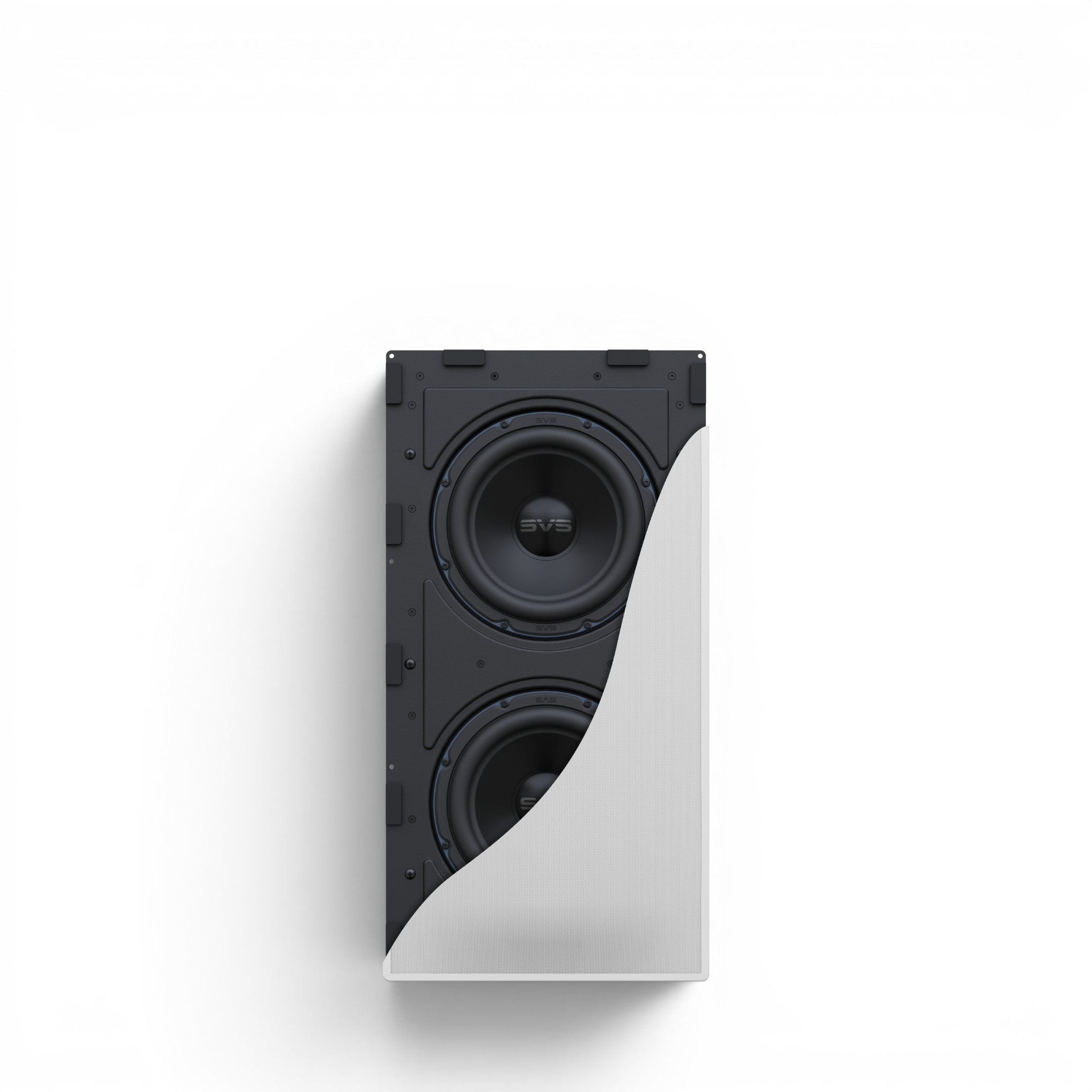

Deep Bass Without Visible Footprint

The shallow enclosure is integrated into the wall, thus requiring no free space in the living room or home theater. The paintable, magnetically attached front grille helps to visually adapt the subwoofer to its surroundings.

Two 9-Inch Drivers for Punchy Bass Reproduction

Two active 9-inch high-excursion drivers operate in the sealed enclosure. This design is engineered for deep and powerful bass reproduction, supporting movie audio, music, and home theater effects with a palpable low-frequency foundation.

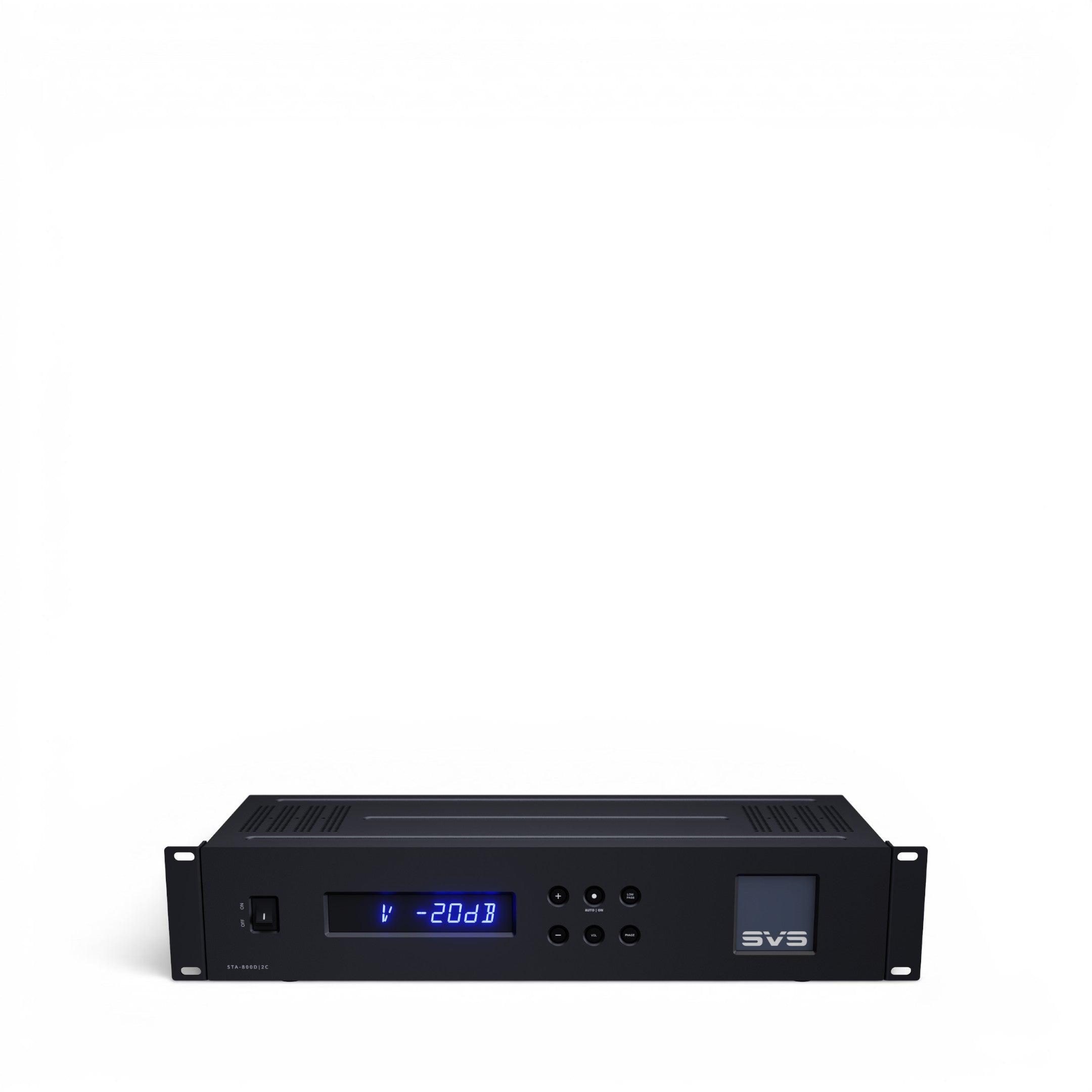

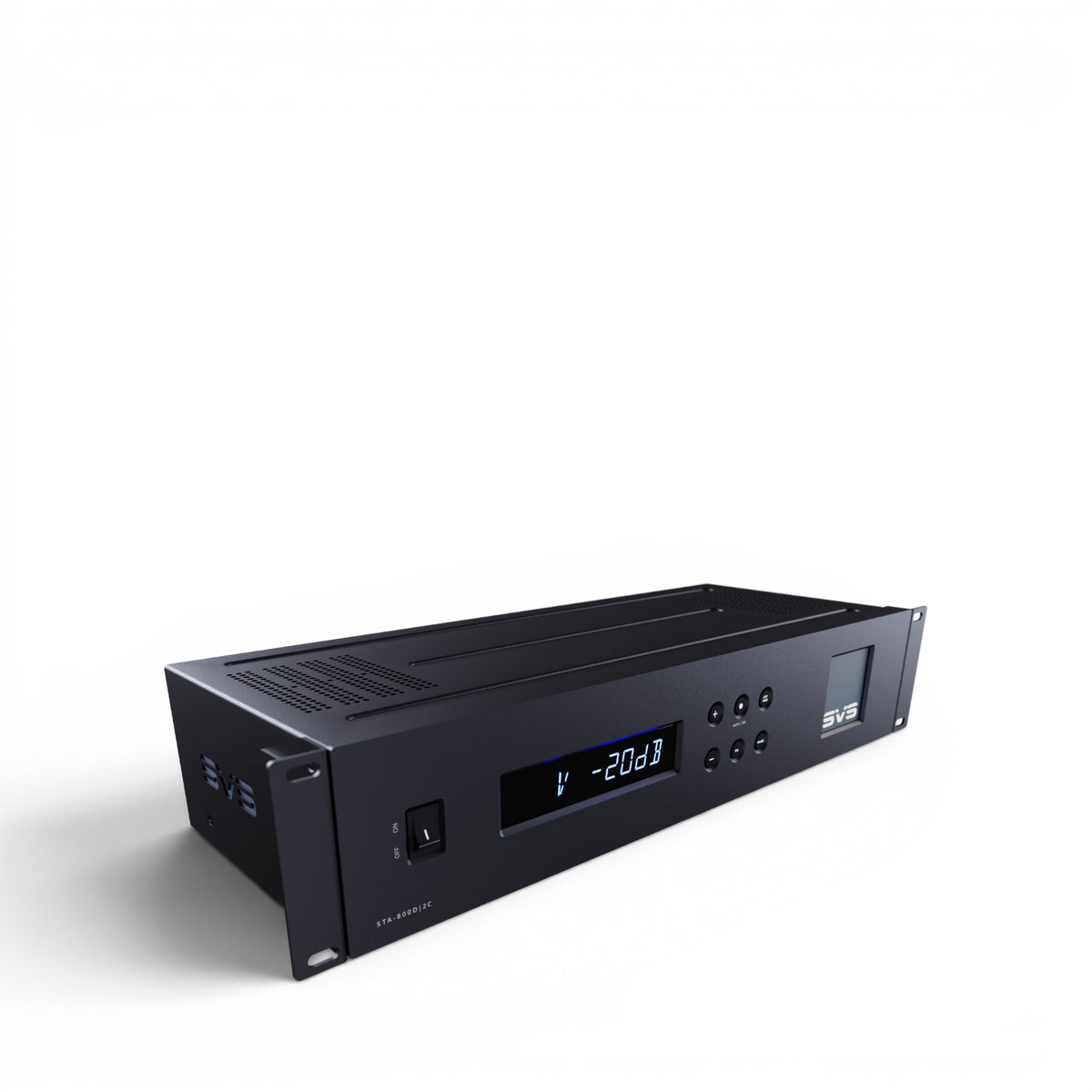

External Sledge Amplifier with 800 Watts RMS

The external Sledge STA-800D2C amplifier delivers 800 watts RMS and 2,500 watts peak power. The Class-D circuitry with discrete MOSFET output provides power for the in-wall subwoofer and is housed in a 2U rackmount chassis.

Convenient Control via SVS Subwoofer App

The SVS Subwoofer Control smartphone app allows for volume, DSP functions, and custom preset control. Adjustable settings include low-pass filter, phase, polarity, room gain compensation, and three parametric equalizers.

Stable Enclosure for Controlled Bass Performance

The enclosure combines aluminum and MDF with internal bracing. This construction is designed to keep the sealed enclosure acoustically inert, even when the two 9-inch drivers operate with high excursion.

Technical Data

General

• Product Type: Built-in Subwoofer / In-Wall Subwoofer / Wall-mounted Subwoofer
• System Type: Single System
• Application: Home Theater and Music
• External Dimensions with Grille: 679.6 × 349.6 × 34 mm
• External Dimensions without Grille: 674.9 × 344.9 × 8.8 mm
• Wall Enclosure Dimensions: 635 × 305 × 95 mm
• Weight with Cover: 11.6 kg
• Weight without Cover: 10.4 kg
• Frequency Response with one Subwoofer System: ±3 dB, 22 Hz to 250 Hz
• Low Frequency in Room with one Subwoofer System: 19 Hz
• Maximum Output at 32 Hz, 1/8 Space, 1 m, one Subwoofer System: 107.6 dB

Subwoofer

• Two active 9-inch high-excursion drivers
• Sound-insulated, sealed enclosure
• Aluminum and MDF enclosure design
• Braced front and rear slats made of 2.5 mm aircraft aluminum
• Fully braced 18 mm MDF frame
• Paintable, magnetically attached, and removable front cover

Driver

• 9-inch high-excursion driver
• Designed for shallow depth and maximum linear output
• Vented aluminum cone with aluminum dust cap
• Long-throw surround with FEM-optimized design
• Total excursion per driver: 24 mm Xmax, 41 mm Xmech
• High-current 4-layer copper voice coil
• Proprietary high-flux density ferrite system

Amplifier

• Sledge STA-800D2C Amplifier
• Power: 800 Watts RMS
• Peak Power: 2,500 Watts
• Fully discrete MOSFET output
• Class D switching topology
• 25 Ampere 600 Volt MOSFETs
• High-resolution 50 MHz audio DSP with 56-bit filtering
• Environmentally friendly standby power consumption: 0.5 Watts

Control and Sound Tuning

• SVS Subwoofer Control Smartphone App
• Bluetooth BLE control
• Compatible with iOS, Android, and Amazon devices
• Custom tuning and user presets
• Adjustable parameters: low-pass filter, phase, polarity, room gain, and three parametric equalizers
• ICI user interface on the front
• Blue LED display
• Push-button control

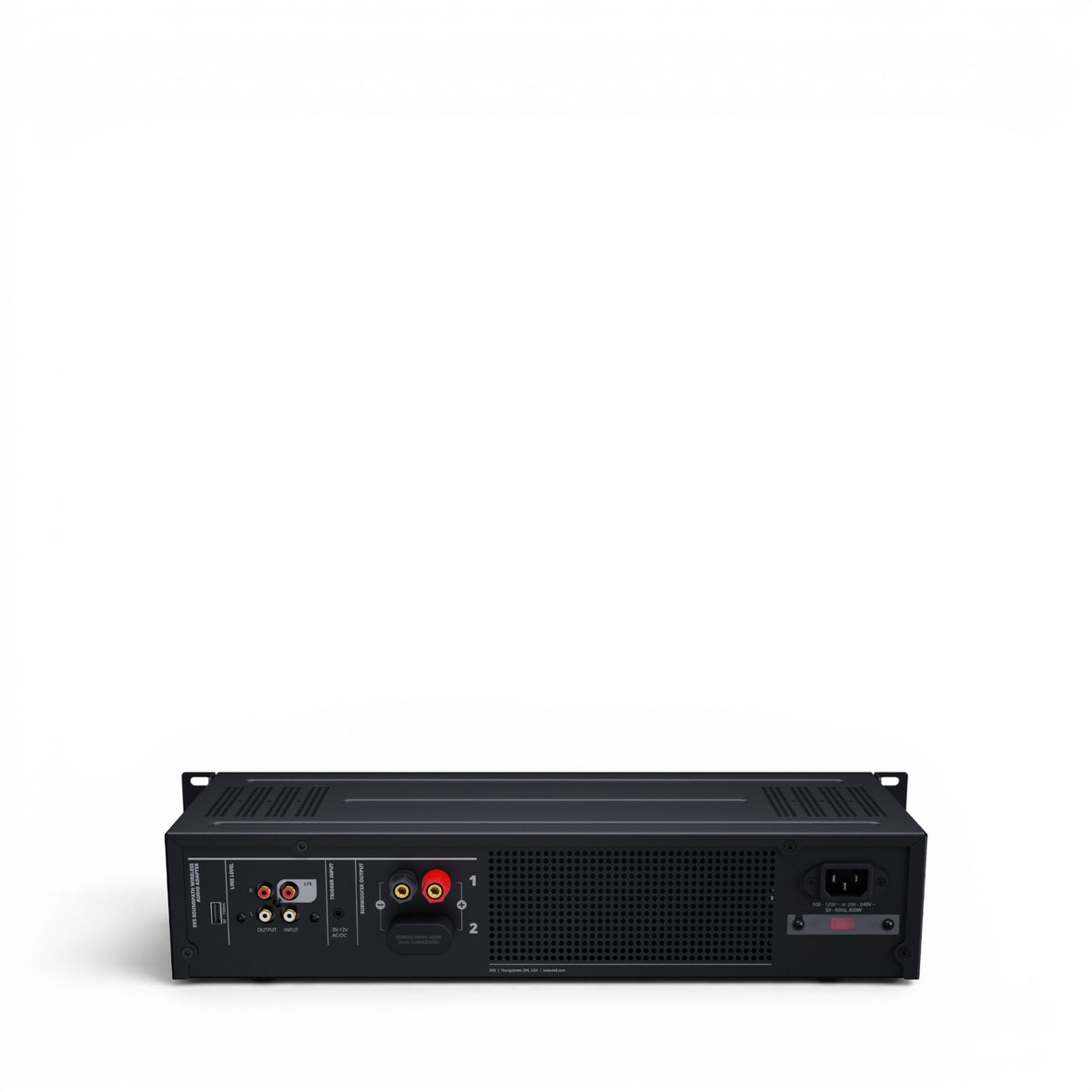

Connections and Installation

• Stereo RCA input
• Stereo RCA output
• Input voltage bandwidth up to 4 V line level
• Input impedance: 16 kO, unbalanced RCA
• Auto/On
• 3–12 V AC/DC Trigger
• 2U rackmount amplifier
• Designed for retrofit and new construction
• Suitable for partition walls according to product specifications

Scope of Delivery

• 1x SVS 3000 In-Wall Subwoofer
• 1x external Sledge STA-800D2C amplifier
• Power cable
• Magnetic front cover
• Mounting accessories
• Documents
