Reference DAC and SACD/CD Player in One

The McIntosh MCD12000 is more than a classic CD player: It combines a high-quality digital-to-analog converter with SACD/CD playback. Music from disc or via the digital inputs is processed in the device and then sent analog to a preamplifier, integrated amplifier, or other control component.

Two DACs for Two Channels

Inside, two DACs operate, one for each of the left and right audio channels. The DACs are configured in Octal-Balanced-Mono mode. Separate digital and analog power supplies isolate power and audio signals, while the specially designed R-Core power transformer reduces interference radiation.

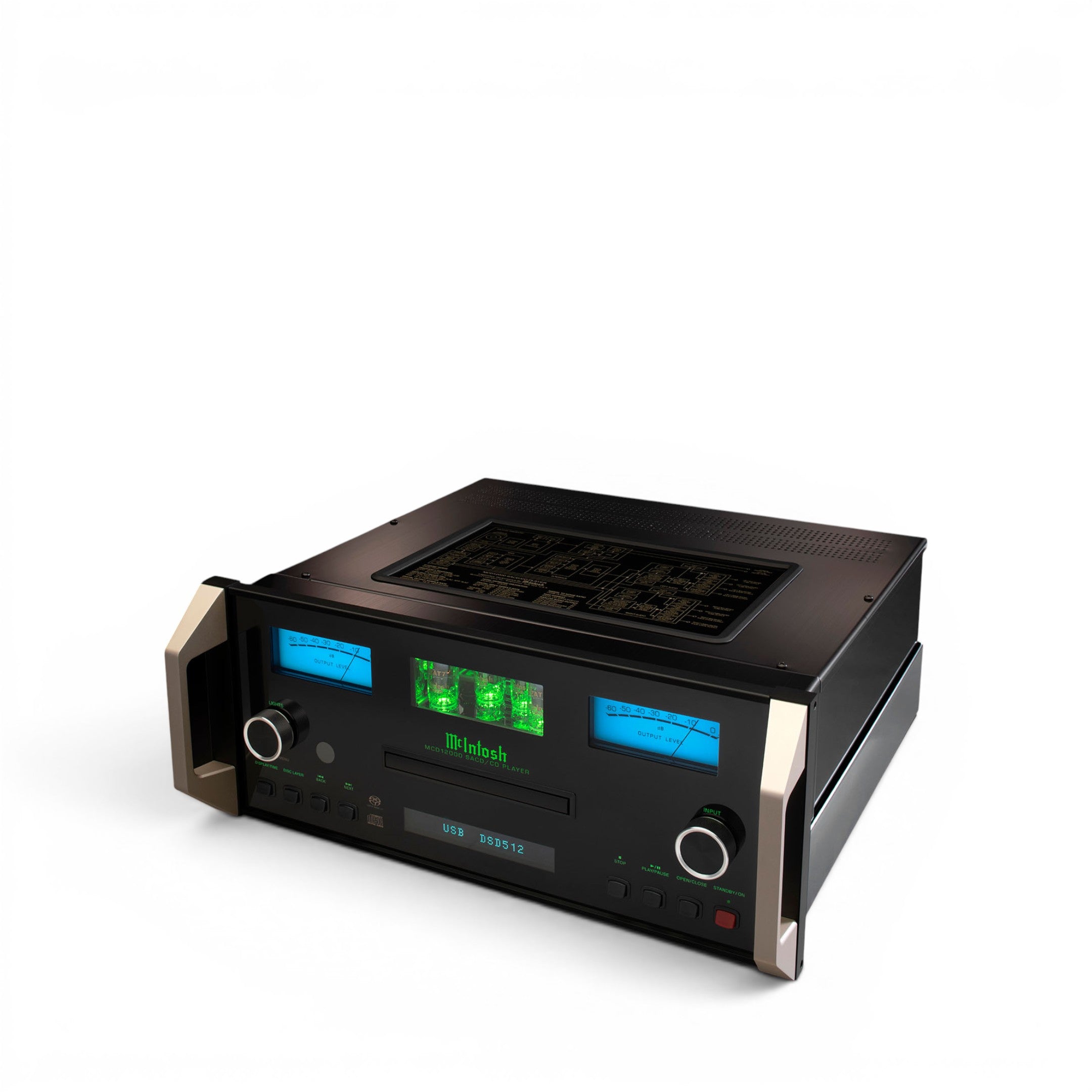

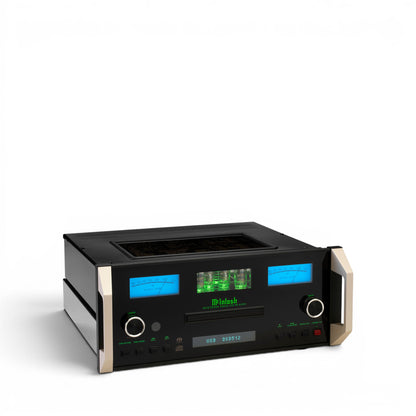

Hybrid Drive™ with Tube and Solid-State Outputs

The MCD12000 offers you two output options for analog output: via tube technology or via solid-state technology. Both variants are available symmetrically via XLR and unsymmetrically via RCA. This allows the player to be flexibly integrated into high-quality Hi-Fi systems – matching your existing components, the respective music, and your personal listening preference.

Flexible Integration of Digital Sources

With seven digital inputs, the MCD12000 is broadly equipped: two coaxial inputs, two optical inputs, USB Type B, AES/EBU, and MCT. The coaxial and optical inputs support up to 24-bit / 192 kHz, the USB input supports up to 32-bit / 384 kHz, as well as DSD512 and DXD384 kHz. Additionally, a coaxial and an optical digital output are available.

Disc and File Playback

In addition to SACD, CD, and CD-R/RW, the MCD12000 also plays DVD data discs and common file formats such as AAC, AIFF, ALAC, DSD up to DSD128, FLAC, MP3, WAV, and WMA. Disc playback uses a twin-beam laser, a precise die-cast aluminum tray, and a digital servo for fast, quiet, and accurate drive operation.

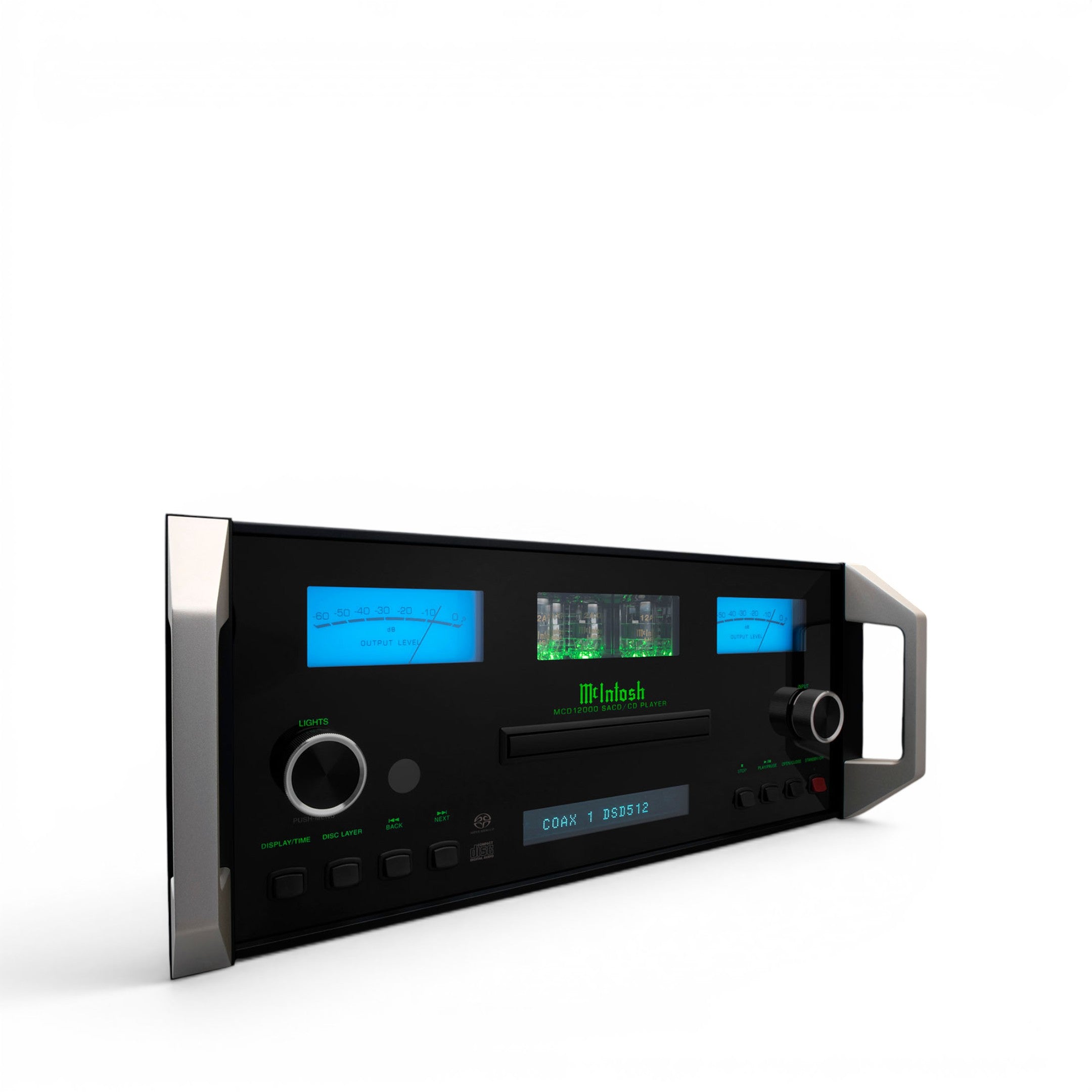

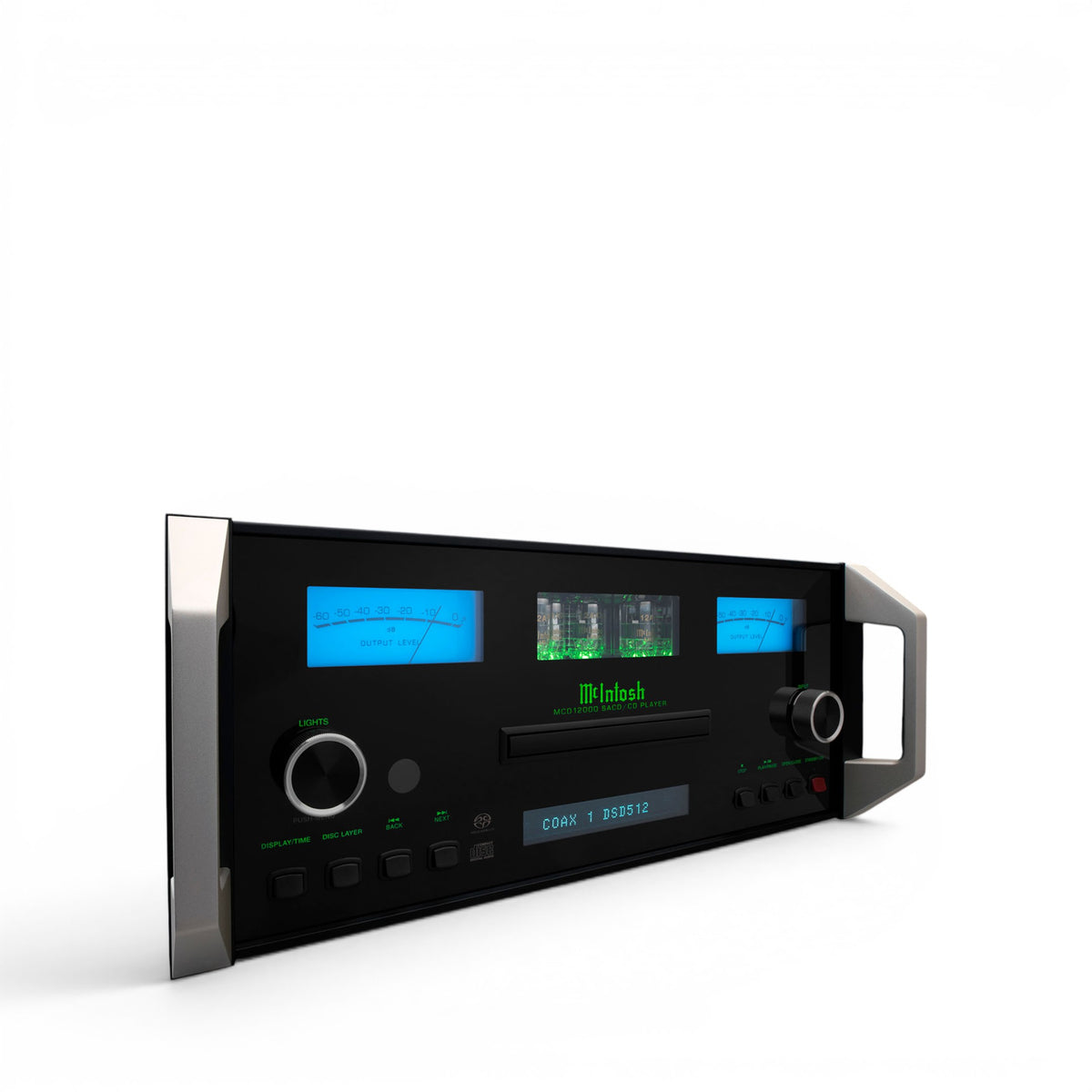

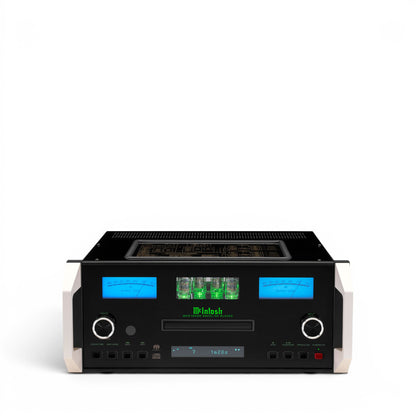

Everyday Operation

Operation is performed directly on the device via buttons and rotary controls for input selection, disc layer, drive control, display, and setup menu. A remote control is included. The output level indicators respond to the played signal; the volume is not controlled on the MCD12000, but on the connected preamplifier, integrated amplifier, or control unit.

Placement and Integration

The MCD12000 can be placed on a table or shelf or built into furniture or a cabinet. For installation, the specified ventilation clearances are important (datasheet).

Roon Tested and McIntosh System Integration

The DAC of the MCD12000 is Roon Tested. Power Control and data connections enable integration with other McIntosh system components. We would be happy to advise you in our specialist shop on a suitable combination with your existing devices.

Pros and Cons at a Glance

Reasons to choose the McIntosh MCD12000:

• SACD/CD player and reference DAC in one device
• Two ESS SABRE PRO ES9038PRO 32-bit/8-channel DACs, one DAC per channel
• Tube and solid-state outputs, each balanced and unbalanced
• Seven digital inputs including USB Type B, AES/EBU, and MCT
• USB supports up to 32-bit / 384 kHz, DSD512, and DXD384 kHz
• Roon Tested
• Remote control included

Things to know before buying:

• No variable analog outputs available
• No headphone output available
• Volume is controlled via an external control component

Specifications

General

• Product Type: 2-Channel SACD/CD Player with Integrated Digital-to-Analog Converter
• Channels: 2
• Dimensions W × H × D: Width 44.45 cm / 44.5 cm; Height 19.4 cm
• Required Clearance in front of the mounting panel with disc tray open: 17.2 cm
• Weight: 14.7 kg
• Shipping Weight: 21.8 kg
• Packaging Dimensions W × D × H: 68.6 × 63.5 × 35.6 cm
• Frequency Response SACD: 4 Hz to 40 kHz, +0.5 / -2 dB
• Frequency Response CD: 4 Hz to 20 kHz, ±0.5 dB

Audio

• Fixed Output Level: 2.0 Vrms unbalanced; 4.0 Vrms balanced
• Variable Output Levels: not available
• Output Impedance: 600 ohms unbalanced and balanced
• Signal-to-Noise Ratio: 110 dB, A-weighted
• Dynamic Range: better than 100 dB
• Total Harmonic Distortion: 0.003 % at 1,000 Hz
• Channel Separation: better than 98 dB at 1,000 Hz
• Headphone Output: not available

Digital-to-Analog Converter

• DAC Type: 2 × ESS SABRE PRO ES9038PRO 32-Bit/8-Channel DAC
• DAC Configuration: Octal-Balanced Mono, 1 DAC per channel
• Architecture: ESS HyperStream® II and Time Domain Jitter Eliminator
• Up-Sampling: 32 Bit / 384 kHz

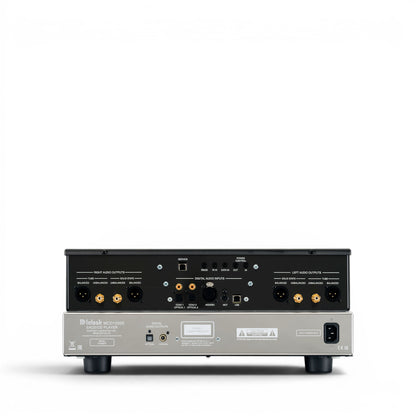

Connections

• Digital Inputs: 2 × coaxial, 2 × optical, 1 × USB Type B, 1 × AES/EBU, 1 × MCT
• Coaxial Inputs: 16/24 Bit up to 192 kHz; 0.5 V p-p / 75 Ohm
• Optical Inputs: 16/24 Bit up to 192 kHz; -15 dBm to -21 dBm
• USB Input: USB 2.0 Type B; PCM 16/24/32 Bit up to 384 kHz; DXD352.8 kHz, DXD384 kHz; DSD64, DSD128, DSD256, DSD512
• MCT Input: 1; SACD, PCM 16/24 Bit, 44.1 kHz to 192 kHz
• AES/EBU: 1 input for balanced digital signal
• Digital Outputs: 1 × coaxial, 1 × optical
• Digital Output: up to 24 Bit / 192 kHz, for DISC Input only

Analog Outputs

• Balanced Fixed Output Solid-State: 1
• Balanced Fixed Output Tube: 1
• Unbalanced Fixed Output Solid-State: 1
• Unbalanced Fixed Output Tube: 1
• Balanced Variable Outputs: 0
• Unbalanced Variable Outputs: 0
• Tube Complement Output: 1 × 12AT7 and 1 × 12AX7A per left and right audio channel
• Solid-State Output: discrete balanced operational amplifier

Disc and File Formats

• Disc Formats: SACD, CD, CD-R/RW, DVD-R / DVD Data
• Playback File Formats: AAC, AIFF, ALAC, DSD up to DSD128, FLAC, MP3, WAV up to 24 Bit / 192 kHz, WMA
• Disc Capacity: 1
• Laser Type: Twin Beam
• Laser Wavelength: 650 nm for SACD, 790 nm for CD
• Laser Power: CLASS IIa / CLASS I

Features and Operation

• Hybrid Drive™ Technology: Tube and Solid-State Outputs
• Output Level Indicators: 2 × 60-dB indicators
• Display: Vacuum Fluorescent Display, VFD
• Front Controls: Lights/Push-Menu, Display/Time, Disc Layer, Back, Next, Stop, Play/Pause, Open/Close, Standby/On, Input Knob
• Remote Control: McIntosh HR086
• Setup Options: Auto-Off, IR Code Normal/Alt, Front IR, Power IR, IR Input, Input Display, Baud Rate, Factory Reset
• Auto-Off: after approx. 30 minutes without audio input or operation; can be deactivated

Control and System Integration

• Power Control Input: 1
• Power Control Output: 1
• Data In: 1
• IR Sensor Input Rear: 1
• RS232 Control Input: 1
• Service Port: USB Type B, for service only
• Roon: MCD12000's DAC is Roon Tested

Power Supply

• Power Consumption: 50 W
• Standby Power Consumption: less than 0.5 W
• Voltage Variations: 100/110/120/127/220/230/240 V, 50/60 Hz

Installation

• Placement: on table or shelf, on four feet; can be built into furniture or cabinet
• Minimum Clearance for Cabinet Installation: 15.3 cm top, 1.6 cm bottom, 5.1 cm each side, 45.7 cm depth behind front panel, 5.1 cm front for handle clearance
• Do not install directly above heat-generating components such as powerful amplifiers

Further Technical Data

• Lower Chassis Area: mirror-polished stainless steel
• Upper Chassis Area: black brushed titanium stainless steel
• Front: black glass front, illuminated logo, knobs, push buttons, and brushed aluminum handles

Scope of Delivery

• McIntosh MCD12000
• Remote Control
• Power Cable
• Documents


• Broschüre
• Anleitung
