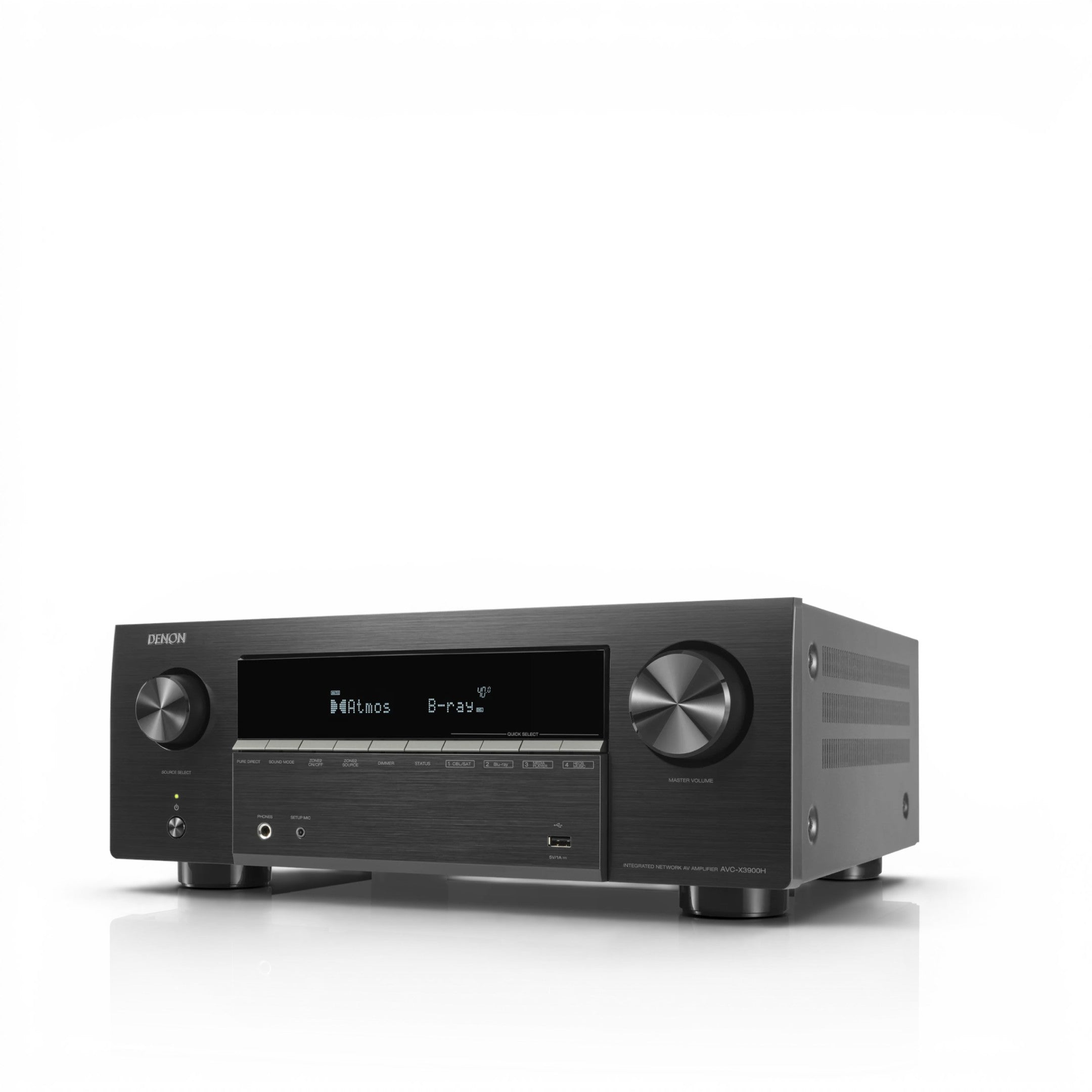

AV Receiver for Sophisticated Home Cinema

The Denon AVC-X3900H is designed as the central control unit for a high-quality home cinema system. It combines powerful multi-channel sound, immersive audio formats, modern video support, and flexible system configurations in one device. Films, music, and games can be experienced spatially, dynamically, and clearly.

Immersive Sound for Film, Music, and Gaming

Dolby Atmos, DTS:X, Auro-3D, and 360 Reality Audio form the basis for a spatial soundscape with audible depth. For older content, DTS Neural:X is also available to enhance existing material spatially.

Modern Picture and Gaming Support

The AVC-X3900H supports 4K/8K HDMI, Dolby Vision, HDR, HLG, Dynamic HDR, and HDR10+. For gaming, Variable Refresh Rate, Auto Low Latency Mode, and AMD FreeSync are available. This makes the AV receiver well-suited for modern sources such as game consoles, Blu-ray players, media players, or TVs.

Connectivity for Modern Home Cinema Systems

The Denon AVC-X3900H offers versatile connectivity options for TV, players, speakers, subwoofers, and other components. Six HDMI inputs are available for digital sources such as game consoles, Blu-ray players, or media players. Additionally, analog and digital audio connections, a Phono-MM input for turntables, speaker connections, pre-outs, USB, network, WLAN, and Bluetooth are provided.

Room Correction and System Optimization

Audyssey handles the measurement and optimization of the speaker system in the room. A microphone for sound calibration and a microphone stand are included in the delivery. Additionally, an optional upgrade to the full Dirac Live Suite is possible if more extensive room correction and system tuning are desired.

HEOS Multiroom Streaming Throughout Your Home

Powered by HEOS™ allows music to be played on the home network and distributed to compatible HEOS devices. The same music can play in multiple rooms, or different music can be chosen for different rooms. Control is via the HEOS app.

Convenient Everyday Operation

Operation is possible via the included remote control, the Denon AVR Remote App, the HEOS App, and voice control. The setup assistant guides you through the configuration of speakers, network, and other settings via the TV screen. For direct operation on the device, source selection, volume, sound mode, Quick Select, and ZONE2 functions are available, among others.

Pros and Cons at a Glance

Reasons to choose the Denon AVC-X3900H:

• Immersive audio formats such as Dolby Atmos, DTS:X, Auro-3D and 360 Reality Audio
• 4K/8K HDMI with HDR support and gaming features
• Powered by HEOS™ for streaming and multiroom playback
• Audyssey room correction with included calibration microphone
• Optional upgrade to the full Dirac Live Suite possible
• Versatile connections

Things to know about the Denon AVC-X3900H before buying:

• For 8K and 4K video at 120 Hz, a certified Ultra High Speed HDMI cable is required.

Specifications

General

• Product type: 4K/8K 9.4-channel AV receiver with network
• Product name: AVC-X3900H
• Color: Black
• Dimensions W × H × D without antennas: 43.4 × 16.8 × 37.8 cm
• Dimensions W × H × D with horizontal antennas: 43.4 × 16.8 × 38.9 cm
• Dimensions W × H × D with vertical antennas: 43.4 × 23.6 × 38.9 cm
• Weight: 12.5 kg
• Weight with packaging: 15.7 kg

Audio and Amplifier

• Channels: 9.4 Channels
• Number of processing channels: 11.4
• Number of power amplifiers: 9
• Power: 105 W, 8 Ohms, 20 Hz–20 kHz, 0.08 %, 2-channel operation
• Power: 135 W, 6 Ohms, 1 kHz, 0.7 %, 2-channel operation
• 3D Audio: Yes
• Dolby Atmos: Yes
• DTS:X: Yes
• DTS Neural:X: Yes
• Auro-3D: Yes
• 360 Reality Audio: Yes
• Audyssey: Yes
• Optional upgrade to the full Dirac Live Suite possible: Yes
• Subwoofer outputs: 4, independent

Video

• 4K/8K HDMI: Yes
• 8K Pass-Through: Yes
• 8K Upscaling: Yes
• HDCP 2.3: Yes
• Dolby Vision: Yes
• HDR: Yes
• HLG: Yes
• Dynamic HDR: Yes
• HDR10+: Yes
• Variable Refresh Rate: Yes
• Auto Low Latency Mode: Yes
• AMD FreeSync: Yes

Connections

• HDMI In/Out: 6/3
• Analog inputs/outputs: 6/-
• Phono MM input: Yes
• Digital inputs optical/coaxial: 2/2
• Multi-Zone Analog Preouts: 1
• Multichannel Pre-Out: Yes, 11.4
• Speaker terminals: 11
• Speaker A/B: assignable
• Bi-Amp Drive: assignable
• Multi-Zone Speaker Terminal: assignable
• Front USB port: Yes
• Rear USB port for power supply: Yes
• Network connection: Yes
• Wi-Fi: Yes
• Bluetooth: Yes
• eARC/ARC: Yes
• Trigger Out: Yes
• RS-232C: Yes
• Remote Control jacks: Yes
• Signal GND connection: Yes

Streaming and Network

• Powered by HEOS™: Yes
• HEOS App: Yes
• Denon AVR Remote App: Yes
• Spotify: Yes
• AirPlay: Yes
• AirPlay 2: Yes
• Internet Radio: Yes
• Playback from USB storage devices: Yes
• Playback of files from computer or NAS: Yes
• Bluetooth headphone playback: Yes
• Josh.ai voice control: Yes

Operation and Display

• Front Display: 1 line FLD
• Remote control: RC-1262
• Setup assistant via TV screen: Yes
• Quick Select: Yes
• ZONE2: Yes
• Multi-Source / Multi-Zone: 2

Power Supply

• Power consumption: 660 W
• Power consumption without sound ECO on/off: 60 W / 100 W
• Standby consumption: 0.1 W
• CEC standby consumption: 0.5 W
• Network standby consumption: less than 2.0 W

Scope of delivery

• AVC-X 3900H
• Bluetooth/Wi-Fi antennas
• Remote control
• Power cable
• Sound calibration microphone
• Sound calibration microphone stand
• Documents

• Anleitung
• Anleitung II
