Dolby Atmos® and DTS:X

Experience the action up close with 3D audio that brings your sound to life. Whether a quiet whisper from above or the roar of distant explosions – look forward to an unparalleled listening experience with sound that moves around you.

Precise Dialogues

Enjoy every word from your TV thanks to the first-class performance in the mid-range. Select the dialogue mode in the KEF Connect app or via the remote control to boost vocal frequencies while reducing background noise and sound effects, experiencing clear, precise voices and dialogues.

Precise, detailed sound throughout the room

With the Uni-Q® MX – a miniature version of our popular Uni-Q drivers – you experience sound that is widely and evenly distributed. This way, everyone in the room can enjoy the same detailed sound.

Deep, rich bass

Four P185 woofers, supported by the patent-pending Velocity Control Technology (VECO), deliver deep, first-class bass. And for those who want more, a KEF subwoofer can easily be connected using the KW2 RX receiver.

Comprehensive Streaming Options

The XIO supports all leading streaming services such as Spotify, TIDAL, QPlay, Amazon Music, and Qobuz, offering high-fidelity music experiences. It is also compatible with a wide range of audio formats, including PCM files, Dolby Atmos Music, and Sony 360 Reality Audio.

Intelligent Placement Technology (IPT)

Intelligent Placement Technology (IPT) ensures consistent performance. It detects nearby objects to analyze the acoustic properties of the environment. After collecting this data, the MIE algorithm automatically adjusts the EQ to enable improved audio playback.

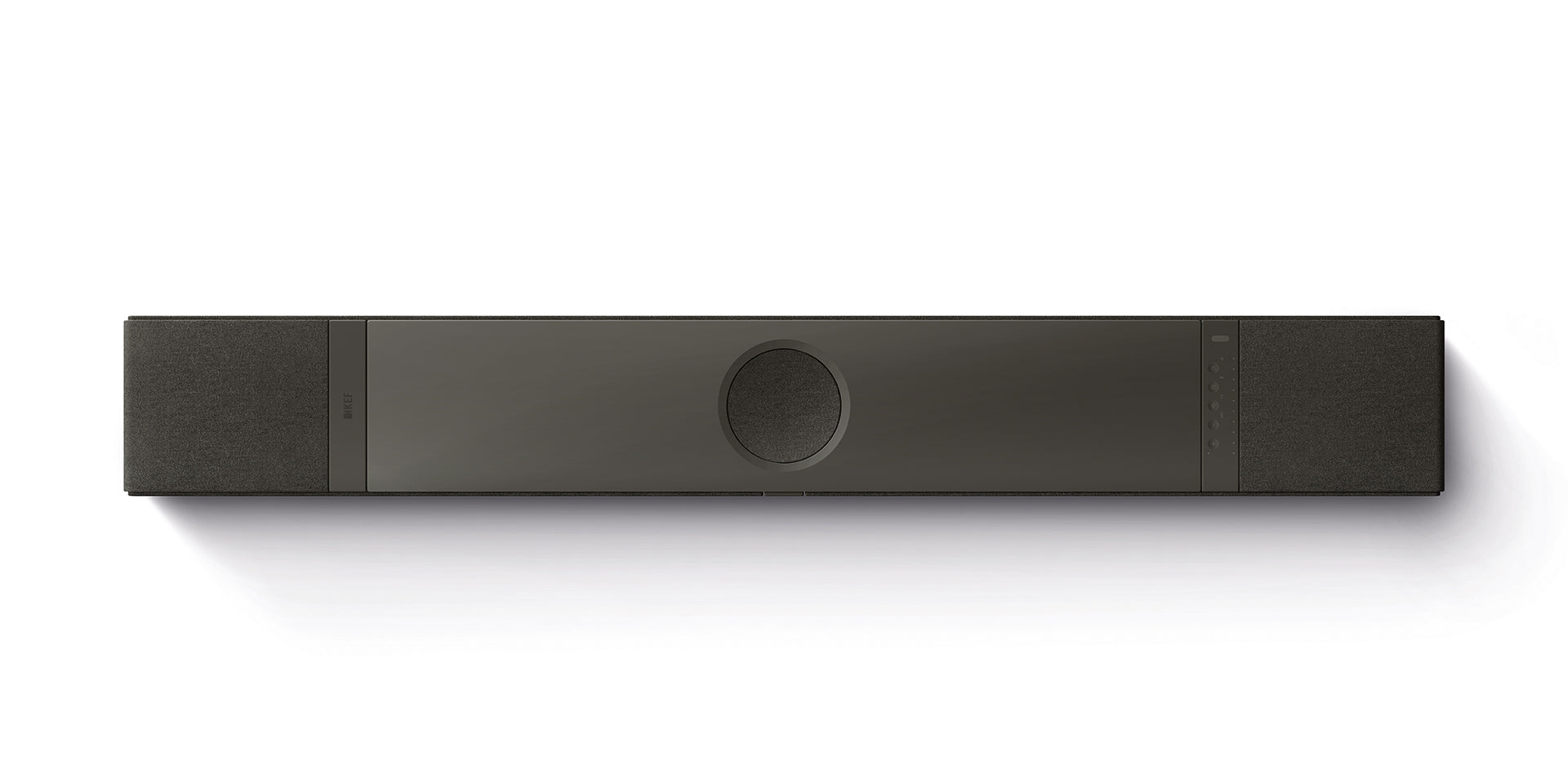

Model
XIO

Dimensions (HWD)
70 × 1210 × 165 mm

Weight
10.5 kg (23.1 lbs)

Drivers
HF/MF: 6 x 50 mm (2 in.) Uni-Q MX Driver
HF/MF: 2 x 50 mm (2 in.) Full Range Driver
LF: 4 pcs of 50 x 180 mm (2 x 7 in.) P185 Driver, supported by VECO

Amplifier
HF/MF: 8 x Class D
LF: 4 x Class D

Max. SPL, measured at 1m
102 bB

Frequency Response (±3dB)
measured at 85dB/1m
34Hz - 20kHz

Input
HDMI 2.1 eARC
TOSLINK Optical
USB Type C (Service)
RJ45 Ethernet (Network)

Outputs
Wireless Subwoofer Output
RCA Subwoofer Output

Wireless Connectivity

KEF Connect
AirPlay
Google Cast
UPnP Compatible
Bluetooth 5.3

Streaming Services
Spotify via Spotify Connect
Tidal via Tidal Connect
QQ Music via Qplay
Amazon Music
Qobuz
Deezer
HIGHRESAUDIO
Internet Radio
Podcast…and more
*Dependent on service availability in different countries

Supported Formats
Dolby Atmos, DTS:X, 360 Reality Audio, MPEG-H, FLAC, WAV, AIFF, ALAC, AAC, WMA, MP3, M4A, LPCM and Ogg Vorbis
*Dependent on source device support

Supported Resolution
HDMI eARC up to 192kHz/24bit
Network up to 384 kHz/24bit
Optical up to 96kHz/24bit
*Dependent on source resolution

Multi-channel Output
Up to 5.1.2

Wi-Fi Network Band
2.4 GHz / 5 GHz / 6 GHz

Wi-Fi Network Standard
IEEE 802.11a/b/g/n/ac/ax
IPv4, IPv6

Amplifier Output Power
820 W (Maximum Instantaneous Total Power)

Power Input
100 – 240VAC 50/60Hz

Power Consumption
400 W (Operating Max)
<2.0W (ECO mode standby)
<0.5W (No WiFi mode)
