Description
Target Audience
The A-50 is a 2-channel integrated amplifier for stereo music. It is suitable for beginners as well as experienced listeners who want to securely drive powerful speakers while also enjoying convenient streaming.
Sound & Technology
A three-stage inverted Darlington amplifier ensures controlled power with low distortion. The DIDRC circuitry (Dynamic Intermodulation Distuction Circuitry) reduces high-frequency noise – the result is clear, quiet sound. A fanless design, a high-quality 32-bit/768-kHz DAC, 10000-µF capacitors, and a massive aluminum heatsink deliver superb dynamics.
Connectivity & Operation

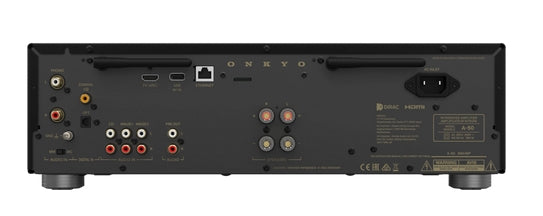

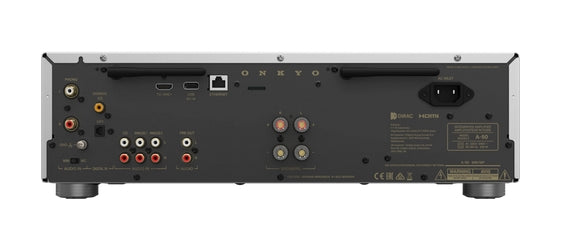

The device features 3× RCA (Line), Phono MM/MC, HDMI ARC, Coax, 2× Optical, USB-A (playback), and headphone connections. A power amplifier/sub can be connected via Pre-Out; setup microphone input and Dirac Live (see below) assist with fine-tuning.
Streaming & Apps
Connection is made via WLAN/LAN or Bluetooth (SBC, aptX, aptX HD). Supported services: Spotify Connect, TIDAL Connect, Qobuz Connect, Amazon Music, Qplay, TuneIn, AirPlay 2, Chromecast, Roon Ready. With the Onkyo Controller App, you can control sources, network settings, and more.
Setup Tips & Compatibility
The A-50 drives a wide range of speakers (4–16 Ω) – from compact to floor-standing speakers. Dirac Live Room Correction (frequency response correction 500 Hz–20 kHz; full version optional) adapts the sound to your room and audibly enhances bass precision and spatiality .
Properties
Specifications
- Amplifier Principle: Class-AB, three-stage inverted Darlington Channels: 2.0
- Output Power: 140 W (8 Ω, 1 kHz, THD 0.7 %, 2 channels) / 180 W (4 Ω, 1 kHz, THD 0.7 %, 2 channels)
- Frequency Response: 5 Hz – 100 kHz (+1/–3 dB)
- Total Harmonic Distortion (THD+N): 0.08 % (20 Hz – 20 kHz, rated output)
- Signal-to-Noise Ratio: 104 dB (Line, IHF-A) / 74 dB (Phono MM) / 58 dB (Phono MC)
- Speaker Impedance: 4 – 16 Ω
- Tone Control: Bass 100 Hz ±10 dB, Treble 10 kHz ±10 dB
- Room Correction: Dirac Live® Room Correction (Frequency Response 500 Hz–20 kHz; full version optional)
- Network & Wireless: WLAN, LAN; Bluetooth (SBC, aptX, aptX HD)
- Streaming Services: Spotify Connect, TIDAL Connect, Qobuz Connect, Amazon Music, Qplay, TuneIn, AirPlay 2, Chromecast, Roon Ready
Inputs (Analog):
– 3× RCA (Line)
– 1× Phono
(MM/MC)
Inputs (Digital):
– 1× HDMI ARC
– 1×
Coaxial
– 2× Optical
– 1× USB-A (Storage Playback)
Outputs:
– 1× Pre-Out (RCA, L/R)
– 1×
Headphone 6.3 mm
Control/Setup Connections:
– Setup-Mic 3.5 mm
–
USB Port
– GND (Phono)
Dimensions (W × H × D): 435 × 135 × 355 mm (17.1″ ×
5.3″ × 14.0″)
Weight: 13.0
kg
Power Consumption: 350 W (Operating), 47 W (Idle), <
0.3 W (Standby)
Special Features
- DIDRC: reduces intermodulation artifacts for clean, natural sound
- Inverted Darlington output stage: high current delivery, controlled punch
- Robust construction: 5mm aluminum front, "Oval-Chassis", aluminum heatsink for vibration damping
- High-quality power supply: 10000-µF capacitors, copper busbar
- Extensive connectivity including HDMI ARC & Phono MM/MC
- Dirac Live on board: Room correction for audibly more precision and soundstage
- Convenient app control via Onkyo Controller
Scope of delivery
- Onkyo A-50 Network Integrated Amplifier
- Power cord
- Remote control (incl. 2x AAA batteries)
- Measurement microphone
- Owner's manual including safety instructions
Manufacturer information
ICON A-50
The Onkyo A-50 is a network-enabled integrated amplifier, combining pre- and power amplification in one robust chassis. It delivers powerful performance, modern streaming options, and easy operation.
