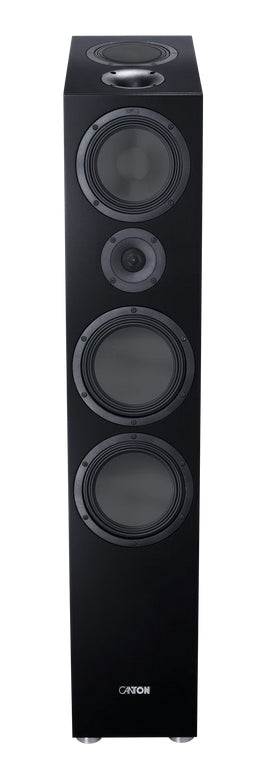

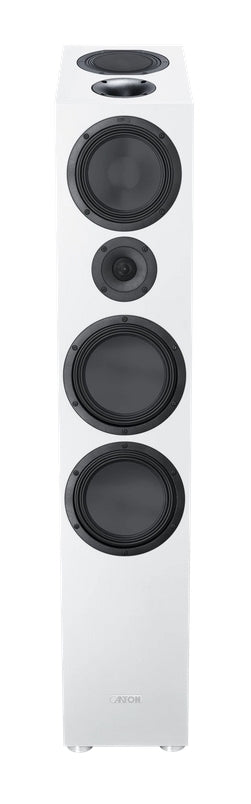

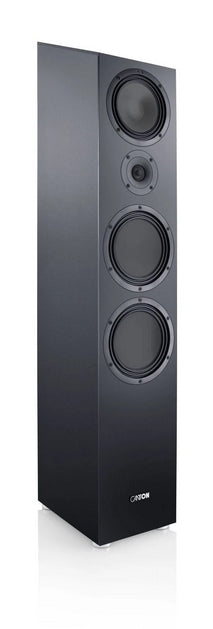

GLE 90 AR S2

The GLE 90 AR S2 combines excellent sound quality with state-of-the-art 3D sound reproduction. Based on the proven 3-way concept of the GLE 90 S2, it features a full-fledged Dolby Atmos module elegantly integrated into the cabinet. The result: a pair of loudspeakers that not only delivers excellent stereo sound but also a room-filling home cinema experience with realistic sound from above – without any additional ceiling speakers. Simply connect it, for example, to the Canton Smart Amp 5.1, and enjoy an immersive surround experience that couldn't be simpler.

Dolby Atmos Sound Module

Concealed within the GLE 90 AR S2's cabinet is a precisely tuned 2-way upfiring module that generates genuine height information – through reflections from the ceiling. A titanium woofer-midrange driver and a 25 mm tweeter (aluminum black) together form a full-fledged Atmos system that realistically reproduces sound sources above the listener. The module is technically separated but visually fully integrated into the cabinet. It can be connected via its own terminal to all Dolby Atmos-enabled multi-channel amplifiers.

High-quality Driver Technology for Maximum Sound Performance

The main speaker itself also impresses with advanced technology: Two 192 mm ATB woofers (Aluminum Titanium Black) in the generously sized bass-reflex cabinet ensure deep, controlled bass with plenty of punch. A 174 mm ATB midrange driver guarantees precise, detailed reproduction of voices and instruments. The system is supported by the proven AB tweeter with a 25 mm dome and waveguide, which enables finely resolved high-frequency reproduction up to 40,000 Hz – both in the main speaker and in the Atmos module. Crossovers and components are precisely matched to guarantee a balanced, dynamic sound across all channels.

Stylish Design with Technical Sophistication

With a height of 117 cm, a width of 21 cm, and a depth of 31 cm, the GLE 90 AR S2 appears elegant and discreet despite its range of functions. Four integrated device feet ensure a secure stand and acoustic decoupling from the floor. It is available in white or black with a silk-matte lacquered baffle, combined with magnetically adhering fabric covers in black or white. This allows the GLE 90 AR S2 to harmoniously integrate into a wide variety of living styles – stylish, understated, and high-quality crafted.

Technical Data

Weight:
22 kg

Package Dimensions:
129 x 45 x 34.5 cm

Package Weight:
26.5 kg

Dimensions (WxHxD):
21 x 118 x 30.7 cm

Acoustic Principle:
3-/2-way bass reflex with Dolby Atmos®

Passive Radiator Principle:
Bass reflex

Radiator Alignment:
Backfire

Tweeter Quantity:
2

Tweeter Size:
25 mm

Tweeter Material:
Aluminum Black

Midrange Quantity:
1

Midrange Size:
174 mm

Midrange Material:
Aluminum Titanium Black

Woofer/Midrange Quantity:
1

Woofer/Midrange Size:
154 mm

Woofer/Midrange Material:
Aluminum Titanium Black

Woofer Quantity:
2

Woofer Size:
192 mm

Woofer Material:
Aluminum Titanium Black

Nominal Power Handling:
150 / 60 Watts

Music Power Handling:
320 / 100 Watts

Frequency Response:
20...40,000 / 50...30,000 Hz

Crossover Frequencies:
Front speaker: 300 / 3,200 Hz; Height speaker: 3,200 Hz

Impedance:
4...8 / 4...8 Ohm

Sensitivity 2.83V/1m:
90.5 db
