Sound for Music and Film

The speaker is designed for two typical applications: classic two-channel Hi-Fi and home cinema.

3-Way Design Explained Simply

The SVS Ultra Evolution Pinnacle is a 3-way speaker. In a 3-way design, separate drivers handle the high, mid, and low frequencies. This allows each range to work more precisely, separating voices, instruments, effects, and bass components more cleanly.

Diamond-Coated Tweeter for Clear Highs

The 1-inch Diamond-Coated Tweeter uses an aluminum dome with a diamond-carbon coating. The FEA-optimized Organic Cell Lattice Diffuser supports airy, unadulterated highs and clean treble reproduction.

Four 8-Inch Woofers for Deep Bass

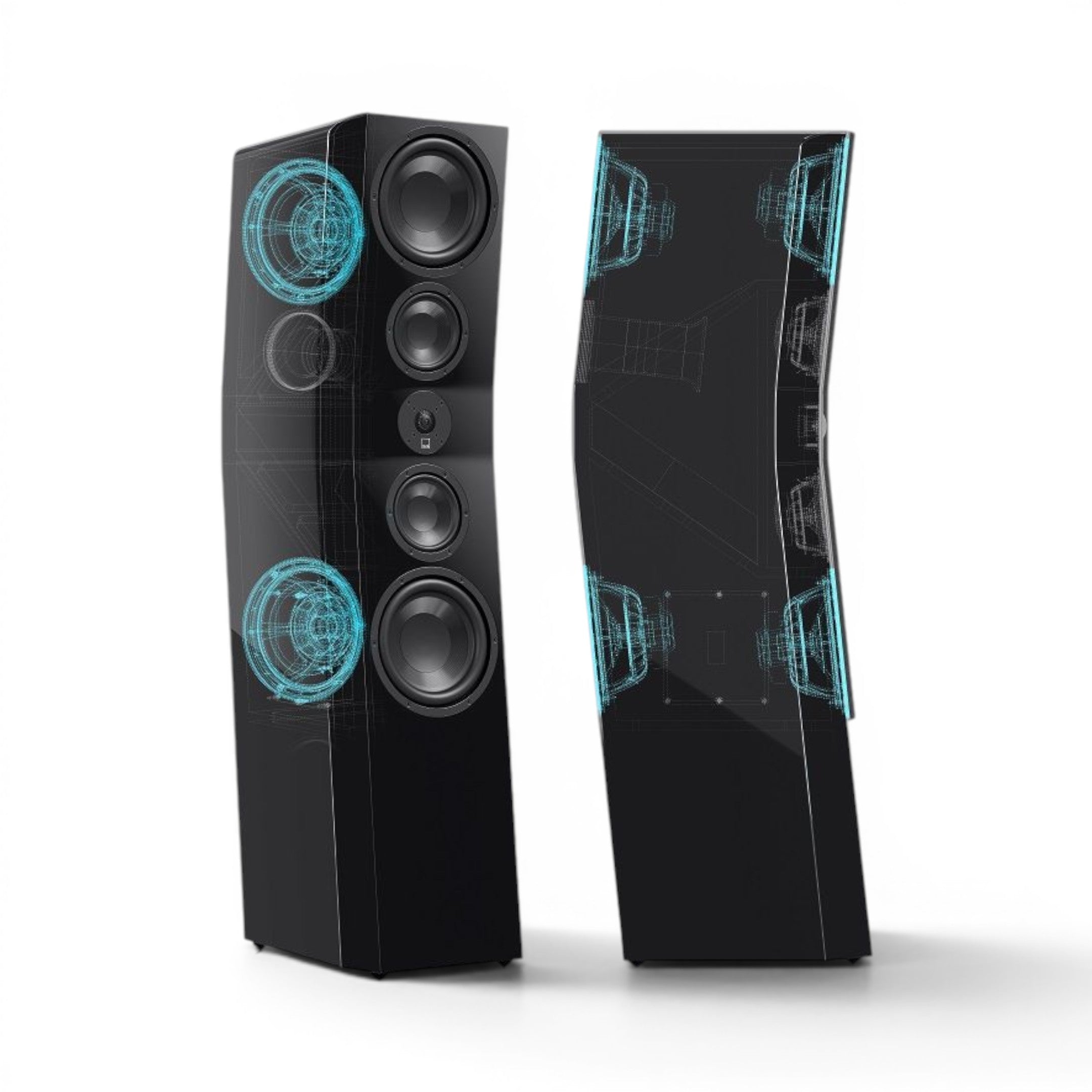

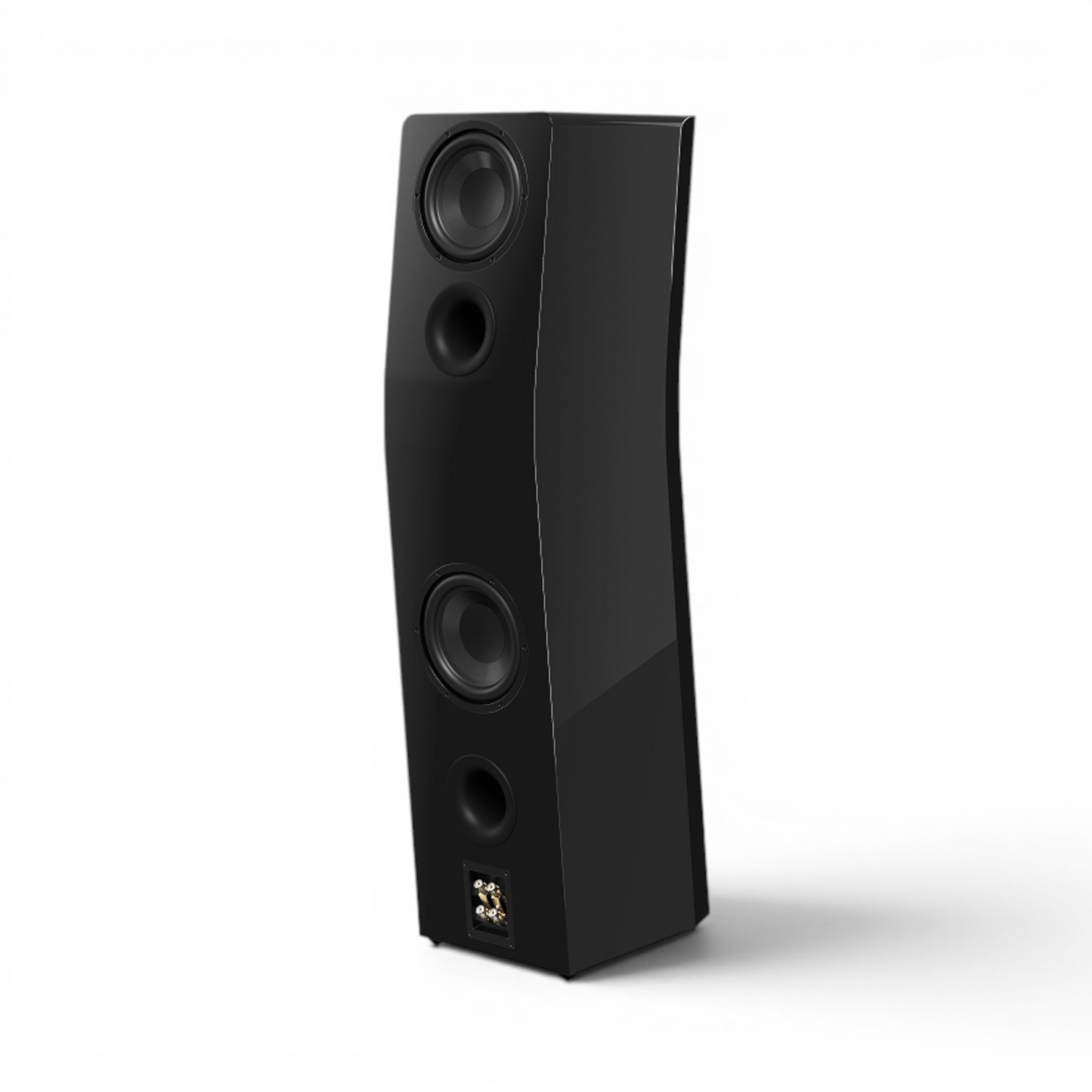

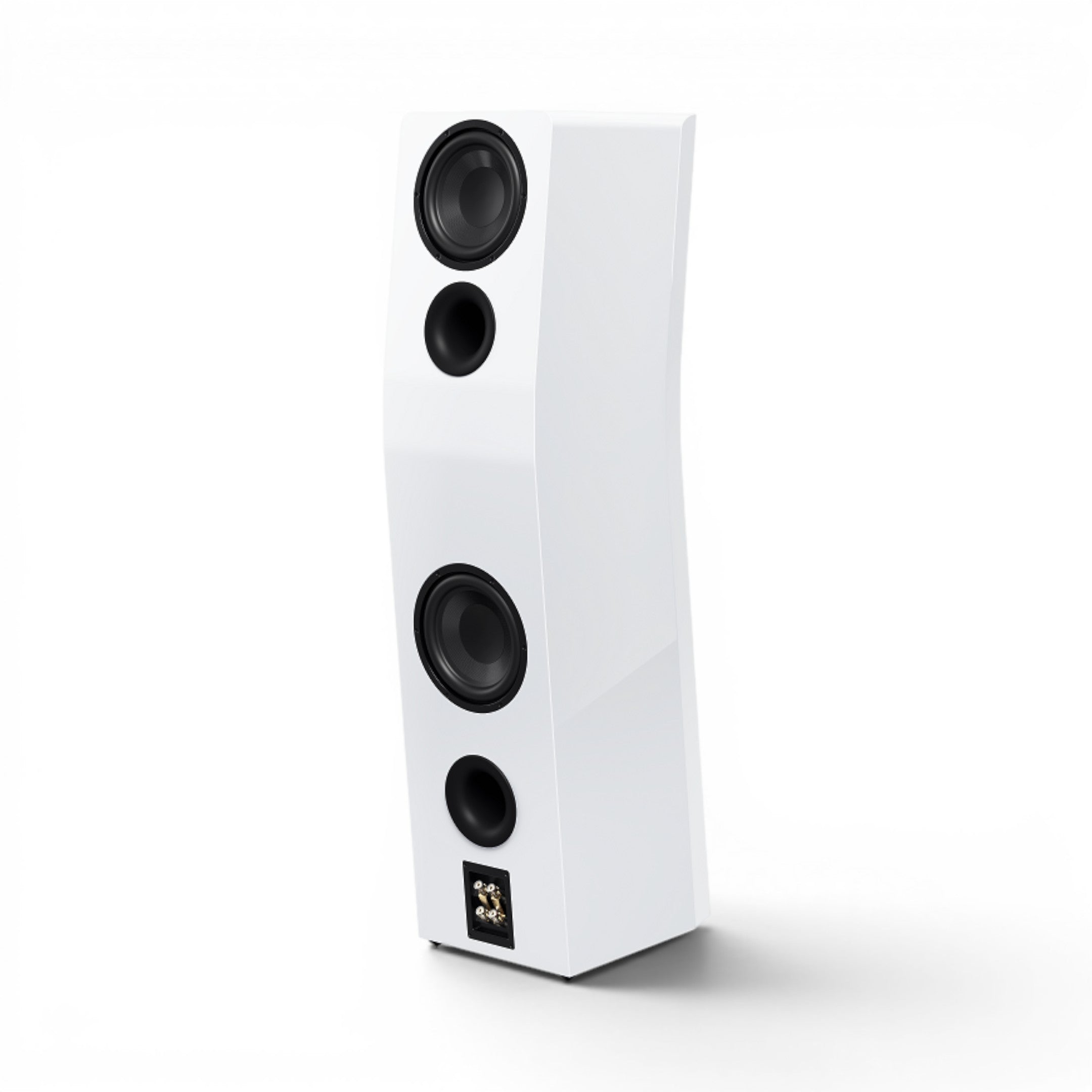

Four 8-inch woofers operate in a Force-Balanced-Opposed-Array. This arrangement is designed for deep, precise, and evenly distributed bass, while simultaneously reducing the vibrational forces acting on the cabinet.

Acoustically Centered Architecture

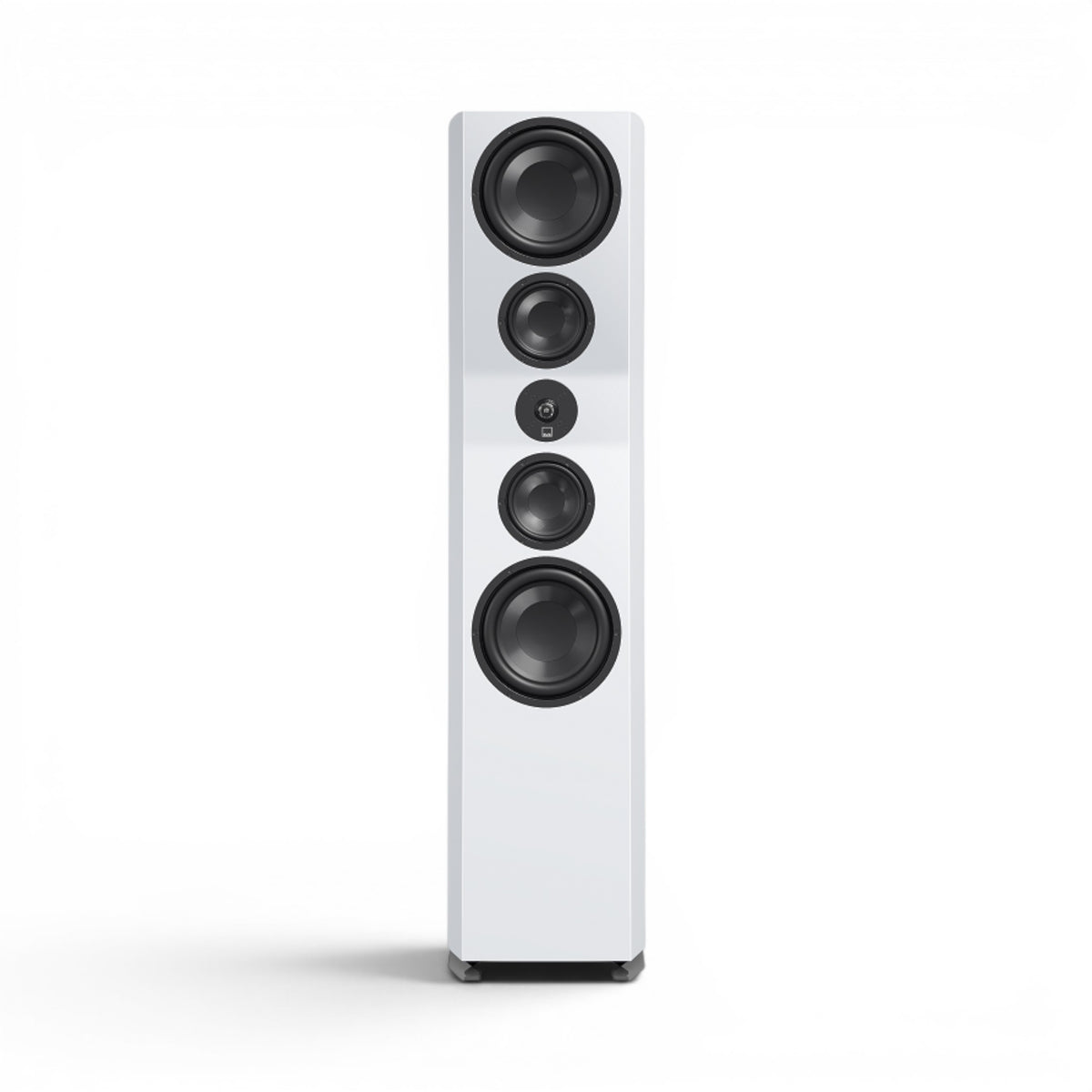

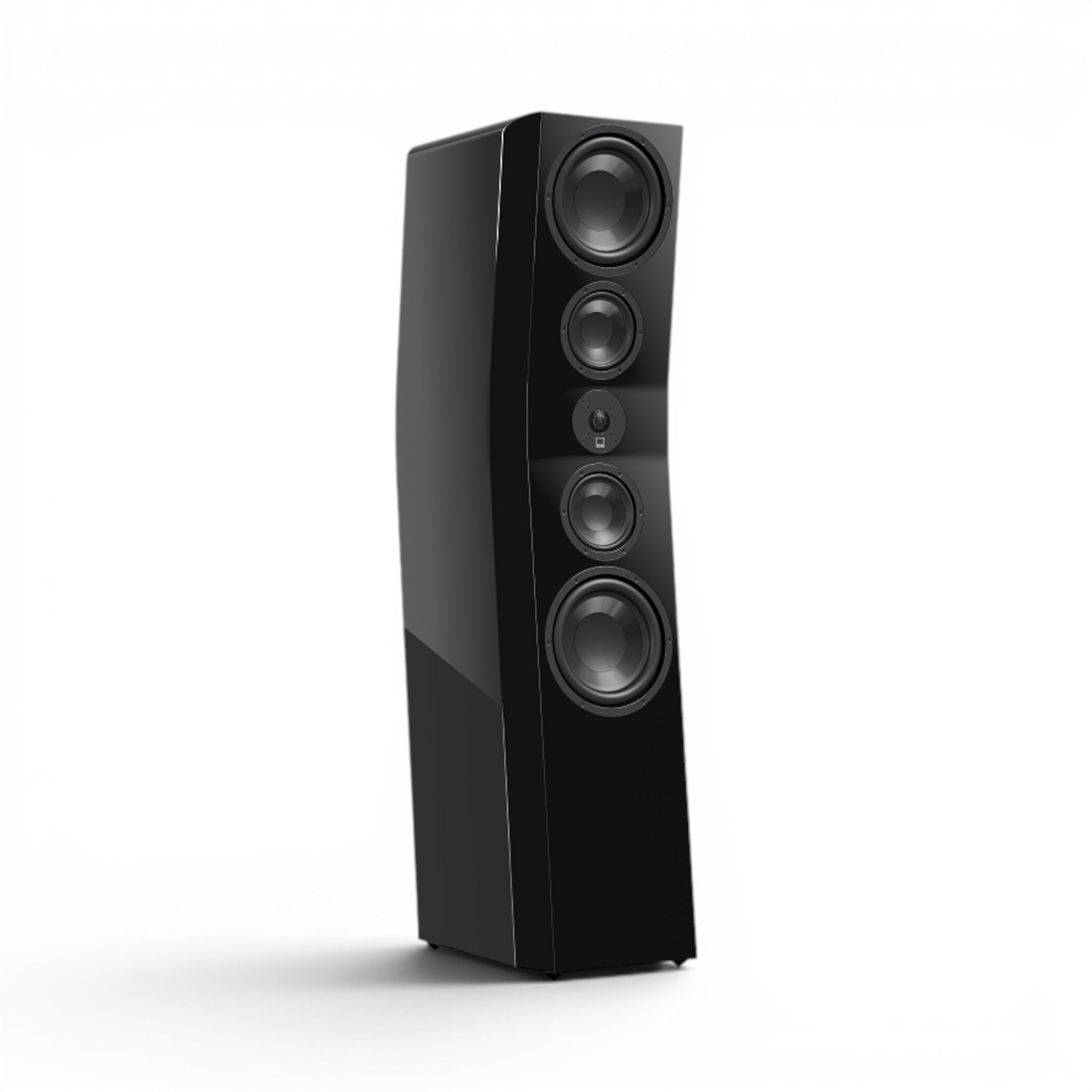

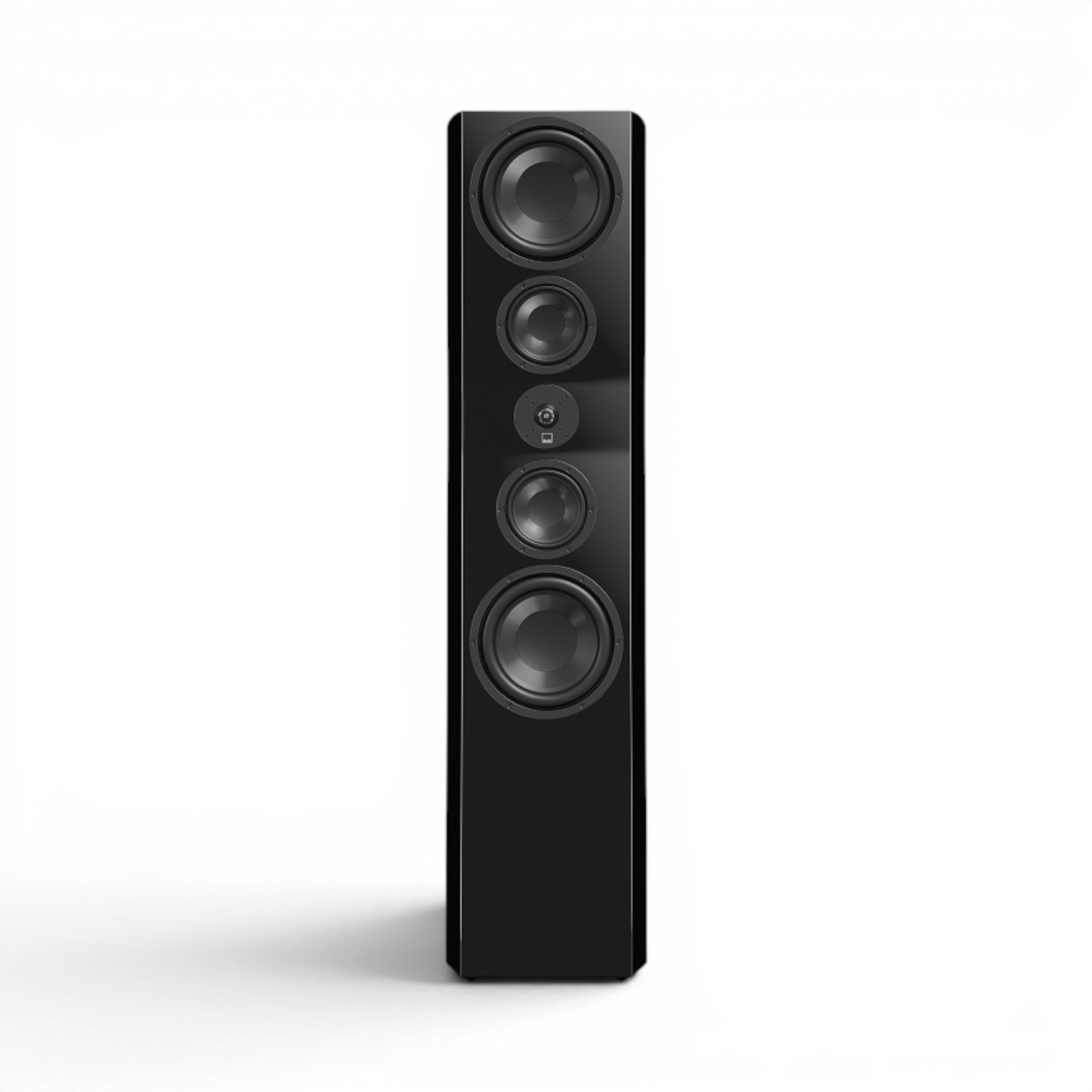

The mid-range and woofer arrays are arranged rotationally symmetrically around the tweeter. This allows low, mid, and high frequencies to emanate from a common acoustic center, supporting a cohesive spatial representation.

Time-Aligned Cabinet Geometry

The cabinet shape accounts for minimal time differences between the drivers. This allows the individual frequency ranges to converge better at the listening position, which is particularly relevant for soundstage imaging, localization, and dialog intelligibility.

Stable Cabinet Against Discoloration

The 25 mm thick driver baffle, the 18 mm cabinet construction, internal bracing, and sound damping are designed for low resonance.

Room Placement and Distance to Wall

For the front speakers, a position of approximately 30 degrees to the left and right of the listening position is suggested as a starting point. A slight toe-in towards the listening position can focus the acoustic image.

Furthermore, we recommend a distance from the wall of 30 - 60 cm. The absolute minimum distance is 15 cm.

Placement on Various Floors

Screw-in elastomer absorber feet are provided for setup and are height-adjustable. Additionally, height-adjustable metal spike screw feet are included, allowing the floor-standing speaker to be adapted to different floor surfaces.

Connections for Classic Wiring, Bi-Wiring, and Bi-Amping

The gold-plated 5-way terminal supports classic speaker cables as well as connections via banana plugs, pins, spade connectors, and bare wire. The speaker is also prepared for bi-wiring and bi-amping.

What Sets the Pinnacle Apart Within the SVS Ultra Evolution Series

Within the Ultra Evolution Series, the SVS Ultra Evolution Pinnacle is positioned as the flagship floor-standing speaker and distinguishes itself primarily through the deepest specified frequency response, four 8-inch woofers in a force-balanced array, two 5.25-inch midrange drivers, and the 43.9 kg cabinet. Compared to the Titan and Tower, the Pinnacle is thus the most consistent choice for large Hi-Fi and home cinema setups where deep bass, high dynamics, and a particularly stable sound foundation are paramount.

Specifications

General

• Manufacturer: SVS
• Product number: 102302
• Product name: Ultra Evolution Pinnacle
• Product type: Floorstanding speaker
• Principle: 3-way bass reflex
• Cabinet dimensions: 126.0 cm H x 30.0 cm W x 46.07 cm D
• Overall dimensions incl. grille, feet and terminals: 127.5 cm H x 30.0 cm W x 46.1 cm D
• Weight: 43.9 kg
• Frequency response: 24 Hz to 40 kHz (+/-3 dB)

Acoustics and Electrics

• Nominal impedance: 8 Ohm
• Sensitivity / Efficiency: 87 dB (2.83 V @ 1 meter full-space, 300–3 kHz)
• Recommended amplifier power: 20 – 300 Watt
• Crossover frequency tweeter to midrange: 1.8 kHz
• Crossover frequency midrange to woofer: 140 Hz

Drivers

• Tweeter: 1" D1 Diamond Coated Tweeter
• Tweeter Detail: Aluminum dome with diamond carbon coating
• Tweeter Detail: FEA-optimized Organic Cell Lattice Diffuser
• Midrange: two 5.25" midrange drivers made of composite glass fiber material
• Midrange Detail: precision cast aluminum alloy baskets
• Midrange Detail: ventilated Kapton voice coil former
• Woofer: four 8" woofers in force-balance array principle
• Woofer Detail: Composite glass fiber cone
• Woofer Detail: precision cast aluminum alloy baskets
• Woofer Detail: ventilated aluminum voice coil former

Crossover

• 3-way crossover
• High-quality capacitors, inductors, and resistors
• Heavy-duty circuit board

Connections

• Gold-plated bi-amping/bi-wiring terminal
• Dual gold-plated 5-way binding posts
• Suitable for conventional wiring
• Suitable for bi-wiring
• Suitable for bi-amping

Cabinet and Construction

• Two 3" rear-firing bass reflex ports

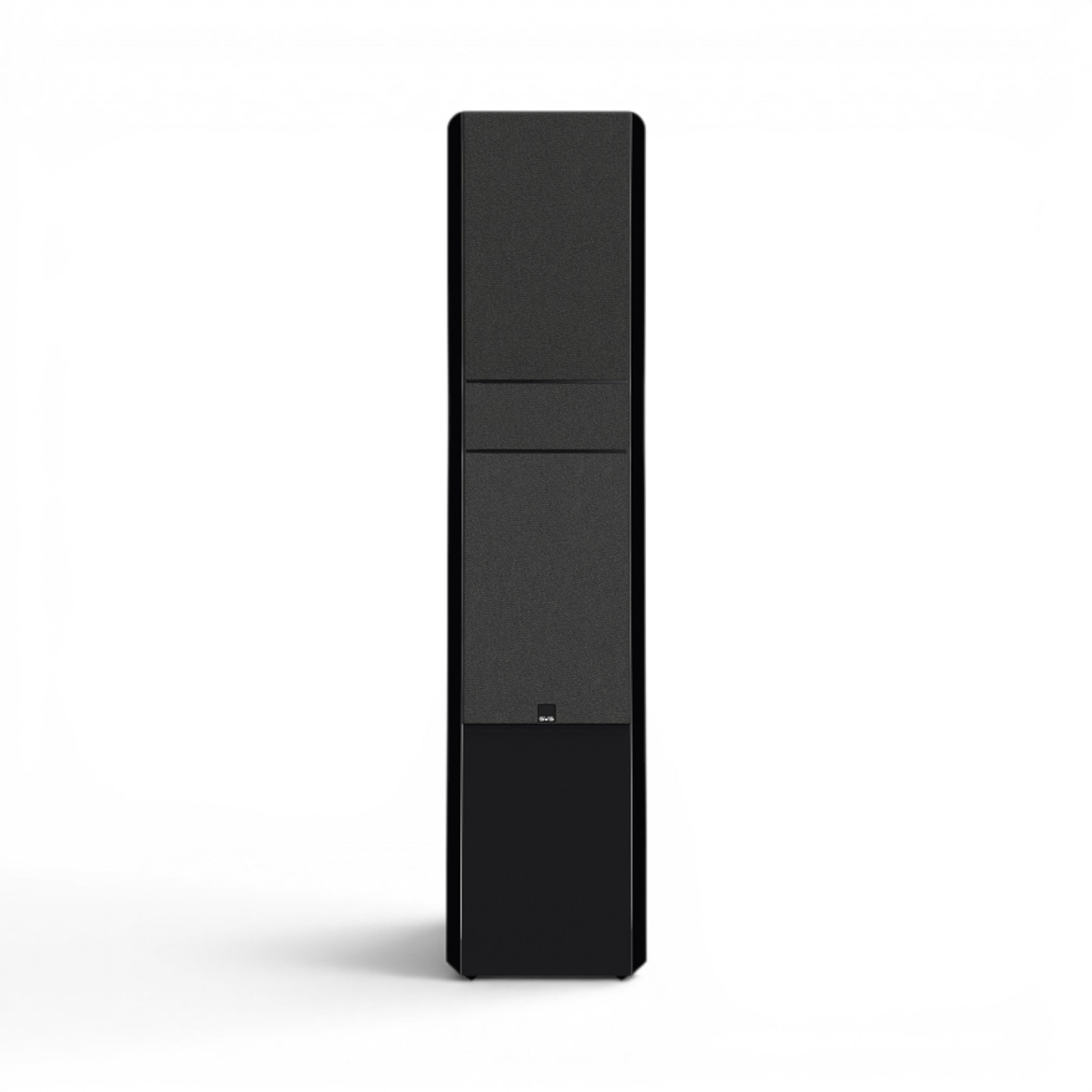

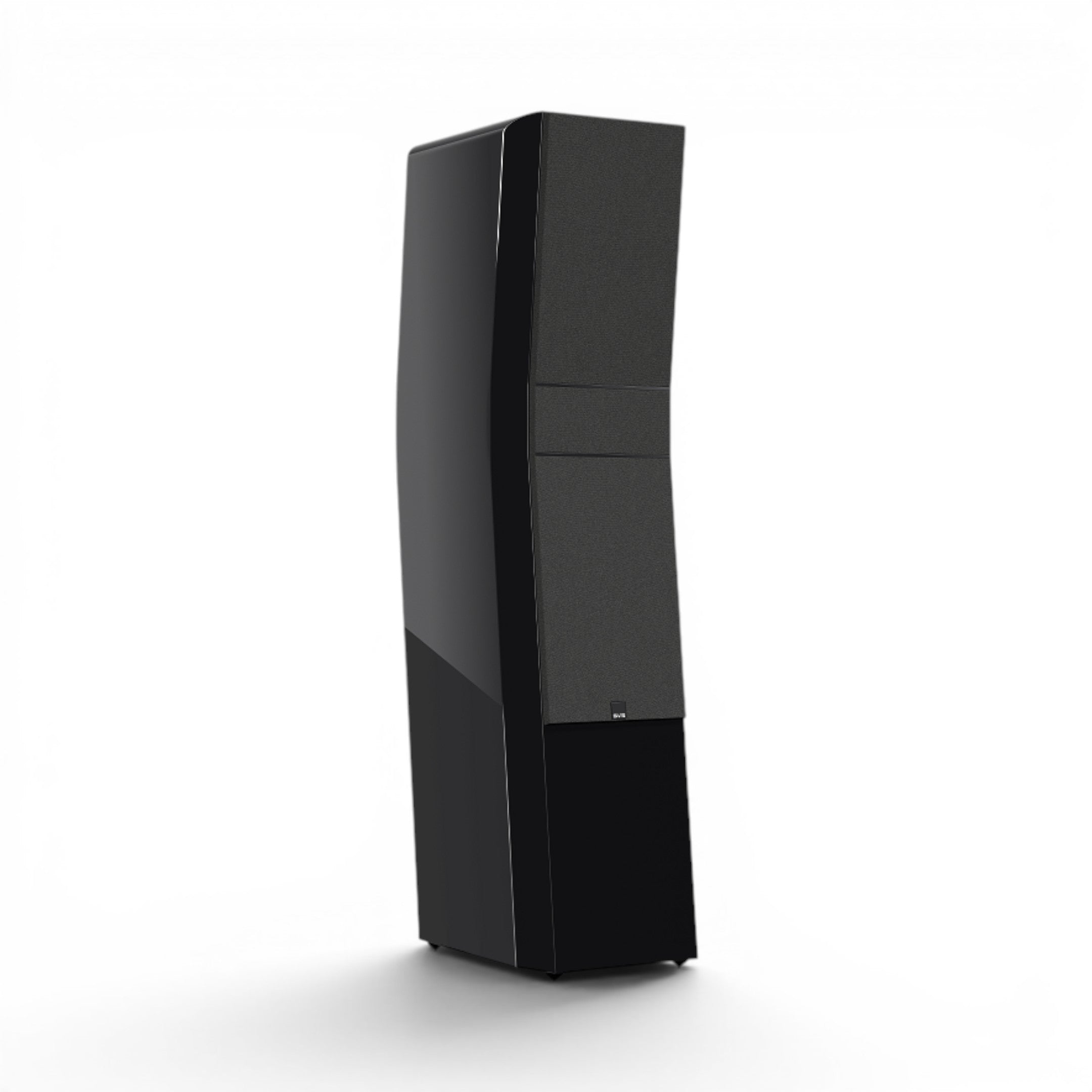

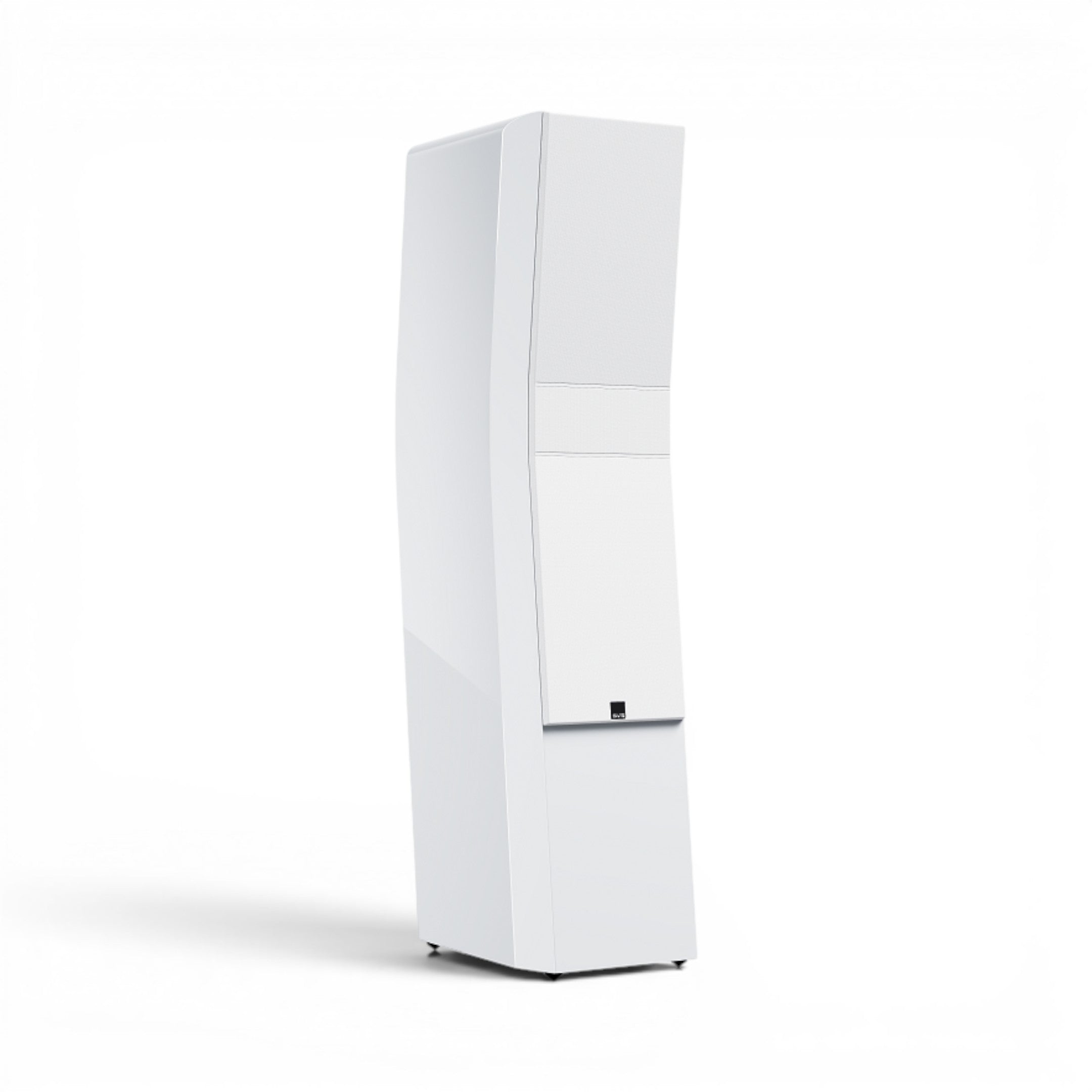

• Acoustically transparent grille
• Fabric grille with magnetic attachment system
• Screw-in elastomer absorber feet, height adjustable
• Acoustically centered architecture
• Time-aligned cabinet geometry
• Extra thick 25mm driver baffle
• FEA-optimized 18mm cabinet construction
• Bracing and sound insulation
• Beveled front baffle
• Flush-mounted drivers

Scope of delivery

• SVS Ultra Evolution Pinnacle
• Cover
• Device feet
• Spikes
• Documents
