Description
The 3000 In-Wall Dual Subwoofer System consists of two passive subwoofer units and a powerful external amplifier.

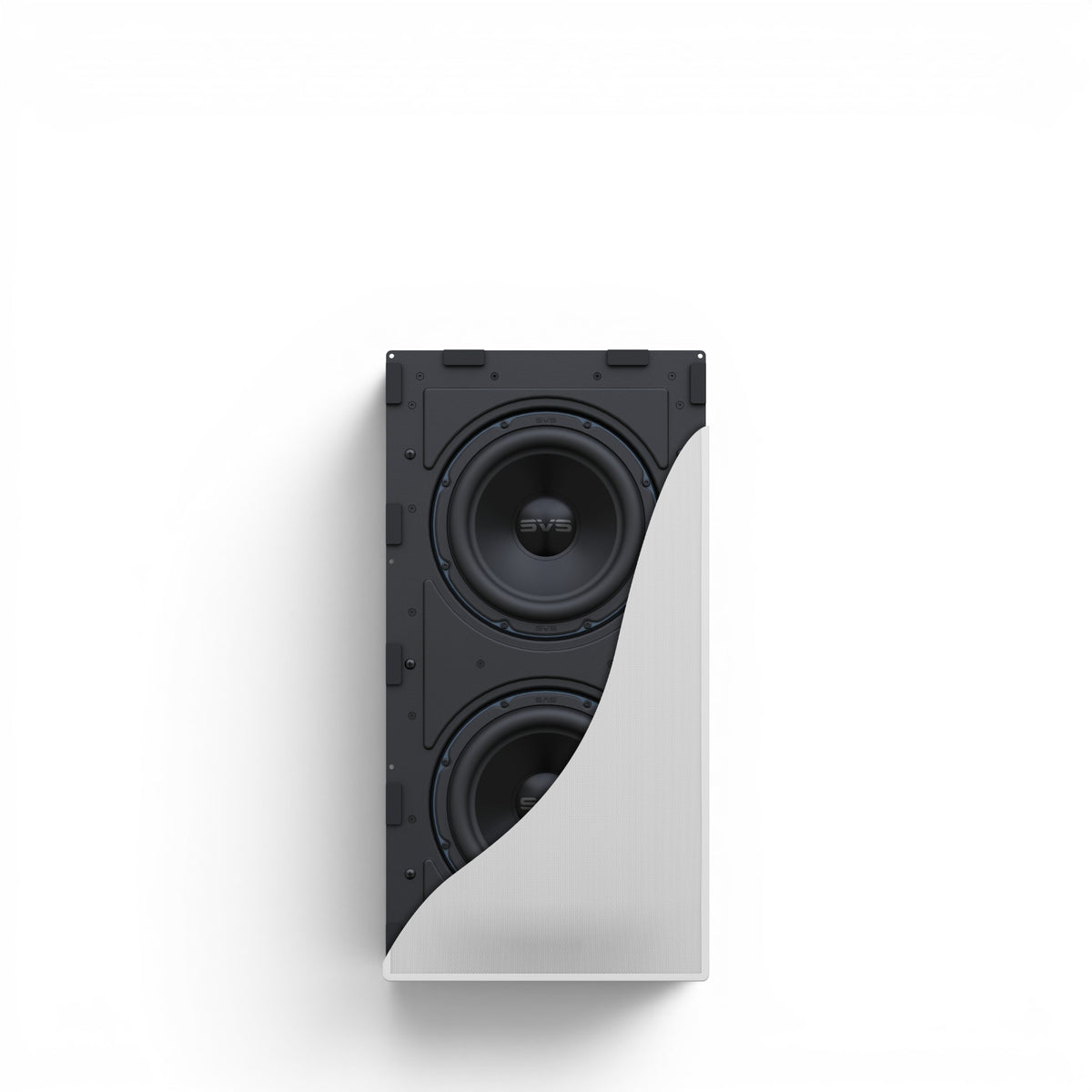

SVS 3000 In-Wall Subwoofer for Wall Installation
The SVS 3000 In-Wall Subwoofer is a built-in subwoofer for home theater, music, and gaming. It is integrated into the wall, thus requiring no floor space in the room.
Deep Bass Without Visible Subwoofer Enclosure
The flat and narrow enclosure is designed to fit between standard wall studs. This makes the subwoofer suitable for existing rooms and new constructions where bass performance needs to be integrated into the room as discreetly as possible.
Two Active 9-Inch High-Excursion Drivers
The two active 9-inch high-excursion drivers move a lot of air and handle the deep frequency range from 22 to 250 Hz. This allows bass components from movies, music, and games to be powerfully reproduced without a traditional freestanding subwoofer being visible in the room.
800 Watts RMS and 2500+ Watts Peak Power
The Sledge STA-800D2C amplifier delivers 800 watts RMS and over 2500 watts peak power. The high amplifier power provides the two drivers with sufficient energy for loud and deep bass passages.
Class-D Amplifier with MOSFET Output and DSP
The amplifier platform combines Class-D efficiency with discrete MOSFET outputs and an Analog Devices 50 MHz DSP. The DSP handles digital signal processing, while the amplifier technology drives the drivers controllably at low frequencies.
Stable Sealed Enclosure
Solid aluminum baffles front and rear, as well as reinforced internal bracing, stabilize the sealed enclosure. This design helps keep the enclosure acoustically quiet, even when the two drivers are operating at high levels.
Control via SVS Subwoofer Control App
The SVS Subwoofer Control smartphone app allows volume control, access to multiple DSP functions, and the saving of custom tuning profiles. Profiles for music, movies, games, and other applications can thus be conveniently adjusted.
Properties
Specifications
General
- Product Type: Built-in Subwoofer / In-Wall Subwoofer / Wall-Mount Subwoofer
- Application: Home Theater and Music
- External Dimensions with Grille: 679.6 × 349.6 × 34 mm
- External Dimensions without Grille: 674.9 × 344.9 × 8.8 mm
- Wall Enclosure Dimensions: 635 × 305 × 95 mm
- Weight with Cover: 11.6 kg
- Weight without Cover: 10.4 kg
- Frequency Response: ±3 dB, 22 Hz to 250 Hz
- Maximum Output: 110.6 dB
Subwoofer
- Two 9-inch High-Excursion Drivers
- Sound-Insulated, Sealed Enclosure
- Aluminum and MDF Enclosure Design
- Braced Front and Rear Slats made of 2.5 mm Aircraft Aluminum
- Fully Braced 18 mm MDF Frame
- Paintable, Magnetically Attached and Removable Front Cover
Drivers
- 9-inch High-Excursion Drivers
- Designed for Low Depth and Maximum Linear Output
- Vented Aluminum Cone with Aluminum Dust Cap
- Long-Throw Surround with FEM-Optimized Design
- Total Excursion per Driver: 24 mm Xmax, 41 mm Xmech
- High-Current 4-Layer Copper Voice Coil
- Proprietary High-Flux-Density Ferrite System

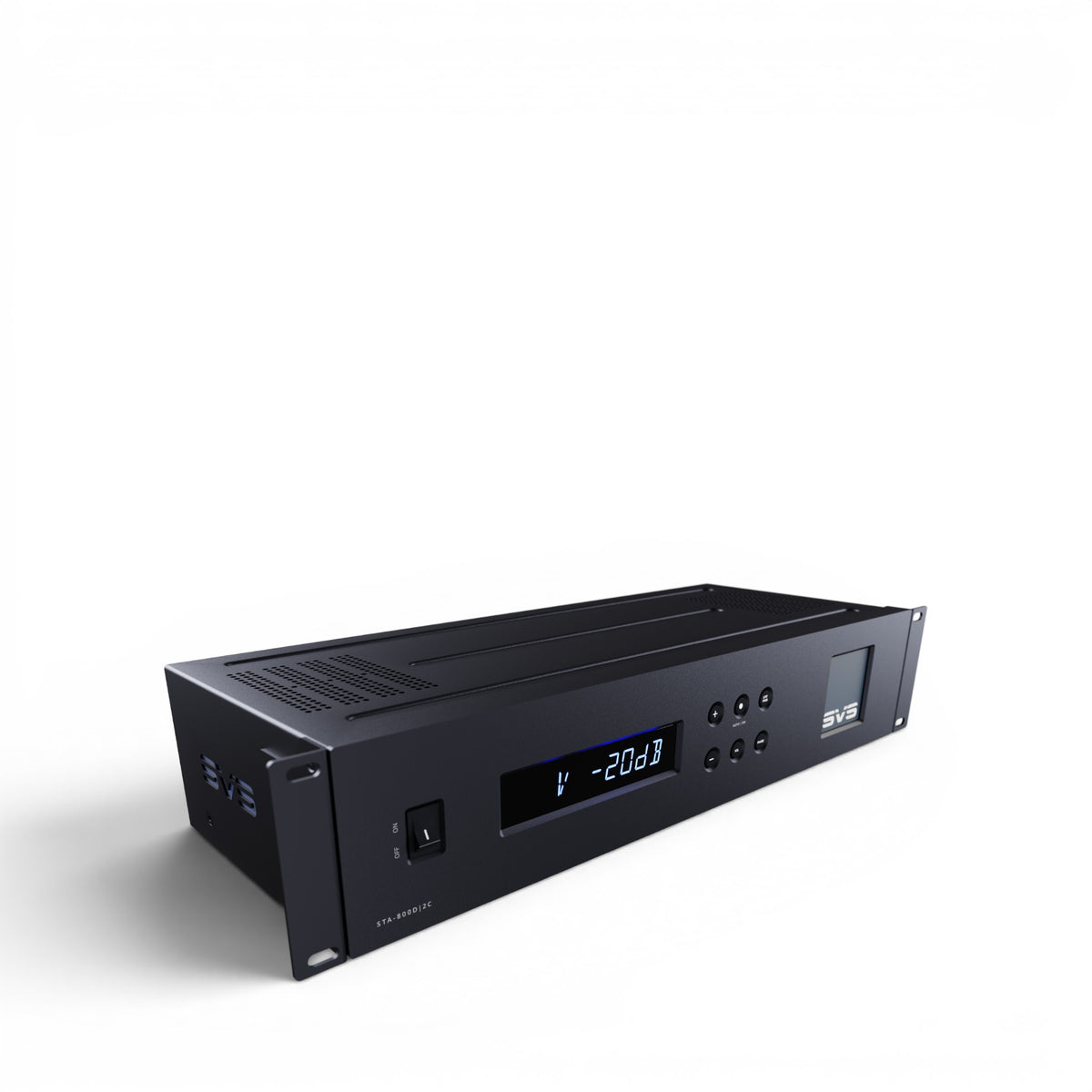

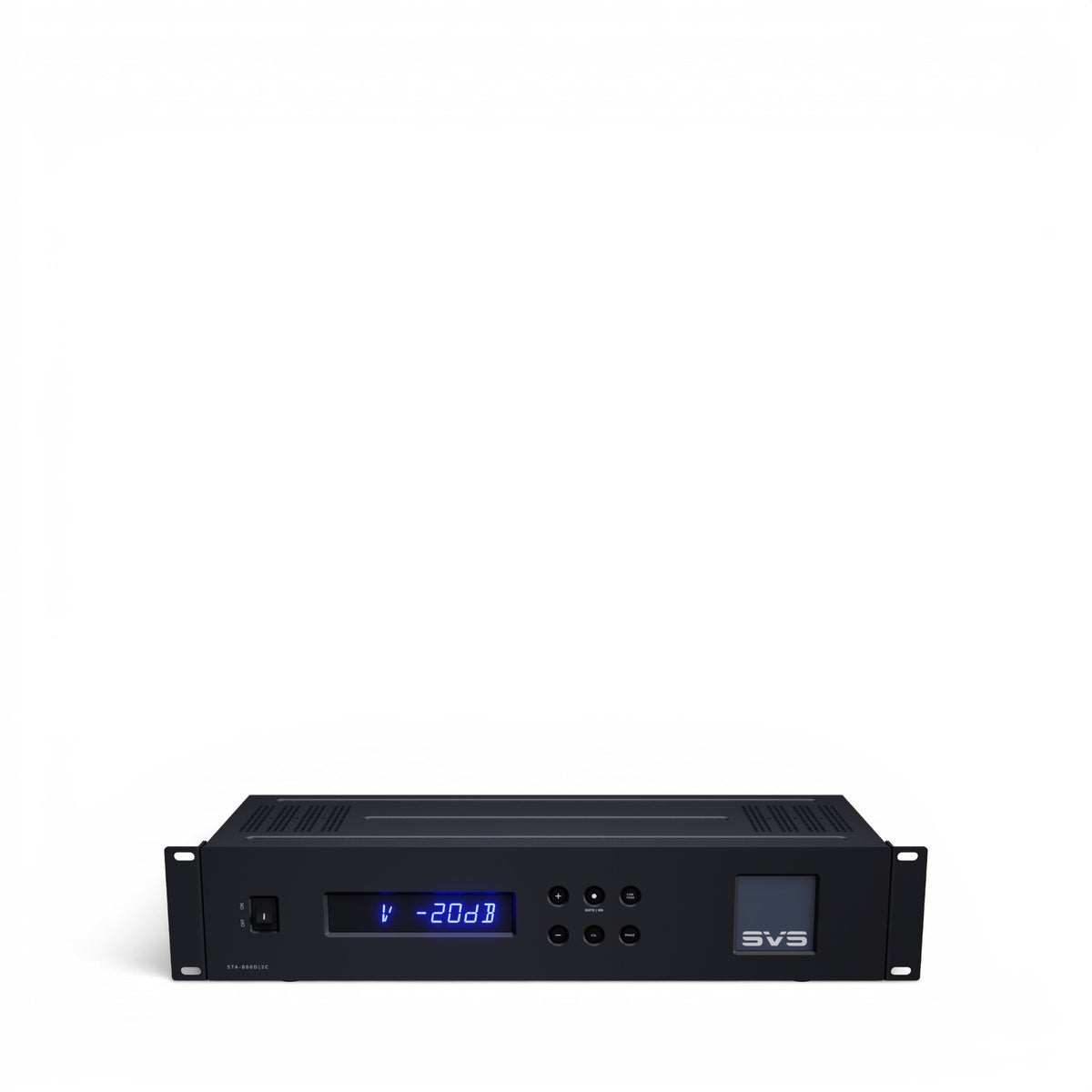

Amplifier
- Sledge STA-800D2C Amplifier
- Power: 800 Watts RMS
- Peak Power: 2,500 Watts
- Fully Discrete MOSFET Output
- Class-D Switching Topology
- 25-Ampere-600-Volt MOSFETs
- High-Resolution 50-MHz Audio DSP with 56-Bit Filtering
- Environmentally Friendly Standby Power Consumption: 0.5 Watts
Control and Sound Tuning
- SVS Subwoofer Control Smartphone App
- Bluetooth-BLE Control
- Compatible with iOS, Android, and Amazon Devices
- Custom Tuning and User Presets
- Adjustable Parameters: Low-Pass Filter, Phase, Polarity, Room Gain, and Three Parametric EQs
- ICI User Interface on the Front
- Blue LED Display
- Push-Button Control

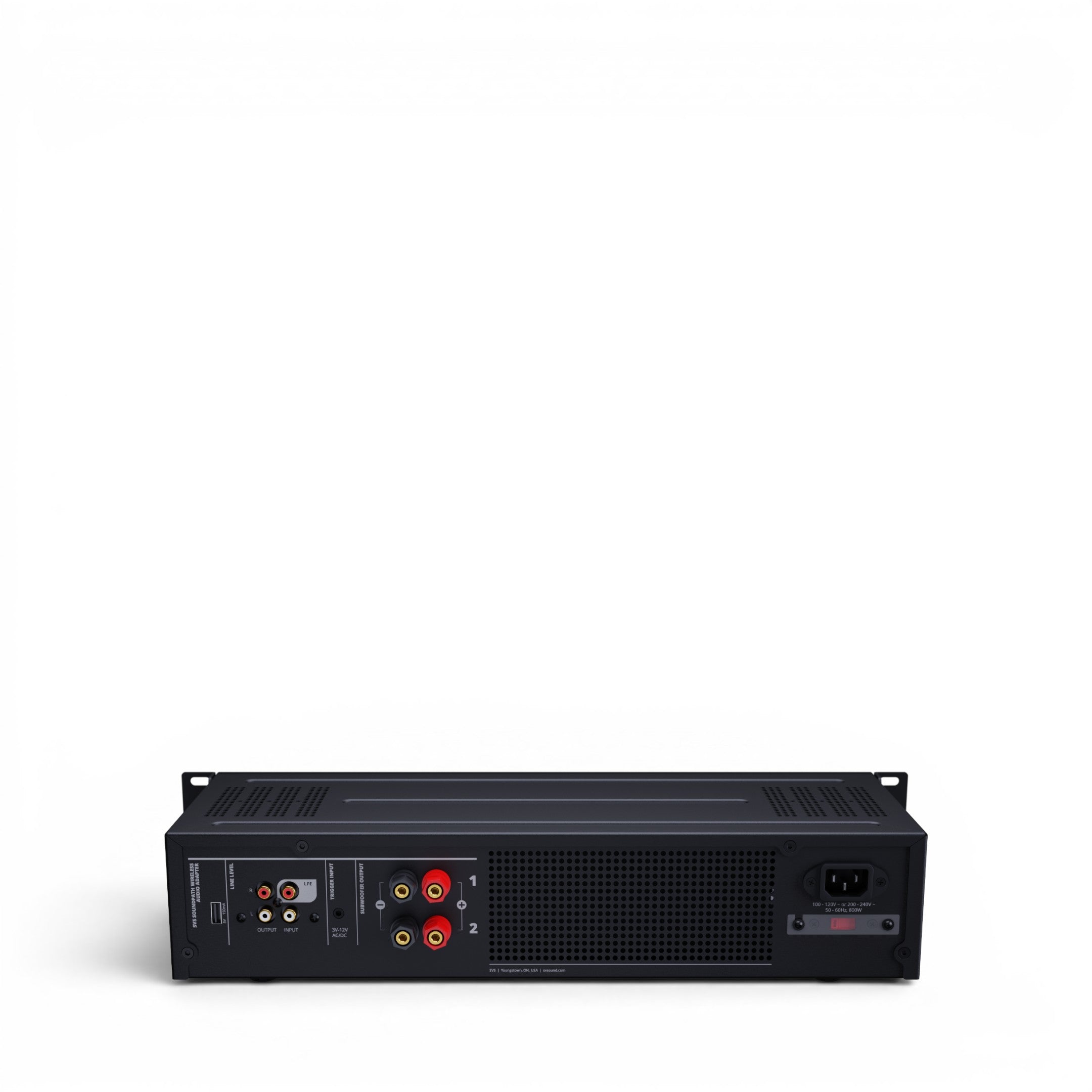

Connections and Installation
- Stereo RCA Input
- Stereo RCA Output
- Input Voltage Bandwidth up to 4 V Line Level
- Input Impedance: 16 kO, Unbalanced RCA
- Auto/On
- 3–12 V AC/DC Trigger
- 2U Rackmount Amplifier
- Designed for Retrofit and New Construction
- Fits Between Walls
Scope of Delivery
- 2x SVS 3000 In-Wall Subwoofers
- 1x External Sledge STA-800D2C Amplifier
- Magnetic Front Cover
- Mounting Accessories
- Power Cable
- Documents
3000 In-Wall Dual Subwoofer System
The SVSound 3000 In-Wall Dual Subwoofer System combines two passive in-wall subwoofers with a powerful external amplifier for potent, discreetly integrated bass.
