Description
Audio-Technica AT-ART20 – High-End
MC Cartridge for Ultimate Vinyl Playback
A New Dimension of Analog Sound
The
Audio-Technica AT-ART20 is a high-end MC (Moving Coil) cartridge and the
latest flagship model in the renowned ART series. Developed for audiophile
vinyl lovers, it combines decades of experience with state-of-the-art
manufacturing technology. The result: authentic, high-resolution
sound reproduction that stunningly
approximates the original.
Precision Meets Design

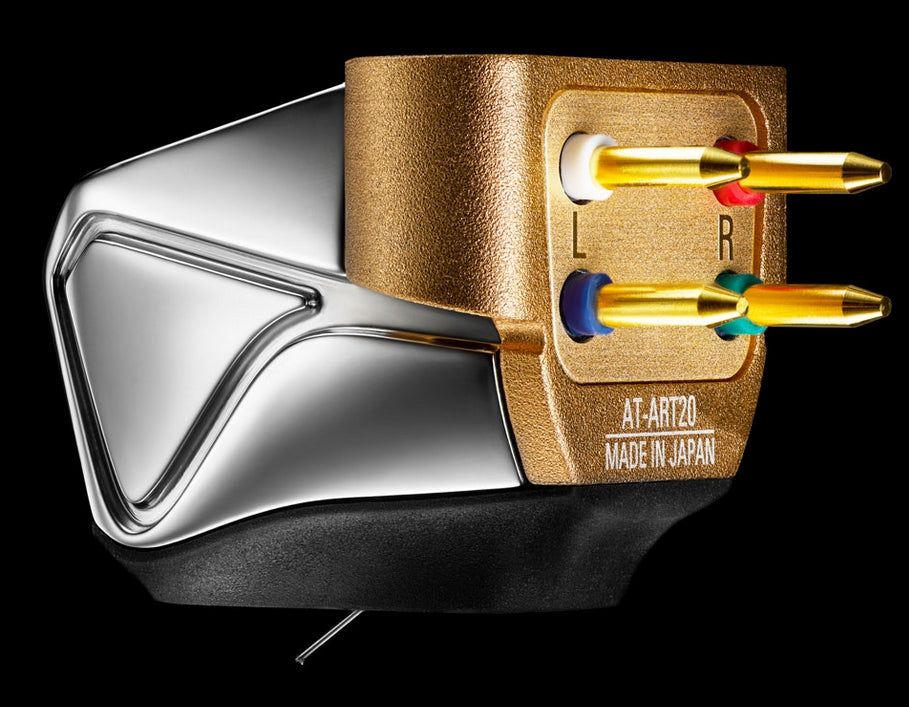

The titanium housing of the AT-ART20 is manufactured using state-of-the-art
technologies from Sabae City's long-established eyewear industry. The polished,
curved surface is unique among cartridges and significantly reduces weight due
to optimized material thickness. This creates not only an elegant design but
also a clear acoustic advantage.
Maximum Fidelity Through Innovative
Technology
- Newly developed magnetic circuit: 15% higher output voltage with the same coil turns – without increasing mass or impedance.
- Resonance suppression: Combination of aluminum base, titanium housing, and elastomer sleeve minimizes unwanted vibrations.
- Solid boron cantilever (Ø 0.28 mm) & Special Line Contact stylus: precise high-frequency reproduction with minimal distortion.
- High-quality gold-plated contact pins: 30 times thicker coating for lowest contact resistance and maximum signal purity.
The sound quality impresses with unprecedented expressiveness:
voices, instruments, and spaces are reproduced realistically – regardless of the
music genre.
Award-Winning Quality
Properties
Specifications
- System principle: MC (Moving Coil)
- Stylus cut: Special Line Contact
- Stylus replaceable: No
- Output voltage in mV: 0.55 mV (1 kHz, 5 cm/s)
- Tracking force in mN: 16 – 20 mN (recommended: 18 mN)
- Cartridge weight (grams): 9.0 g
- Compliance in µm/mN (stylus compliance): 10 µm/mN
- Mounting: 2× M2.6 threaded holes
Special Features:
- High-end Moving Coil cartridge from the renowned Audio-Technica ART series
- Precision-crafted titanium housing from the Sabae City eyewear manufacturer – lightweight, low-resonance, and acoustically optimized
- Newly developed magnetic circuit with 15% higher output voltage while maintaining coil mass and impedance
- Combination of aluminum base, titanium housing, and elastomer damping for effective resonance suppression
- Solid boron cantilever (Ø 0.28 mm) with Special Line Contact stylus for maximum detail resolution and minimal distortion
- 30-fold gold-plated contact pins for lowest contact resistance and highest signal purity
- Outstanding spatial imaging and natural timbre across the entire frequency spectrum
- Awarded as Audio-Technica Excellence Product –
guarantee of the highest high-fidelity performance
Scope of delivery
- Audio-Technica AT-ART20 MC Cartridge
- Non-magnetic screwdriver
- Brush
- 2 × Washers
- Cartridge mounting screws (various lengths)
- Stylus protector
Manufacturer information
AT-ART20 Dual Moving Coil Stereo Cartridge
The Audio-Technica AT-ART20 is a high-end MC cartridge for audiophile vinyl lovers seeking uncompromised sound quality. Featuring advanced technology, a precision-machined titanium housing, and a solid boron cantilever, it delivers authentic high-fidelity reproduction that captures every nuance of the record groove. Whether for classical music, jazz, or rock, this moving coil cartridge ensures a detailed soundstage with impressive spatiality and dynamics.
