Masterful Design and Craftsmanship Precision

The Concentro M 807 impresses with a housing design without parallel surfaces, crafted from solid wood material using state-of-the-art 6-axis milling technology. Complemented by luxurious high-gloss finishes and solid aluminum applications, this loudspeaker is both an acoustic statement and a visual work of art.

VXe Technology: Tailored Sound

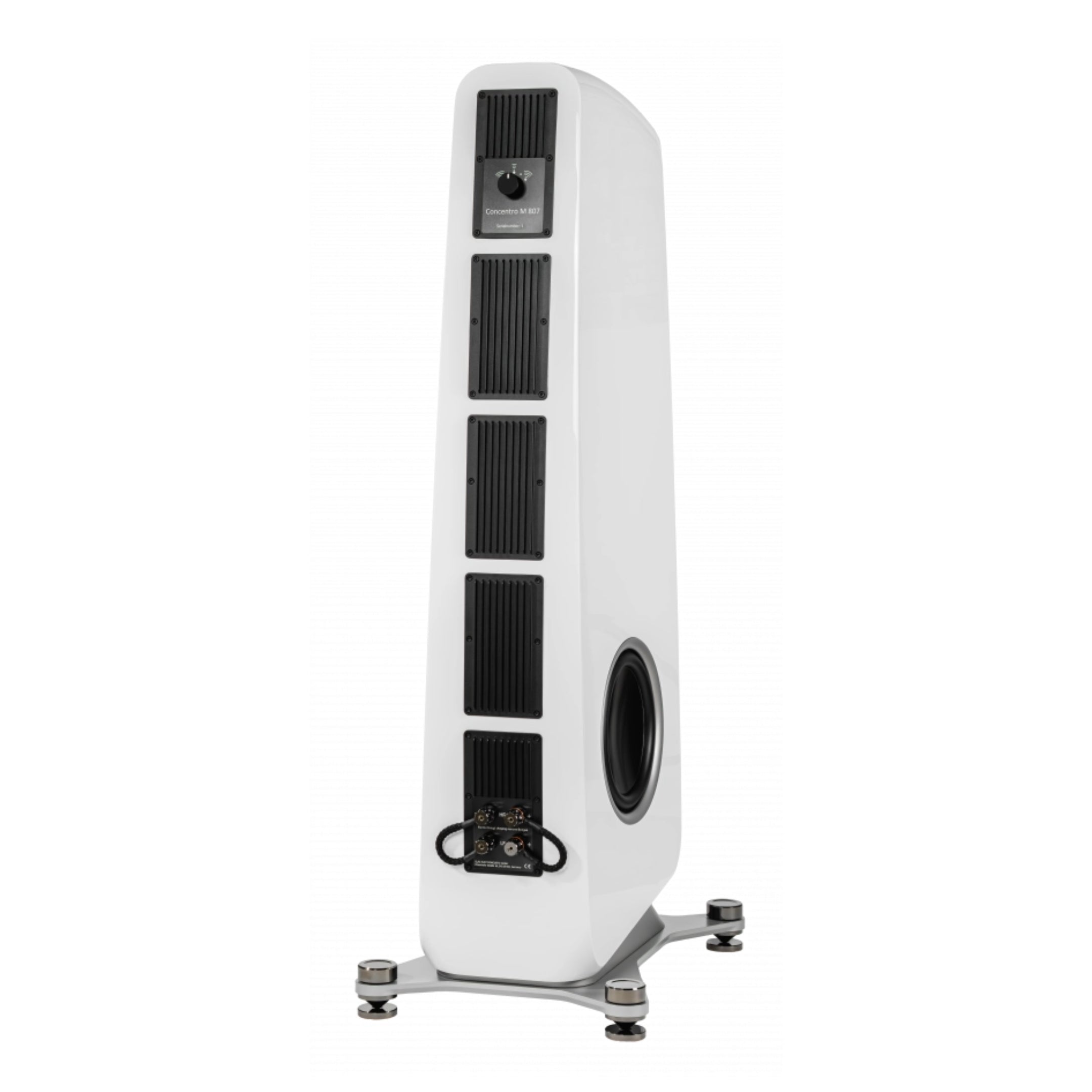

The innovative VariableCoaxialElectric system allows, for the first time, to mechanically-electrically influence the dispersion characteristics of the mid-range. A rotary switch on the back precisely controls the balance between direct and diffuse sound, enabling perfect depth staging and pinpoint localization even in acoustically challenging or asymmetrical rooms.

Unique Concentric Mid-High Range System

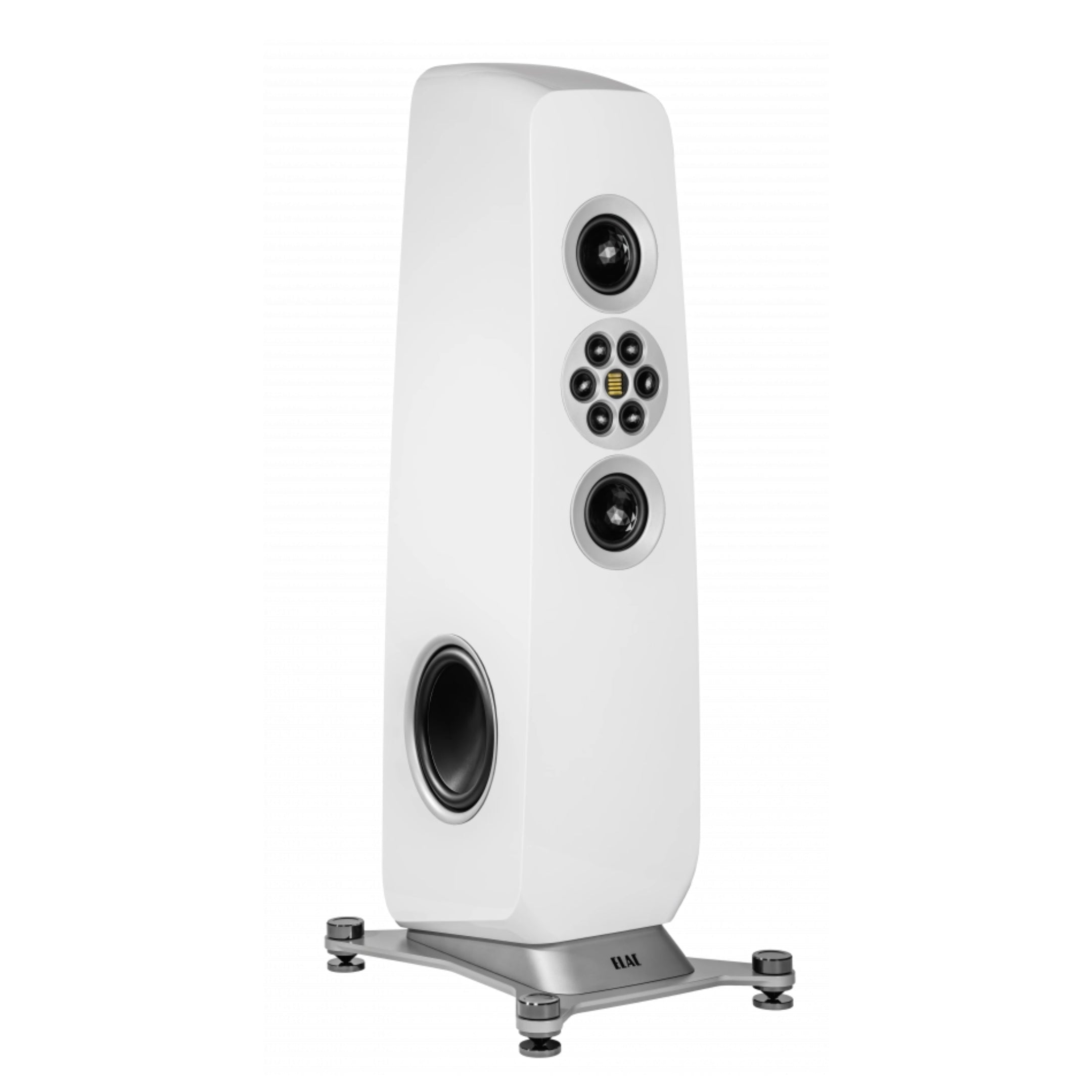

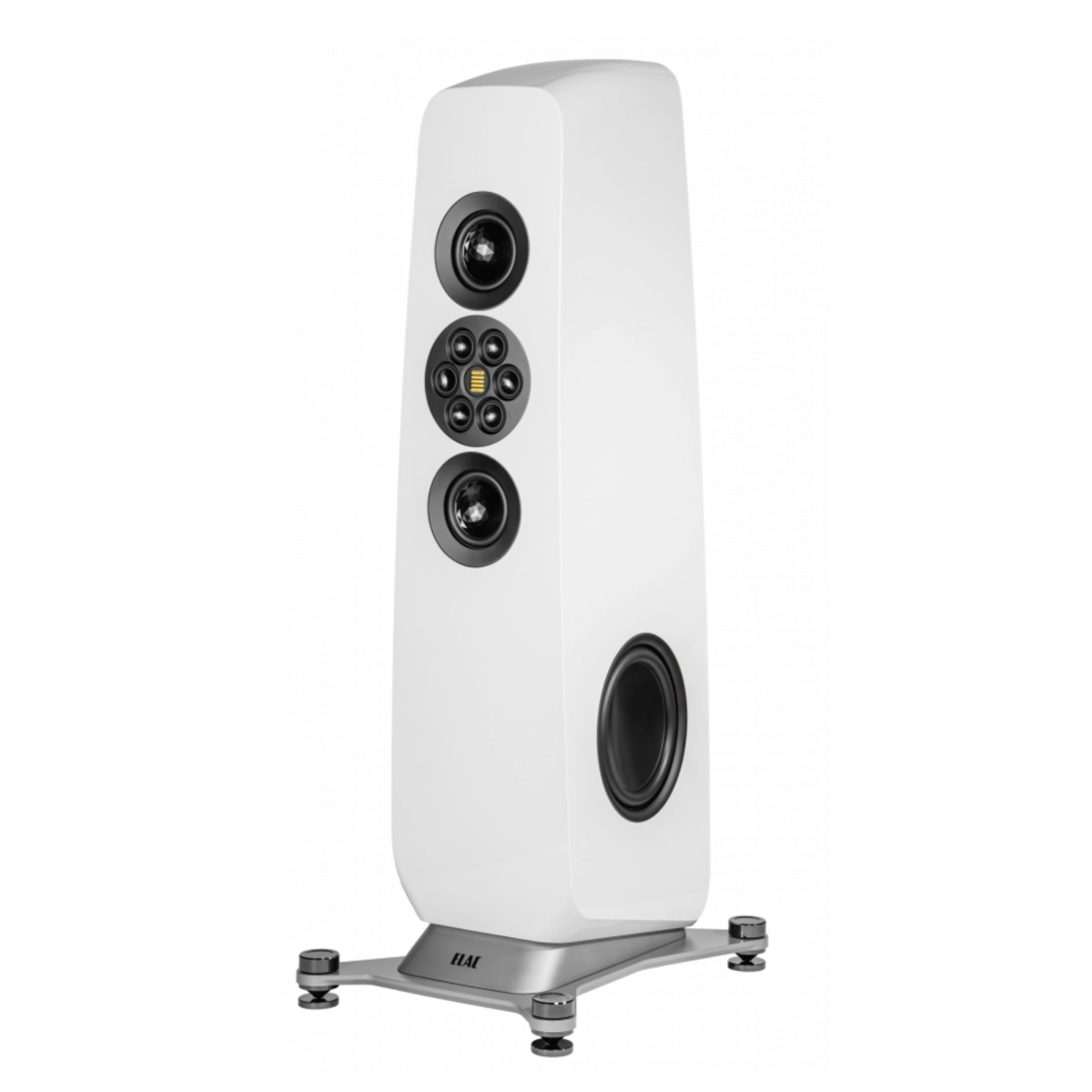

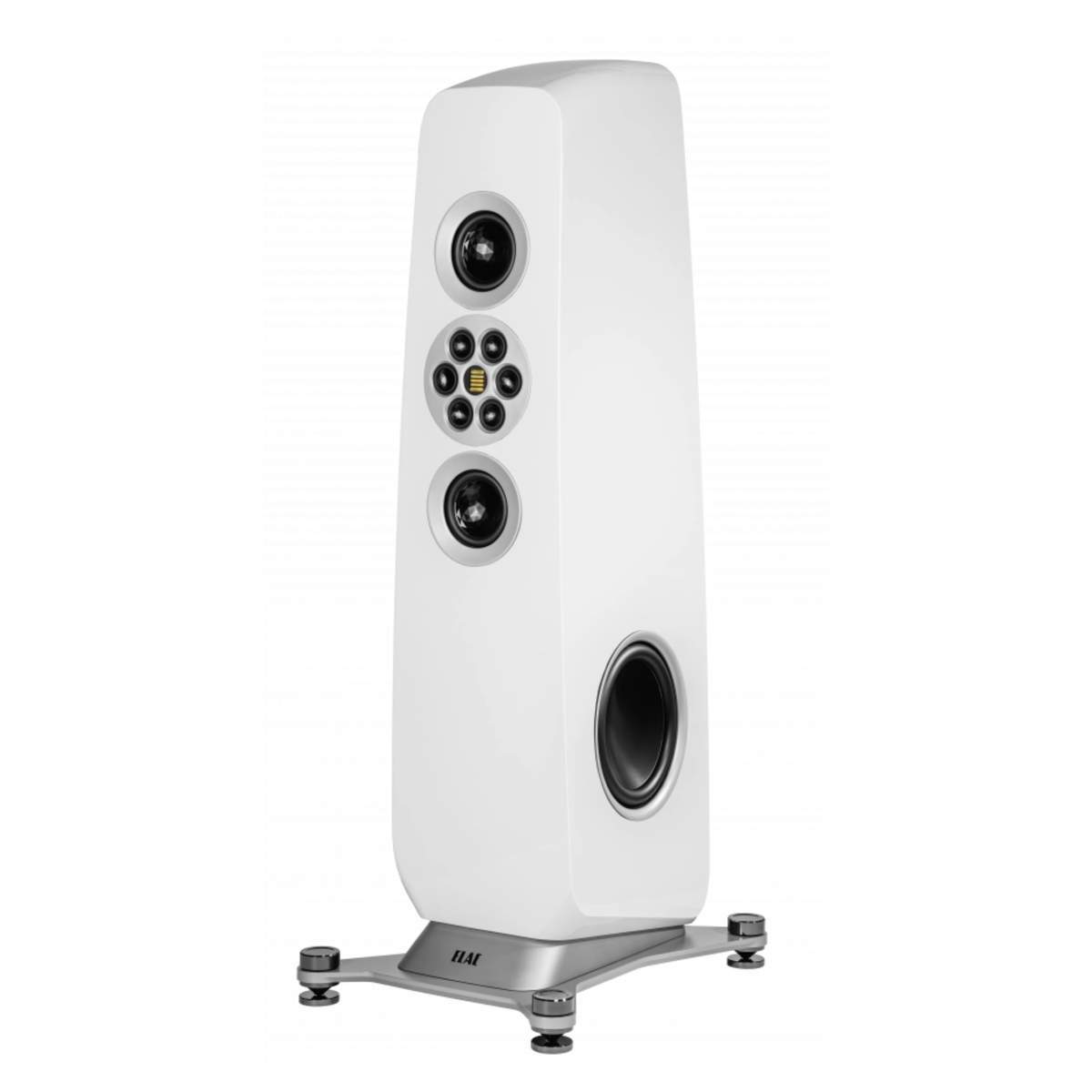

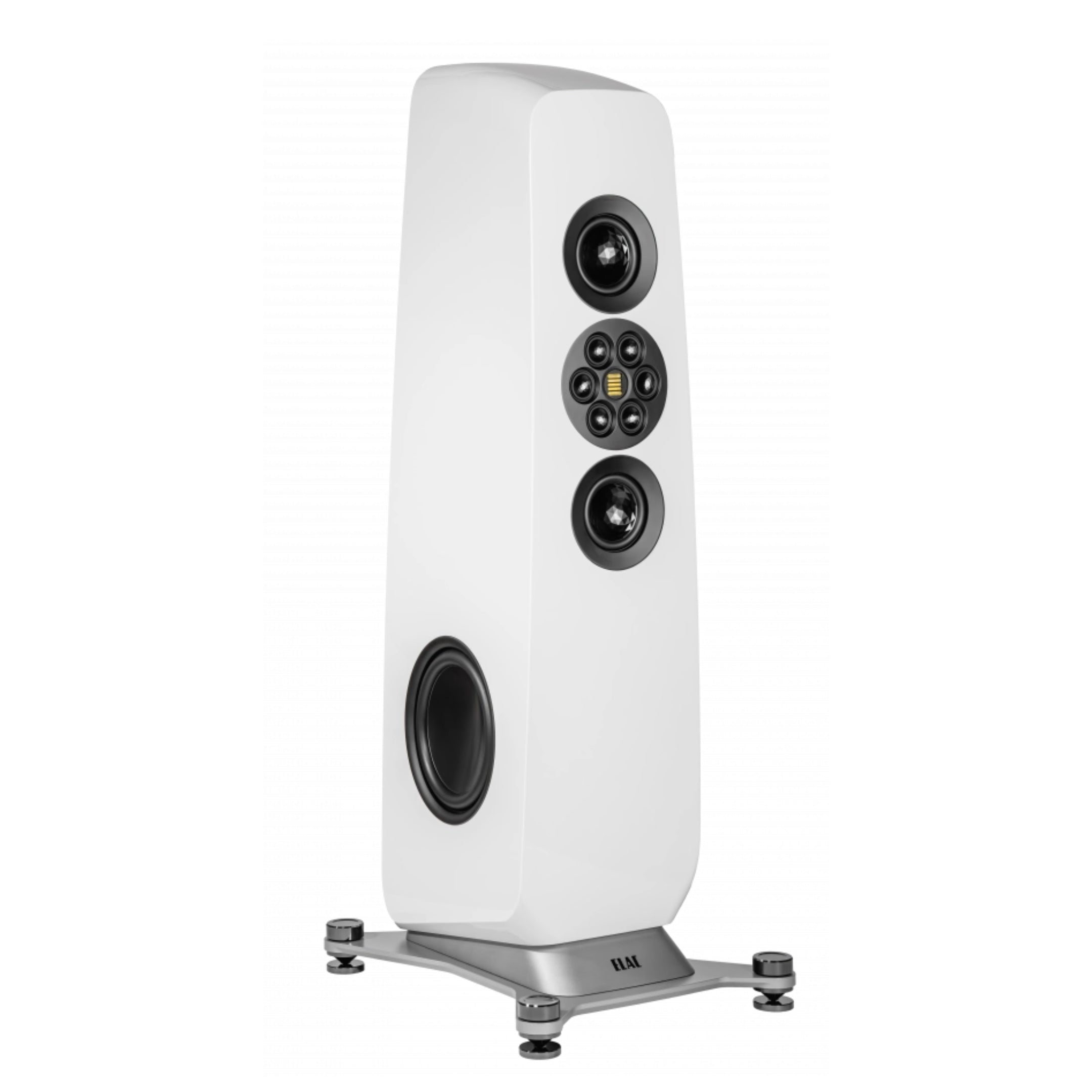

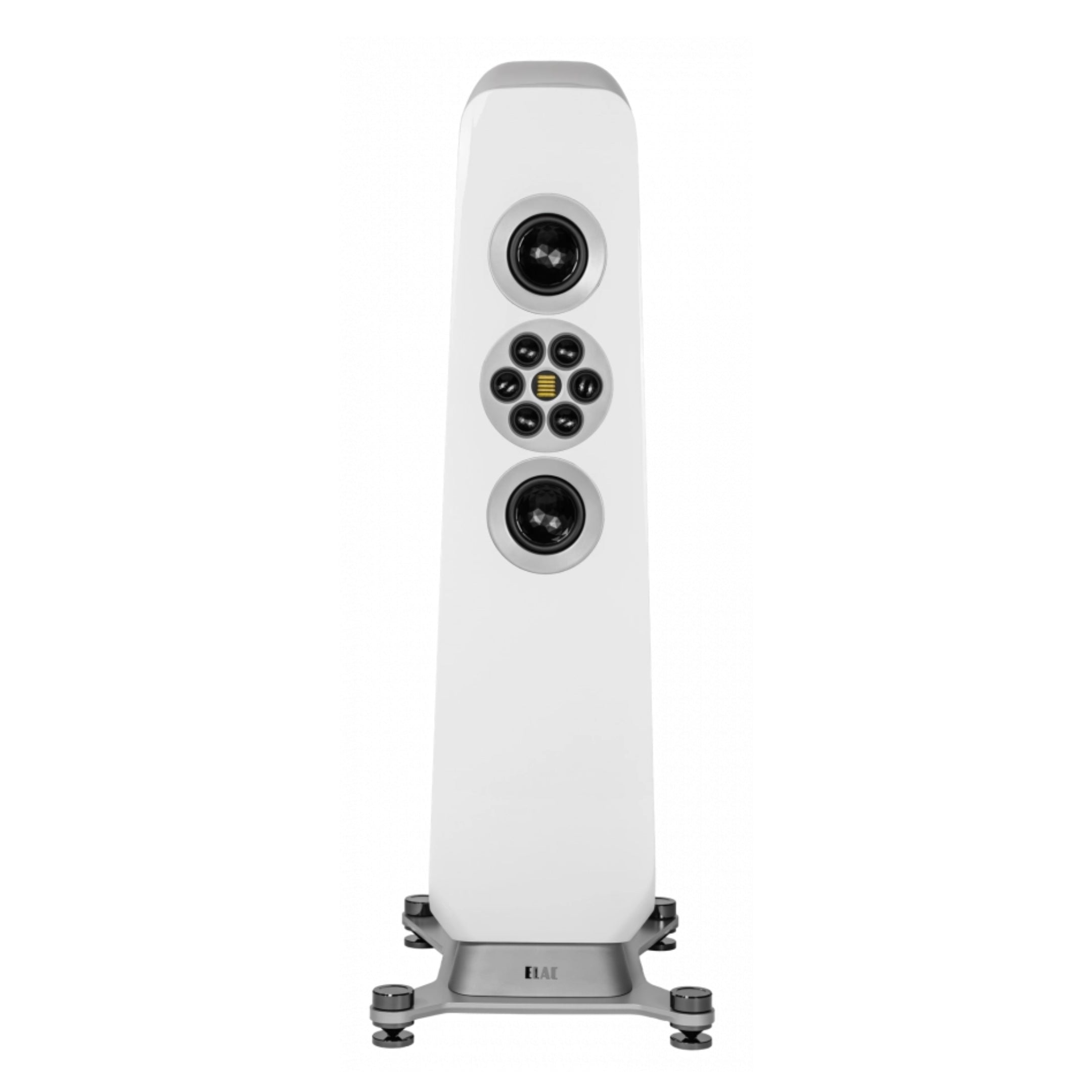

At the heart of the VXe unit works the handcrafted JET 6c tweeter, surrounded by six high-performance A-XR mid-range drivers. This interaction forms an ideal ring radiator, guaranteeing silky, detailed reproduction up into the ultrasonic range and reproducing voices with natural precision.

Impulse-Compensated Bass Power

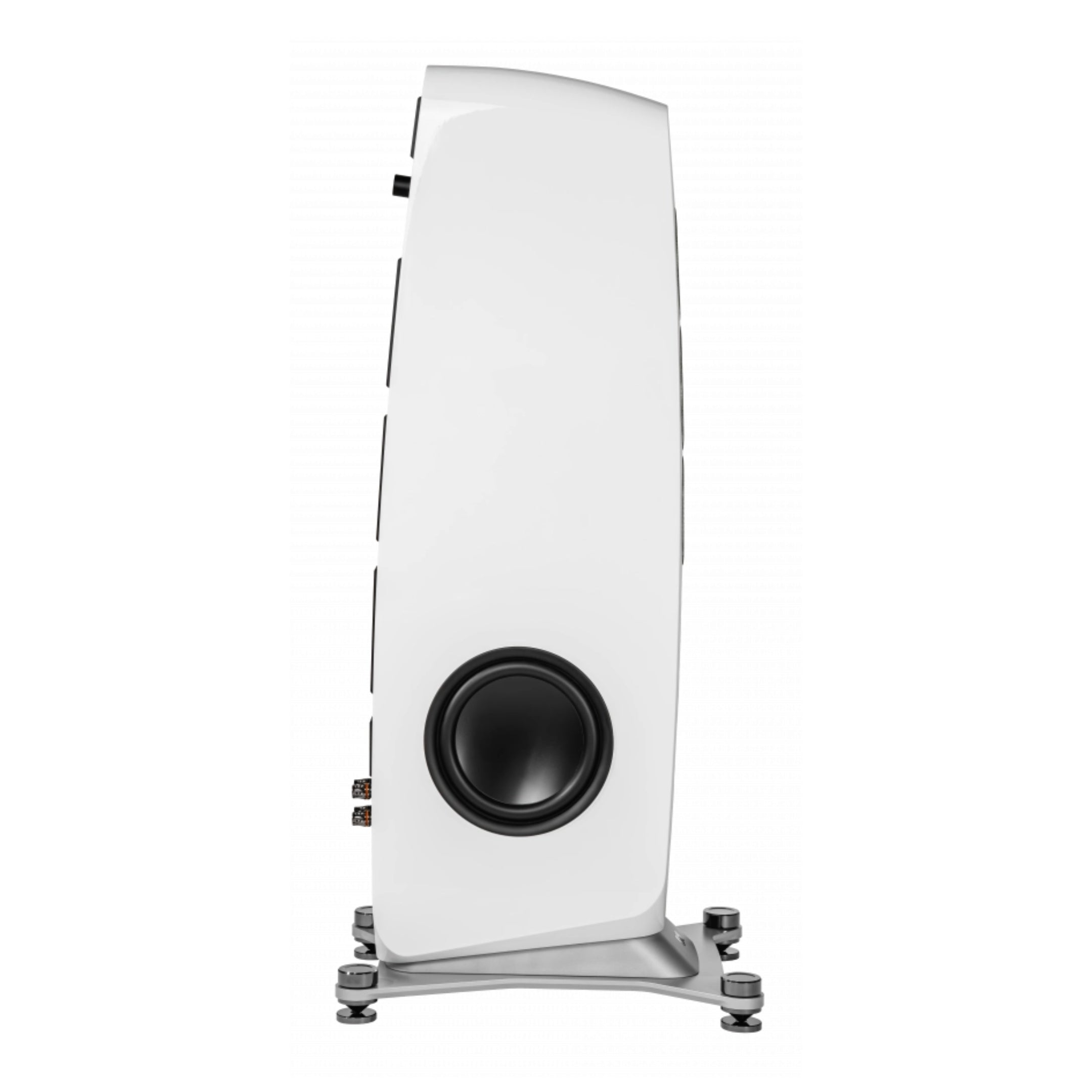

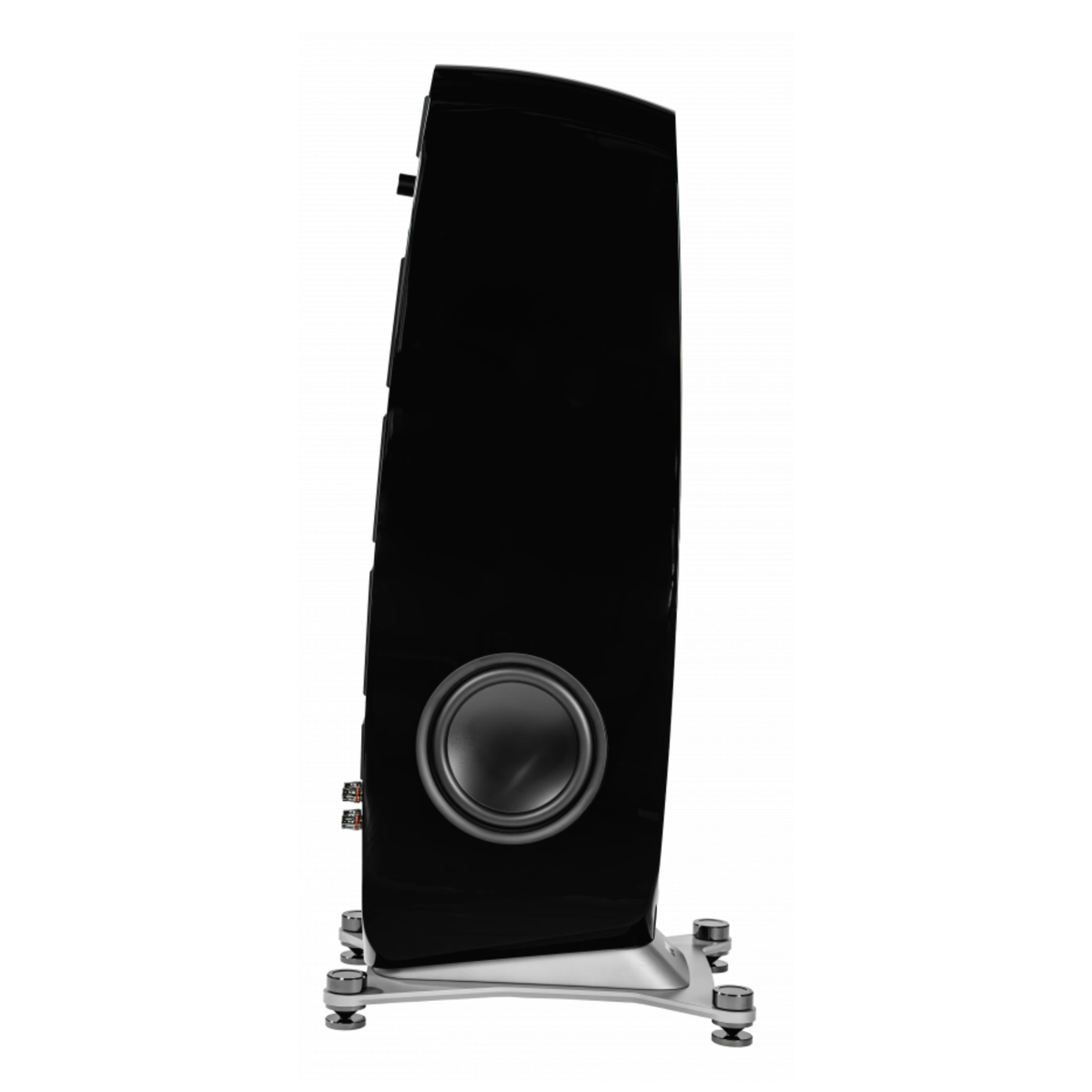

For a deep foundation, two side-mounted 250 mm woofers in an aluminum sandwich construction are responsible. Due to their opposing arrangement, these work in an impulse-compensated manner, which minimizes cabinet resonances and enables extremely powerful, yet always controlled, bass reproduction down to 24 Hz.

Maximum Connection Flexibility and Down-Firing

The integrated down-firing bass reflex system uses the floor as an interface, which significantly simplifies placement in the living room. The high-quality connection terminal with gold-plated contact surfaces supports single-wiring, bi-wiring, and bi-amping, and ensures loss-free signal transmission through internal wiring from Van den Hul.

Technical Data

• Type: 4-way, bass reflex
• Drivers: 1 × JET 6c tweeter, 6 × 40 mm A-XR mid-range drivers, 2 × 115 mm AS-XR mid-bass drivers, 2 × 250 mm AS woofers
• Frequency Range (IEC 268-5): 24 – 50,000 Hz
• Sensitivity: 88 dB / 2.83 V/m
• Nominal Power Handling: 300 W (Peak Power Handling 400 W)
• Recommended Amplifier Power: 80 – 600 W per channel
• Nominal Impedance: 4 Ohm (Minimum Impedance 3.1 Ohm at 350 Hz)
• Dimensions (H × W × D): 1340 × 461 × 595 mm
• Weight: 62 kg

FAQ

How many adjustment options does VXe technology offer?
Thanks to the five switch positions on the speaker, a total of 25 combination possibilities arise for a pair, allowing the sound to be perfectly aligned with the listening position and room acoustics.

Why does the cabinet have no parallel walls?
This special construction effectively prevents the formation of standing waves inside the cabinet, leading to a significantly clearer and undistorted sound image.

What is the advantage of the crystal membrane drivers?
The crystal embossing of the aluminum dome increases stiffness, minimizes self-resonances, and enables extremely linear excursion without distortion at high dynamics.

Is the tweeter really handmade?
Yes, the JET 6c tweeter is handcrafted to the highest quality standards and is globally renowned for its lightning-fast impulse response and wide dynamic range.

Scope of Delivery

• ELAC Concentro M 807
• Bi-wiring jumper set
• Polishing cloth
• Documents
