Versatile Sound Solution for Stereo and Home Theater

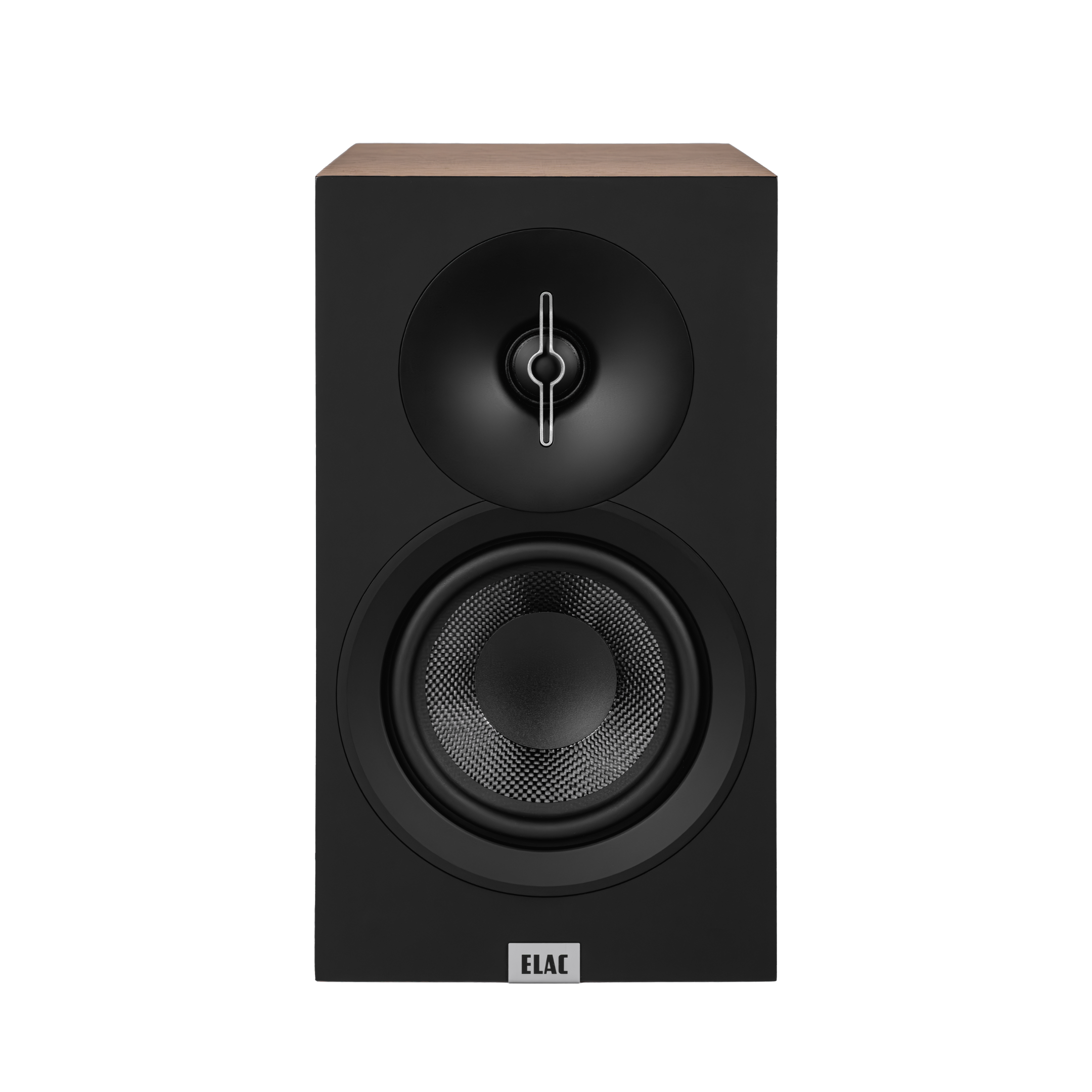

The ELAC Debut B5.3 was designed as a compact 2-way bookshelf speaker that ensures precise audio reproduction in both classic stereo systems and modern home theater setups. It is specially tailored to the requirements of small to medium-sized rooms and offers flexible integration into various living environments.

Precision through Innovative Aluminum Tweeters

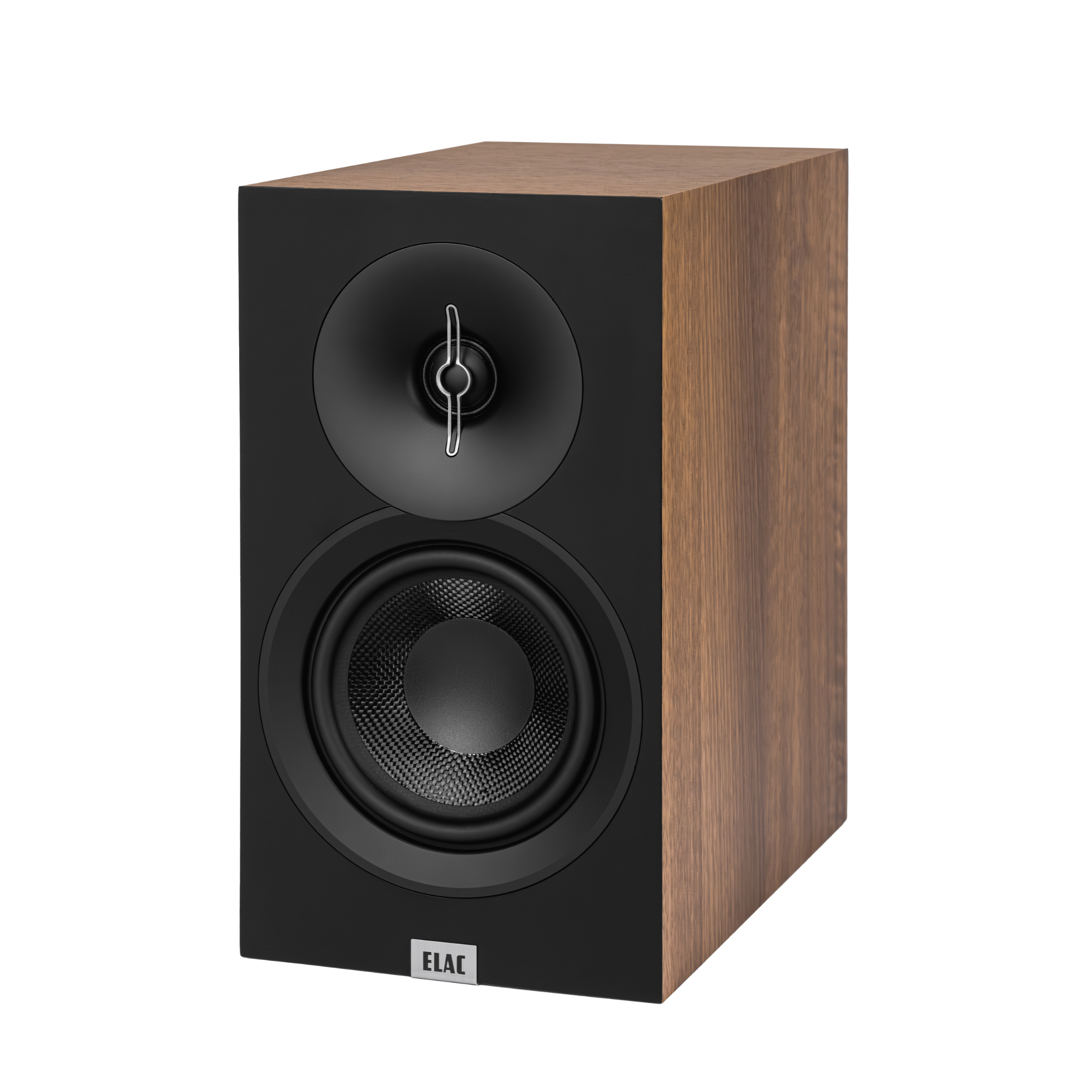

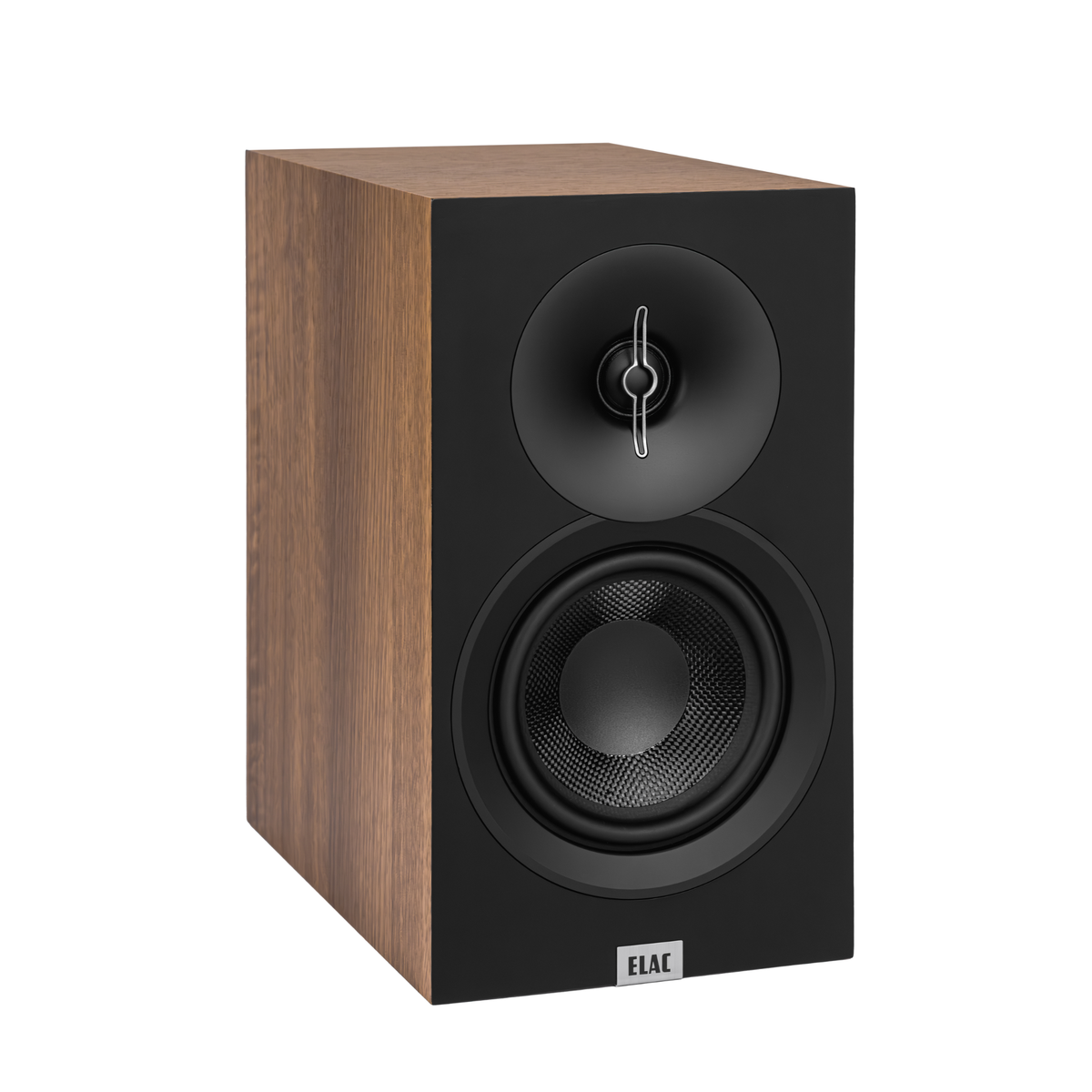

The heart of the high-frequency reproduction is a custom-made 25 mm aluminum dome tweeter. This undergoes an elaborate calibration process to ensure the necessary clarity and precision for modern music spectra and complex soundtracks. The result is first-class resolution and a fascinatingly realistic sound.

Lifelike Dynamics with Aramid Fiber Woofers

In the low-frequency range, the Debut B5.3 relies on 133 mm aramid fiber woofers. The light yet stable design enables reproduction with depth and spaciousness, without impairing the sound image through coloration. Whether with subtle dialogues or powerful film sequences, the sound is evenly and controllably distributed in the room.

High-Quality Cabinet Construction and Aesthetics

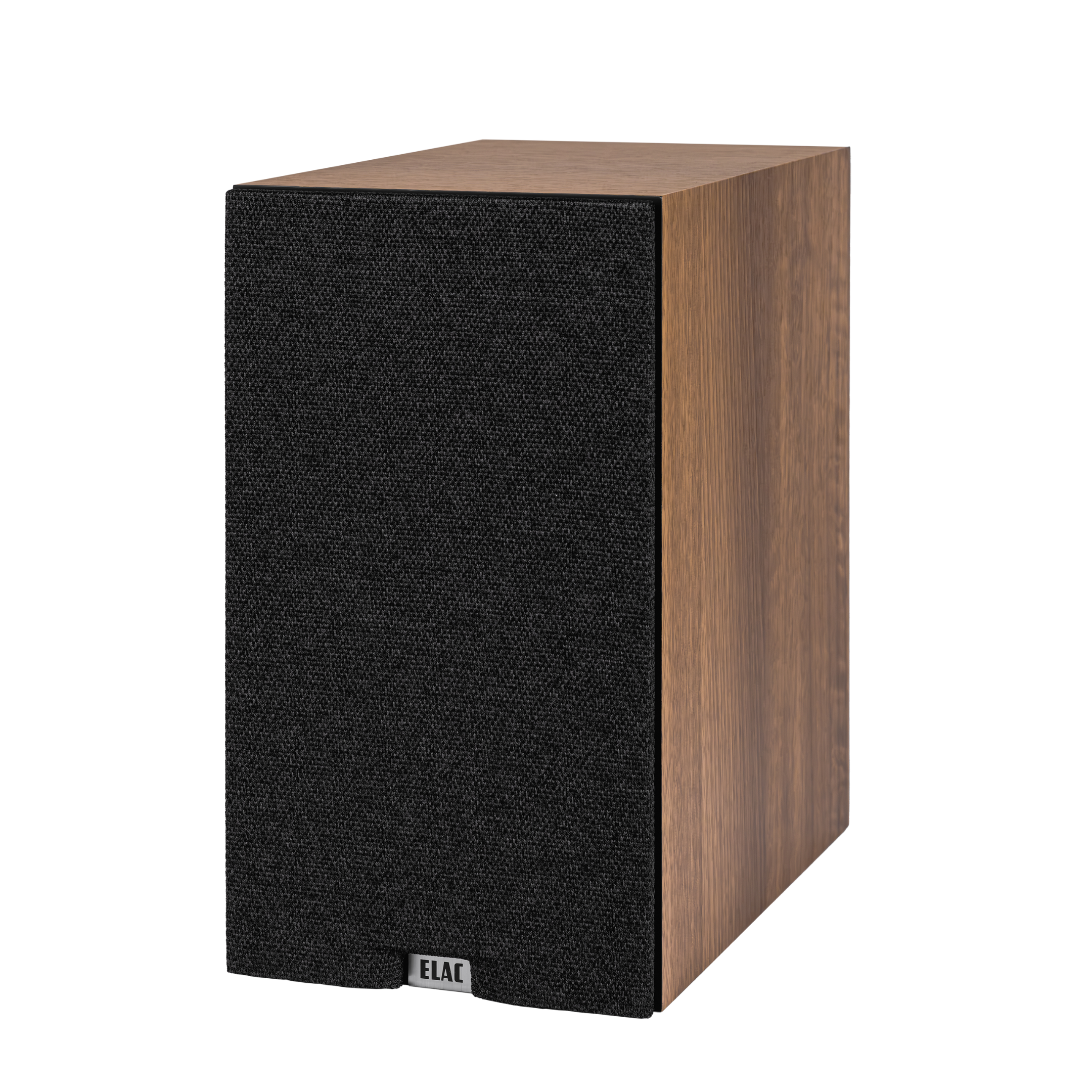

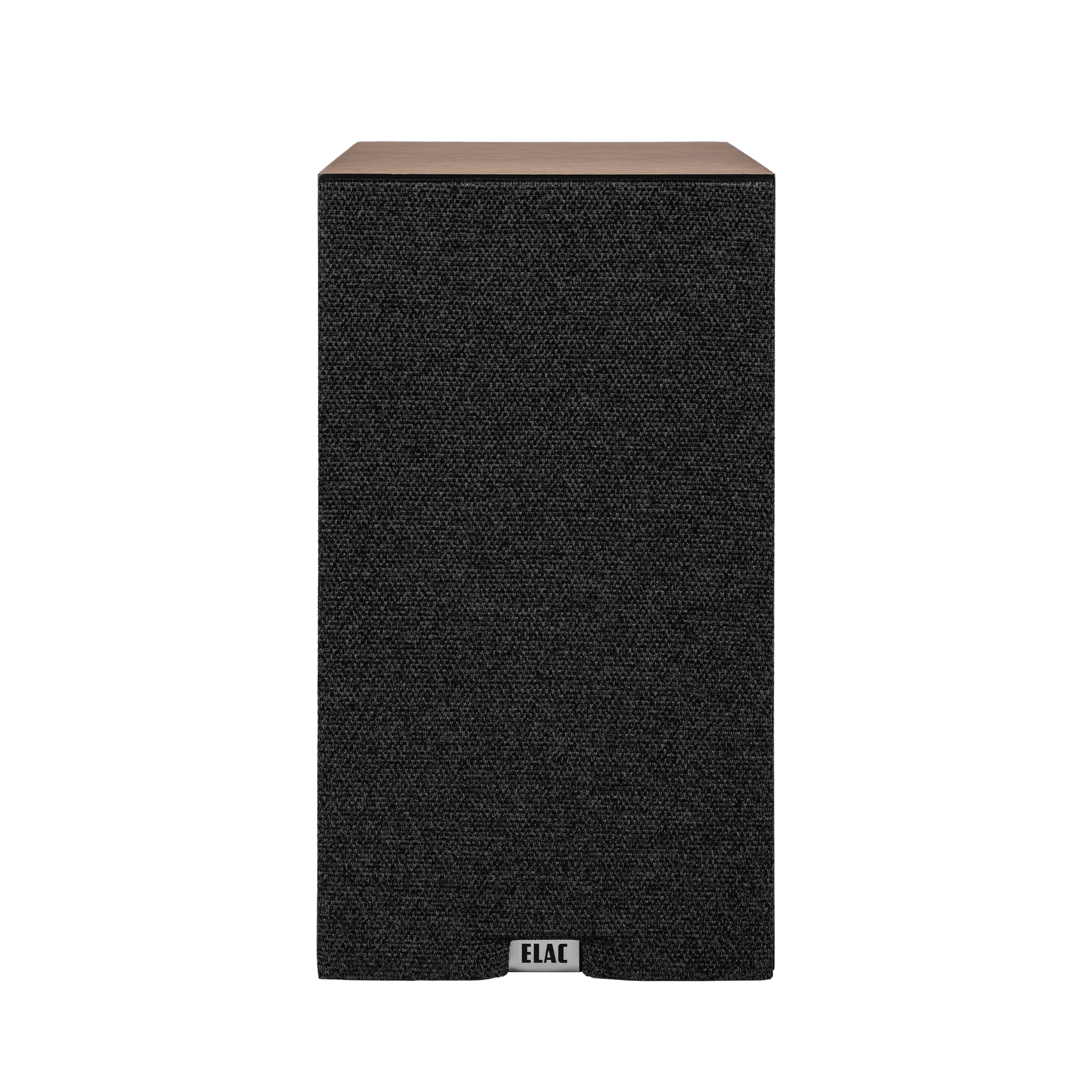

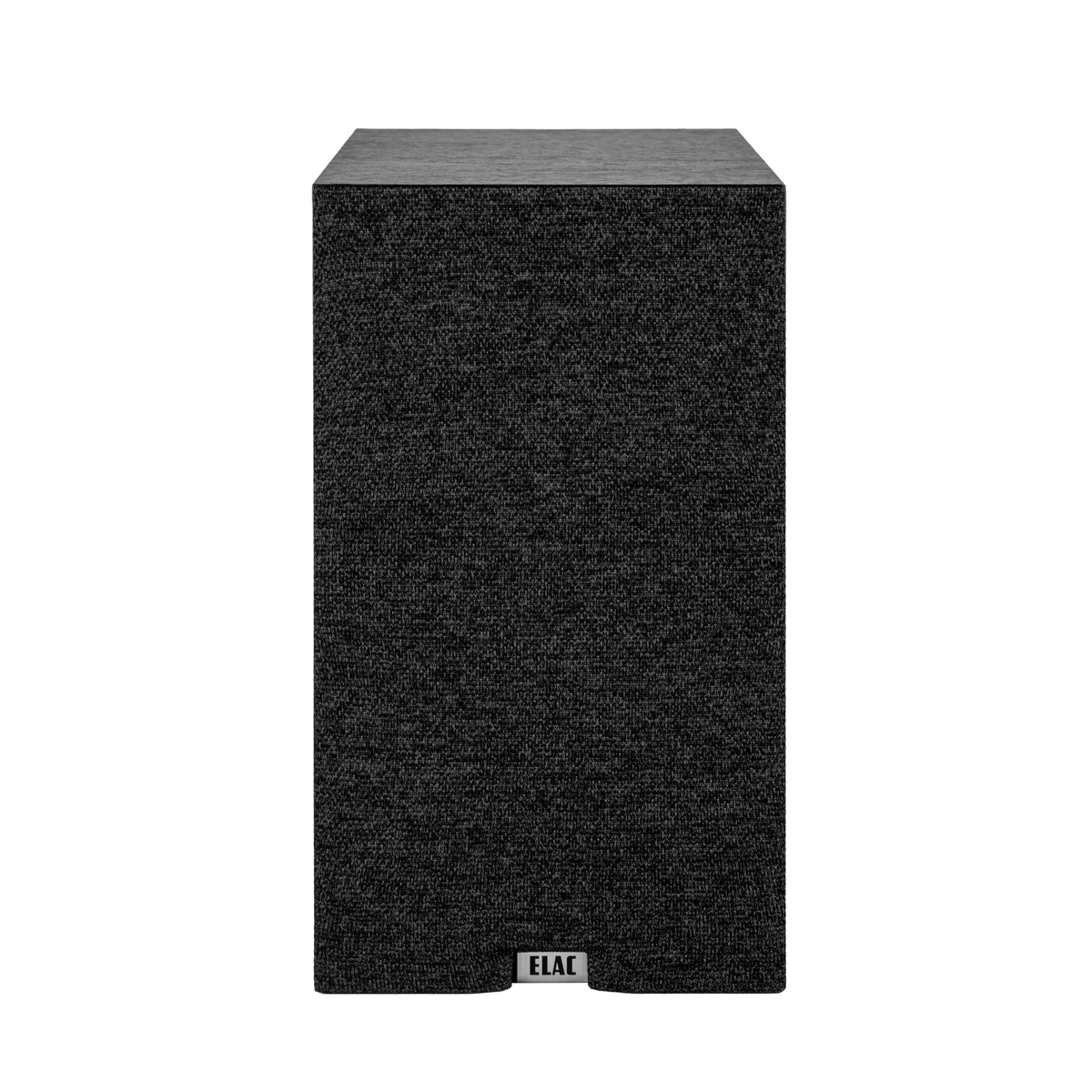

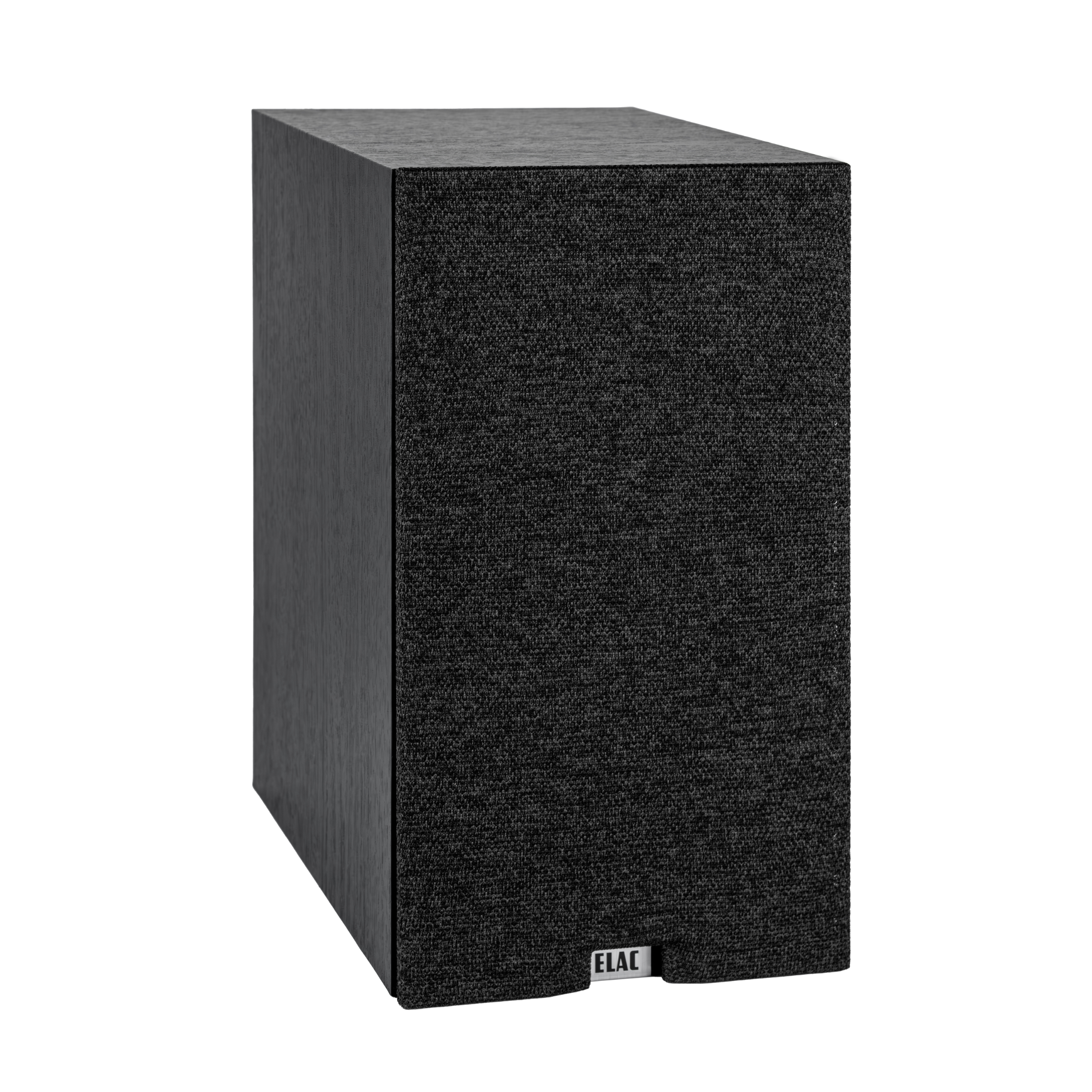

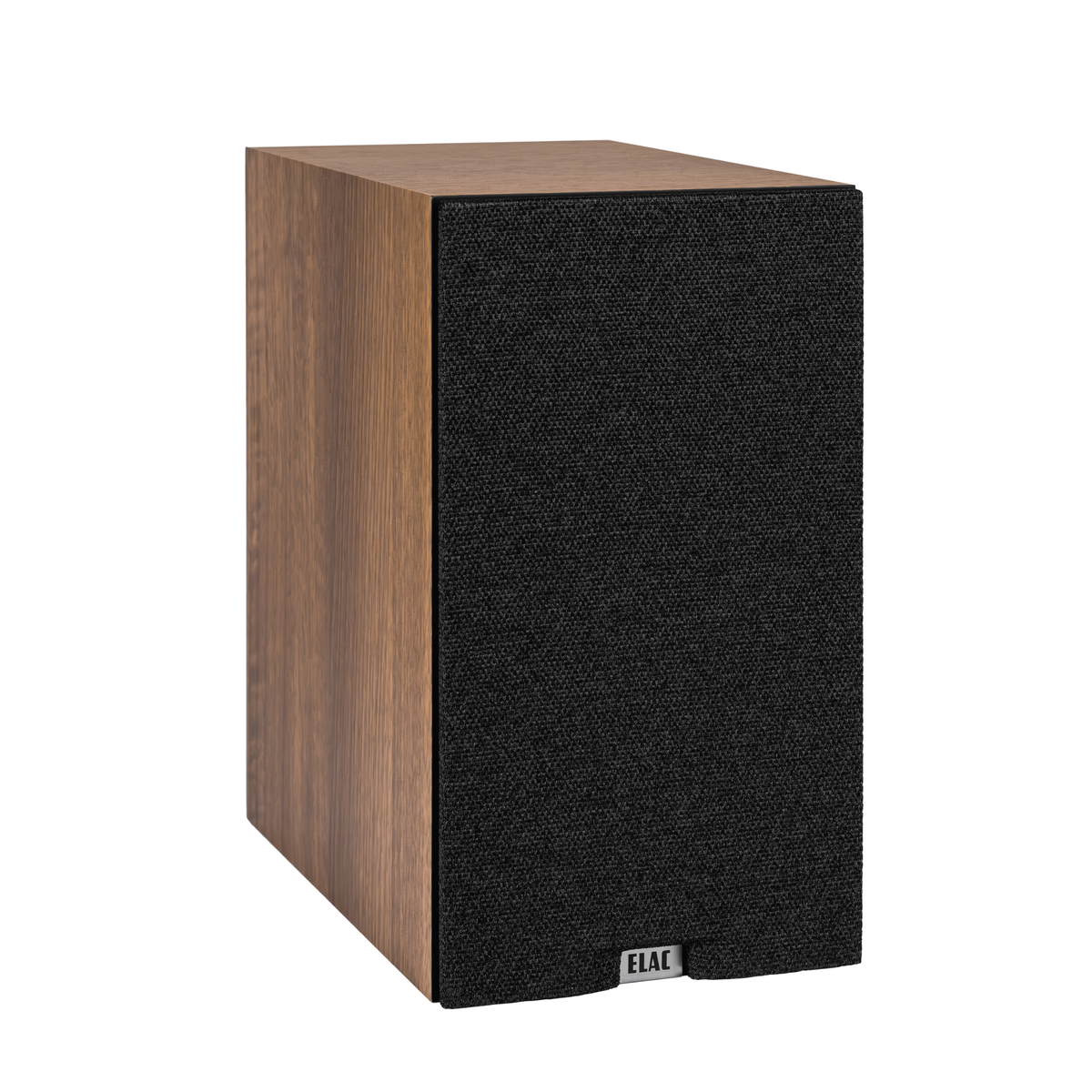

The cabinet impresses with a minimalist design, optionally available in black ash decor with a matte black baffle or in walnut. Internal bracing significantly increases the stability of the cabinet, minimizing resonances and improving overall sound quality. Magnetically held front grilles emphasize the subtle appearance and can be easily removed if necessary.

Durable Quality and Easy Connectivity

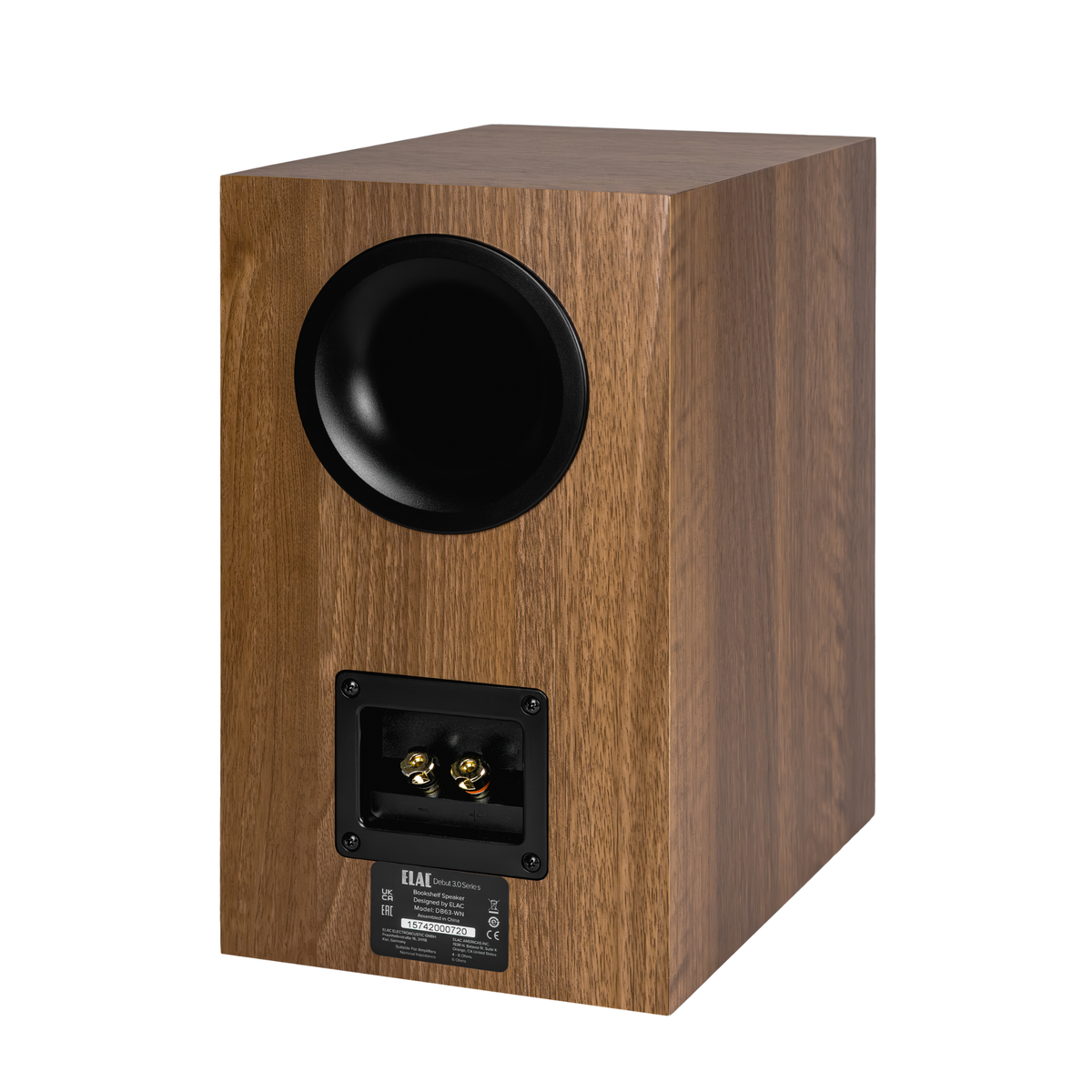

Made from high-quality materials, the speaker is designed for a long lifespan. The rear single-wire terminals are made of aluminum and are versatile: they securely accept banana plugs, spade connectors, or bare wire ends. A rear bass reflex port supports efficient low-frequency reproduction.

Specifications

• Enclosure Type: 2-way, Bass Reflex (rear-firing)
• Tweeter: 1 × 25 mm (1") Aluminum Dome
• Woofer: 1 × 133 mm (5.25") Aramid Fiber Cone
• Frequency Response: 42 – 38,000 Hz (-6 dB) / 70 – 34,000 Hz (-3 dB)
• Crossover Frequency: 1,900 Hz
• Recommended Amplifier Power: 20 – 120 Watts
• Sensitivity: 86.5 dB (at 2.83 V/1m)
• Nominal Impedance: 6 Ohms
• Dimensions (H × W × D): 30.70 × 17.20 × 26.70 cm (12.09 x 6.77 x 10.51 in)
• Weight: 6.05 kg (13.34 lbs)
• Cabinet Material: 16 mm MDF (CARB2 certified)
• Binding Posts: Single-Wire (5-way metal binding posts)

FAQ

How should the speakers be positioned?
For optimal results, it is recommended to place the speakers about 30 to 60 cm (1-2 feet) away from walls and corners. Too little distance can unnaturally boost bass reproduction. For the best stereo imaging, the speakers and listening position should form an equilateral triangle.

Are the speakers magnetically shielded?
No, the speakers are not magnetically shielded. They should therefore not be placed in close proximity to CRT televisions or magnetic cards (e.g., credit cards), as this can cause interference or damage.

Does the Debut B5.3 support bi-wiring?
No, this model features single-wire binding posts for standard operation.

Can the speakers be wall-mounted?
According to the available information, the speakers are intended for placement on tables or shelves. As they feature a rear-firing bass reflex port, a certain distance from the wall is absolutely necessary for sound quality.

Scope of Delivery

• ELAC Debut B5.3 Loudspeaker
• Magnetically attached front grille
• Documentation
