Description

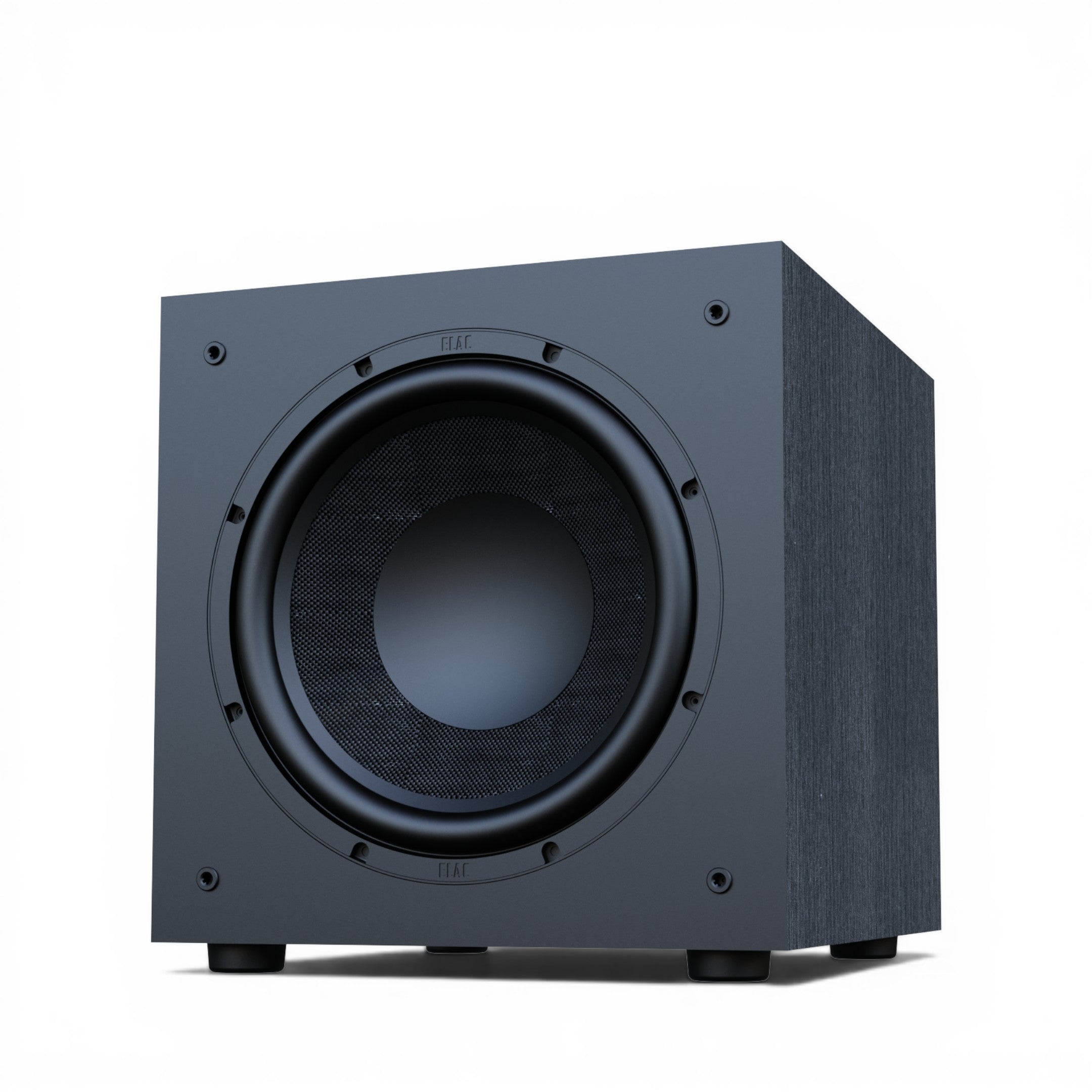

ELAC Debut 3.0 DS123-BK Subwoofer for Music and Movies
The ELAC Debut 3.0 Subwoofer DS123 is designed to complement the Debut 3.0 series, expanding existing setups with deep, powerful bass reproduction. As an active subwoofer, this model is aimed at applications where music and movies can benefit from more depth, more punch, and controlled integration into the overall system.
12" Subwoofer with Sealed Cabinet Design
A key feature of the ELAC Debut 3.0 DS123 is its sealed enclosure. The sealed cabinet design is engineered for tight, precise bass, low distortion, and fast response. Additionally, it features a 12-inch woofer with a polypropylene cone, designed to support deep, dynamic bass reproduction with high precision. Class D amplification complements this concept with efficient and clean power delivery.
Connections, Operation, and Integration
For integration into various systems, LFE, stereo, and high-level inputs, as well as a high-level output, are available. Volume Control, Variable Low Pass, Phase Switch, and Auto Power Mode allow for precise tuning to the system and room. The Auto On/Off function switches the subwoofer on when an audio signal is detected and off again when idle.
Properties
Specifications
Product
- ELAC Debut 3.0 Subwoofer DS123-BK
Design
- Active subwoofer with sealed enclosure
Woofer
- 12-inch woofer with polypropylene cone and textured surface
Frequency Range
- Lower cut-off frequency: 28 Hz at -3 dB
- Lower cut-off frequency: 26 Hz at -6 dB
- Crossover frequency: 50 to 150 Hz
Amplifier
- Amplifier class: Class D
- Maximum amplifier power: 200/400 W (RMS/Peak)
- The power specification is not entirely clear: The separate specification table in the chat states 200 W, while the manual states 200/400 W (RMS/Peak).
Power Consumption
- Standby consumption: < 0.5 W
Connections
- Inputs: LFE, Stereo, High-level
- Outputs: High-level
- RCA input
- High-level input
- High-level output
- Power connection
- Voltage selector switch
Operation and Functions
- Level control
- Variable low-pass
- Phase switch
- Auto power mode / Auto On/Off
Dimensions
- Width: 14.2 inches / 360 mm
- Height: 14.2 inches / 360 mm
- Depth: 14.9 inches / 378 mm
Weight
- Net weight: 30.2 lbs / 13.7 kg
- Gross weight: 34.17 lbs / 15.5 kg
Scope of delivery
- ELAC Debut 3.0 DS123
- Front cover
- Power cable
- Documents
Manufacturer information
Debut DS123
The ELAC Debut 3.0 12" Powered Subwoofer is a sealed 12-inch subwoofer that combines precise, deep bass with versatile connectivity options and efficient Class D amplification.
