Powerful Integrated Amplifier for Demanding Stereo Systems

The Michi Prestige X430 is an integrated Class-AB amplifier for stereo systems, designed for high power reserves, a stable power supply, and precise signal routing. With 210 watts per channel into 8 ohms and 340 watts per channel into 4 ohms, the model is designed for large and more demanding loudspeakers. The output stage with high-current capable push-pull transistors supports controlled dynamics and precise reproduction with fine details.

Use Analog and Digital Sources with One System

The Michi Prestige X430 combines analog and digital music sources in one device. For digital players, an ESS SABRE ES9039Q2M DAC, USB audio, as well as coaxial and optical inputs are available. Bluetooth with aptX HD and AAC complements wireless playback. Classic sources can also be directly integrated, including several analog high-level inputs and an MM phono input for Moving Magnet cartridges. A TV can also be directly connected via HDMI ARC, allowing movies, TV sound, and music to be played through the stereo system.

High-Quality Craftsmanship and Classic Hi-Fi Feel

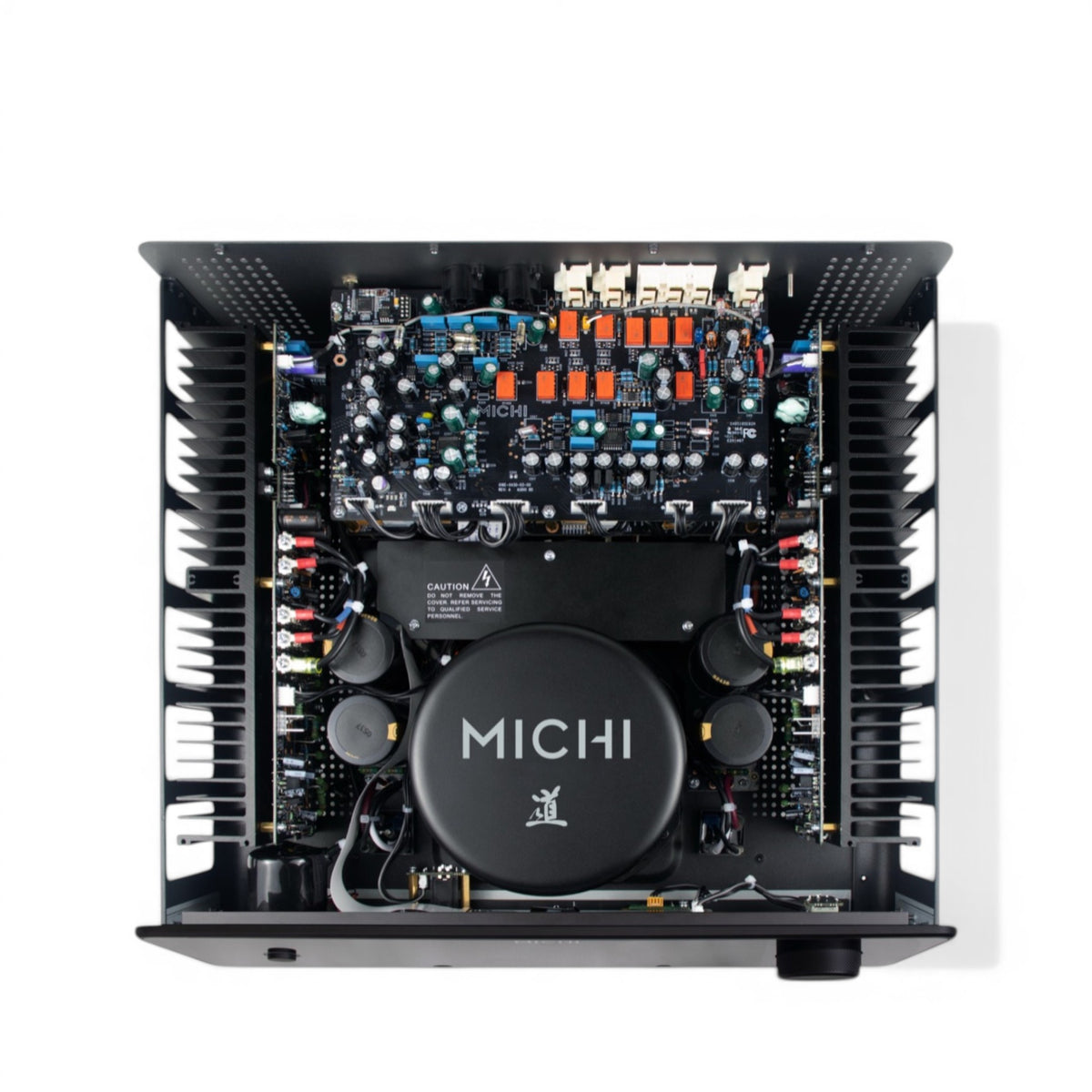

The casing of the Michi Prestige X430 is made of solid aluminum and equipped with precisely crafted controls. A generously sized, in-house manufactured toroidal transformer with shielded construction is just as much a part of the design as separate signal paths for reducing interference. On the front sits a large color display that can show, among other things, classic VU meter displays or spectrum analyses, thus combining modern operation with a classic Hi-Fi feel.

Specifications

Amplifier and Power

• Product Type: Integrated Amplifier / Integrated Class AB Amplifier
• Amplifier Principle: Class AB
• Output Power (8 Ohm): 210 W per channel
• Output Power (4 Ohm): 340 W per channel
• Power Output (FTC, 8 Ohm): 220 Watts / Channel
• Continuous Power Output (Non FTC, 8 Ohm): 210 Watts / Channel
• Maximum Power Output (Non FTC, 4 Ohm): 340 Watts / Channel
• Total Harmonic Distortion: < 0.03%
• Intermodulation Distortion (60 Hz : 7 kHz, 4:1): < 0.03%
• Damping Factor (20 Hz - 20 kHz, 8 Ohm): 260
• Output Level / Impedance (Preamplifier): 1.92 V / 100 Ohm
• Tone Control Bass: ±10 dB at 100 Hz
• Tone Control Treble: ±10 dB at 10 kHz

Frequency Response

• Phono Input: 20 Hz - 20 kHz (+0 dB, -0.5 dB)
• Line Inputs: 10 Hz - 100 kHz (+0 dB, -0.5 dB)
• Digital Section: 10 Hz - 20 kHz (+0, -0.4 dB, Max)

Analog Connections

• 1 x MM Phono Input
• 1 x Ground Screw for Phono
• 3 x RCA Line Inputs: CD, Tuner, AUX
• 1 x Balanced XLR Input (Balanced In)
• 1 x Pre-Out
• 2 x Mono Sub Out

Digital Connections

• 1 x HDMI ARC
• 3 x Optical Input
• 3 x Coaxial Input
• 1 x PC-USB
• Bluetooth with aptX HD and AAC

Control and System Connections

• 1 x Network Connection
• 1 x Ext Rem In
• 12V Trigger: 1 x In, 2 x Out
• 1 x USB Port labeled 5V / 2.1A
• 1 x RS232
• Bluetooth connection on the rear panel

Speaker Connections

• 2 x Speaker Connectors: Speaker A and Speaker B
• Speaker Impedance according to device label: 8 Ohms Nominal

Analog Signal Values

• Input Sensitivity / Impedance Phono (MM): 5.56 mV / 47 kOhm
• Input Sensitivity / Impedance Line Inputs (RCA): 356 mV / 100 kOhm
• Input Sensitivity / Impedance Line Inputs (XLR): 713 mV / 50 kOhm
• Overload Phono (MM): 66 mV
• Overload Line Inputs (RCA): 4 V
• Overload Line Inputs (XLR): 10 V
• Signal-to-Noise Ratio Phono: > 80 dB
• Signal-to-Noise Ratio Line Inputs (RCA): > 105 dB
• Signal-to-Noise Ratio Line Inputs (XLR): > 100 dB
• Channel Separation Phono: > 55 dB
• Channel Separation Line Inputs: > 55 dB
• Channel Separation Line Inputs (XLR): > 55 dB

Digital Section

• D/A Converter: ESS SABRE ES9039Q2M / ESS ES9039Q2M DAC
• Digital Signals via Coaxial/Optical: SPDIF LPCM up to 192 kHz / 24 bit
• USB Audio: PCM up to 32-bit / 384 kHz
• PC-USB: USB Audio Class 2.0
• DSD Support: up to 4X, 11.2 MHz
• DoP Support: up to 2X, 5.6 MHz
• Signal-to-Noise Ratio Digital Section (IHF "A"): > 110 dB
• Input Sensitivity / Impedance Digital Section: 0 dBFs / 75 Ohm
• Output Level Digital Section: 1.15 V (at -20 dB)
• HDMI: supports CEC with ARC function
• HDMI: 2-channel PCM only up to 24 Bit / 48 kHz

Housing and Display

• Housing: solid aluminum
• Front panel, top and volume control made of anodized aluminum
• Precision-engineered controls
• Large high-resolution color display
• Display options: VU Meter Mode and Spectrum Mode

Power Supply and Dimensions

• Power Supply Europe: 230 V, 50 Hz
• Power Supply USA: 120 V, 60 Hz
• Device labeling rear panel: AC 220V-230V~ / 50/60Hz
• Power Consumption: 520 Watts
• Power Consumption Standby Normal: < 0.5 Watts
• Power Consumption Standby Network-Wakeup: < 2 Watts
• BTU (4 Ohm, at 1/8th Power): 1476 BTU/h
• Dimensions (W x H x D): 431 x 148 x 422 mm
• Front Panel Height: 131 mm
• Net Weight: 16.9 kg

Scope of Delivery

• Michi Prestige X430 Integrated Amplifier
• Remote control incl. batteries
• Power cord
• Documents
