SVS PB-3000 R|Evolution Active Bass Reflex Subwoofer for Home Theater, Music, and Gaming

Port Tuning

The port tuning of the SVS PB-3000 R|Evolution is implemented using the included foam plugs: In standard mode, the bass reflex ports remain open, which means the subwoofer is designed for a frequency response of 16 Hz to 235 Hz; for closed mode, the foam plugs are fully inserted into the ports, changing the tuning to 17 Hz to 270 Hz. This allows the subwoofer to be adapted to the room, placement, and listening preference, for example, if less bass reflex support and a more sealed reproduction are preferred. The appropriate operating mode is also selected as standard or sealed via the SVS app or the subwoofer settings, so that mechanical port tuning and electronic settings match.

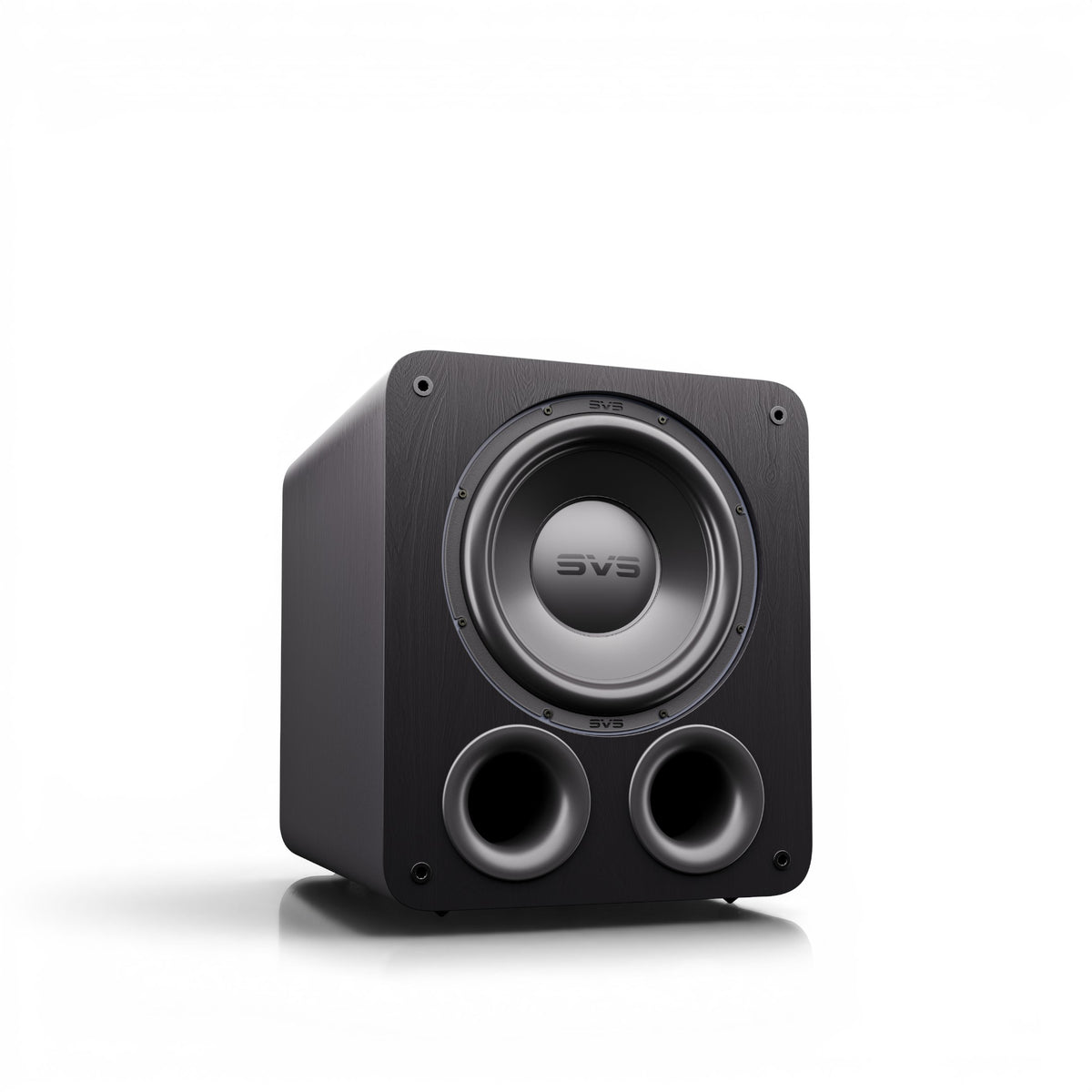

13-inch High-Excursion Driver

The front-firing 13-inch long-throw driver is designed for large diaphragm movements. The combination of aluminum cone, ferrite magnet motor, Nomex spiders, and precise excursion supports controlled bass even at high volumes.

Sledge STA-1200D

The Class-D amplifier Sledge STA-1200D is integrated.

DSP for Control and Clean Tuning

The DSP monitors and controls central subwoofer functions. Digital signal processing helps to precisely control performance, protection functions, and sound tuning.

App Control for Easy Adjustment

The SVS Subwoofer Control App is compatible with Apple iOS, Google Android, and Amazon Fire. The app allows you to manage volume, low-pass filter, phase, polarity, six parametric EQs, room gain compensation, tuning modes, and power settings.

Three Presets for Different Content

With three memory slots, settings for different applications can be stored. This allows the subwoofer to quickly switch between movie, music, or a custom setting.

Operation Directly on the Subwoofer

On the back is an OLED display with a user interface. Important settings such as volume, low-pass filter frequency, phase, power mode, display orientation, and factory settings are directly accessible on the device.

Connections for Home Theater and Stereo

The SVS PB-3000 R|Evolution can be integrated into home theater and stereo systems via RCA or XLR. The LFE input is provided for AV receivers, while left and right inputs can also be used for classic two-channel setups.

Integration of Multiple Subwoofers

Line-level outputs via RCA and XLR facilitate the integration of additional subwoofers. Multiple subwoofers can distribute bass more evenly in the listening area and reduce the localization of low frequencies.

Robust Enclosure for Stable Playback

The MDF enclosure with internal bracing is designed for low-resonance performance. Iso-elastomer feet reduce noise artifacts and improve stability.

Protection and Suitability for Everyday Use

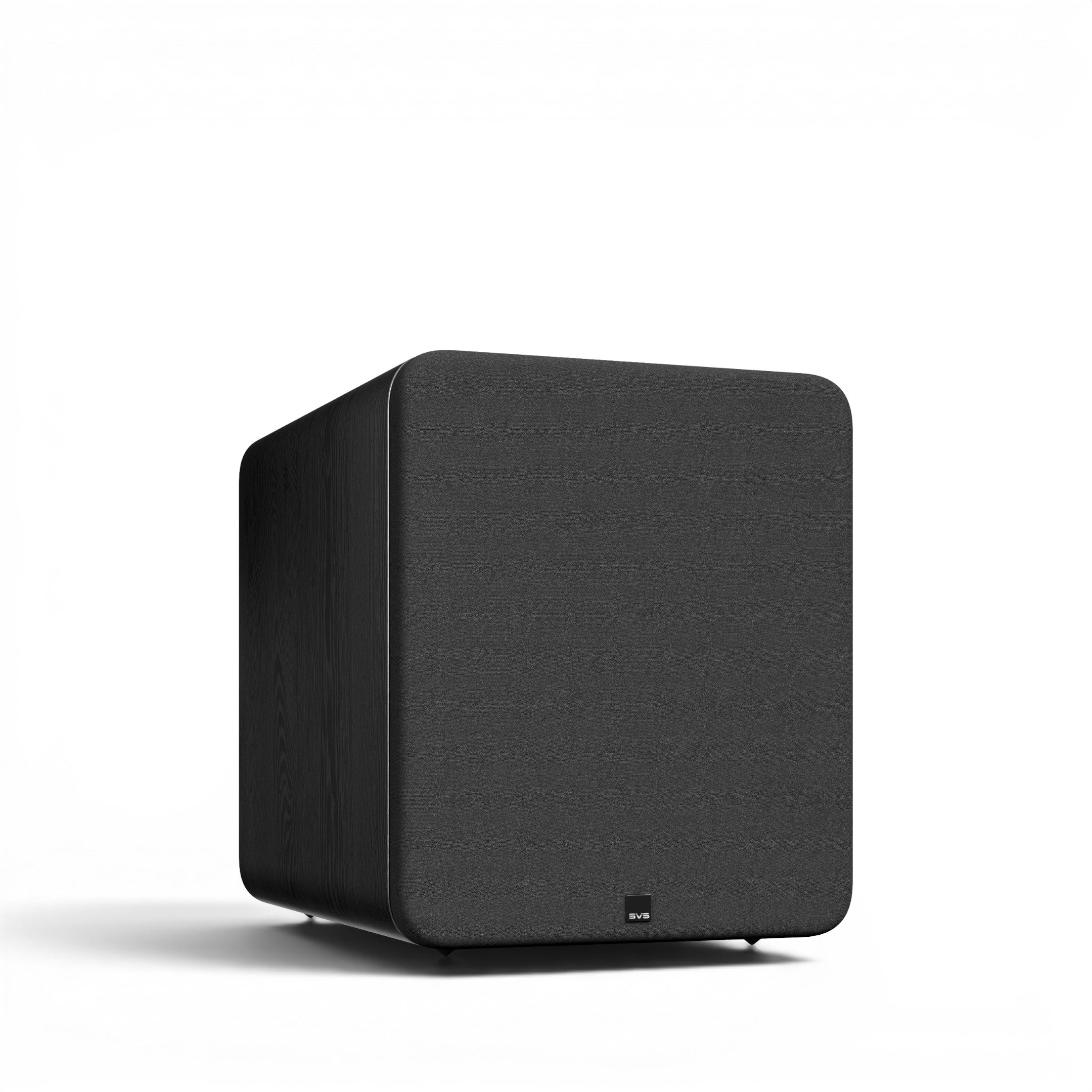

The extra-thick ABS grille frame with cloth covering protects the driver from damage. The Premium Black Ash finish visually matches many home theater and hi-fi environments.

Technical Data

General

• Manufacturer: SVS
• Product type: active subwoofer
• Principle: Bass reflex / Ported Cabinet
• Finish: Premium Black Ash / Black Ash
• Dimensions with grille: 557 mm H x 465 mm W x 626 mm T
• Dimensions without grille: 557 mm H x 465 mm W x 597 mm T
• Dimensions including packaging: 675 mm H x 619 mm W x 739 mm T
• Unpackaged weight: 38.6 kg
• Packaged weight: 47.3 kg
• Frequency response standard mode, ports open: 16 Hz to 235 Hz ±3 dB
• Frequency response sealed mode, ports closed: 17 Hz to 270 Hz ±3 dB

Acoustic Data

• Roll-off optimized for room gain utilization
• 20% to 60% lower acoustic THD+N in critical low-frequency bandwidth compared to the previous generation
• Port tuning: Standard / Sealed

Driver

• Front-firing 13-inch high-excursion driver
• Proprietary 13-inch long-throw driver
• 2-inch voice coil
• 30.1 mm Xmax
• 72.9 mm Xmech
• 13-inch 1100 aluminum cone
• High-temperature fiberglass composite for the voice coil former
• Two-piece Y30 ferrite magnet motor
• Copper shorting sleeve around the T-yoke
• Two balanced 24-strand silver-plated litz wires
• Nomex composite linear spider
• SBR or NBR rubber surround for extreme excursion
• FEA-optimized powder-coated aluminum cast basket
• Nickel-plated high-tension spring terminals

Amplifier and Signal Processing

• Amplifier power: 1,200 watts RMS continuous power
• Peak power: over 4,000 watts peak
• Amplifier type: Class D
• MOSFET amplifier with four 60A 200V MOSFETs
• 295 MHz Analog Devices audio DSP
• 56-bit filtering
• DACs with more than 120 dB signal-to-noise ratio
• Switching power supply with 100 V to 240 V
• < 0.05% THD+N rated power
• Convective cooling plate without external heat sinks

Control and App

• SVS Subwoofer Control Smartphone App
• Compatible with Apple iOS, Google Android, and Amazon Fire
• Control of volume, low-pass filter, phase, polarity, PEQs, room gain compensation, tuning modes, and power management
• Six parametric EQs
• Three memory presets
• Bidirectional feedback between app and subwoofer interface
• OLED display and control interface on the rear panel
• Display flip function

Connections and Integration

• Unbalanced RCA inputs
• Unbalanced RCA outputs
• Balanced XLR inputs
• Balanced XLR outputs
• LFE input
• RCA input impedance: 10 kOhm
• XLR input impedance: 18 kOhm
• USB port for powering the SVS SoundPath Wireless Audio Adapter and for firmware updates
• 3.5 mm trigger input: 3–12 V AC/DC
• 3.5 mm IR input
• Auto/On and trigger options via app

Cabinet and Features

• Robust MDF cabinet construction
• Internal cabinet bracing
• Protective grille with extra-thick ABS grille frame and fabric cover
• Screw-in Iso-Elastomer feet
• High-quality Black Ash finish

Power Supply and Standby

• Mains connection: 100 V–240 V, 50–60 Hz
• Power consumption at mains connection: 1000 W
• Standby consumption: 0.5 Watt
• RoHS compliant
• Lead-free construction

Scope of Delivery

• SVS PB-3000 R|Evolution
• Cover
• Power cord
• Iso-Elastomer feet
• Foam stoppers
• Documents

• Anleitung
