Brief description

The NESSIE Vinylmaster Reference washes and dries records on both sides in one operation. The difference to other NESSIE record cleaning machines is that you do not need to turn the record over to clean the second side.

Four microfiber pads clean the record intensively and gently. The machine's interactive display guarantees easy operation. Proven long-lasting motors and powerful suction automation ensure the best possible washing result.

Two tanks are integrated into the machine: A reservoir for the cleaning fluid and a separate tank for the dirty water. This means that fresh cleaning solution is always used for washing. Both tanks are electronically monitored.

The machine has separate pumps for dosing the upper and lower sides. This allows for the necessary oversaturation on the downward-facing side of the record. This ensures proper washing, not just damp wiping.

Unlike simply constructed machines, the NESSIE Vinylmaster Reference has two separate functional units for washing and suction. This offers the user many advantages, but above all, a better washing result.

Function overview

• One-button operation with interactive color display
• 3 washable programs (Normal, Intensive and Manual)
• Display of washing time, number of washed records, etc.
• Monitoring of fill levels of both tanks
• Washing arms with microfiber technology
• Electrostatic discharge through grounded center spindle
• Automatic fluid application in exactly the right amount
• Separate dosing pumps for upper and lower side
• Manual redosing possible at any time
• Automatic change of rotation direction LEFT/RIGHT
• Automatic suction starts and ends automatically when the suction arm is placed down
• Mechanical locking of the functional arms
• No clamp, but a solid chrome-plated puck with label seal and magnetic power assistance
• Housing made of water-resistant, deep black carbon acrylic
• Basotect® sound insulation in the housing
• Separate fresh water tank made of PVC for the cleaning fluid
• Dirty water drainage via a practical drain hose, conveniently magnetically fixed under the front of the device
• 24 months warranty plus 6 months manufacturer's guarantee with online registration
• Excellent manufacturing quality "Made in Germany"
• CE certification

Quality and Design - Made in Germany

The high manufacturing quality of HANNL and NESSIE record cleaning machines and the durability of their components are legendary and appreciated worldwide. There is no manufacturer in Germany who can draw on longer experience in the construction of record cleaning machines.
While even well-known German manufacturers are increasingly resorting to cheap MDF housings, we remain true to our quality standards. The machines, built from high-quality carbon acrylic with their chrome-plated elements and meticulously thought-out details, are technically and aesthetically unsurpassed.

Easy washing

A record cleaning machine should generally be designed simply and solidly and offer the user maximum comfort and flexibility. Especially when many records are washed one after the other, it is easy to lose track.
The selectable programs in a NESSIE or HANNL can be chosen depending on the degree of dirt and provide the operator with information at all times about the washing time, the number of records washed, etc. This makes record washing not a stress, but a pleasure that can be done almost incidentally.
The user is by no means restricted and can extend the washing time or redose cleaning agents at any time. If the customer simply wants to decide everything themselves, they choose the "Manual" program.
The electronics and washing programs were developed by practitioners such as Günter Hannl and Dipl. Ing. Uwe Draabe based on decades of experience and are in use worldwide in countless machines.
Wash both sides of the record in one pass!

Technical Specifications

Dimensions: W x H x D: 400 x 330 x 235 mm
Weight: approx. 11 kg
Voltage: 115V to 230V
Max. power consumption during operation: approx. 500 Watts
Cleaning agent tank capacity: approx. 450 ml
Dirty water tank capacity: approx. 625 ml

Scope of Delivery

1 x 500 ml NESSIE Vinylin, alcohol-free

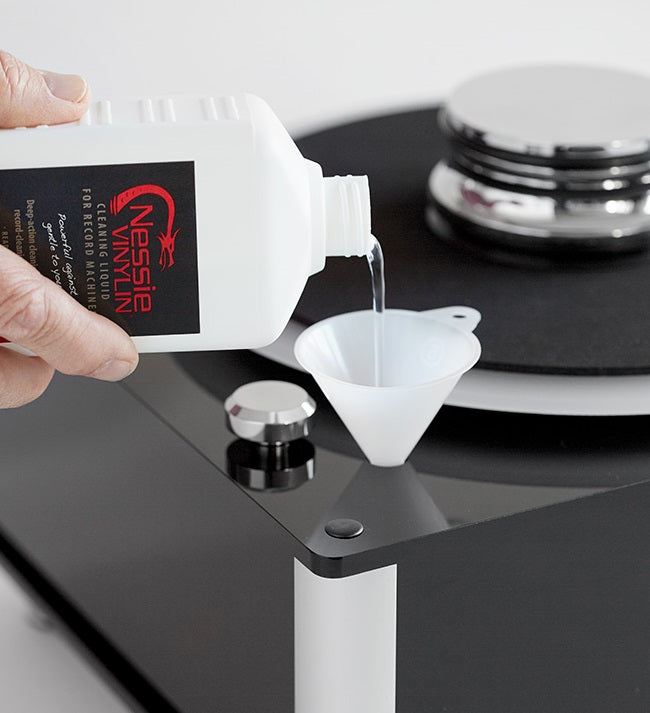

1 x Filling funnel for the cleaning fluid
1 x Chrome-plated record weight made of solid aluminum
1 x Drain hose with clamp and magnetic fixation
1 x Magic Vinelle microfiber cloth
1 x Allen key
1 x IEC power cable
1 x Instruction manual in German
