Description
The A14MKII is the top model in Rotel's 14 Series. It delivers 80 watts in Class AB operation into 8 ohms, powered by Rotel's self-manufactured oversized toroidal transformer and four highly efficient slit-foil capacitors for high acoustic performance without ever sounding strained.
The completely redesigned Digital-to-Analog conversion circuit topology works with a 32-bit/384 kHz D/A converter from Texas Instruments. The entire circuitry has been meticulously tuned, and all critical components are hand-selected for a fuller, richer, and more balanced reproduction of your music. Improvements to the power supply and amplifier stages ensure even more detailed playback, whether you're listening to big band music or a solo vocalist.
The tone control offers bass and treble adjustment in 1 dB steps up to +/- 10 dB for individual customization for all music genres, moods, and listening situations. The BYPASS mode eliminates unwanted noise and distortion.
The A14MKII supports your favorite music sources, including Analog, Digital, PC-USB with MQA, wireless streaming via aptX™ and AAC Bluetooth with high quality, and for vinyl fans, there's even an MM phono input.
The A14MKII is Roon-certified and delivers an optimal listening experience with Roon software, allowing you to fully immerse yourself in your music.

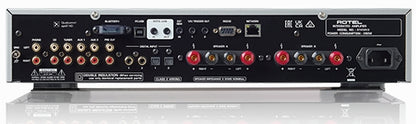

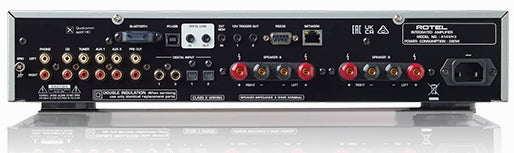

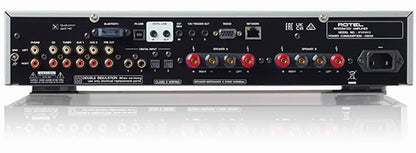

Integration into control systems is possible via Ethernet, RS-232, 12V trigger, and infrared.

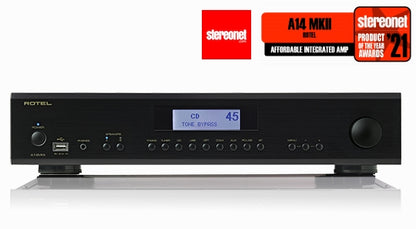

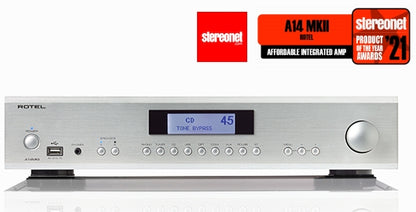

Dual speaker outputs with universal terminals allow for 2-zone installations. Speaker outputs A and B are switched via relays. The graphic display on the front panel has a large volume indicator and provides information about the audio stream.
The A14MKII fits into any environment and guarantees many hours of musical enjoyment.
Properties
Dimensions (W × H × D)
430 × 93 × 345mm
Panel Height
80mm
Power Supply
230V, 50Hz
Power Consumption
280W
Standby Power Consumption
<0.5W
Net Weight
8.94k
BTU (4Ω, 1/8th Power)
632 BTU/h
Maximum Output Power
150W/Ch (4Ω)
Continuous Output Power
80W/Ch (8Ω)
Total Harmonic Distortion
<0.018%
Frequency Response
Line Level Inputs:10Hz - 100kHz,
0±0.5dB
Digital Inputs:10Hz - 90kHz, 0±2.0dB, Max
Phono Input:20Hz -
20kHz, 0±0.5dB
Signal to Noise Ratio (IHF "A")
Line Level Inputs:
100dB
Digital Inputs: 103d
BPhono Input: 90dB
Manufacturer information
A14MKII
The A14 is Rotel's 14 Series amplifier flagship. The A14MKII supports all common music sources, including aptX and AAC Bluetooth for wireless streaming, PC-USB up to 32-bit/384 kHz, MQA decoding and rendering, analog, digital, and a moving magnet phono input. The A14MKII is also Roon Tested certified, offering the best possible and convenient use with Roon software.
- Roon Tested certified
- MQA and MQA Studio support
- 2 x 150 watts Class AB output power at 4 ohms
- Moving magnet phono input for turntables
- Wireless aptX and AAC Bluetooth
- Texas Instruments Premium 32-bit/384kHz D/A converter
