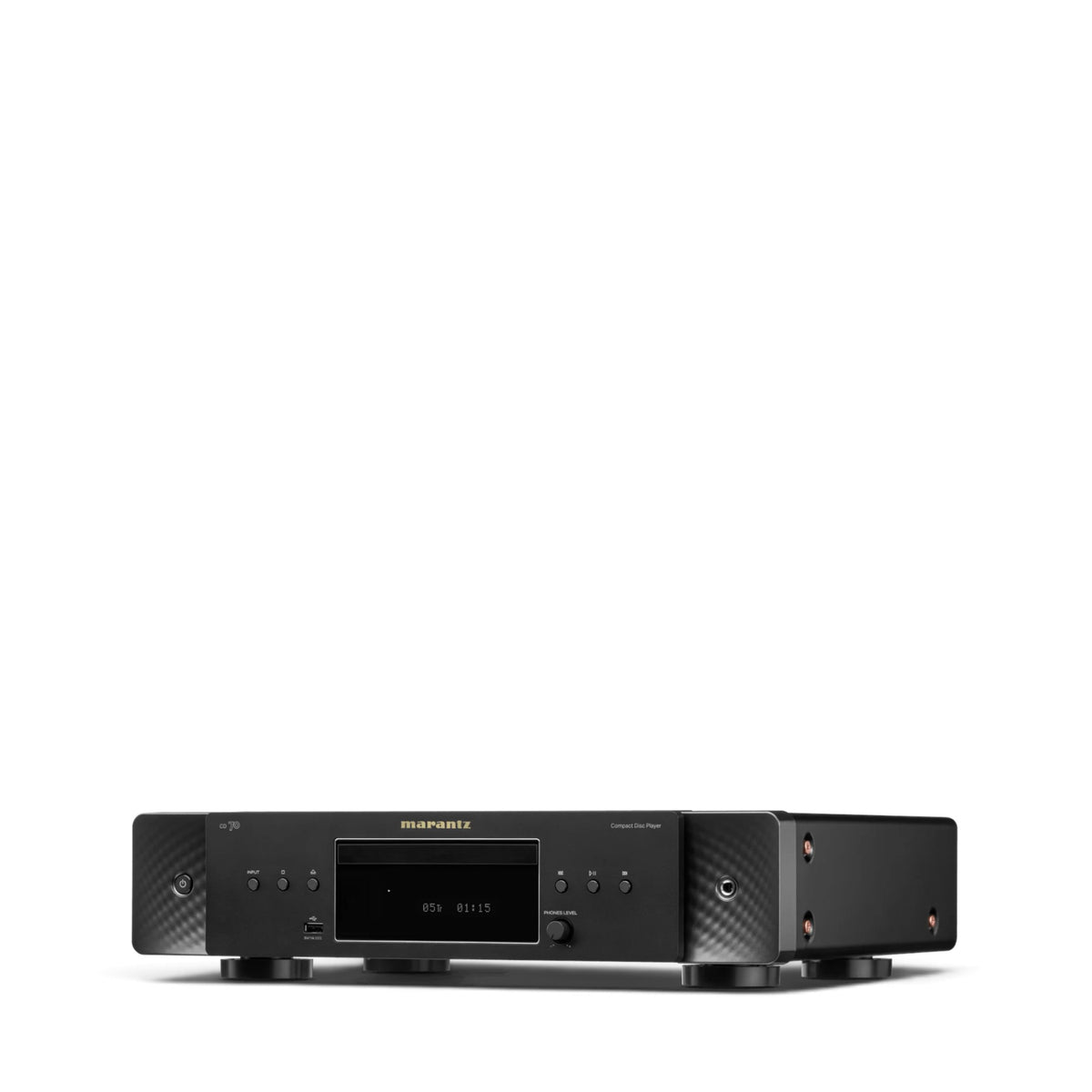

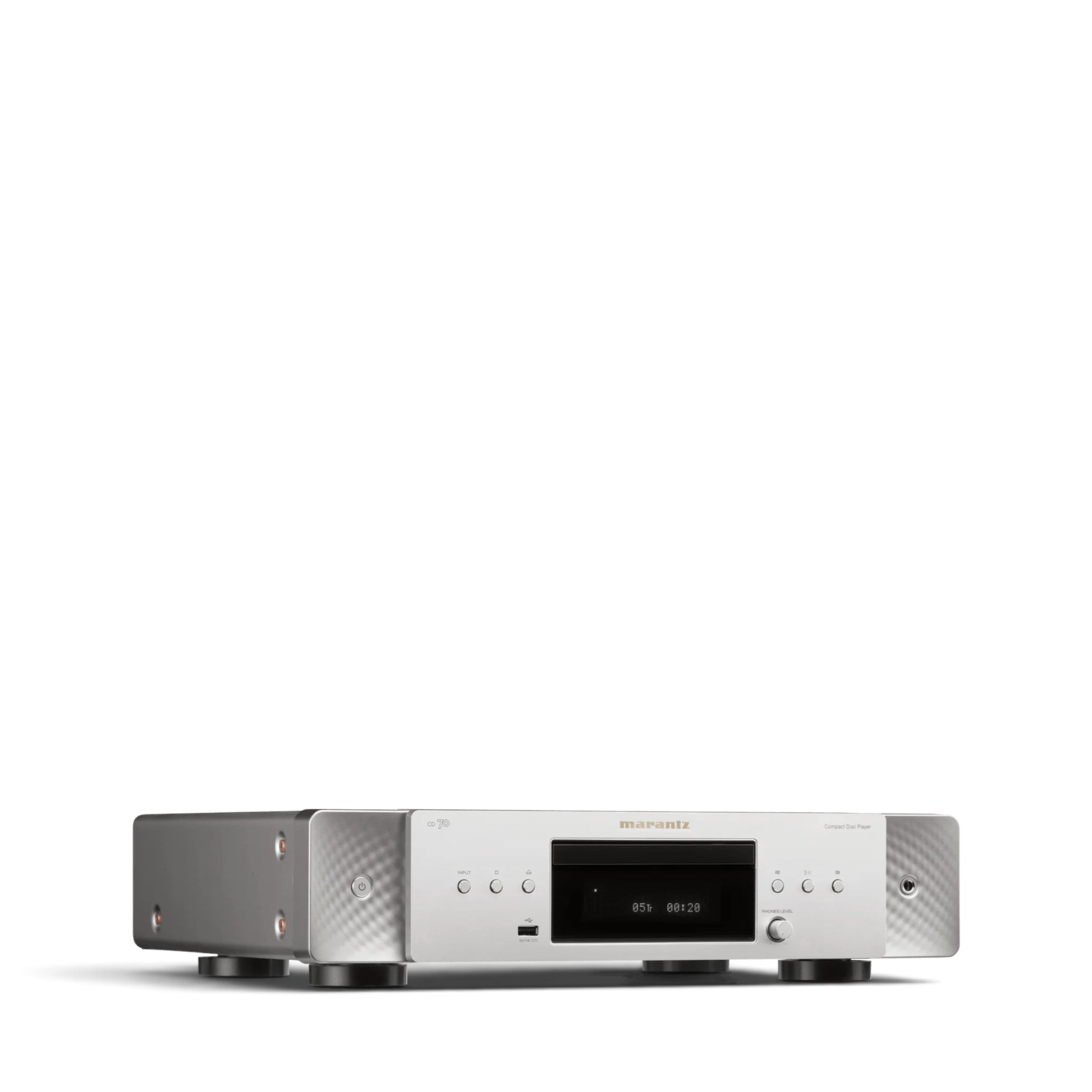

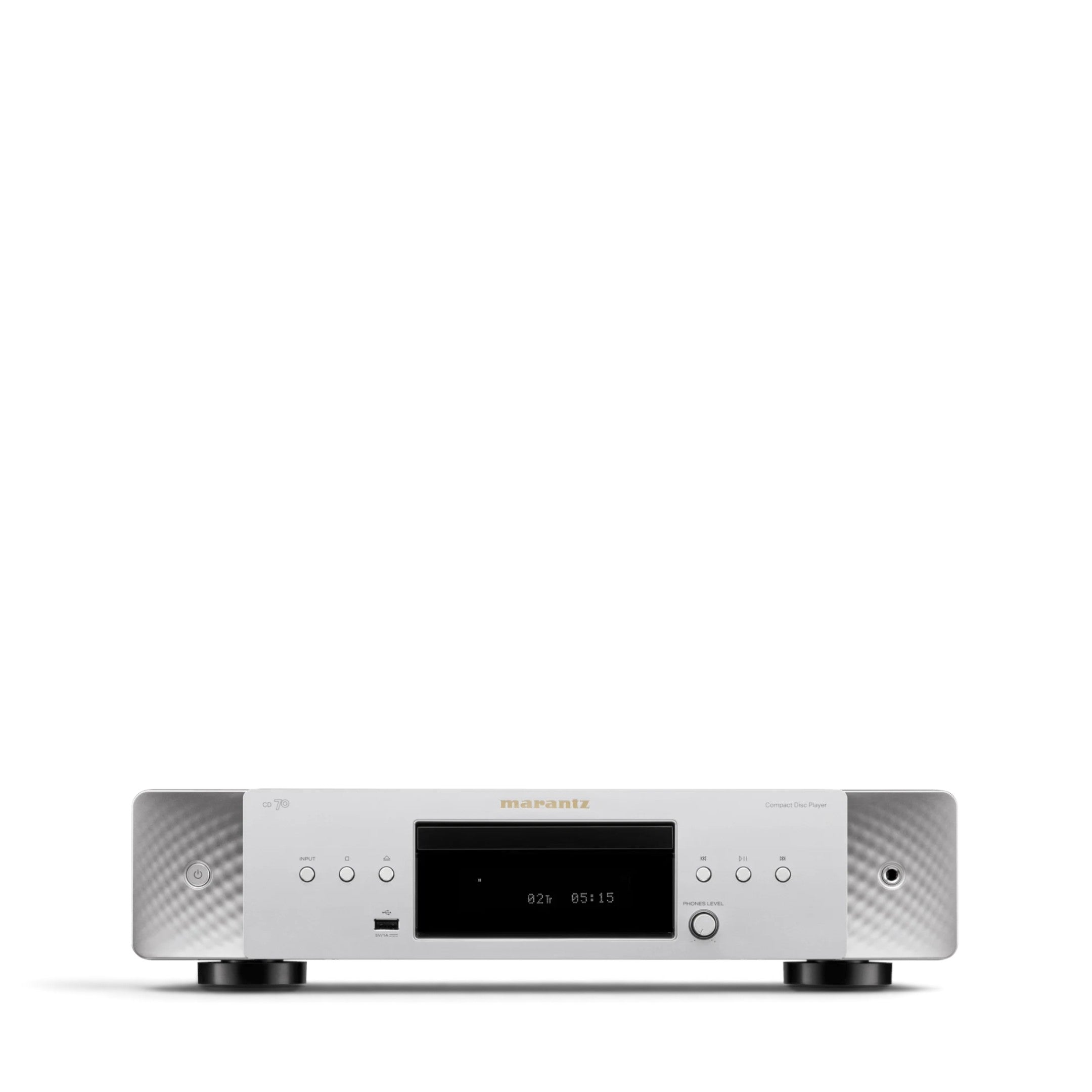

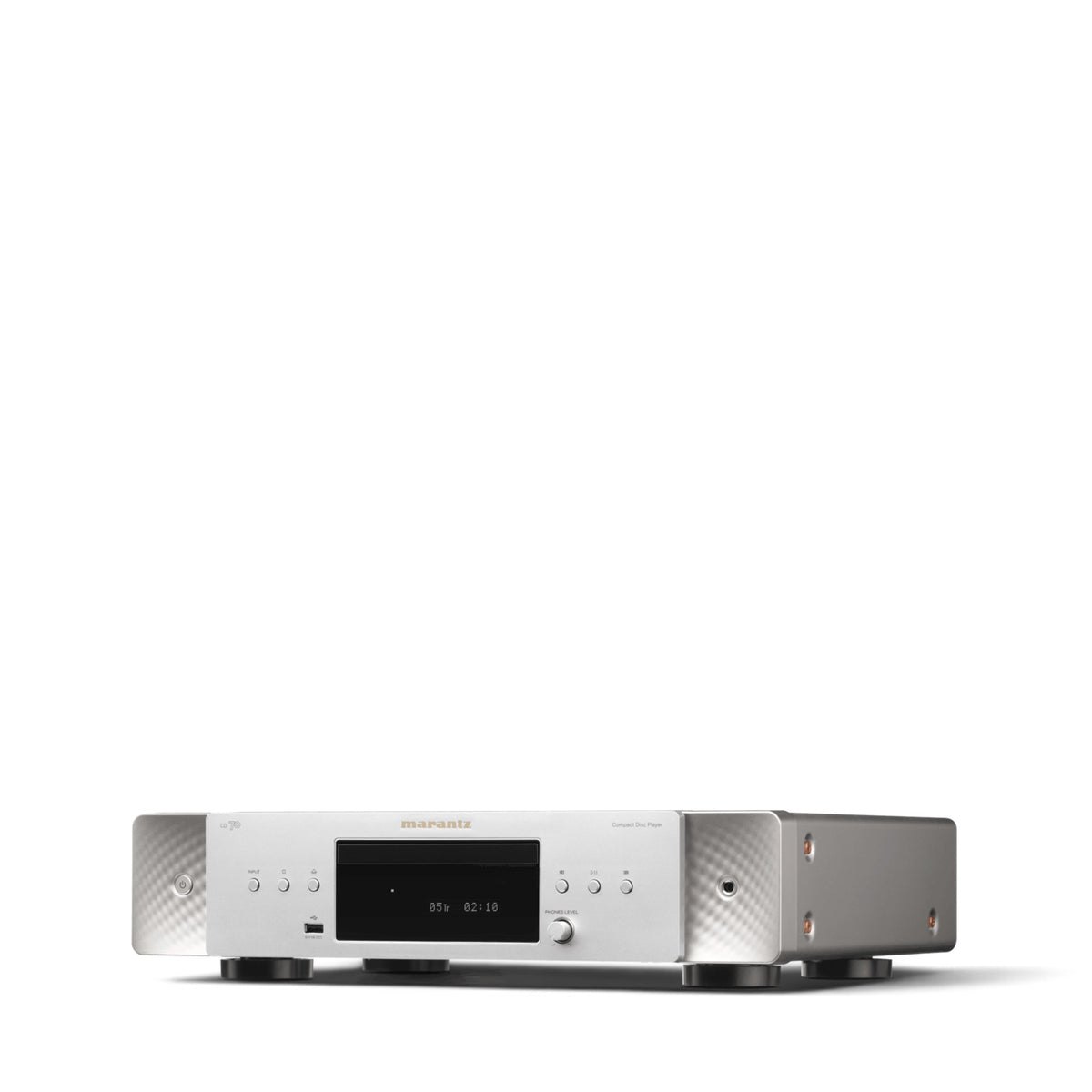

Marantz CD 70: CD player for conscious music enjoyment

The Marantz CD 70 builds on decades of experience in the development of award-winning CD players and is aimed at music lovers who want to listen to their CD collection with care.

More clarity through high-performance DAC and HDAM-SA2

The improved integrated high-performance D/A converter works together with Marantz HDAM-SA2 circuits. A D/A converter translates digital music signals into analog signals for your hi-fi system.

Hi-Res playback via USB-A

The CD 70 plays high-resolution music files via the USB-A port on the front. FLAC, WAV, AIFF, ALAC, and DSD are supported via USB-A. This means the CD player is suitable not only for classic CDs but also for high-quality digital music collections.

Convenient everyday playback

The Marantz CD 70 offers practical operating functions such as program play with 25 tracks, repeat, and random playback. Central functions can be conveniently controlled from the listening position via the included RC006PMCD remote control. The VFD display can be dimmed or switched off if you want less distraction while listening. Selectable digital filters for CD playback allow for additional sound customization.

Connections for the hi-fi system

For connection to your system, there is a 2-channel analog output via cinch as well as an optical and a coaxial digital output. The cinch connections are gold-plated. Digital inputs are not available. Additionally, the CD 70 offers a D-Bus connection, a headphone output, and volume control for headphones.

Enjoy music alone

The dedicated headphone amplifier works with an HDAM-SA2 buffer and an OP-AMP. The HDAM-SA2 buffer is a Marantz circuit stage that processes the audio signal for the headphone output before it is further amplified. OP-AMP stands for operational amplifier and here describes the amplifier stage within the headphone amplifier. Together, these components ensure that you can also use the CD 70 directly with headphones - with its own volume control and without necessarily switching on the entire system.

Timeless Marantz design

The Marantz industrial design appears high-quality, calm, and modern. The metal front panel, the additional metal plate for chassis reinforcement, and the balanced proportions ensure that the CD 70 harmoniously integrates into a sophisticated hi-fi environment.

Pros and cons at a glance

Reasons to choose the Marantz CD 70:

• Improved high-performance DAC
• Marantz HDAM-SA2 circuit
• Hi-Res playback via USB-A
• Support for FLAC, WAV, AIFF, ALAC, and DSD via USB-A
• Dedicated headphone amplifier with volume control
• Analog cinch output as well as optical and coaxial digital output
• Timeless Marantz industrial design with metal front panel

What you should know before buying:

• SA-CD is not supported.
• AAC playback is not supported.
• Optical and coaxial digital connections are outputs; digital inputs are not available.

Technical Data

General

• Product Type: CD Player
• Dimensions W × H × D: 44.2 × 10.9 × 35.1 cm
• Weight: 6.5 kg
• Frequency Response: 2 Hz - 20 kHz
• Available Colors: Black, Silver-Gold
• Metal Front Panel: Yes

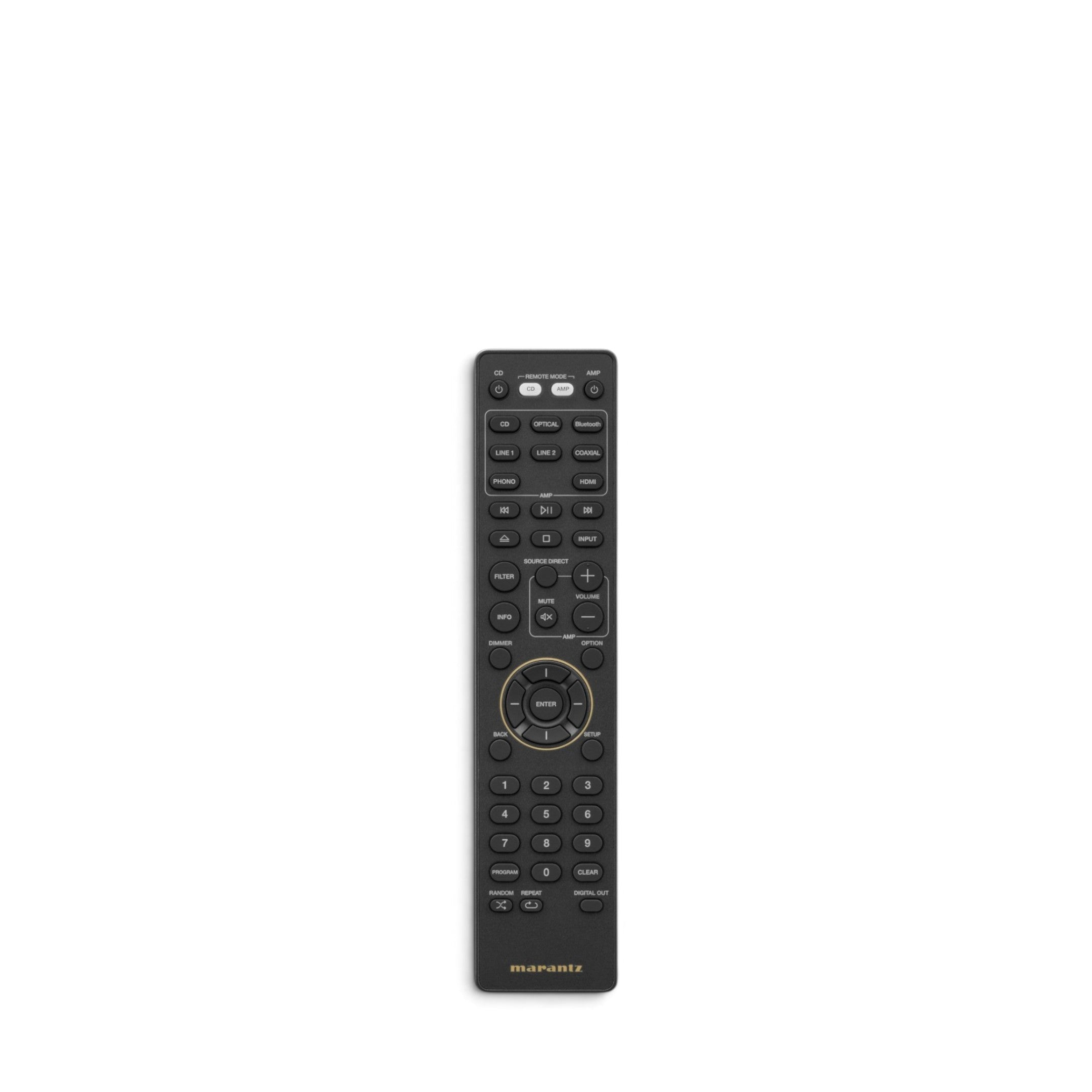

• Remote Control: RC006PMCD

Features

• Improved High-Performance DAC: Yes
• DAC Master Clock Design: Yes
• HDAM Version: HDAM / HDAM-SA2
• Power Transformer: EI
• High-Quality Audio Components: Yes
• Marantz-Specific Components: Yes
• Symmetrical Circuit Layout: Yes
• Additional Metal Plate for Chassis Reinforcement: Yes
• Selectable Digital Filters CD / SA-CD / DAC Mode: Yes / No / No
• Separate Rectifier Circuit for Analog and Digital Signal Processing: Yes
• Display Dimmer / Off: Yes / Yes
• VFD Display: Yes

Playback and Compatibility

• CD: Yes
• CD-R/RW: Yes
• SA-CD: No
• WMA: Yes
• MP3: Yes
• AAC: No
• CD-Text: No
• SA-CD Text: No
• ID3 Tag: Yes
• WMA Meta Tag: Yes
• AAC Metadata: Yes
• Data Disc Compatibility DSD / WAV / ALAC: No / No / No
• Program Play CD / SA-CD: 25
• Repeat: Yes
• Random Play: Yes

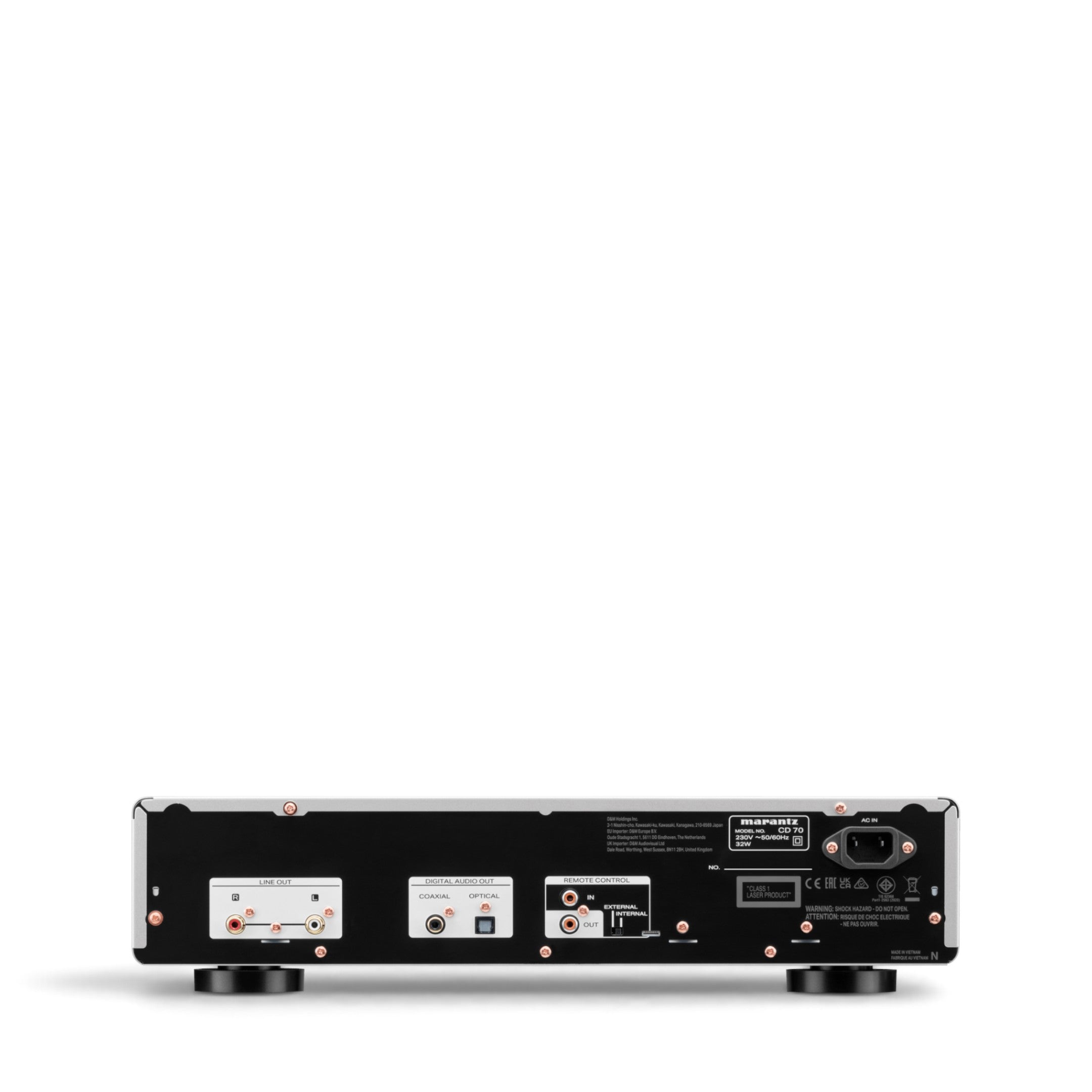

Connections

• Analog Output RCA: 2-Channel
• Digital Optical Input / Output: 0 / 1
• Digital Coaxial Input / Output: 0 / 1
• Gold-Plated RCA Connectors: Yes
• USB Audio Front: Yes
• USB-A FLAC / WAV / AIFF / ALAC / DSD: Yes
• D-Bus: Yes
• Headphone Output: Yes
• Headphone Volume Control: Yes

Audio

• CD Mechanism: Yes
• D/A Conversion: Yes
• DAC IC, Digital Filter, Noise Shaper: Yes
• Low Pass Filter Stage: HDAM
• Output Buffer: HDAM SA2
• Headphone Amplifier: HDAM-SA2 Buffer + OP-AMP
• Dynamic Range: 100 dB
• Signal-to-Noise Ratio: 110 dB
• Total Harmonic Distortion: 0.0016 %
• Channel Separation: 98 dB

Power Supply

• Power Consumption: 32 W
• Standby Consumption: 0.3 W
• Auto Power Off: Yes
• Detachable Power Cord: Yes

Dimensions and Weight

• Packaging Dimensions W × H × D: 52.2 × 19.0 × 46.9 cm
• Packaging Weight incl. Product: 8.8 kg

Scope of Delivery

• Marantz CD 70
• Remote control incl. batteries
• Power cable
• RCA cable
• Connection cable
• Documents
