Description

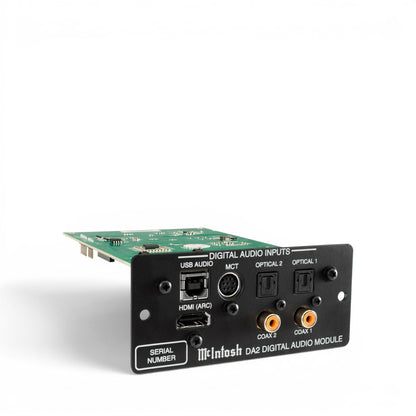

The McIntosh DA2 Digital Audio Module Upgrade Kit is an optional upgrade for McIntosh components featuring the DA1 Digital Audio Module. It expands digital audio processing and adds HDMI ARC for TV audio to the existing digital connectivity options.
Further Development of the DA1 Module
The DA2 builds upon the DA1 and extends its range of functions. It utilizes a Quad Balanced Digital-to-Analog Converter, or DAC for short. A DAC converts digital audio signals into analog signals so they can be played back through the connected McIntosh component.
TV Sound via HDMI ARC
The HDMI ARC port is exclusively for audio from compatible TV sets. This allows TV sound to be played back through your home stereo system. HDMI ARC does not transmit video to or from the TV, and audio from non-TV sources will not be played back through this port.
Operation and Synchronization
ARC can enable two-way communication between the DA2-equipped device and a compatible TV. This includes volume control and lip-sync functions to ensure audio and video are synchronized. When CEC communication is enabled, the TV remote can control the power and volume of the connected McIntosh component.
Digital Sources and Audio Formats
The USB input supports native playback up to DSD512 as well as DXD up to 384 kHz. Coaxial and optical inputs can decode digital music. Dolby and DTS multichannel formats are supported and converted to 2-channel audio for playback via the DA2-equipped device.
MCT Connection for
SACD Playback
The proprietary MCT input provides a secure Custom DSD connection. In conjunction with MCT500 and MCT80 SACD/CD transports, high-definition audio from SACDs can be played back.
Setup and Installation
If you need assistance with product integration, please feel free to contact us by phone or email.
Properties
Technical Specifications
General
- Brand: McIntosh
- Product Name: DA2 Digital Audio Module Upgrade Kit
- Product Type: Digital Audio Module Upgrade Kit
- Packaged Weight: 0.39 kg
- Shipping Carton L × W × H: 25.4 × 15.875 × 8.5725 cm
- McIntosh Part No.: 24108300
Connections
- Total Digital Inputs: 7
- Digital Coaxial Input: 2
- Digital Optical Input: 2
- Digital MCT Input: 1
- Digital USB Input: 1
- HDMI (ARC) Input: 1
- USB Audio Connection: USB Type B
- HDMI (ARC): audio only from compatible TV; no video transmission to or from TV; no audio playback from non-TV sources
Digital Audio Processing
- Digital-to-Analog Converter (DAC): Next Generation, Quad Balanced, 8-channel, 32-bit, audiophile-grade
- DSD via USB: up to DSD512
- DXD via USB: up to 384 kHz
- Coaxial and Optical: up to 24-bit/192 kHz
- Dolby and DTS: multi-channel audio formats are supported and converted to 2-channel audio for playback on DA2 equipped devices
- Dolby Digital and DTS Bitstreams: processing via Optical, Coax, and HDMI
- MCT: proprietary, secure custom-DSD connection for high-definition audio from SACDs in conjunction with MCT500 and MCT80 SACD/CD Transports
Operation and Setup
- ARC: Two-way communication for volume control and lip-sync functions with compatible TV
- CEC: When CEC communication is enabled, the TV remote control can control the power and volume of the connected McIntosh component
- HDMI ARC Input: can be renamed, enabled, and disabled
- Digital Gain: HDMI Gain, OPTI 1 Gain, and OPTI 2 Gain adjustable from 0 dB to +15 dB
- HDMI Lip Sync Delay: 0 ms to 150 ms in 10-ms increments
- Lip Sync Delay applies to HDMI, Optical, and Coax inputs
- Firmware: Version 2.0 or higher
- Menus: automatic update with suitable firmware
Compatibility
- Upgradable Models: MA9000, MA8900, MA7200, MA5300, MAC7200, C49, C8
Scope of Delivery
- McIntosh DA2
- Mounting accessories
- Documents
DA2
McIntosh DA2 Digital Audio Module Upgrade Kit is an optional upgrade for compatible McIntosh devices with a DA1 module, expanding their digital connectivity options.
