ELAC Debut 3.0 DA43 as Atmos and On-Wall Speaker

The ELAC Debut 3.0 DA43 is an Atmos and on-wall speaker from the Debut 3.0 series. This model is designed to expand an existing audio setup and can either be placed on top of main speakers or mounted on the wall near the ceiling. In conjunction with a Dolby Atmos-compatible AV receiver or amplifier, it creates a three-dimensional soundstage that makes music and movie audio sound more spatial.

Flexible Positioning for Dolby-Compatible Setups

A special feature of the ELAC Debut 3.0 DA43 is its varied positioning options. The speaker can be used as an upward-firing speaker placed on top of bookshelf or floor-standing main speakers, or it can be wall-mounted. This flexibility makes it particularly interesting for setups where spatial sound is desired without being limited to a single installation method.

Newly Developed Drivers for Clear Highs and Precise Bass Reproduction

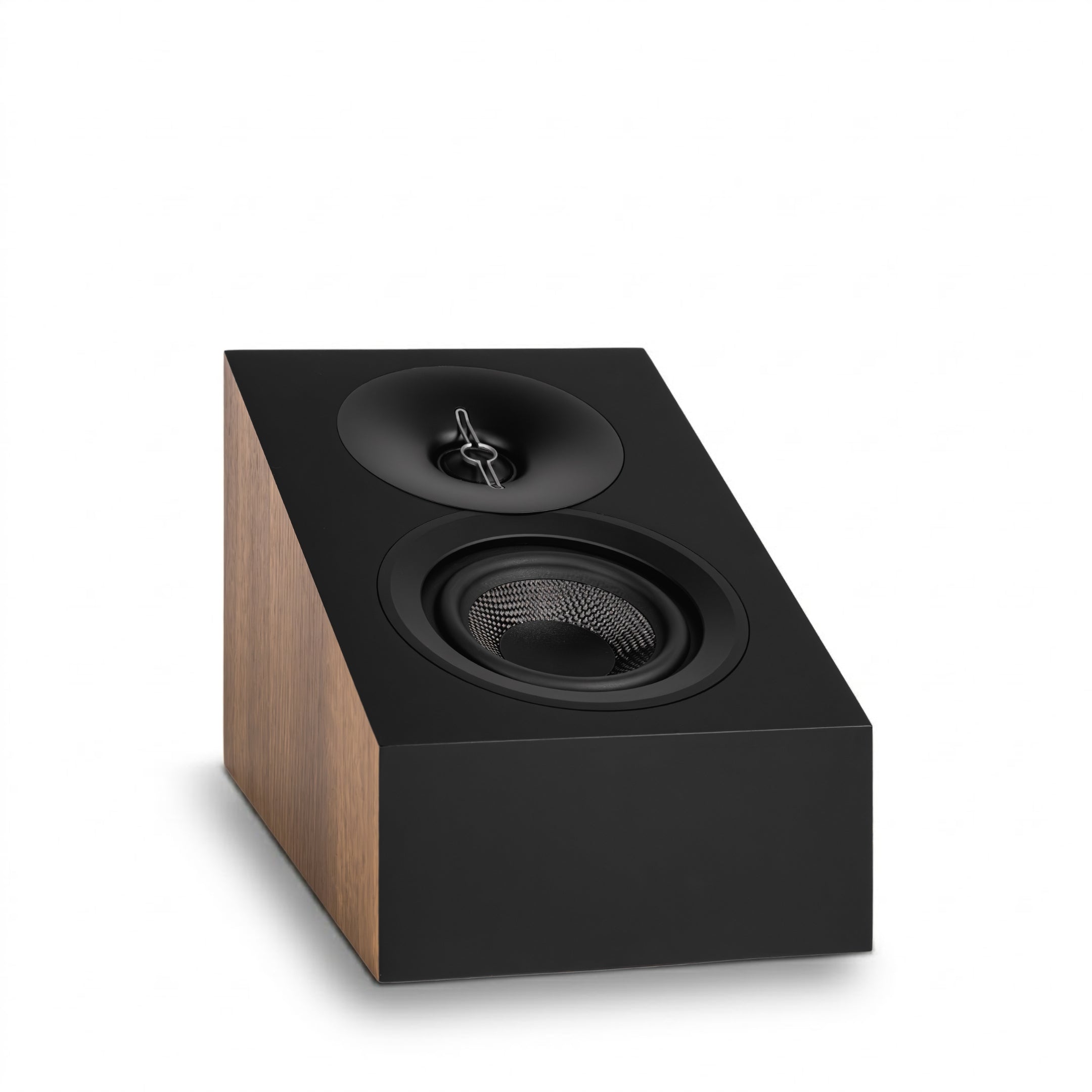

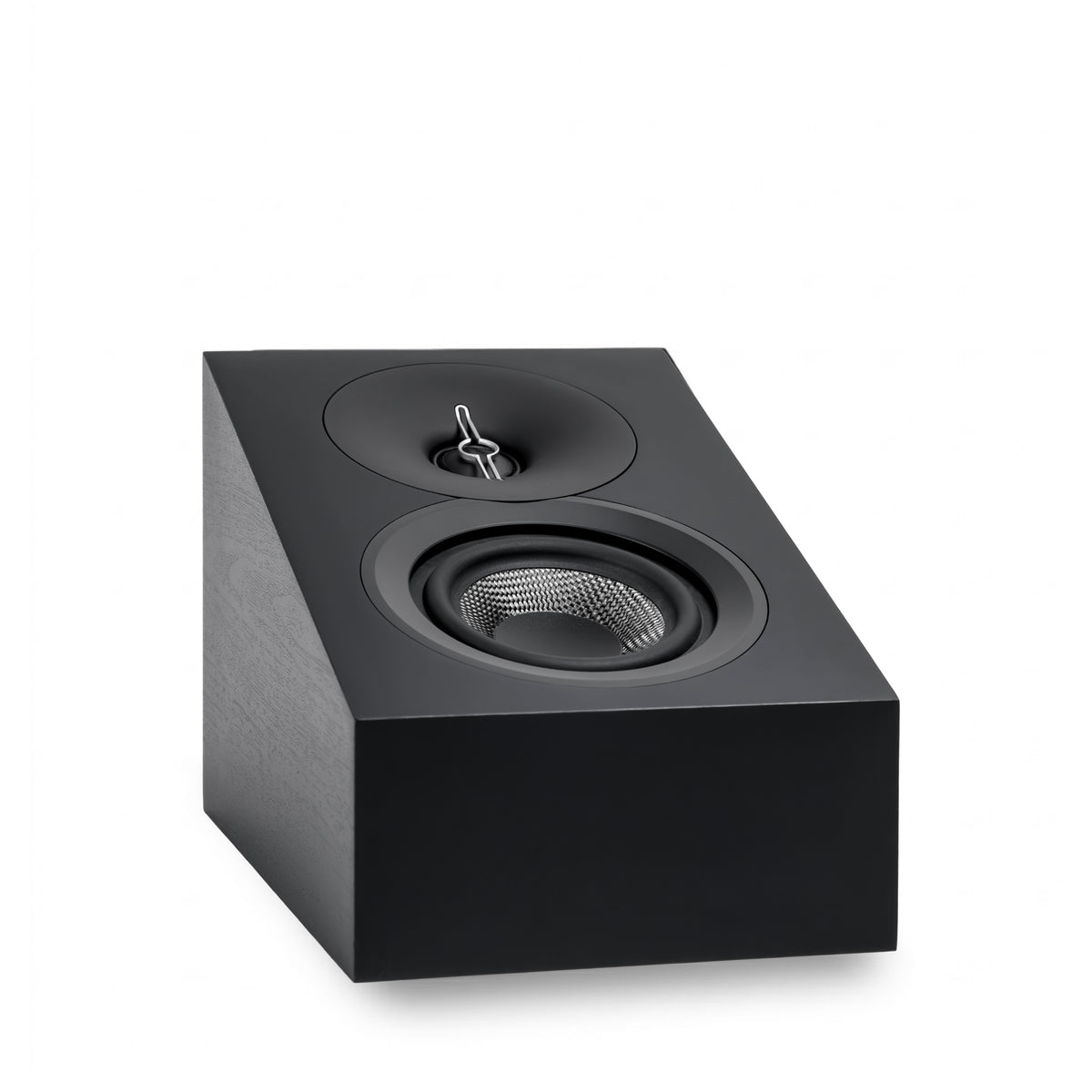

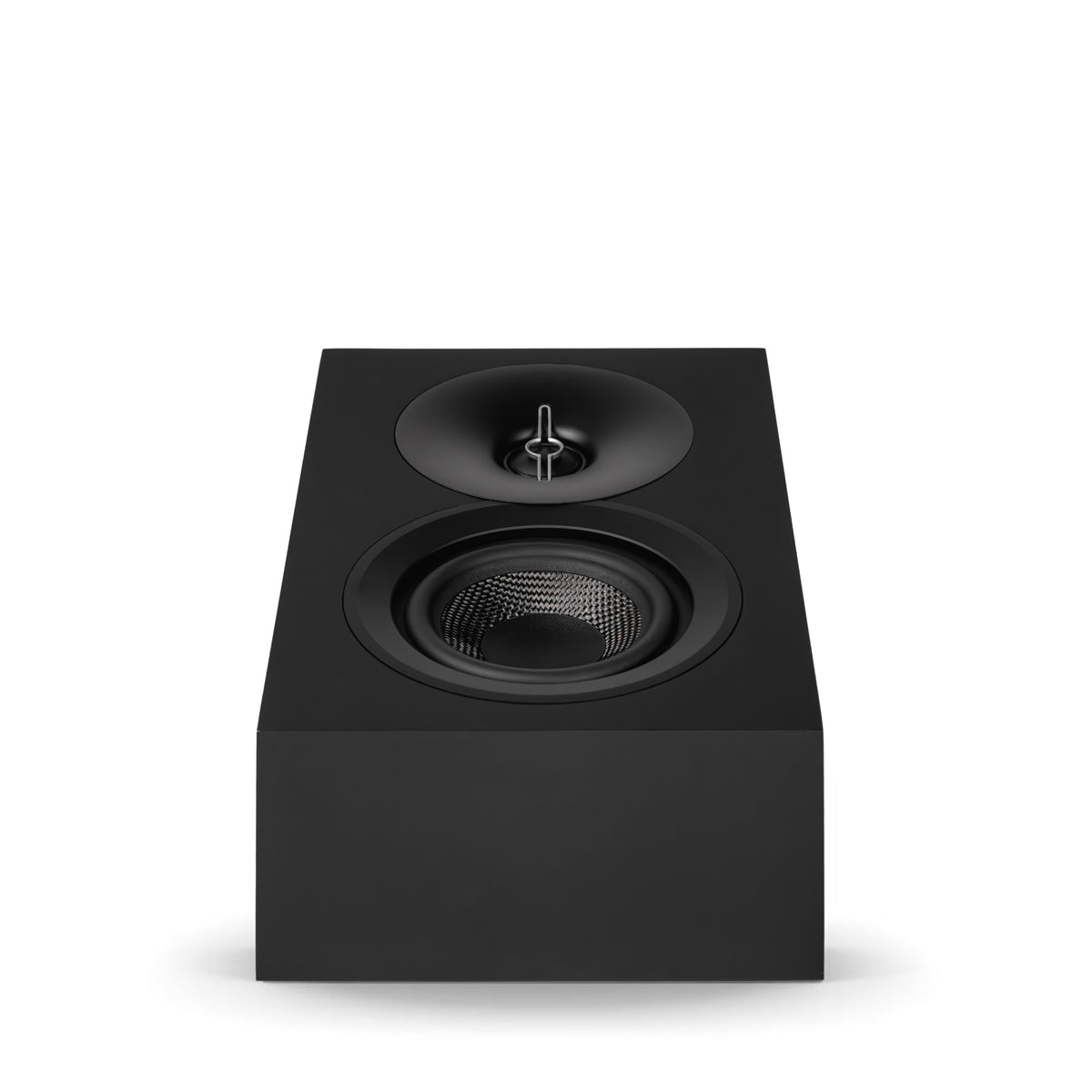

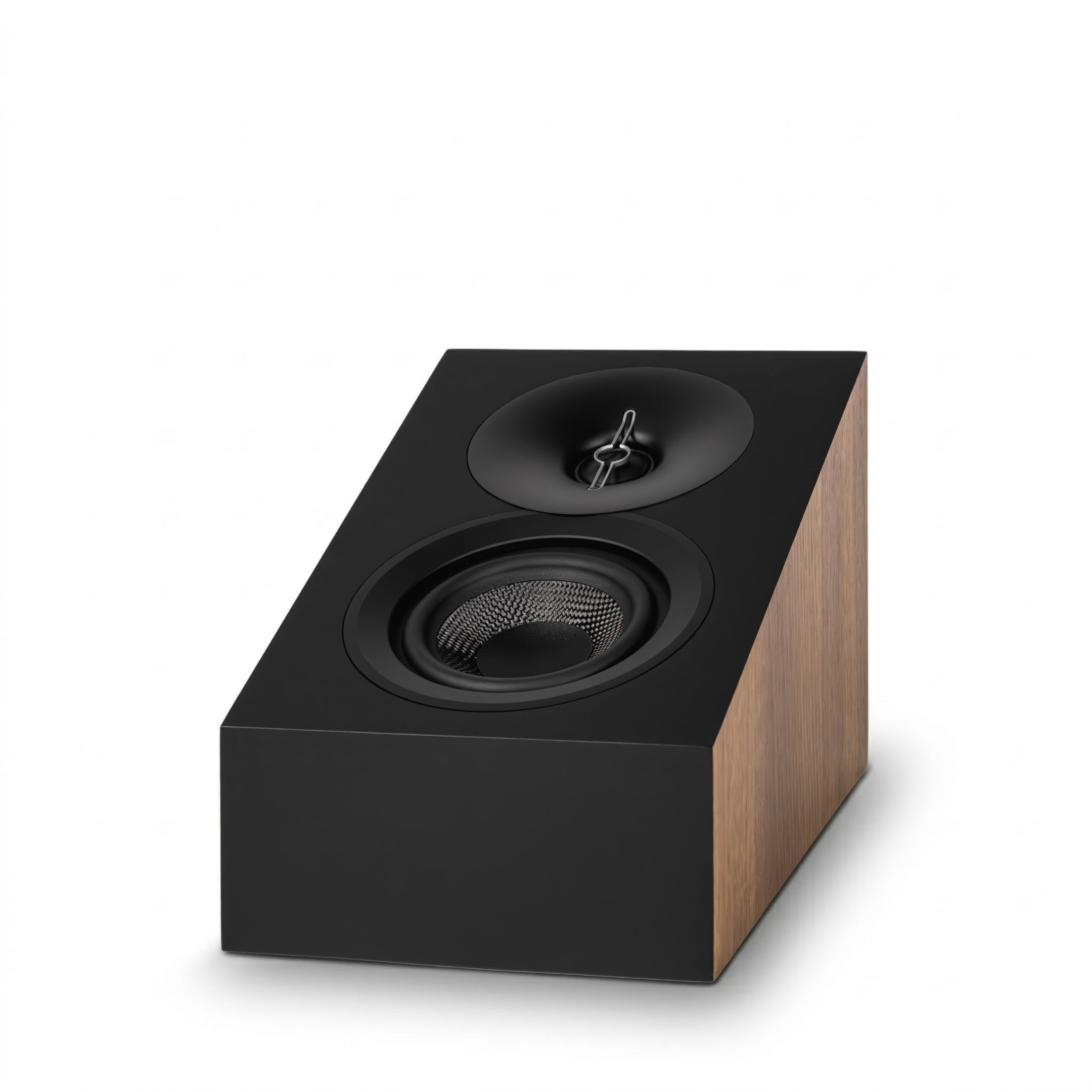

The ELAC Debut 3.0 DA43 features a custom-designed 25mm aluminum tweeter and a newly developed 4.0-inch aramid fiber woofer. The aluminum dome tweeter is engineered for clarity, detail, and a wider dispersion angle, allowing voices, instruments, and soundtrack details to be reproduced with differentiation. The aramid fiber woofer combines low mass with high rigidity and is designed for controlled, precise reproduction of low frequencies.

Sturdy Cabinet and Reduced Resonances

Another feature of the Debut 3.0 series is internal cabinet bracing. This increases the stability of the speaker cabinet, reduces cabinet resonances, and supports clean audio reproduction. Especially in conjunction with the newly developed drivers, this construction helps ensure that playback remains controlled and balanced.

Contemporary Design with Functional Details

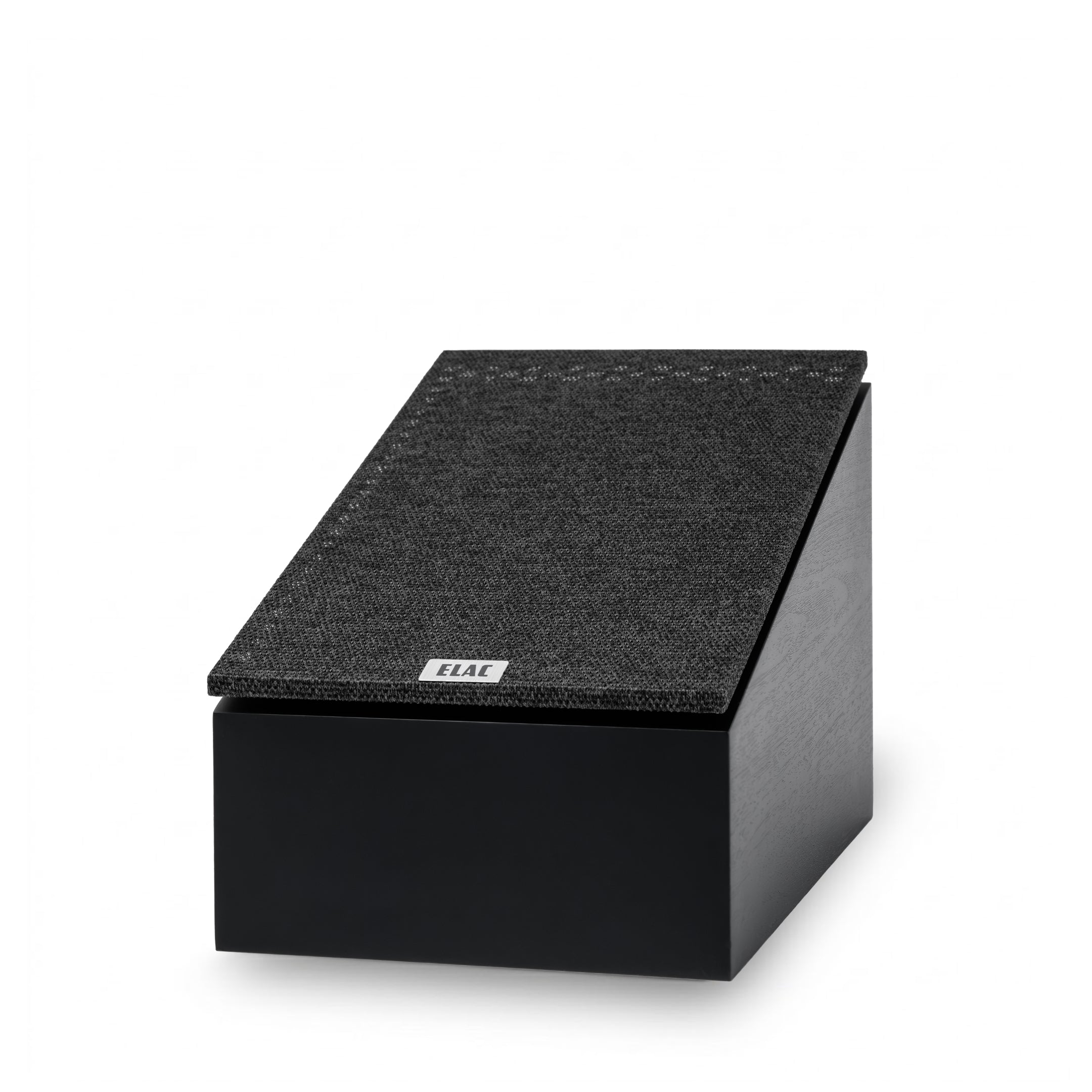

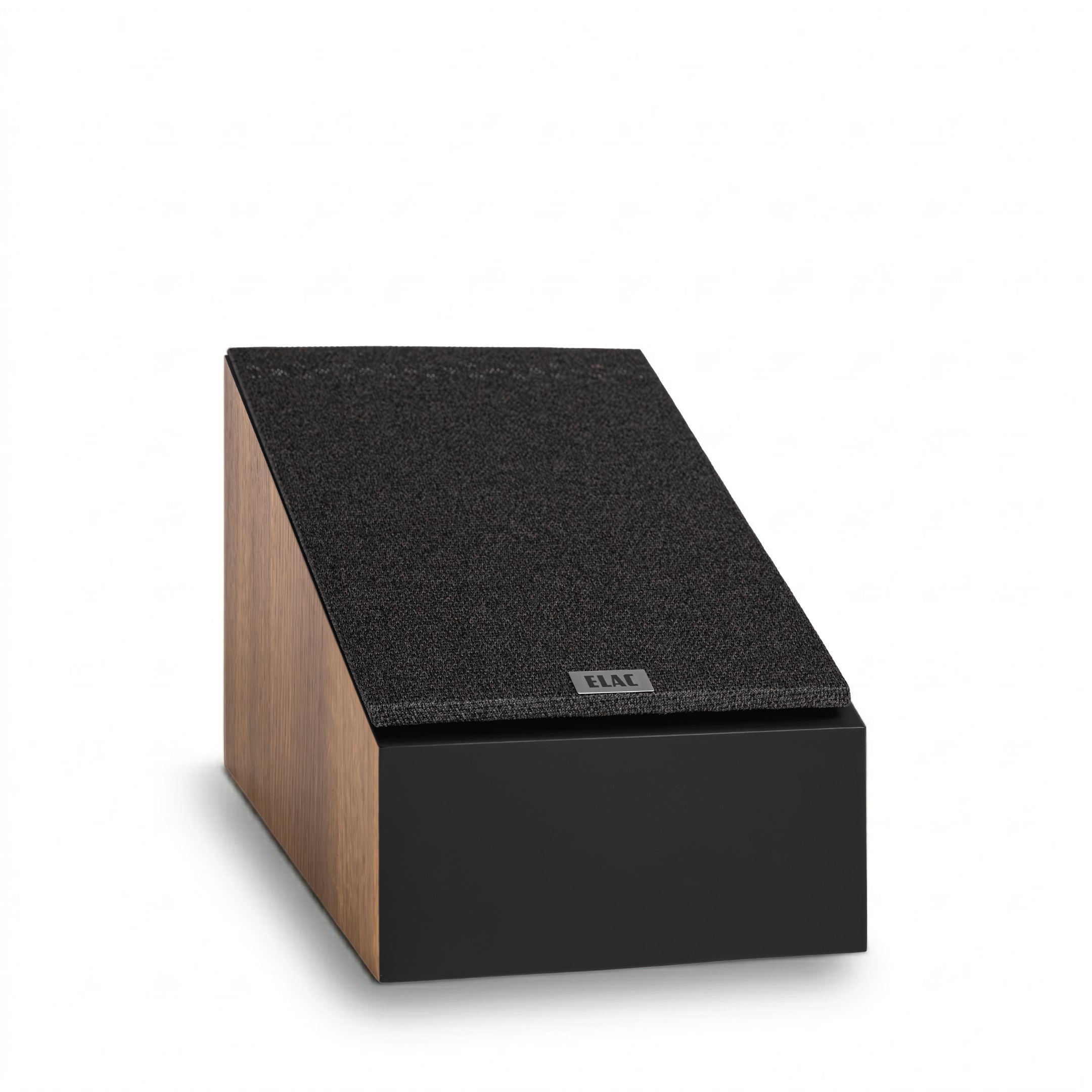

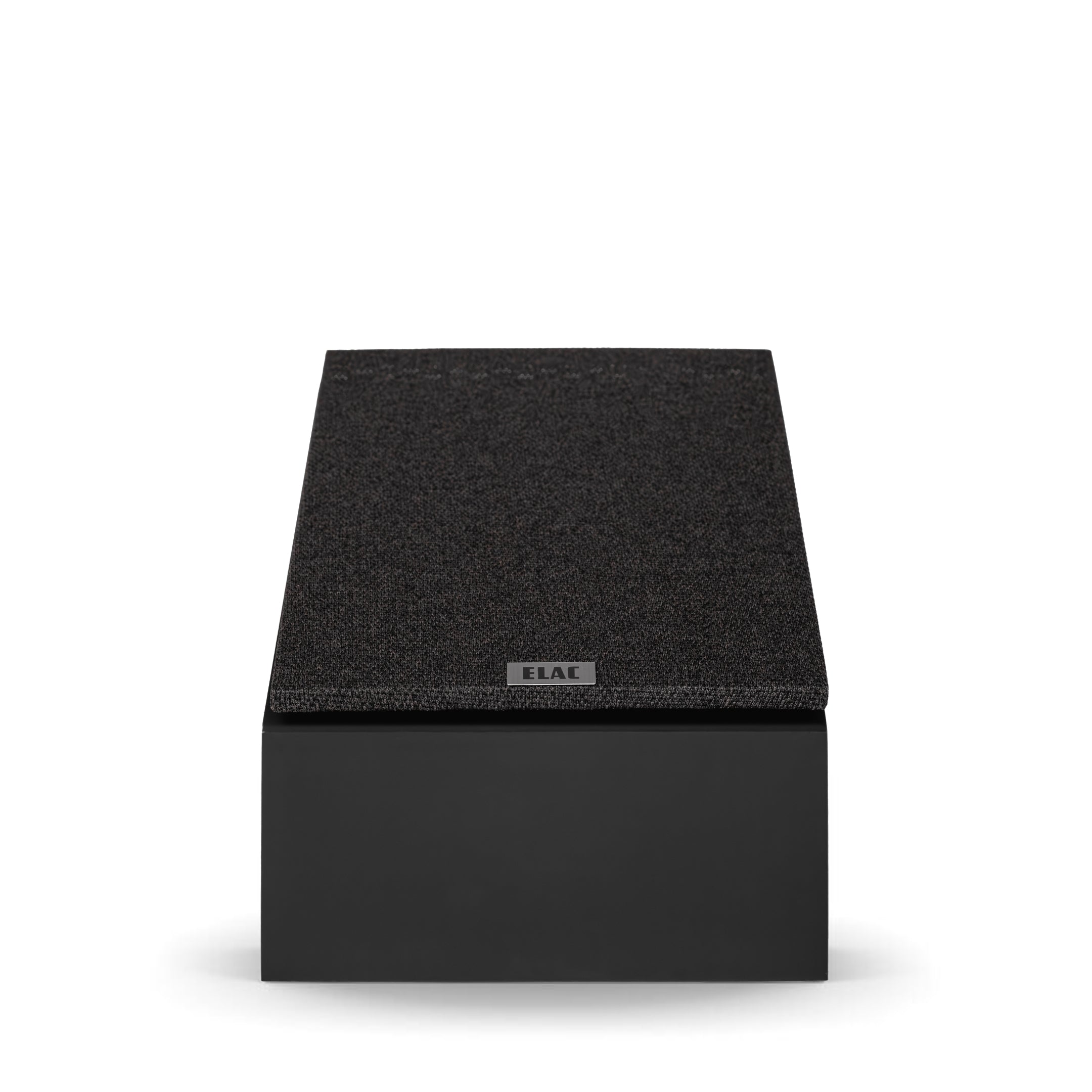

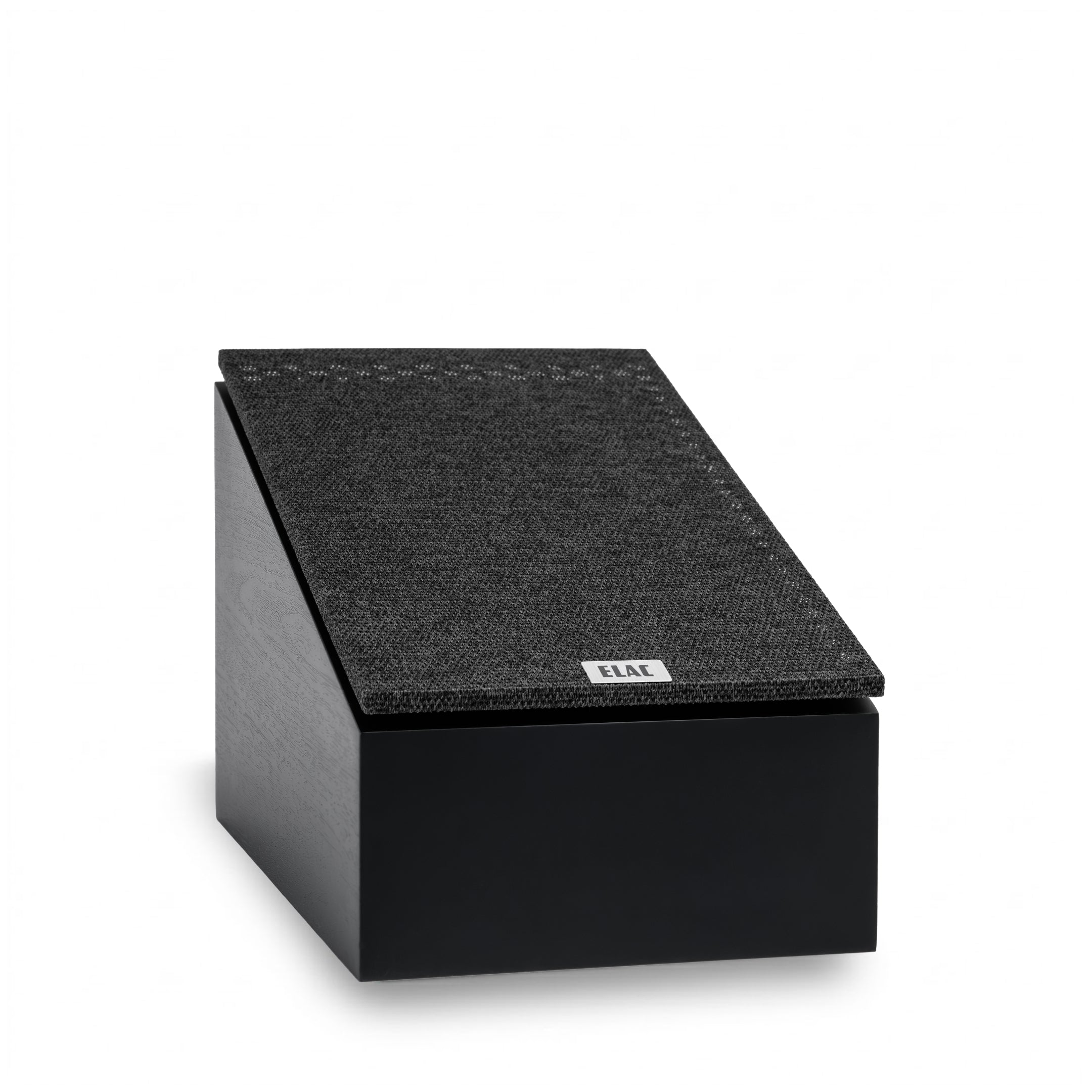

Visually, the ELAC Debut 3.0 DA43 features a minimalist appearance with an ash-black décor cabinet and a matte black front. Magnetically held grilles provide a clean front without visible fittings and can be quickly removed when needed. The Debut 3.0 series thus combines modern, elegant lines with a design that unobtrusively blends into various living environments.

Designed for Years of Use

The ELAC Debut 3.0 DA43 is made from durable materials and is designed for many years of sound enjoyment. Furthermore, the Debut 3.0 line can be universally connected to almost all AV amplifiers and receivers, which facilitates its use in various home theater and audio configurations.

Technical Data

Product Type

• Atmos- / OnWall-Loudspeaker
• Dolby-compatible

Positioning

• Can be placed on top of main loudspeakers
• Wall-mounted / near-ceiling wall-mounted

Drivers

• Tweeter: 1 inch Aluminum Dome / 25 mm Aluminum Tweeter
• Midrange (Aramid Fiber): not specified / not present
• Woofer: 4.0 inch Aramid Fiber

Frequency Response

• Specification 1: 73 to 38 kHz (Atmos)
• Specification 2: 73 to 38 kHz (OnWall)
• Specification 3: 48 to 38 kHz
• The frequency response is contradictory in the available data.

Impedance

• Nominal Impedance: 6 O
• Minimum Impedance: 4.4 O @ 200 Hz
• Minimum Impedance according to further specification: 5.0 O at 200 Hz
• The minimum impedance specification is contradictory.
• Sensitivity
• 84 dB @ 2.83 V/1 m
• Crossover Frequency
• 2400 Hz

Amplifier Power

• Recommended Amplifier Power: 20 - 120 W
• According to further specification: 20 - 80 W
• The recommended amplifier power is contradictory.

Power Handling

• Nominal / Peak Power Handling: 80 W

Cabinet

• CARB2 rated 16 mm MDF
• Internal cabinet bracing

Cabinet Finish

• Black Ash vinyl
• Satin Black Vinyl Front
• Black ash decorative cabinet with matte black baffle

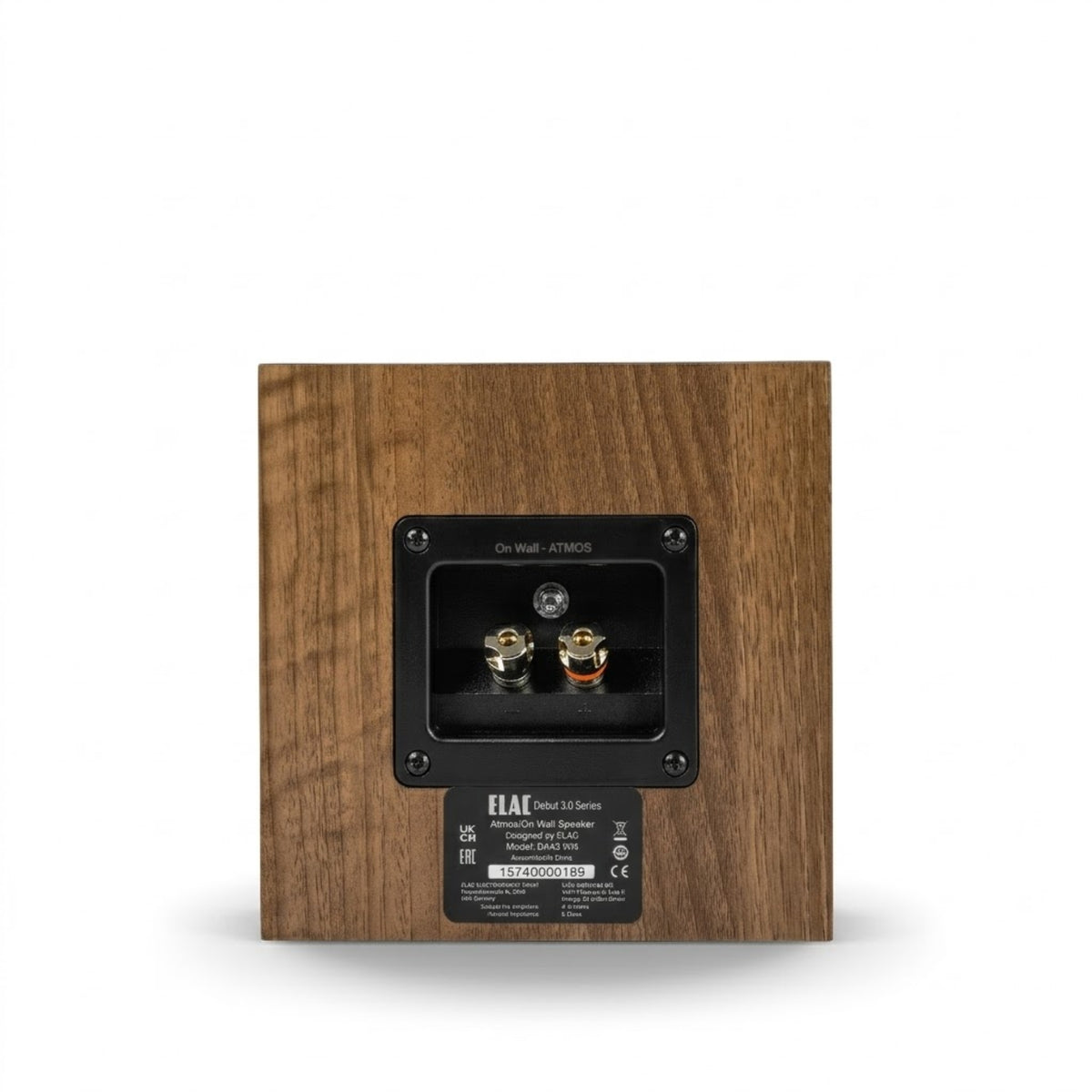

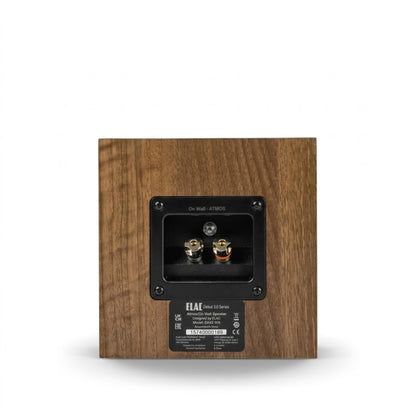

Connection

• 5-way metal Binding Post
• Universally connectable to almost all AV amplifiers and receivers

Bass Reflex / Cabinet Tuning

• Port: Dual Flared
• According to further specification: Sealed
• The specification for the port or cabinet design is contradictory.

Dimensions

• Width: 6.8 in / 172 mm
• Height: 6.7 in / 170 mm
• Depth: 9.7 in / 246 mm

Weight

• Net Weight: 7.3 lbs / 3.3 kg

Special Features

• Magnetically held grilles
• Characteristic Phase Plug
• Contemporary minimalist design
• Durable materials

Scope of Delivery

• ELAC Debut A4.3 Main Unit
• Front Cover
• Documents
