Description

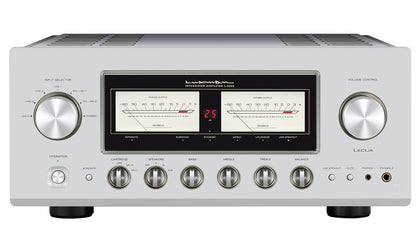

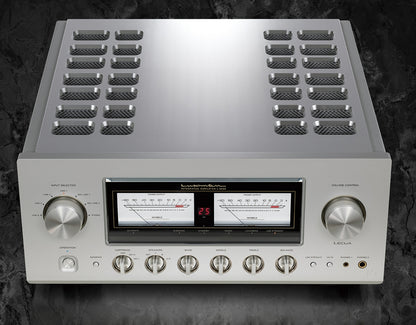

With the new "Single-Chassis-Separate" concept, Luxman pursues the ideal of an all-in-one flagship that brings the Z-series integrated amplifiers to a new performance peak. As the premium model of the new Z-series, the L-509Z has evolved beyond the concept of a traditional integrated amplifier. Both the preamplifier and power amplifier sections simultaneously utilize Luxman's new generation amplifier feedback engine "LIFES" for the first time. Volume control is supported by the new "LECUA-EX" attenuation system, which prevents sound quality degradation and ensures a more precise operating feel. The "Single-Chassis-Separate" concept, which aims for the ultimate in integrated amplifiers, now achieves unprecedented performance. By following the ideals of audio enthusiasm, Luxman combines their passion for music with improved technology. The L-509Z, a new pinnacle in LUXMAN integrated amplifier design.
The latest amplifier feedback engine literally brings music to life with LIFES* Version 1.0.
Properties
Rated output
120W
+ 120W (8O)
220W + 220W (4O)
Input sensitivity
/ Input impedance
PHONO (MM): 2.5mV/47kO
PHONO (MC-H):
0.3mV/100O
PHONO (MC-L): 0.1mV/40O
LINE: 180mV/47kO
BAL.LINE:
180mV/79kO
MAIN IN: 1.1V/47kO
Output voltage
PRE
OUT: 1V
Frequency response
PHONO:
20Hz to 20kHz (±0.5dB)
LINE: 20Hz to 100kHz (within
-3dB)
Total Harmonic Distortion
(THD)
0.007% or less (8O, 1kHz)
0.03% or less (8O,
20Hz to 20kHz)
Signal-to-noise ratio
(S/N, IHF-A)
PHONO (MM): 87dB or more
PHONO (MC-H):
70dB or more
PHONO (MC-L): 62dB or more
LINE: 106dB or
more
Volume control
LECUA-EX
Amplification feedback circuit
LIFES
1.0
Output configuration
Bipolar
4-parallel Push-Pull
Damping factor
330
Maximum
tone control
BASS: ±8dB at 100Hz
TREBLE: ±8dB at
760Hz
TREBLE: ±8dB at 10kHz
Power supply
230V~
(50Hz) / 115V~ (60Hz)
Power consumption
390W
150W
(no signal), 0.5W (standby mode)
Dimensions
(W x H x D)
440 x 193 x 463 mm
With 20mm knob on the front and
37mm terminal on the back (incl. depth)
Weight
(net)
29.4 kg (main unit)
Accessories
Remote control
(RA-17A)
Power cable
Speaker terminals,
supported Y-lug terminal size
Width of part a: 16mm or
less
Width of part b: 7mm or more
Manufacturer information
L-509Z
Luxman's Z Series integrated amplifiers reach a new performance summit with the L-509Z.
