Description
The Best of the Best
From the three-layer aluminum chassis with copper shielding to the original multi-layer circuit boards and isolated chambers to the HDAM modules – the MODEL 10 is the product of decades of experience in audio technology. With careful construction, state-of-the-art technology, and elegant design, it sets completely new technical and visual standards.
Tuned by the Sound Master
The MODEL 10 features the typical Marantz sound characteristics – warmth, spaciousness, and resolution. Thanks to the advanced design and precise tuning by the Sound Master, it delivers this Marantz sound in its purest form to date. This offers an incomparable listening experience with more details, less distortion, and a greater dynamic range than ever before.
Legendary Details Interpreted for the Future

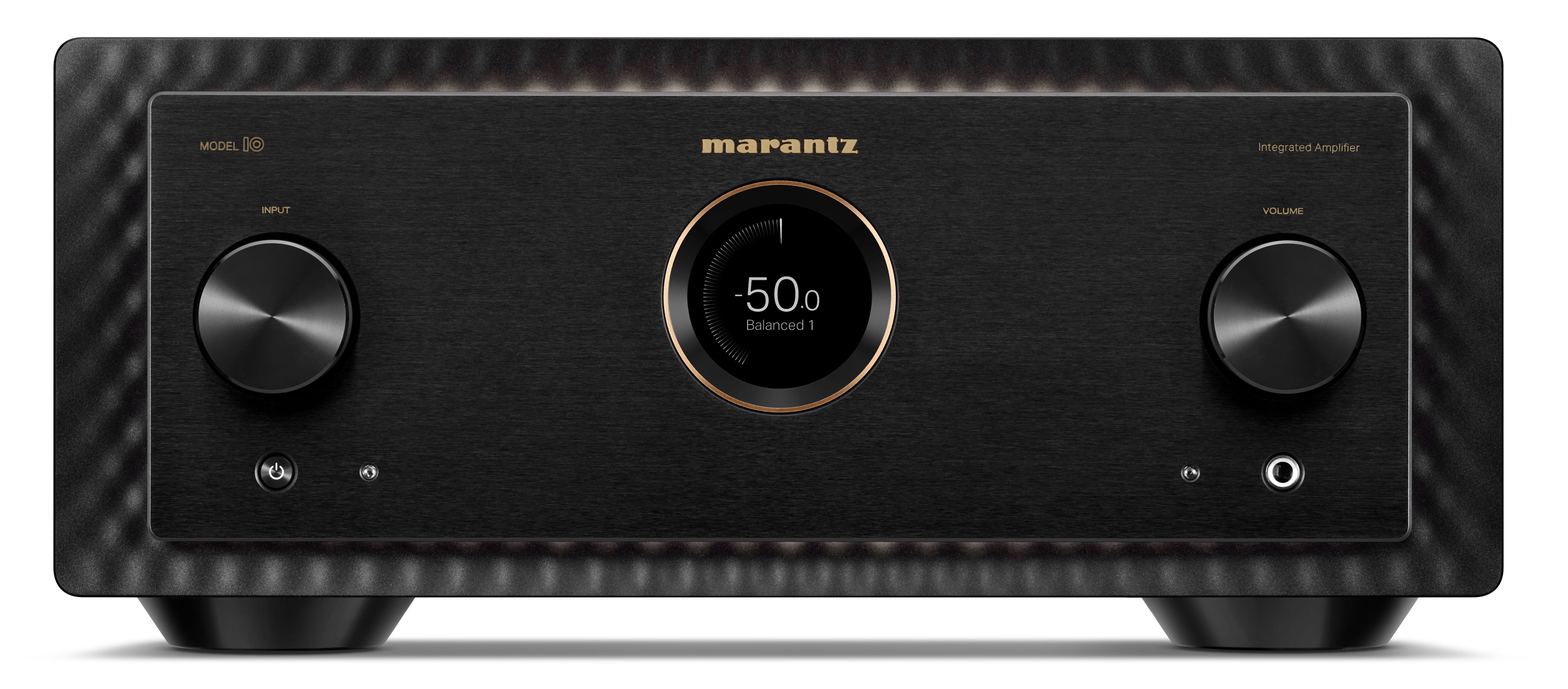

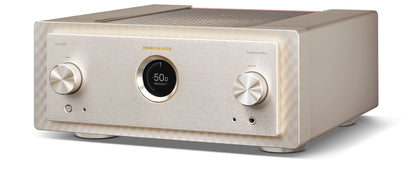

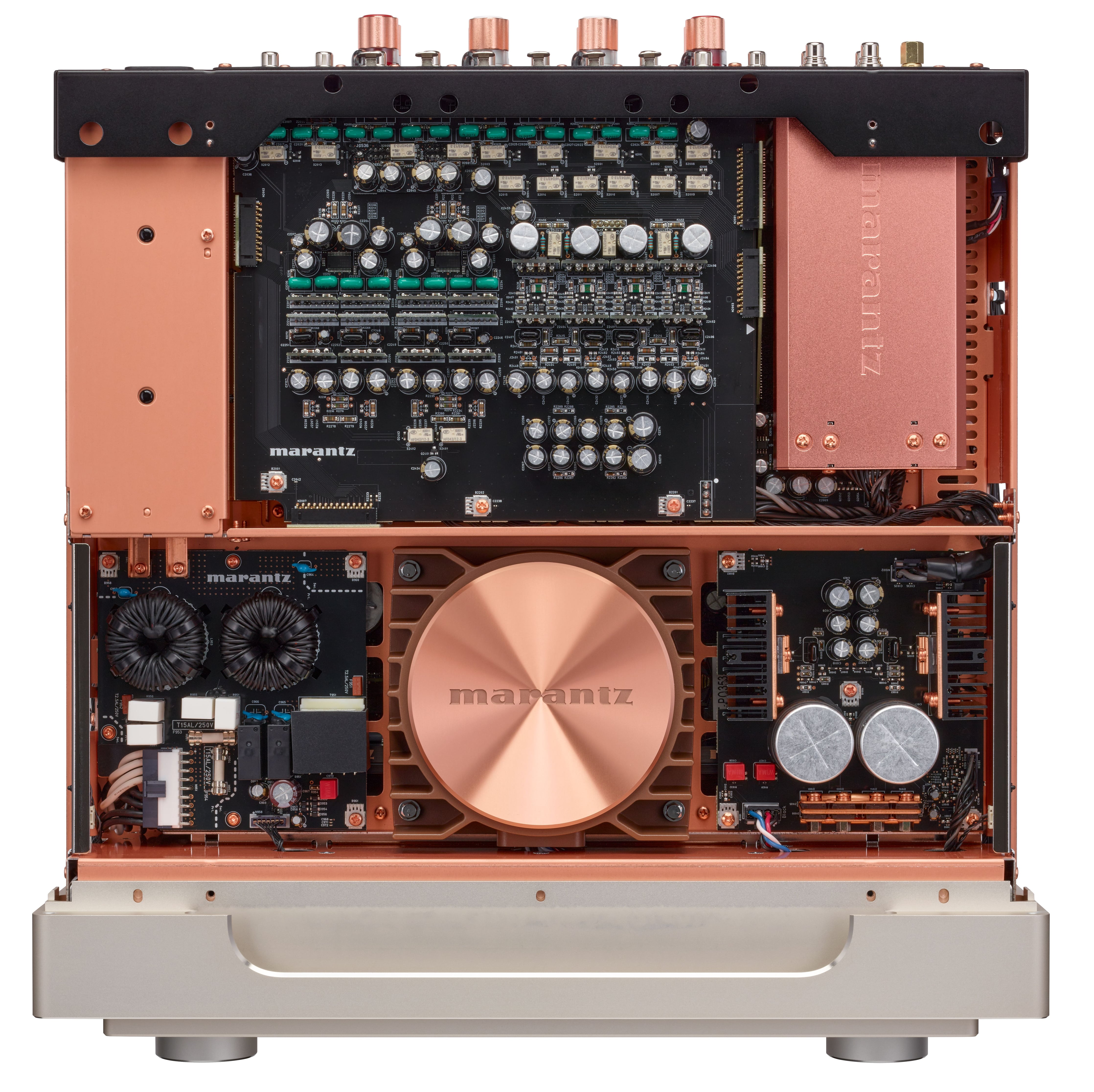

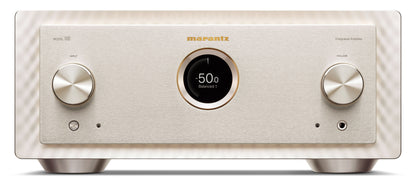

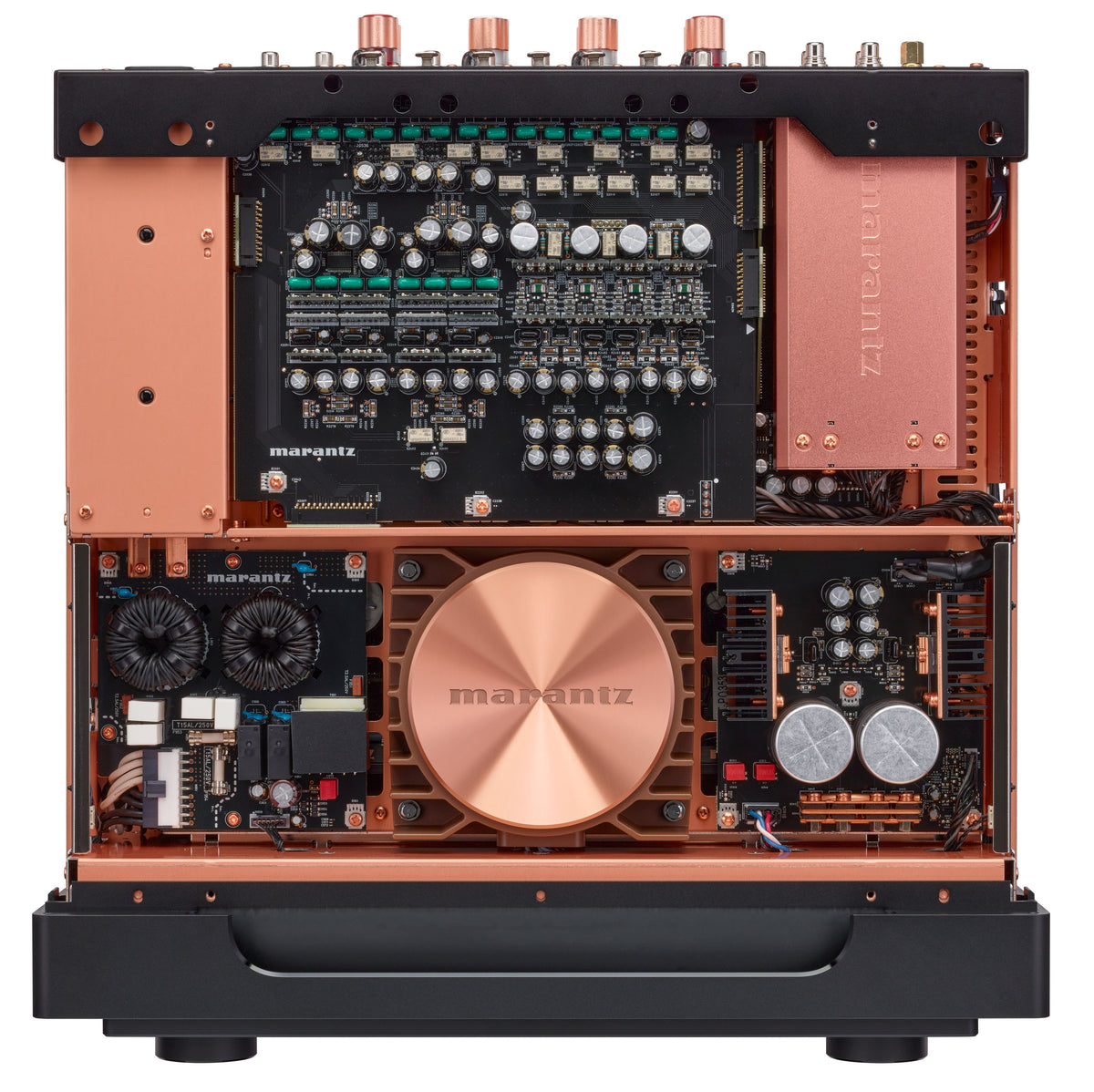

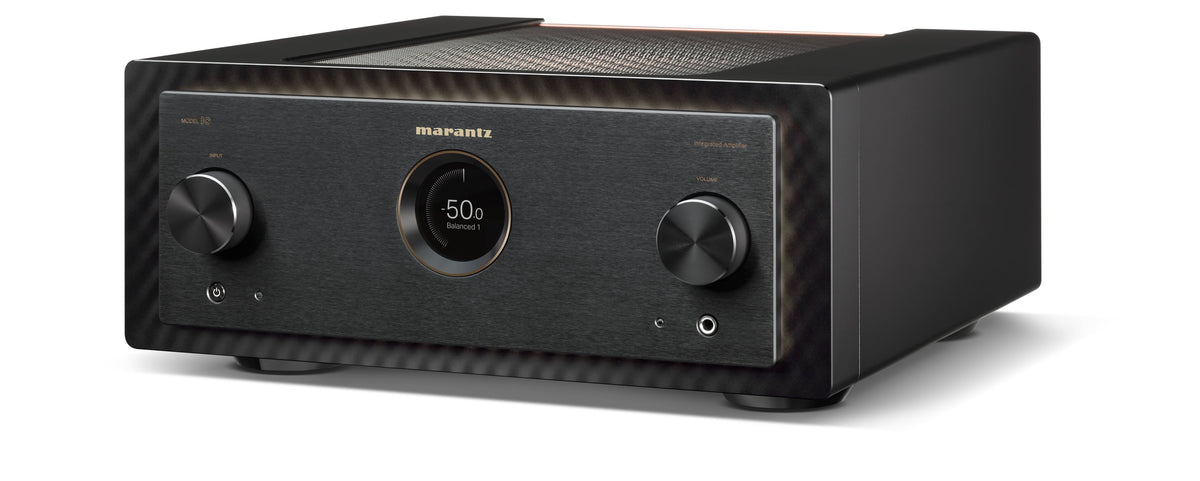

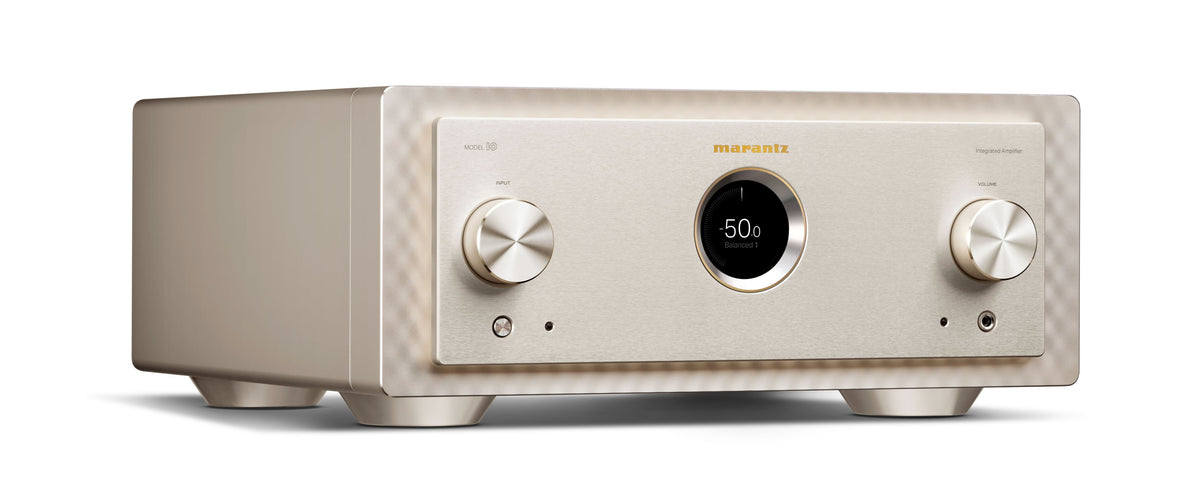

The MODEL 10 features a brushed aluminum front panel and is housed in a copper-plated three-layer chassis with an illuminated cover grille. The internal lighting of the amplifier highlights the circuit boards, high-quality components, and the custom-made transformer housing. In keeping with the typical Marantz design, the MODEL 10's porthole houses a high-resolution OLED color display with volume and input indicators, as well as a digital level meter that behaves like a classic analog level display.
Made in Shirakawa
The 10 Series was developed and designed at our factory in Shirakawa, Japan, where every innovative technology is dedicated to the spirit of Kaizen.
.
Properties
Dimensions (W × H × D in mm)
440 × 192 × 473
Net Weight
33.7kg
Front
Anodized aluminum

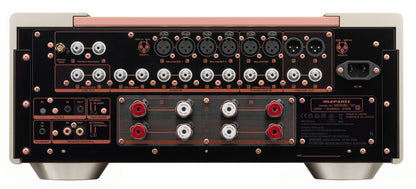

Rear
Anodized aluminum, copper plated
Output Power
250W + 250W
(8ohm, 20Hz-20kHz, THD 0.05 %)
500W + 500W
(4ohm, 20Hz-20kHz, THD 0.05
%)
Speaker Impedance
4~16ohm
Frequency Response
5Hz~60kHz +0dB/-3dB
20Hz~20kHz +0dB/-0.3dB
Total Harmonic Distortion
0.005%
(125W, 8ohm, 20-20kHz)
Damping Factor
500 (8ohm, 20Hz-20kHz)
Input Sensitivity: Phono Input
MM: 3.6 mV / 36 kohm
MC
(Low): 400 μV / 33 ohm
MC (Medium): 400 μV / 100 ohm
MC (High): 400 μV
/ 390 ohm
RIAA Deviation
20 Hz - 20 kHz ±0.5 dB (MM/MC)
Maximum Input Voltage (Phono)
MM : 80mV
MC : 8mV
Input Sensitivity (CD/LINE/RECORDER)
350 mV/41kohm (Unbalanced,
RCA)
700 mV/36kohm (Balanced, XLR)
(Gain = 42dB)
Input Sensitivity
Unbalanced, RCA: 1.58V / 41kohm (Gain
: 29dB)
Balanced, XLR: 3.16V / 15kohm (Gain : 24dB)
Signal-to-Noise Ratio
PHONO (MM): 88dB
PHONO (MC): 76dB
CD:
122dB
Balanced: 122dB
Headphone Output Level
130mW / 32 ohms
Tone Control
Bass: 50Hz ±10dB
Treble: 15kHz ±10dB
Downloads
Manufacturer information
Model 10
The MODEL 10 sets new standards in amplifier design. The MODEL 10 is the most powerful and musical integrated amplifier Marantz has ever built. With its newly developed balanced dual-mono amplifier topology, it is the most powerful and musical Marantz amplifier ever. .
