HiFi Rose RW800 – Streaming expansion and network player in one

The HiFi Rose RW800 is a compact streaming component for HiFi systems. It can expand existing HiFi Rose streamers or be used as a standalone network player with an amplifier, external DAC, or active speakers.

Two operating modes for different systems

In expansion mode, the RW800 is connected via USB-C to a compatible HiFi Rose device. It then takes over the streaming expansion and transmits playback information such as album cover, title, and playback status to the display of the connected Rose device. In standalone mode, the RW800 operates independently and can be combined with HiFi components such as active speakers or external D/A converters from various manufacturers.

Comfortably use current streaming platforms

The RW800 supports Tidal Connect, Qobuz Connect, Spotify Connect, Apple AirPlay, Google Cast, DLNA/UPnP, Bluetooth, and Roon Ready, among others.

Control via the ROSE AIR App

Setup and control are done via the ROSE AIR app for Android and iOS. The app detects the device via Bluetooth, supports Wi-Fi setup, and provides access to playback, device settings, updates, and factory reset.

Connections for flexible setups

On the rear panel, there are USB-C, Ethernet, an optical input, an optical output, and an analog RCA output. This allows the RW800 to be integrated into both digital and analog systems. Our recommendation: In standalone mode, check in advance whether the appropriate input on the amplifier, DAC, or active speakers is free.

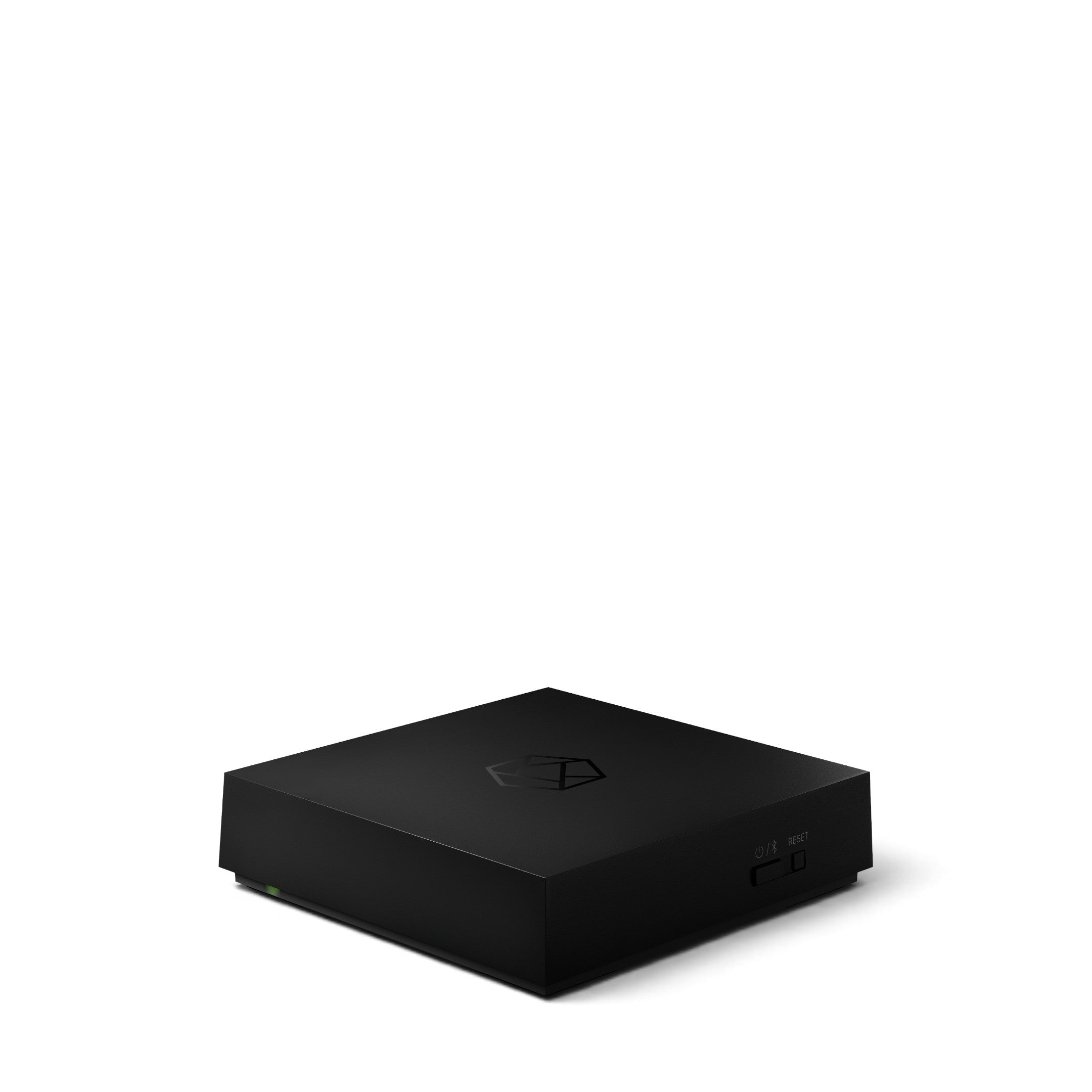

Compact design for the HiFi rack

The black housing is deliberately space-saving and blends inconspicuously into its surroundings. The indirect LED display on the underside shows the operating status without visually distracting from the music listening experience.

Pros and cons at a glance

Reasons to choose the HiFi Rose RW800:

• Two operating modes: expansion for HiFi Rose systems or standalone network player
• Support for many streaming services and protocols
• Control via ROSE AIR App for Android and iOS
• Compact housing with discreet status indicator
• Digital and analog connectivity

What interested parties should know about the HiFi Rose RW800:

• A USB-C power supply is required for standalone operation
• The expansion function requires a compatible HiFi Rose device

Specifications

General

• Product type: Streaming expansion module and network player / streamer
• Operating modes: Expansion, Standalone
• Dimensions W × H × D: 11.00 × 2.70 × 11.55 cm
• Weight: 0.245 kg
• Material: PC/ABS blend
• Finish / Color: Black
• Warranty information: 2 years warranty

Connections

• USB: 1 × USB-C
• Digital input: 1 × optical
• Digital output: 1 × optical
• Analog output: 1 × RCA, unbalanced
• Network connection: Ethernet
• Optical input: PCM 24 Bit / 192 kHz
• Optical output: PCM 24 Bit / 192 kHz

Network and Streaming

• Ethernet: 10/100 BASE-T, 1 Port
• WLAN: Dual Band 802.11 a/b/g/n/ac
• Bluetooth: Version 5.2, A2DP 1.3.2, Sink, AVRCP v1.6.2
• Streaming protocols: Bluetooth, GC4A, AirPlay2, Google Cast, DLNA/UPnP, Roon Ready, Spotify Connect, Tidal Connect, Qobuz Connect
• Network: LAN, WLAN
• Streaming: AirPlay, Bluetooth, Chromecast, DLNA, Roon, Spotify, Tidal, Qobuz, UPnP, HighResAudio, Spotify Connect, Tidal Connect, Qobuz Connect

Audio

• PCM: 8 kHz – 384 kHz, 24/32 Bit per sample
• DSD: up to DSD128, 5.6 MHz
• Resolution: up to 32 Bit / 384 kHz
• Supported audio formats: MP3, MP4, AAC-LC, AAC-HE, AAC-LTP, HE-AACv1, HE-AACv2, LPCM, AIFF, AMR-NB, AMR-WB, FLAC, OGG-Vorbis, WAV, ALAC, Opus, APE

Line Outputs

• Impedance: 10 Ohm
• Output level: 2 Vrms
• THD+N: 0.0008 % at 1 kHz, 2 Vrms
• Signal-to-noise ratio: 119 dB
• Dynamic range: 120 dB
• Stereo crosstalk: 130 dB
• Frequency response: 10 Hz – 50 kHz, +/- 1 dB

Power Supply

• Input voltage: DC 5 V, 1.5 A
• Power supply in expansion mode: via host device via USB
• Power supply in standalone mode: USB-C power adapter with 5 V / 1.5 A required
• Network standby power consumption: < 1.6 W
• Idle power consumption: < 2.0 W
• Playback power consumption: < 2.5 W

Compatibility

• Compatible HiFi Rose Streamers: RS201(E), RS250(A), RS150(B), RS520, RS130, RS151, RS451
• Can be used standalone with: Integrated amplifiers, active speakers and external DACs
• RSA720: USB3.0 Type-B supported, USB3.0 SFP not supported
• Recommended system: RD160 DAC, RA180 / RA280 integrated amplifier

Operation

• Operation: ROSE AIR App
• App support: Android, iOS
• App functions: Setup, playback control, device settings, OTA updates, factory reset

Environment

• Operating temperature: 0 °C to 40 °C
• Storage temperature: -10 °C to 50 °C

Radio Frequencies

• WLAN 2.4 G: 2.412 – 2.472 MHz, 13.9 dBm
• WLAN 5 G: 5.150 – 5.350 MHz, 13.36 dBm
• WLAN 5.8 G: 5.725 – 5.875 MHz, 7.52 dBm
• Bluetooth: 2.402 – 2.480 MHz, 8.6 dBm

Scope of delivery

• HiFi Rose RW800
• USB connection cable
• RCA cable
• Toslink cable
• Documents
