SVS SB-1000 Pro Subwoofer for Home Cinema and HiFi

Compact Sealed Subwoofer

The sealed cabinet is designed for living room-friendly placement. With an edge dimension of around 34 cm, the SB-1000 Pro is one of the particularly compact subwoofers in the SVS range.

Deep Bass from 12-inch Driver

The front-firing 12-inch driver operates with high excursion and ensures deep, powerful, and precise bass reproduction.

Power for Movies and Music

Integrated into the subwoofer is the "Sledge STA-325D" Class D amplifier.

App Control for Easy Adjustment

The SVS Subwoofer App for iOS and Android allows control directly from the listening position. Volume, low-pass filter, phase, polarity, parametric EQ, and room gain compensation can be adjusted to match the room and speakers.

Control Directly on the Subwoofer

In addition to the app, the amplifier features an Intelligent Feature Control user interface. The light blue 11-LED bar display and push buttons allow basic settings directly on the rear panel. A remote control is not included.

Three Presets for Different Uses

The SB-1000 Pro offers three complete user presets. These can be named and customized.

Flexible Connections for Various Systems

Unbalanced RCA line inputs and outputs as well as high-level speaker inputs and outputs are available for integration. This means the subwoofer is suitable for both AV receivers and stereo systems without classic bass management.

Rigid MDF Cabinet for Stable Reproduction

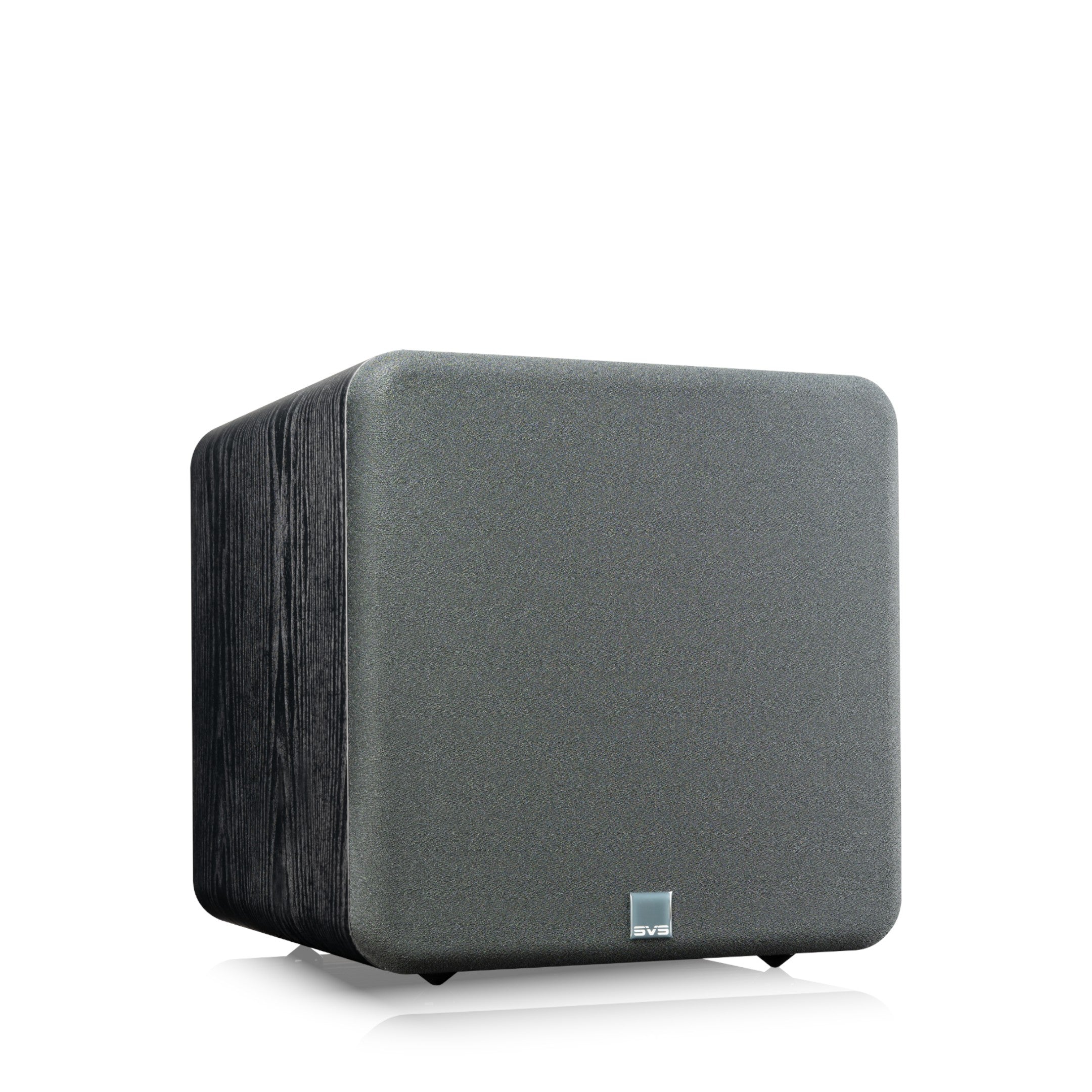

The braced MDF cabinet and the MDF grille with ABS fabric covering support a stable construction. The included Iso-Elastomer feet help with placement in the living room.

Suitable for Multiple Subwoofers

The RCA outputs allow the integration of additional subwoofers. In suitable rooms, using multiple subwoofers can help to distribute the bass more evenly in the listening area.

Who is the SVS SB-1000 Pro suitable for?

The SVS SB-1000 Pro is suitable for home cinema and HiFi systems where deep bass is desired, but a large subwoofer cabinet should not be installed. It is particularly useful for living rooms where compact dimensions, flexible connections, and precise adjustment options are important.

Specifications

General

• Manufacturer: SVS
• Product Name: SVS SB-1000 Pro
• Product Type: Sealed Subwoofer
• Principle: Compact Cabinet
• Finish: Premium Black Ash, Gloss White, Gloss Black
• Frequency Response: 20–270 Hz ± 3 dB
• Weight: 12 kg
• Dimensions without Grille: 34.2 cm (H) × 33.0 cm (W) × 35.2 cm (D)
• Dimensions with Grille: 34.2 cm (H) × 33.0 cm (W) × 37.2 cm (D)

Enclosure and Construction

• Rigid and internally braced MDF cabinet
• Internal bracing MDF cabinet
• MDF grille with ABS fabric cover
• Front-firing design
• RoHS compliant, lead-free construction
• Green 0.5-watt standby power consumption

Driver

• 12-inch SVS high-excursion driver
• Front-firing long-stroke 12" driver / 30 cm Bass
• Proprietary 12-inch long-excursion driver
• High-precision tuned, overhung motor configuration
• 13.3 mm Xmax
• 26.9 mm Xmech precision-aligned excursion
• 1.5 inch diameter voice coil
• 6-layer high-purity copper wire winding
• Two-piece, oversized Y30 ferrite magnet
• High-temperature 3003-H18 aluminum voice coil former
• 6-inch cotton and poly spider
• Two 24-strand high-temperature copper alloy leads
• 12-inch premium powder-coated basket
• FEA-optimized analysis for stiffness, tensile strength, and energy transfer
• Lightweight treated fiber composite cone

Amplifier

• STA-325D Sledge Amplifier
• 325 Watts RMS continuous power
• 820+ Watts Peak / Peak Power
• Class-D design
• 50 MHz Analog Devices Audio DSP
• High-resolution 56-bit filtering
• Wide input voltage bandwidth for consumer and pro-audio inputs up to 4V line level
• High-efficiency LLC resonant SMPS with 17A 650V-MOSFET
• Class-D amplifier switching topology with 34A 120V-MOSFETs

Connections

• Unbalanced stereo input/output
• Unbalanced RCA line-level inputs
• Unbalanced RCA line-level outputs
• RCA audio interconnect input
• High-level speaker inputs
• High-level speaker outputs
• Trigger input: 3–12 V AC/DC
• Type A USB port for firmware updates and powering a USB device
• AC power cord socket
• Input impedance: 16 kOhm at unbalanced RCA
• Input impedance: 20 kOhm at speaker level

Control and App

• DSP control with smartphone app
• SVS BLE control app for iOS and Android
• iOS: iPhone 5 or newer
• Android: 4.42 or newer
• Three full user presets
• Nameable and customizable presets
• Three PEQs per preset
• Adjustable low-pass
• Adjustable phase
• Adjustable polarity
• Room gain compensation
• Control for alignment with speakers
• Custom EQ and DSP limiter settings specifically for the 1000 Pro
• Intelligent Feature Control user interface on the amplifier
• Light blue 11-LED bar display
• Push button control
• Auto/On and trigger options via app

Control Ranges

• Low-pass filter LP Frequency: 30–200 Hz in 1 Hz increments
• LP Slope: 6 dB, 12 dB, 18 dB, 24 dB
• Polarity: positive (+) / negative (-)
• Volume: -60 dB to 0 dB in 1 dB increments
• Phase: 0° to 180° in 1-degree increments
• PEQ Frequency: 20–200 Hz in 1 Hz increments
• PEQ Boost: -12.0 to 6.0 dB in 0.1 dB increments
• PEQ Q-factor: 0.2 to 10.0 in 0.1 increments
• Room Gain Compensation Frequency: 25 Hz, 31 Hz, 40 Hz
• Room Gain Compensation Slope: 6 dB, 12 dB

Scope of Delivery

• SVS SB-1000 Pro
• Grille
• Power cable
• Iso-elastomer feet
• Documents
