Precise, stable rotation and powerful drive torque

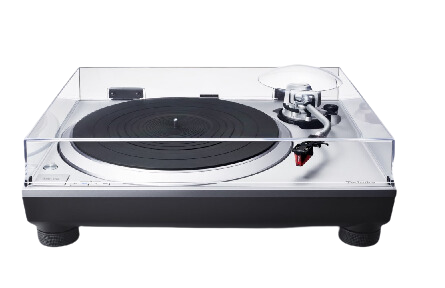

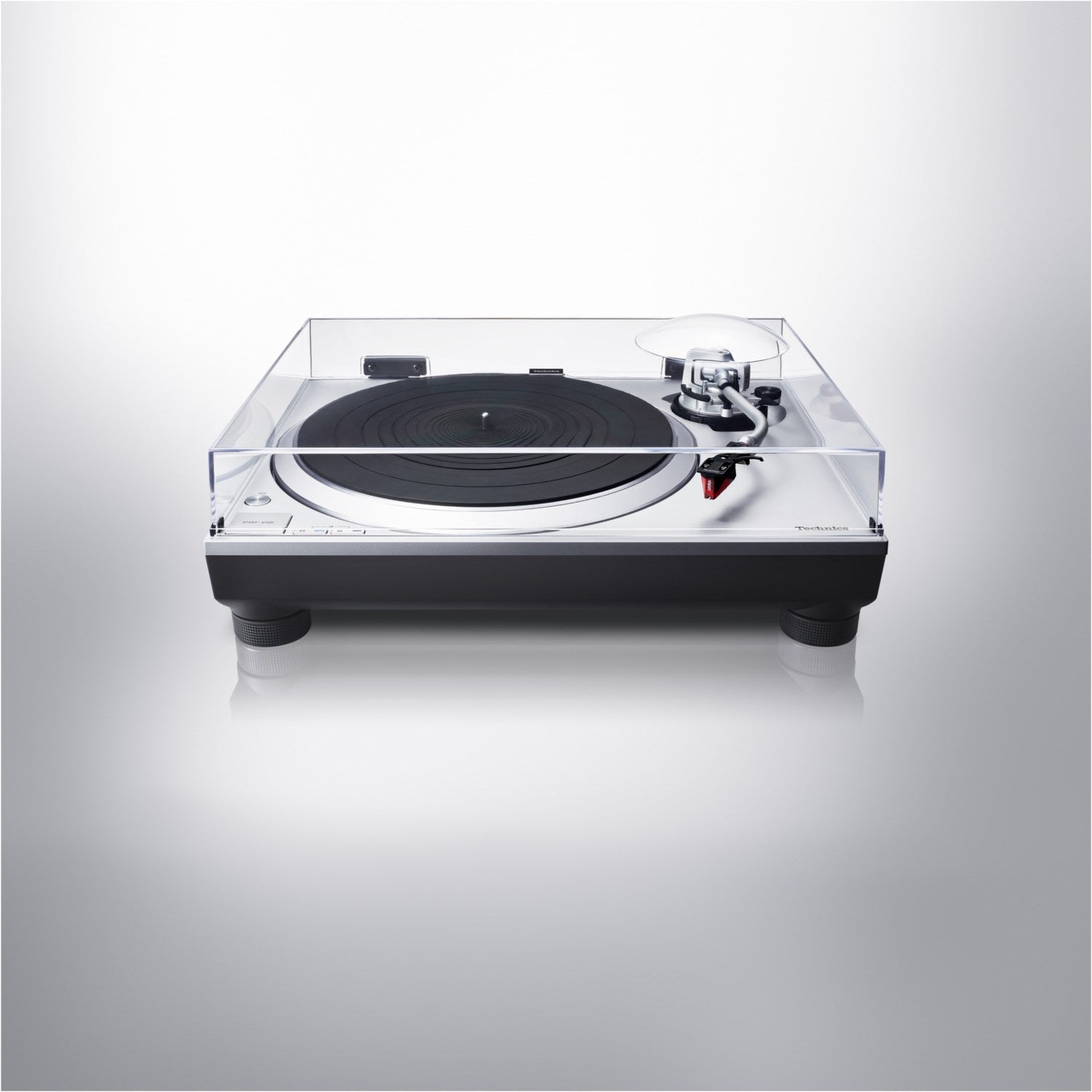

The SL-1500C is in no way inferior to Technics' larger turntable models in terms of audiophile sound quality. It is based on a direct-drive motor with a single rotor, the stator of which does not require an iron core. Undesirable rotation irregularities due to so-called cogging torque are thus avoided in principle. The driving force of the rotor magnets of this motor has been pushed to the extreme. As an essential component for avoiding vibrations, the SL-1500C's chassis has a housing construction like that of high-end turntables. The die-cast aluminum chassis is connected to a construction made of ABS (acrylonitrile butadiene styrene copolymer) plastic, which is reinforced with glass fibers. The resulting two-layer construction offers rigidity and vibration damping at the highest level. The isolator consists of a spring and a rubber for optimal vibration damping. In addition, reliability has been improved by using a detachable power cord and gold-plated connections for the phono and line connections. The result is a reproduction of music in its full beauty and authenticity.

Phono equalization for easy connection to various components

The SL-1500C has a built-in, high-quality phono equalizer for MM (Moving Magnet) cartridges and can therefore be easily connected to audio devices that do not have a phono input. The separate power supply for phono equalization is decoupled from the power supply of the motor and control circuit to avoid noise interference. The shielded structure of the power supply prevents external interference. The result is undisturbed signal amplification. A pair of unequalized outputs also allows the SL-1500C to be connected to amplifiers that have a phono input. All these measures guarantee unclouded enjoyment of music. As well as the included universal headshell of the SL-1500C and the perfectly adjusted MM cartridge system Ortofon 2M RED. The tonearm height can be varied in a range of 6 mm to adapt to a variety of cartridges. The included additional weight allows the use of cartridges with a weight of 14.3 to 25.1 g (including headshell).

Automatic shut-off

As soon as the tonearm reaches the inner end of the record, the auto-lift raises the tonearm. This avoids unnecessary wear and tear on both your valuable records and the cartridge and increases ease of use. By embedding the auto-lifter function in the tonearm base, impacts on the tonearm are avoided. This function can be switched off if required.

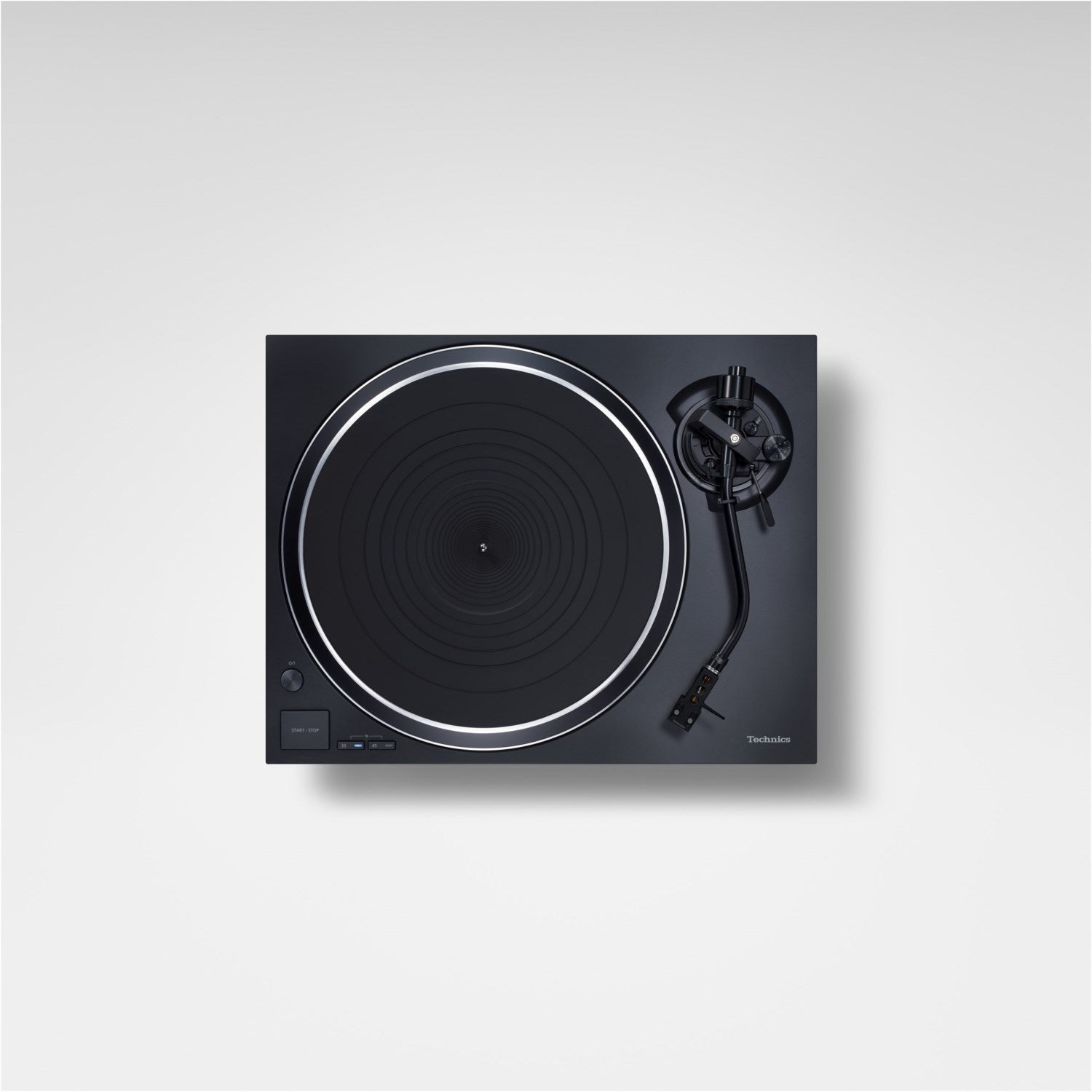

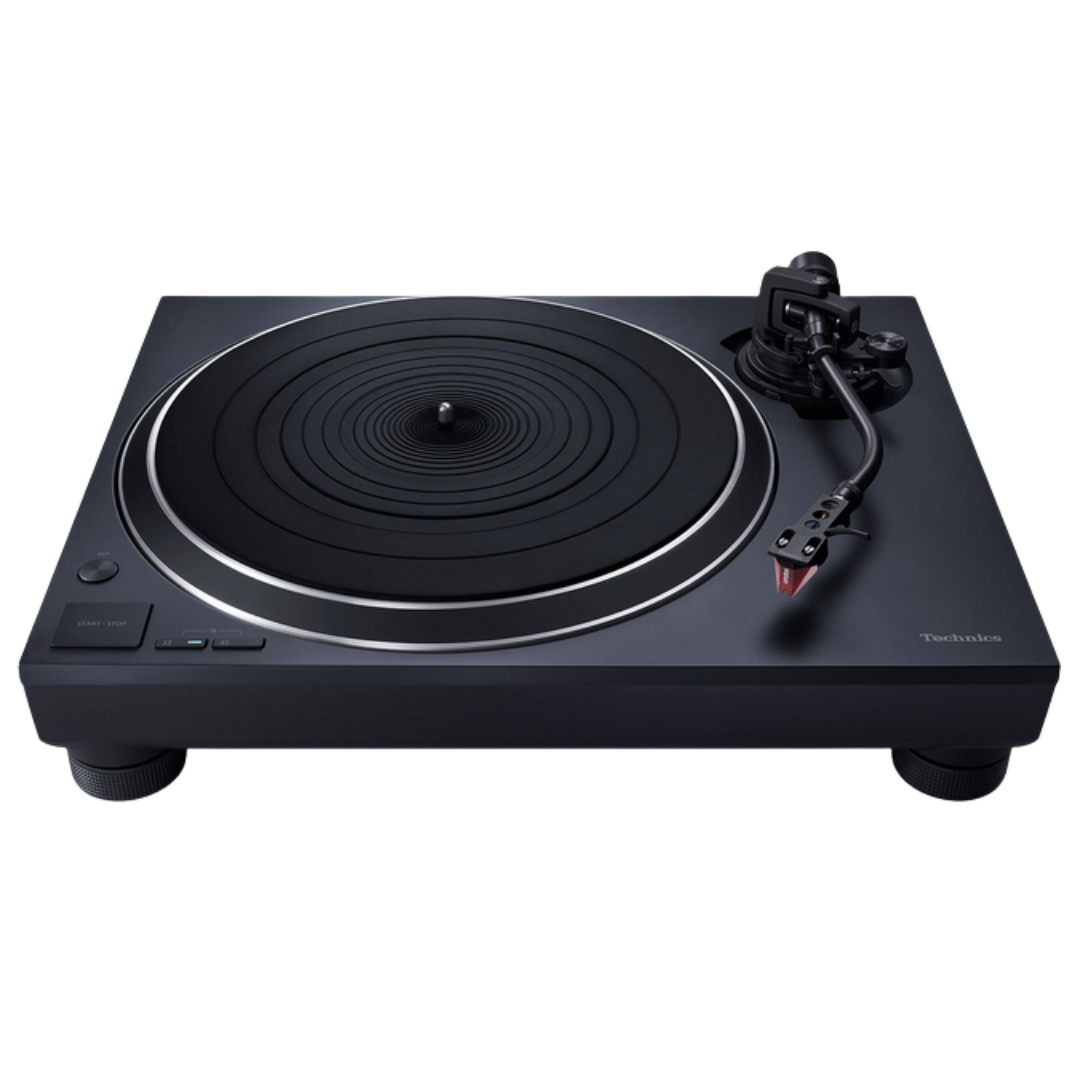

Elegant, timeless design

The SL-1500C is characterized by a sleek, elegant design. At the same time, however, it offers the full tactile operating experience that distinguishes all Technics products. The attractive exterior thus visually enhances the high enjoyment of music to the highest degree.

• Typ
  • Manueller Plattenspieler mit Direktantrieb
• Umdrehungsgeschwindigkeiten
  • 33-1/3, 45 and 78 r/min
• Anlauf-Drehmoment
  • 0,18 N・m / 1,8 kg･cm
• Anlaufmoment
  • 0,7 Sek. aus dem Stillstand bis auf 33 1/3 U/min
• Gleichlaufschwankungen
  • 0.025 % W.R.M.S.
• Plattenteller
  • Aluminium-Druckguss
    Durchmesser: 332 mm
    Gewicht: ca. 2,0 kg (einschließlich Gummiauflage)

• Typ
  • Universal, statisch ausbalanciert
• Effektive Länge
  • 230 mm
• Überhang
  • 15 mm
• Spurfehlwinkel
  • Innerhalb 2° 32' (an der Außenrille bei einer 30 cm (12") Schallplatte)
    Innerhalb 0° 32' (an der Innenrille bei einer 30 cm (12") Schallplatte)
• Gewichtsbereich für Tonabnehmer
  • (ohne Zusatzgewicht)
    5,6 - 12,0 g
    14.3 - 20.7g (inkl. Headshell)
    (mit Zusatzgewicht)
    10,0 - 16,4 g
    18.7 - 25.1g (inkl. Headshell)
• Headshell-Kabelschuh
  • 1,2 mmᵠ 4-poliger Kabelschuh

• Audioausgang
  • PHONO x 1
    Erdungs-Schraubklemme x 1
    LINE x 1

• Stromversorgung
  • AC 110–240 V, 50 Hz/60 Hz
• Stromverbrauch
  • 8 W
    Ca. 0.2 W (Standby)
• Abmessungen (B x H x T)
  • 453 x 169 x 372 mm
• Gewicht
  • Ca. 9,9 kg
• Zubehör
  • Plattenteller, Plattentellerauflage, Staubschutz, EP-Plattenadapter, Ausgleichgewicht, Zusatzgewicht, Kopfgehäuse, Tonabnehmer (ortofon 2M Red), PHONO-Kabel, PHONO-Erdleitung, Netzkabel, Handbuch
