Eversolo T10 – Streaming Transport for Demanding Hi-Fi Systems

The Eversolo T10 is a pure streaming transport without an integrated DAC and was developed as a high-quality digital source for stereo setups. It handles the playback, management, and transmission of digital music signals and is aimed at systems where an external digital-to-analog converter is already in use or is intended to be selected separately.

Clear Signal Path for a Clean Digital Foundation

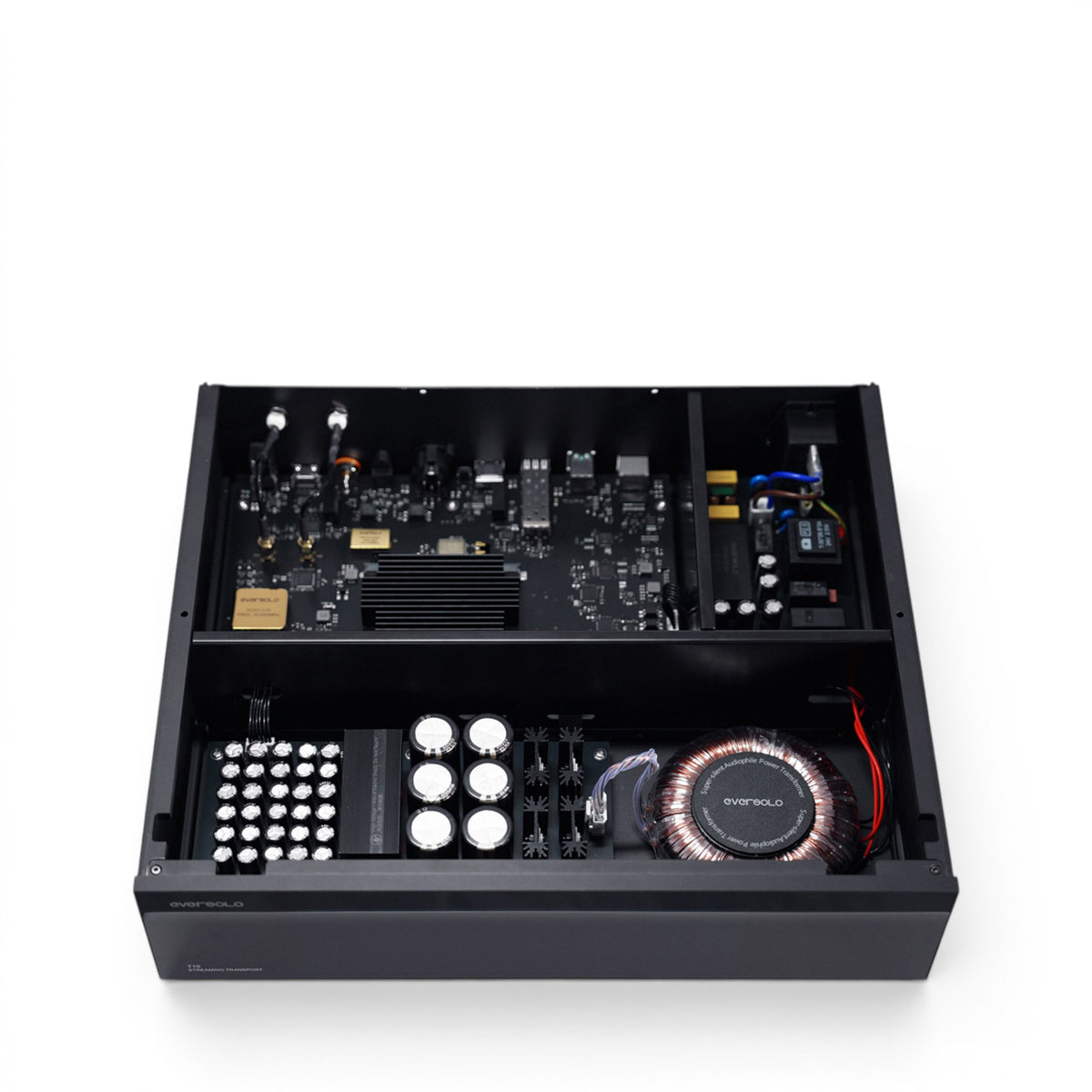

The T10 relies on an optimized power supply, a precise clock architecture, and a comprehensive isolation concept. The goal is to achieve digital signal processing with as little interference as possible, where display, control logic, and audio signal paths are considered separately.

Versatile Digital Outputs for Flexible Setups

With USB Audio, IIS, AES/EBU, as well as coaxial and optical S/PDIF outputs, the Eversolo T10 can be integrated into various digital system concepts. The IIS interface offers selectable pin configurations, which can facilitate adaptation to different DAC architectures.

Streaming, Music Services, and Local Libraries

The Eversolo T10 integrates numerous music services directly into its user interface, including Apple Music, TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Calm Radio, Internet Radio, TuneIn, Radio Paradise, Deezer, SoundCloud, and Presto Music. Additionally, it supports streaming protocols such as Spotify Connect Lossless, TIDAL Connect, Qobuz Connect, and DLNA. Large local music collections can also be managed, searched, and organized into playlists using the intelligent music library.

Display and Visual Representation

The front of the Eversolo T10 is dominated by a large LCD touchscreen. It displays operating information and supports visual representations such as VU meters, spectrum analyzers, and ambient animations.

Operation Directly on the Device and via App

Operation is via the large touchscreen on the front, via the Eversolo Control App for Android, iPhone, iPad, and TV, as well as via the included remote control.

Network Options for Modern Streaming Environments

For integration into the home network, wired and wireless options are available. In addition to Ethernet, the T10 also offers SFP fiber optic support and dual-band Wi-Fi 6. This allows the device to be flexibly integrated into existing network concepts, from classic living room setups to more elaborate Hi-Fi installations.

Room Correction and Use in the Listening Room

The integrated evotune room correction can create correction profiles based on the acoustic conditions in the listening room.

Pros and Cons at a Glance

Reasons to choose the Eversolo T10:

• Extensive digital output options
• Integrated music services and modern streaming protocols
• Operation via touchscreen, app, and remote control
• Intelligent music library with search, playlists, and full shuffle playback
• evotune room correction for adapting to different listening rooms
• Network options including Ethernet, SFP fiber optic, and Wi-Fi 6

Important things to know about the Eversolo T10:

• No integrated DAC
• External DAC required for analog music playback
• SSDs are not included
• SFP module is not included

Specifications

General

• Product Type: Professional Streaming Transport without integrated DAC
• Product Name: Eversolo T10
• Dimensions W × H × D: 36.5 × 8.8 × 31 cm
• Weight: 6.3 kg
• Front Display: 8.6-inch LCD touchscreen

System Hardware

• Processor: 64-bit Octa-Core Processor
• RAM: 8 GB DDR4
• Internal Storage: 64 GB eMMC
• Built-in SSD Slots: 2 × M.2 NVMe 3.0 2280
• Storage Expansion: up to 16 TB total
• SSD: not included

Power Supply and Clock

• Power Supply: special O-type toroidal linear transformer with closed magnetic circuit
• System Clock: Femtosecond Clock
• Audio Clock: OCXO clock with Phase-Locked-Loop technology
• External Clock Input: Supports 10 MHz to 25 MHz at 50 or 75 Ohm

Network and Connectivity

• Ethernet: RJ45, 10 / 100 / 1000 / 2500 Mbps
• SFP Fiber Optic: Supports Gigabit Single-Mode Single-Fiber and Single-Mode Dual-Fiber Modules
• SFP Module: not included
• Wi-Fi: Dual-Band Wi-Fi 6, 2.4 GHz / 5 GHz
• USB-A Ports: 2 × USB 3.0

Supported Playback Formats

• PCM: up to 768 kHz / 32-bit Stereo
• DSD: up to DSD512 Stereo Native

Digital Audio Outputs

• USB Audio Output: up to DSD512 Native and PCM 768 kHz / 32-bit, galvanically isolated
• IIS Audio Output: up to DSD512 Native and PCM 768 kHz / 32-bit, with eight selectable pin configurations
• Optical and Coaxial S/PDIF Output: up to PCM 192 kHz / 24-bit Stereo and DoP64
• AES/EBU Output: up to PCM 192 kHz / 24-bit Stereo and DoP64

Streaming Services

• TIDAL
• Qobuz
• HIGHRESAUDIO
• Amazon Music
• IDAGIO
• Calm Radio
• Internet Radio
• TuneIn
• Radio Paradise
• Deezer
• SoundCloud
• Presto Music
• Apple Music

Streaming Protocols

• Spotify Connect Lossless
• TIDAL Connect
• Qobuz Connect
• DLNA

Operation and Control

• Control via touchscreen on the device
• App control for Android, iPhone, iPad, and TV
• Remote control
• Trigger Out
• Smart music library with global search, playlist functions, and full shuffle playback
• Integrated evotune room correction

Scope of Delivery

• Eversolo T10
• Remote control
• Power cable
• Documents
