Description
With the new "Single-Chassis-Separate" concept, Luxman pursues the ideal of an all-in-one flagship, bringing the integrated amplifiers of the Z-series to a new performance peak. As the premium model of the new Z-series, the L-509Z has evolved beyond the concept of a traditional integrated amplifier. Both the preamplifier and power amplifier sections simultaneously utilize Luxman's new generation of the amplifier feedback engine "LIFES" for the first time. Volume control is supported by the new "LECUA-EX" attenuation system, which prevents sound quality degradation and provides a more precise operating feel. The "Single-Chassis-Separate" concept, aiming for the ultimate in integrated amplifiers, now achieves unprecedented performance. By following the ideals of audio enthusiasts, Luxman combines its passion for music with enhanced technology. The L-509Z, a new pinnacle in LUXMAN integrated amplifier design.
The latest amplifier feedback engine literally brings music to life with LIFES* Version 1.0.
Properties
Rated output
120W + 120W (8Ω)
220W + 220W (4Ω)
Input sensitivity / Input impedance
PHONO (MM): 2.5mV/47kΩ
PHONO (MC-H): 0.3mV/100Ω
PHONO (MC-L): 0.1mV/40Ω
LINE: 180mV/47kΩ
BAL.LINE: 180mV/79kΩ
MAIN IN: 1.1V/47kΩ
Output voltage
PRE OUT: 1V
Frequency response
PHONO: 20Hz to 20kHz (±0.5dB)
LINE: 20Hz to 100kHz (within -3dB)
Total harmonic distortion (THD)
0.007% or less (8Ω, 1kHz)
0.03% or less (8Ω, 20Hz to 20kHz)
Signal-to-noise ratio (S/N, IHF-A)
PHONO (MM): 87dB or more
PHONO (MC-H): 70dB or more
PHONO (MC-L): 62dB or more
LINE: 106dB or more
Volume control
LECUA-EX
Amplification feedback circuit
LIFES 1.0
Output configuration
Bipolar 4-parallel Push-Pull
Damping factor
330
Maximum tone control
BASS: ±8dB at 100Hz
TREBLE: ±8dB at 760Hz
TREBLE: ±8dB at 10kHz
Power supply
230V~ (50Hz) / 115V~ (60Hz)
Power consumption
390W
150W (no signal), 0.5W (standby mode)
Dimensions (W x H x D)
440 x 193 x 463 mm
With 20mm front knob and 37mm rear terminal (incl. depth)
Weight (net)
29.4 kg (main unit)
Accessories
Remote control (RA-17A)
Power cord
Speaker terminals, supported Y-lug terminal size
Width of part a: 16mm or less
Width of part b: 7mm or more
Manufacturer information

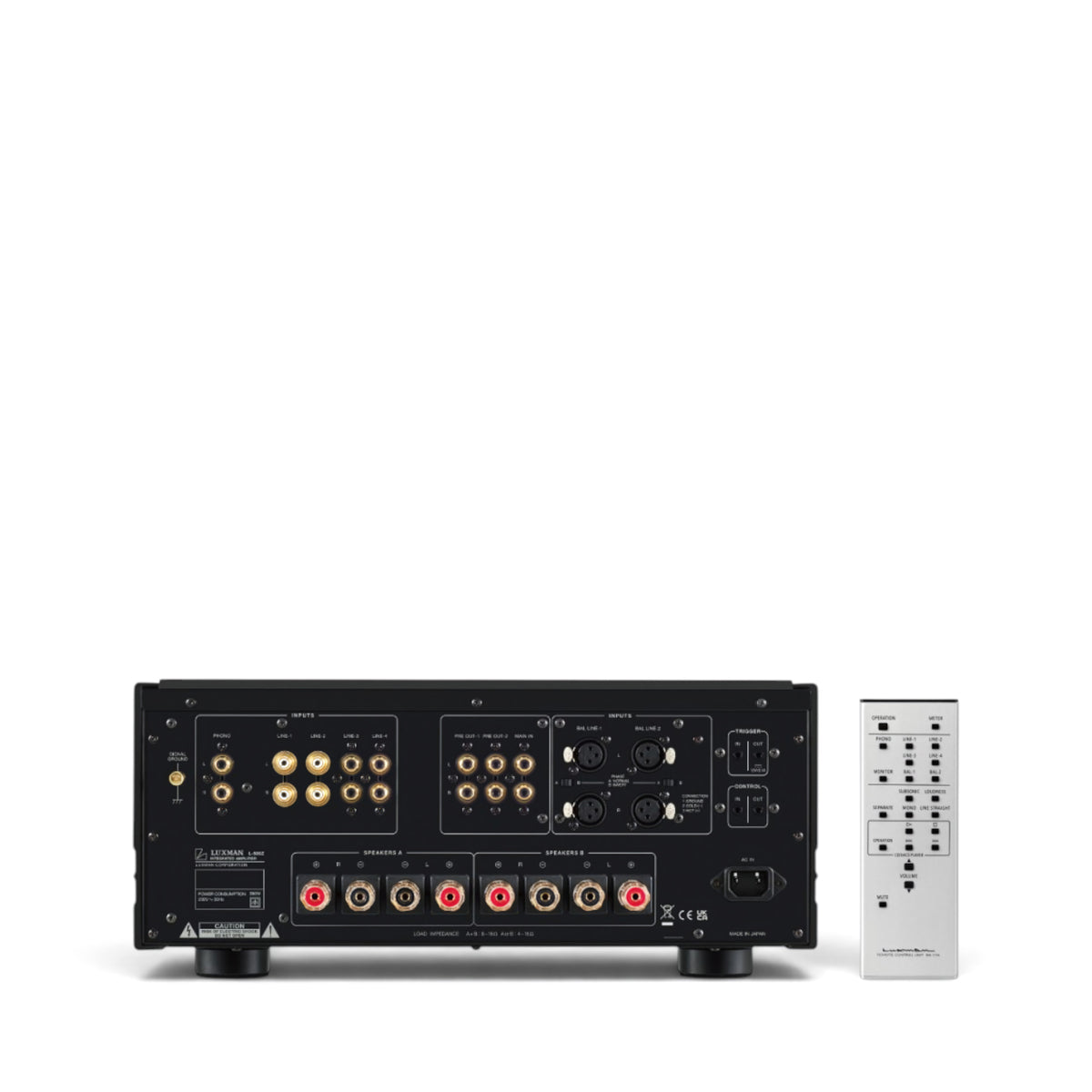

L-509Z Black Edition Centennial
100th Anniversary Limited Edition Luxman Celebrates a Century of Audiophile Masterpieces Exclusive Black Finish for Design Lovers and Collectors of Exclusive Audio Technology Luxman's Z-Series integrated amplifiers reach a new performance pinnacle with the L-509Z.
